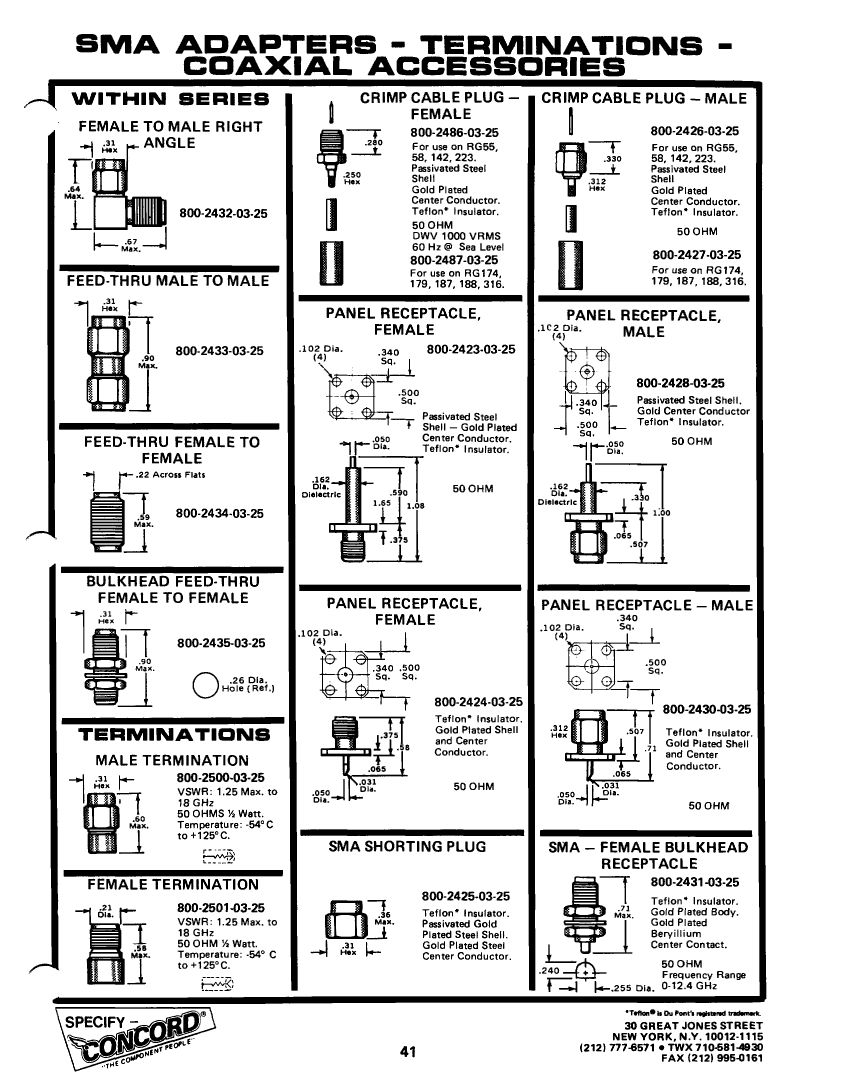

800-2426-03-25 Overview

RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	APPLICABLE CABLES: RG55; RG58; RG142; RG223
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	800
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

	800-2426-03-25	800-2487-03-25	800-2486-03-25	800-2427-03-25
Description	RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug	RF SMA Connector, Female, Cable Mount, Crimp Terminal, Plug	RF SMA Connector, Female, Cable Mount, Crimp Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	compli	compli	compli	compli
Other features	APPLICABLE CABLES: RG55; RG58; RG142; RG223	APLLICABLE CABLES: RG 174; RG 179; RG 187; RG 188; RG 316	APPLICABLE CABLES: RG55; RG58; RG142; RG223	APLLICABLE CABLES: RG 174; RG 179; RG 187; RG 188; RG 316
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	MALE	FEMALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	800	800	800	800
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Base Number Matches	1	1	1	1
