T225A334J035PS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> T225A334J035PS

T225A334J035PS: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 5% +Tol, 5% -Tol, 0.33uF,; CategoryPassive components capacitor; File Size2MB，11 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T225A334J035PS Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 5% +Tol, 5% -Tol, 0.33uF,

T225A334J035PS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	7023198687
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	TRAY:50
capacitance	0.33 µF
Capacitor type	TANTALUM CAPACITOR
diameter	2.29 mm
dielectric materials	TANTALUM (DRY/SOLID)
leakage current	0.0006 mA
length	6.35 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	No
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
method of packing	BULK
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	35 V
surface mount	NO
Delta tangent	0.03
Terminal shape	WIRE

T225A334J035PS Preview

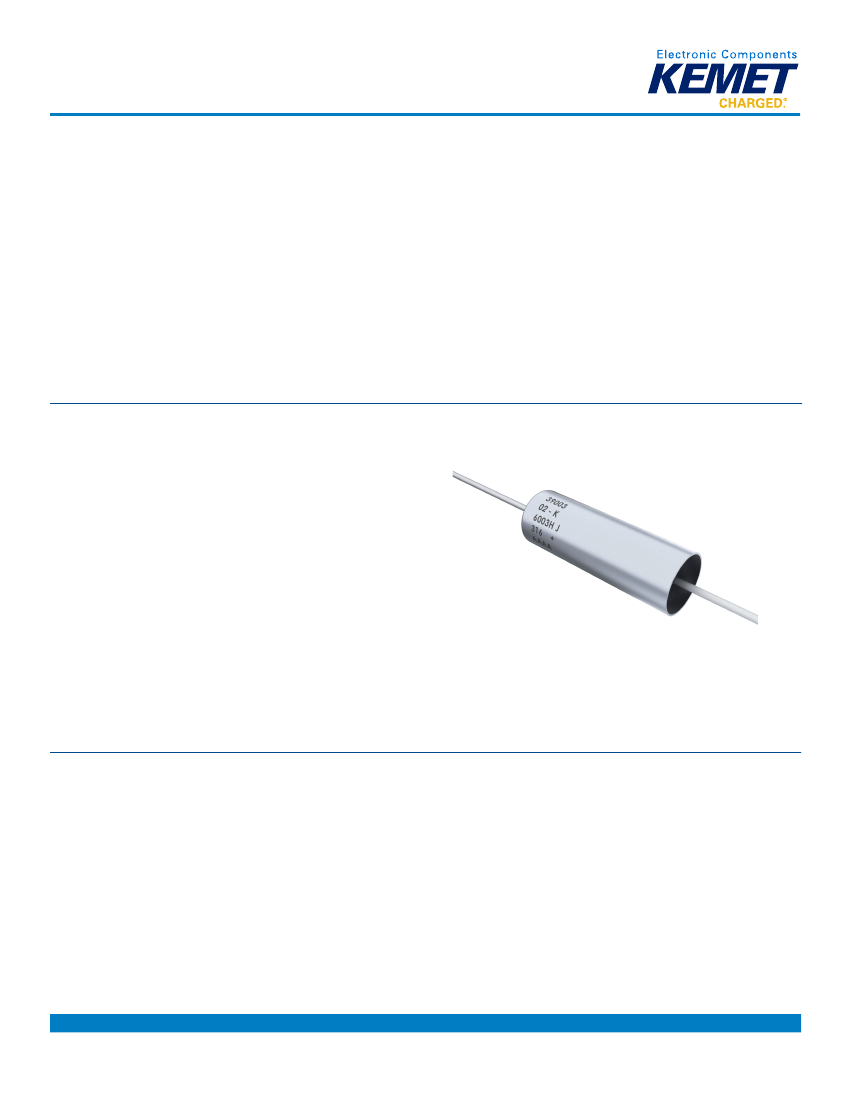

Tantalum Through-Hole Capacitors – Hermetically Sealed

T225 Series Axial High Temperature Solder (CSR09 Style)

Overview

The KEMET T225 High Temperature Solder Series of

solid tantalum capacitors is especially designed for

miniaturization and employs a unique glass-to-metal

compression end seal that has no protruding eyelet. This

flush end seal construction ideally suits the T225 Series

for all miniature high density packaging applications.

The capacitors consist of a dry porous tantalum pellet,

hermetically sealed in a solder coated metal case with

solder coated alloy 52 and solder coated nickel.

The internal design of these devices, as well as the

hermetic seal, includes high temperature solder (minimum

melting point of 221°C). The content of tin in the solder

does not exceed 97%. This assembly is especially suited

for temperature conditions where solder may fail due to

undesirable solder reflow.

The T225 series is approved to all ratings and failure rates of

MIL–PRF–39003/2.

Benefits

• Internal construction solder to resist up to 221°C

• Qualified to MIL–PRF–39003 (CSR09 Style)

• Failure rate options: Graded – B, C, D, and G, and

Exponential – M, P, R, and S

• Surge current options D, E, and F

• Operating temperature range of −55˚C to +125˚C

• Capacitance values of 0.047 μF to 18 μF

• Tolerances of ±5%, and ±10%

• Voltage rating of 6 – 75 VDC

• Case sizes: A and B

• Taped and reeled per EIA Specification RS–296

• Marking per MIL–STD–1285

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Applications

KEMET's T225 High Temperature Solder Series of solid tantalum capacitors is especially designed for miniaturization.

One world. One KEMET

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2065_T225 • 10/19/2018

Tantalum Hermetically Sealed/Axial Through-Hole Capacitors

T225 Series High Temperature Solder

Ordering Information

Capacitor

Class

Tantalum

225

Series

Hermetically

sealed

axial high

temperature

solder

225

010

Rated

Voltage

(VDC)

006 = 6

010 = 10

015 = 15

020 = 20

035 = 35

050 = 50

075 = 75

7200

Specification

Blank = Sleeved/Bulk

0100 = Without sleeve

7200 = Tape & Reel

7293 & 7443 = Ammo

4250 = 10 cycles, 25°C

after Weibull

4251 = 10 cycles, -55 &

85°C after Weibull

4252 = 10 cycles, -55 &

85°C before Weibull

All capacitors are sleeved

unless specified.

Case Capacitance Code Capacitance

Size

(pF)

Tolerance

First two digits

represent

significant

figures. Third digit

specifies number

of zeros to follow.

J = ±5%

K = ±10%

Failure Rate/Military

Termination

Product Only

Finish

Graded:

B = 0.1%/k hours

C = 0.01%/k hours

D = 0.001%/k hours

G = 1.0%/k hours

Exponential:

M = 1%/k hours

P = 0.1%/k hours

R = 0.01%/k hours

S = 0.001%/k hours

Standard

Ordering Information – (CSR09 Style)

M39003

Capacitor Class

Military

specification

number

/02

Slash

Specification

sheet number

3036

Dash Number

Failure rate

level

Surge Option

A = C-4250

B = C-4251

C = C-4252

Blank = No surge

Orders should be entered by the military specification number, including the dash number and surge option letter (A, B or C).

Performance Characteristics

Item

Operating Temperature

Rated Capacitance Range

Capacitance Tolerance

Rated Voltage Range

DF (120 Hz at 25°C)

ESR and Impedance (100 kHz at 25°C)

Leakage Current

Failure Rate (MIL–PRF–39003, CSR09

capacitors only)

−55°C to 125°C

0.047 – 18 μF at 120 Hz/25°C

J Tolerance (5%), K Tolerance (10%)

6 – 75 V

Refer to Part Number Electrical Specification Table

Refer to Part Number Electrical Specification Table (for reference only)

Refer to Part Number Electrical Specification Table (at rated voltage up to +85°C and 2/3 of

rated voltage applied at 125°C)

Approved failure rate: Graded G (1.0%/k hours), B (0.1%/k hours), C (0.01%/k hours),

D (0.001%/k hours) and Exponential M (1.0%/k hours), P (0.1%/k hours), R (0.01%/k hours),

S (0.001%/k hours)

Performance Characteristics

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2065_T225 • 10/19/2018

Tantalum Hermetically Sealed/Axial Through-Hole Capacitors

T225 Series High Temperature Solder

Dimensions – Inches (Millimeters)

SIDE VIEW

1.50±0.250

(38.10±6.35)

END VIEW

1.50±0.250

(38.10±6.35)

Case

Size

Uninsulated

±0.005 (±0.13)

0.085

(2.16)

0.127

(3.23)

Insulated

0.090 ±0.009

(2.29 ±0.23)

0.138 ±0.010

(3.51 ±0.25)

0.250+0.031/−0.015

(6.35+0.79/−0.38)

0.390±0.015

(9.91±0.38)

Wire Diameter

0.016+0.005/−0.001

(0.41+0.13/−0.03)

0.016+0.005/−0.001

(0.41+0.13/−0.03)

0.245+0.015/−0.010

(6.22+0.38/−0.25)

0.375±0.015

(9.53±0.38)

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2065_T225 • 10/19/2018

Tantalum Hermetically Sealed/Axial Through-Hole Capacitors

T225 Series High Temperature Solder

Table 1 – Ratings & Part Number Reference

MIL–PRF–39003 (CSR09) Capacitors

Rated

Voltage

Rated

Capacitance

Case

Size

Code

KEMET

Military Part

Number

(See below for

part options)

T225A275J006(1)S

T225A275K006(1)S

T225B186J006(1)S

T225B186K006(1)S

T225A185J010(1)S

T225A185K010(1)S

T225A225J010(1)S

T225A225K010(1)S

T225B106J010(1)S

T225B106K010(1)S

T225B126J010(1)S

T225B126K010(1)S

T225B156J010(1)S

T225B156K010(1)S

T225A105J015(1)S

T225A105K015(1)S

T225A125J015(1)S

T225A125K015(1)S

T225A155J015(1)S

T225A155K015(1)S

T225B825J015(1)S

T225B825K075(1)S

T225A564J020(1)S

T225A564K020(1)S

T225A684J020(1)S

T225A684K020(1)S

T225A824J020(1)S

T225A824K020(1)S

T225A105J020(1)S

T225A105K020(1)S

T225B335J020(1)S

T225B335K020(1)S

T225B395J020(1)S

T225B395K020(1)S

T225B475J020(1)S

T225B475K020(1)S

T225B565J020(1)S

T225B565K020(1)S

T225B685J020(1)S

T225B685K020(1)S

T225A334J035(1)S

T225A334K035(1)S

T225A394J035(1)S

T225A394K035(1)S

T225A474J035(1)S

T225A474K035(1)S

T225B225J035(1)S

T225B225K035(1)S

T225B275J035(1)S

T225B275K035(1)S

(see below for

part options)

Leakage

% at

25°C

120 Hz

Maximum

120 Hz

Maximum

Dash Number Reference

Failure Rate Level (%/1,000 hours)

MIL–PRF–39003/2J

Exponential

(1.0)

1001-

0001-

1002-

0002-

1007-

0007-

1008-

0008-

1009-

0009-

1010-

0010-

1011-

0011-

1012-

0012-

1013-

0013-

1014-

0014-

1015-

0015-

1016-

0016-

1017-

0017-

1018-

0018-

1019-

0019-

1020-

0020-

1021-

0021-

1022-

0022-

1023-

0023-

1024-

0024-

1025-

0025-

1026-

0026-

1027-

0027-

1028-

0028-

1029-

0029-

(1.0)

(0.1)

1061-

0061-

1062-

0062-
