10129817-442100LF datasheet, PDF

10129817-442100LF: DescriptionBoard Connector, 10 Contact(s), Male, Straight, Solder Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size332KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10129817-442100LF Overview

Board Connector, 10 Contact(s), Male, Straight, Solder Terminal, Locking, Natural Insulator

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
body width	0.378 inch
subject depth	0.504 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S4P6
Contact to complete cooperation	AU ON PD-NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	HYBRID
Insulator color	NATURAL
Manufacturer's serial number	10129817
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	10

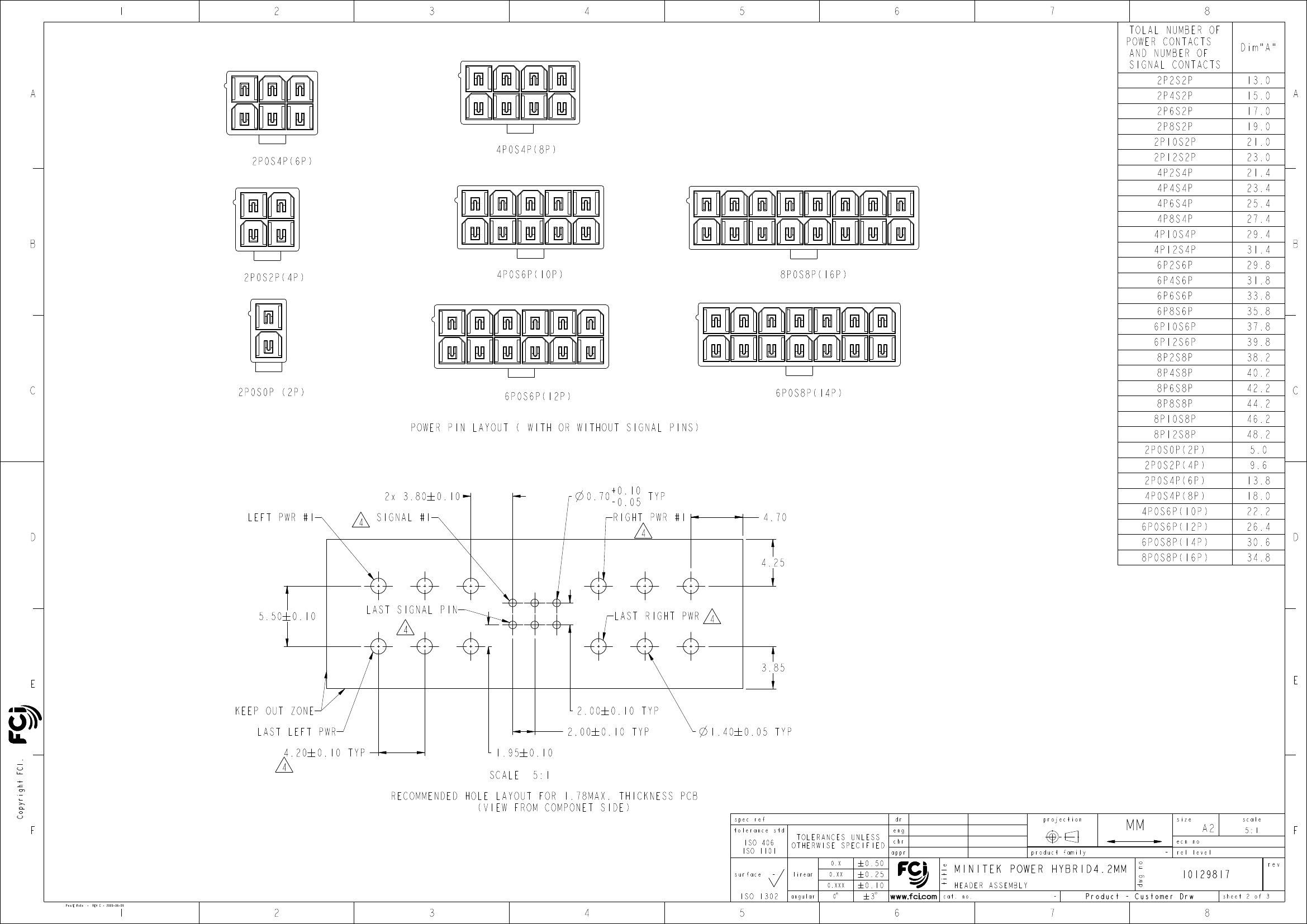

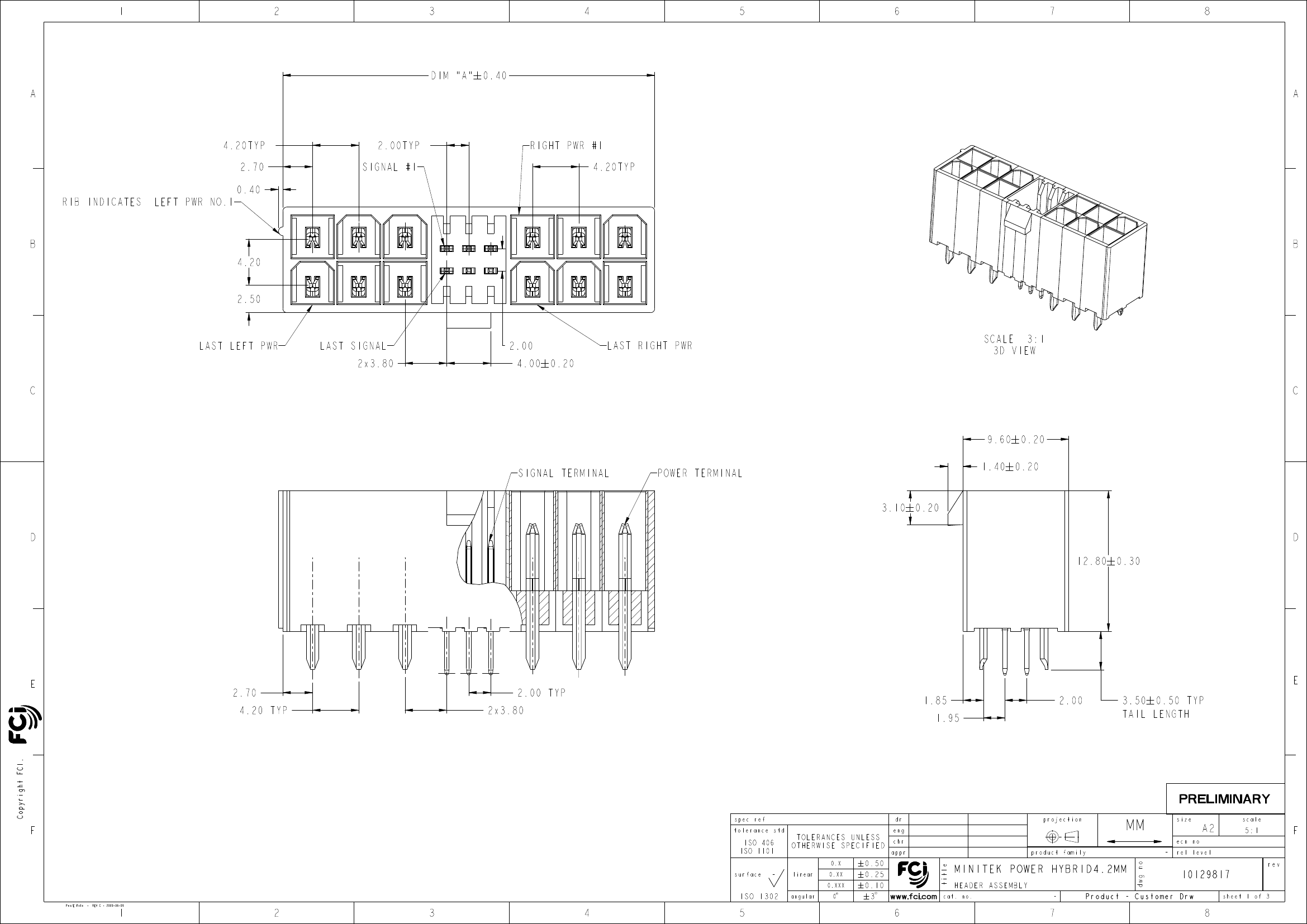

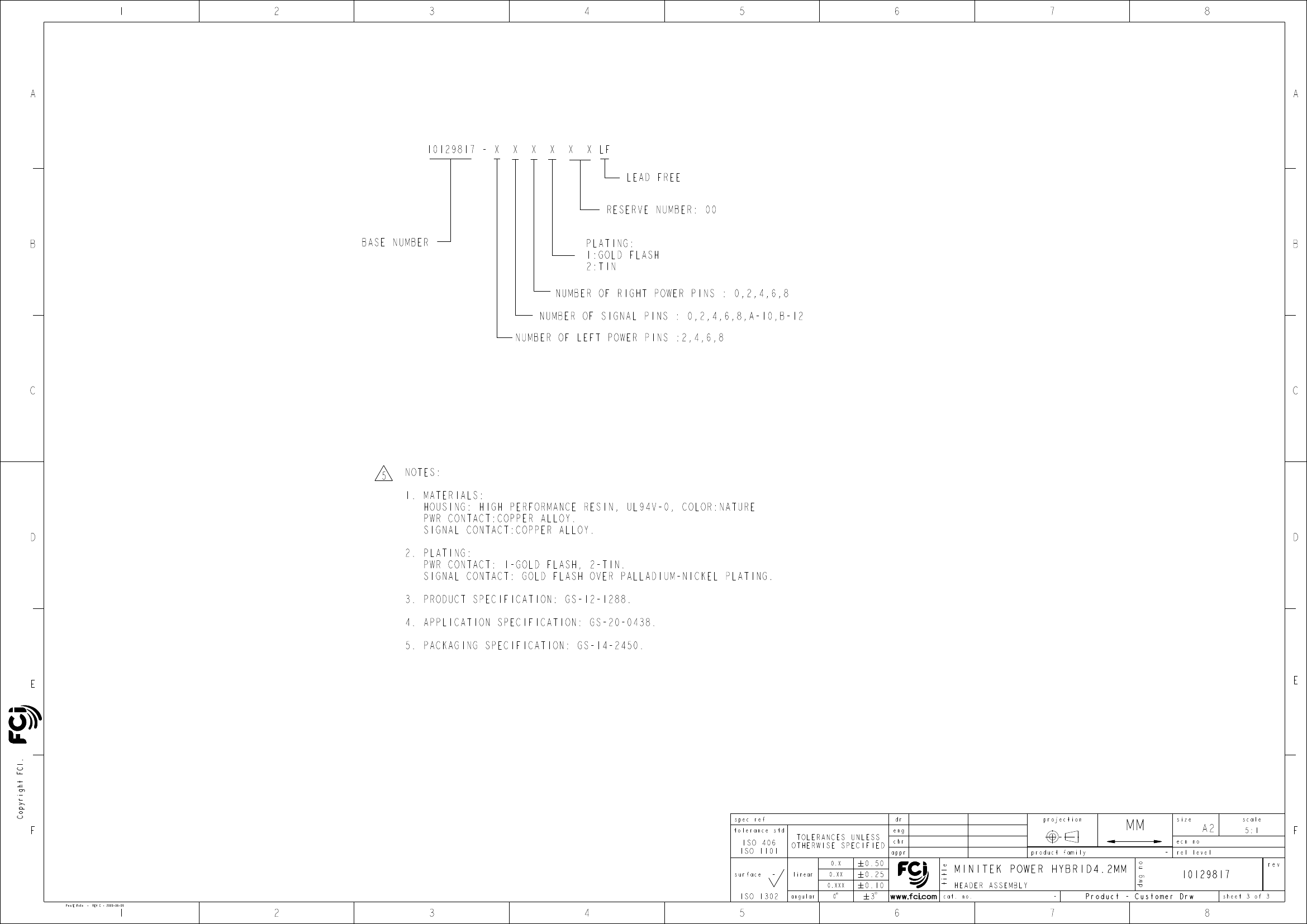

Jes Wu

-

2015/01/16

2015/03/25

-

Preliminary

1

For information only. This is a preliminary customer document that is subject to change without notice.
