32H07-660: DescriptionElectric Fuse, 32A, 660VAC, 250VDC, Inline/holder; CategoryCircuit protection Circuit protection; File Size61KB，1 Pages; ManufacturerCooper Industries

Download Datasheet Parametric Compare View All

32H07-660 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32H07-660	-	-	View	Buy Now

32H07-660 Overview

Electric Fuse, 32A, 660VAC, 250VDC, Inline/holder

32H07-660 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body height	22 mm
Body length or diameter	52 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	2100 J
Manufacturer's serial number	H07-660
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	52mm x 22mm
Rated current	32 A
Rated voltage (AC)	660 V
Rated voltage (DC)	250 V
Guideline	BS; IEC
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

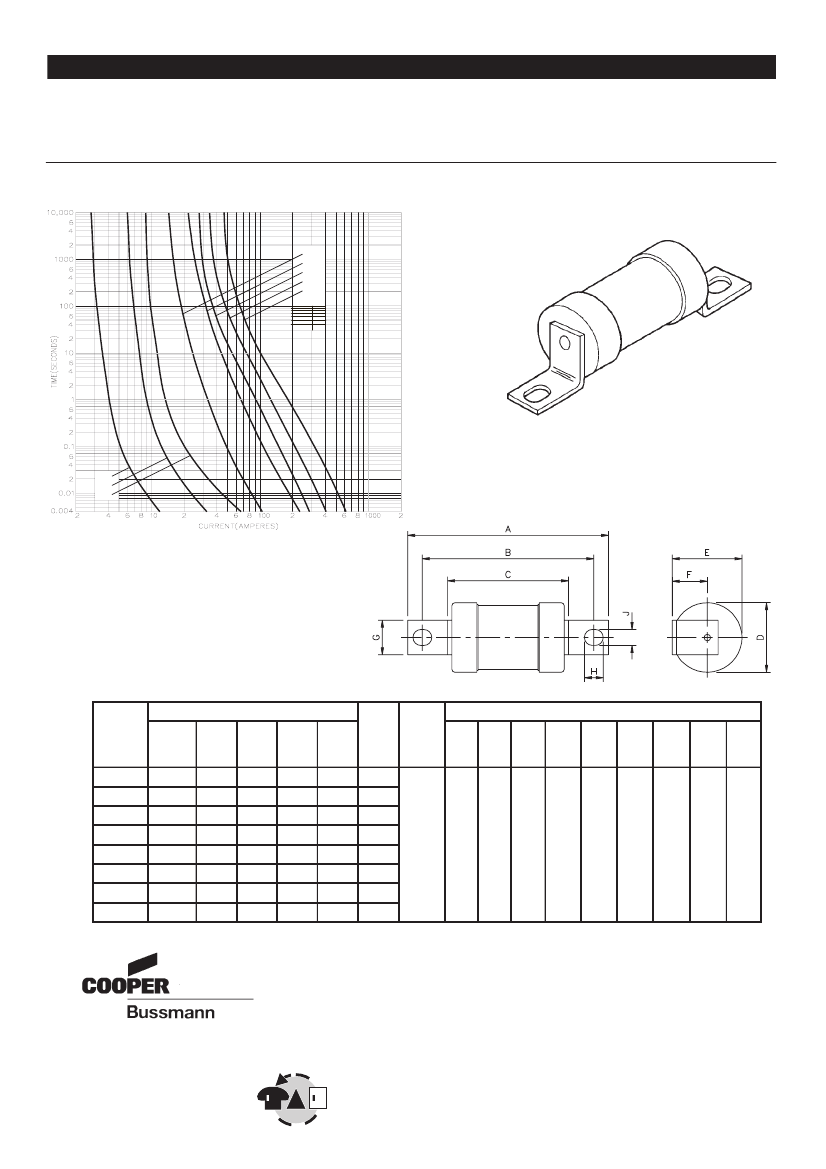

Bussmann

BS88, IEC269

Industrial HRC Fuse Links 660V Range

Offset Bolted Tags

Time-Current Characteristic Curve

H07-660

10A

16A

20A

25A

32A

Offset Bolted Tag

Dimensional Data

Carton Quantities:

All H07 range packed in 20's

Ordering Code:

Rating followed by H07-660

I t (Ampere

Seconds)

Catalog

Number

H07-660

Amp

Pre-

Ratings Arcing

0.8

250

430

850

2,100

Total

415V

1.6

130

765

900

1,800

4,400

Total

550V

2.4

180

1,000

1,300

2,500

Total

660V

3.2

220

1,200

2,500

4,900

Nom.

Rated

Watts

Voltage

Loss

1.5

2.7

3.3

2.8

2.7

3.1

3.3

660V

a.c.

250V

d.c.

Dimensions (mm)

82.3

71.5

52.0

22.0

22.4

11.5

8.7

7.7

5.4

6,100 12,000

This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end

user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products and

to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any

technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible

applications.

Bussmann Division

Cooper (U.K.) Ltd

Burton-on-the-Wolds

Leicestershire, LE12 5TH

United Kingdom

Tel: (44) (0)1509 88 27 37

Fax: (44) (0)1509 88 27 86

Head Office

St. Louis, MO, U.S.A. Tel: (314) 527-3877 Fax: (800) 544-2570 International Fax: (314) 527-1445

Bussmann Information Fax (00 1) 314 527 1450

HO7 11.96

Doc. No. 4150

32H07-660 Related Products

	32H07-660	10H07-660	16H07-660	20H07-660	25H07-660	2H07-660	4H07-660	6H07-660
Description	Electric Fuse, 32A, 660VAC, 250VDC, Inline/holder	Electric Fuse, 10A, 660VAC, 250VDC, Inline/holder	Electric Fuse, 16A, 660VAC, 250VDC, Inline/holder	Electric Fuse, 20A, 660VAC, 250VDC, Inline/holder	Electric Fuse, 25A, 660VAC, 250VDC, Inline/holder	Electric Fuse, 2A, 660VAC, 250VDC, Inline/holder	Electric Fuse, 4A, 660VAC, 250VDC, Inline/holder	Electric Fuse, 6A, 660VAC, 250VDC, Inline/holder
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown
body height	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm
Body length or diameter	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	2100 J	44 J	250 J	430 J	850 J	-	5 J	20 J
Manufacturer's serial number	H07-660	H07-660	H07-660	H07-660	H07-660	H07-660	H07-660	H07-660
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
physical size	52mm x 22mm	52mm x 22mm	52mm x 22mm	52mm x 22mm	52mm x 22mm	52mm x 22mm	52mm x 22mm	52mm x 22mm
Rated current	32 A	10 A	16 A	20 A	25 A	2 A	4 A	6 A
Rated voltage (AC)	660 V	660 V	660 V	660 V	660 V	660 V	660 V	660 V
Rated voltage (DC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE
Base Number Matches	1	1	1	1	1	1	-	-
