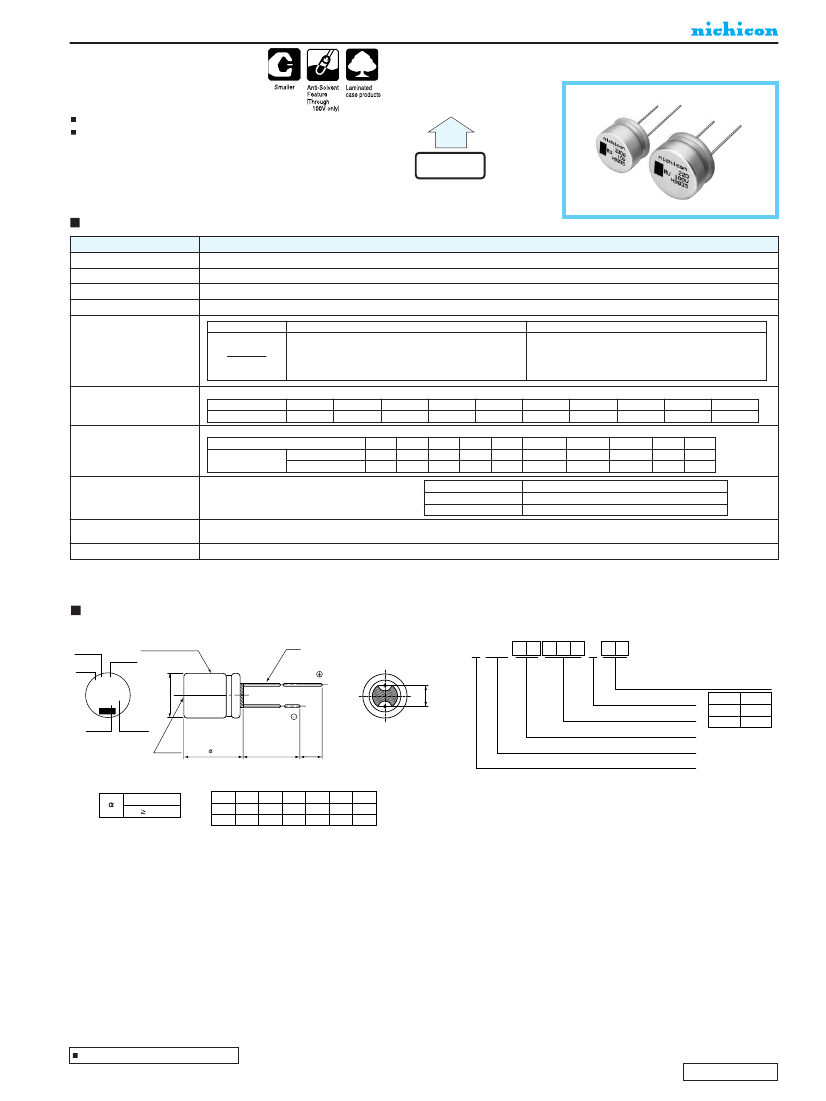

ALUMINUM ELECTROLYTIC CAPACITORS
RU
12.5mmL MAX.
series
Laminated case series.
12.5mmL MAX. height.
RY
High
Temperature
RU
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Performance Characteristics
—40~+85°C(6.3V~400V), —25~+85°C(450V)
6.3~450V
6.8~6800µF
±20% at 120Hz, 20°C
Rated voltage(V)
6.3~100V
After 1 minute's application of rated voltage, leakage current
is not more than 0.03CV or 4 (µA), whichever is greater.
After 2 minutes' application of rated voltage, leakage current
is not more than 0.01CV or 3 (µA), whichever is greater.
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
160~450V
After 1 minute's application of rated voltage,
Leakage Current
I
=0.04CV+100(µA) or less
Measurement frequency : 120Hz, Temperature : 20°C
tan
δ
Rated voltage(V)
tan
δ(MAX.)
6.3
0.28
10
0.24
6.3
5
12
16
0.20
10
4
10
25
0.16
16
3
8
25
2
5
35
0.14
35
2
4
50
0.12
50~100
2
3
63
0.12
100
0.12
160~350 400~450
0.20
0.25
400
6
10
450
15
—
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage(V)
Z—25°C/ Z+20°C
Impedance ratio
ZT/Z20(MAX)
Z—40°C/ Z+20°C
160~200 250~350
3
4
4
8
Endurance
After 2000 hours' application of rated voltage
at 85°C,capacitors meet the characteristic
requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±20% of initial value
200% or less of initial specified value
Initial specified value or less
Shelf Life
Marking
After leaving capacitors under no load at 85°C for 1000 hours, they meet the specified value for
endurance characteristics listed above.
Black print on the case top.
Radial Lead Type
Capacitance
Trade
mark
nichicon
Type numbering system (Example : 10V 2200µF)
φ
d
1
2
3
4
5
6
7
8
9
10 11
Laminated case
Voltage
URU 1 A 2 2 2 M HR
Configuration
Capacitance tolerance(±20%)
Rated Capacitance(2200µF)
Rated voltage(10V)
2200
RU 10V
H9806
φD
+
0.5 MAX
P±
0.5
φ
D
12.5~18
20~25
Code
HR
RR
Series
Lot No.
Pressure
relief vent
L
+
MAX
15
MIN
4
MIN
Series name
Type
(
φ
D < 20)1.5
(
φ
D 20)2.0
φD
P
φd
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
20
10
1.0
22
10
1.0
25
12.5
1.0
Please refer to page 18, 19, 20 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.
Dimension table in next page.
