RH100A-24.576-S-F-3020-EXT-TR

Description
Series - Fundamental Quartz Crystal,
CategoryPassive components    Crystal/resonator
File Size345KB,4 Pages
ManufacturerRaltron
Websitehttp://www.raltron.com/
Environmental Compliance
Download Datasheet Parametric View All

RH100A-24.576-S-F-3020-EXT-TR Overview

Series - Fundamental Quartz Crystal,

RH100A-24.576-S-F-3020-EXT-TR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7199199988
Reach Compliance Codecompliant
Other featuresAEC-Q200; TS-16949
Ageing1 PPM/YEAR
Crystal/Resonator TypeSERIES - FUNDAMENTAL
Drive level100 µW
frequency stability0.002%
frequency tolerance30 ppm
JESD-609 codee4
Installation featuresSURFACE MOUNT
Nominal operating frequency24.576 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical size3.2mm x 2.5mm x 0.7mm
Series resistance50 Ω
surface mountYES
Terminal surfaceGold (Au)
AUTOMOTIVE GRADE
SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 1 of 4
SERIES RH100A
FEATURES
ISO/TS 16949 CERTIFIED FACILITY
RELIABILITY TESTING PER AEC-Q200
PPAP DOCUMENTATION AVAILABLE
SMALL PACKAGE OF 3.2 x 2.5 mm
EXCELLENT TOLERANCE AND
STABILITY
CUSTOM SPECIFICATIONS AVAILABLE
SPECIFICATIONS
PARAMETER
FREQUENCY RANGE
MODE OF OSCILLATION
FUNDAMENTAL
VALUE
10.000 MHz to 65.000 MHz
10.000 MHz to 65.000 MHz
±50 ppm max
(±10 ppm, ±15 ppm, ±20 ppm and ±30 ppm
available)
±50 ppm max
(±10 ppm, ±15 ppm, ±20 ppm and ±30 ppm
available, see Table 2)
-20°C to +70°C Standard
-40°C to +85°C Extended
-40°C to +105°C Extended6
-40°C to +125°C Extended1
-55°C to +125°C
±1 ppm per year max
6 pF to 32 pF or Series
See Table 1
3.0 pF max
100 µW typ, 500 µW max
500 MΩ min
±5 ppm max 75 cm drop test in
3 axes onto a hard wood surface
260°C for 10 s max
FREQUENCY TOLERANCE AT 25°C
FREQUENCY STABILITY OVER TEMPERATURE
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
AGING
LOAD CAPACITANCE
EQUIVALENT SERIES RESISTANCE
SHUNT CAPACITANCE
DRIVE LEVEL
INSULATION RESISTANCE
SHOCK RESISTANCE
REFLOW CONDITIONS
‡ Not all combinations of temperature and frequency stability available, consult factory.
TABLE 1
FREQUENCY
(MHz)
10≤F0<12
12≤F0<20
20≤F0<24
24
≤F0≤65
TABLE 2
ESR MAX
(Ω)
300
80
60
50
TEMP RANGE
(°C)
STABILITY
(ppm)
±10
±15
±20
±30
-20 to +70
O
O
O
O
-40 to +85
O
O
O
×
-40 to +105
O
×
×
-40 to +125
×
×
Note: O: Available,
△:
Conditional,
×:
Not available
±50
O
O
O
O
MODE
FUND
FUND
FUND
FUND

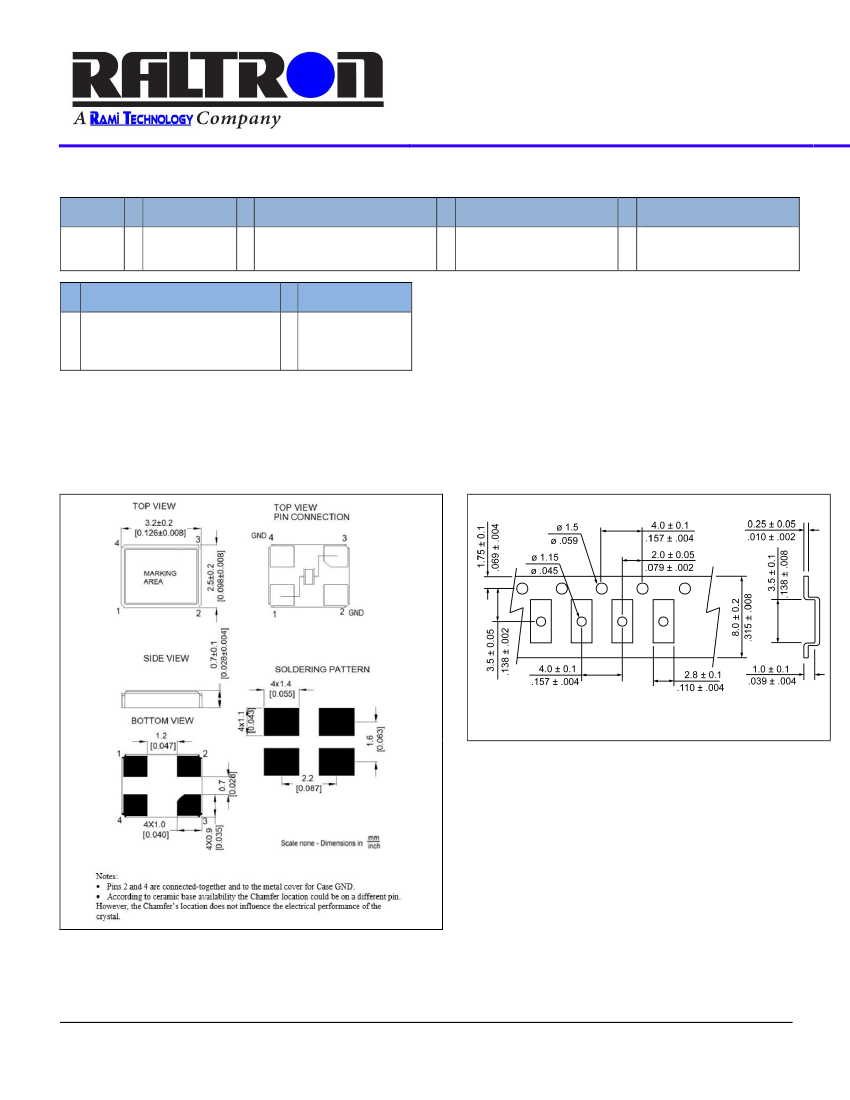

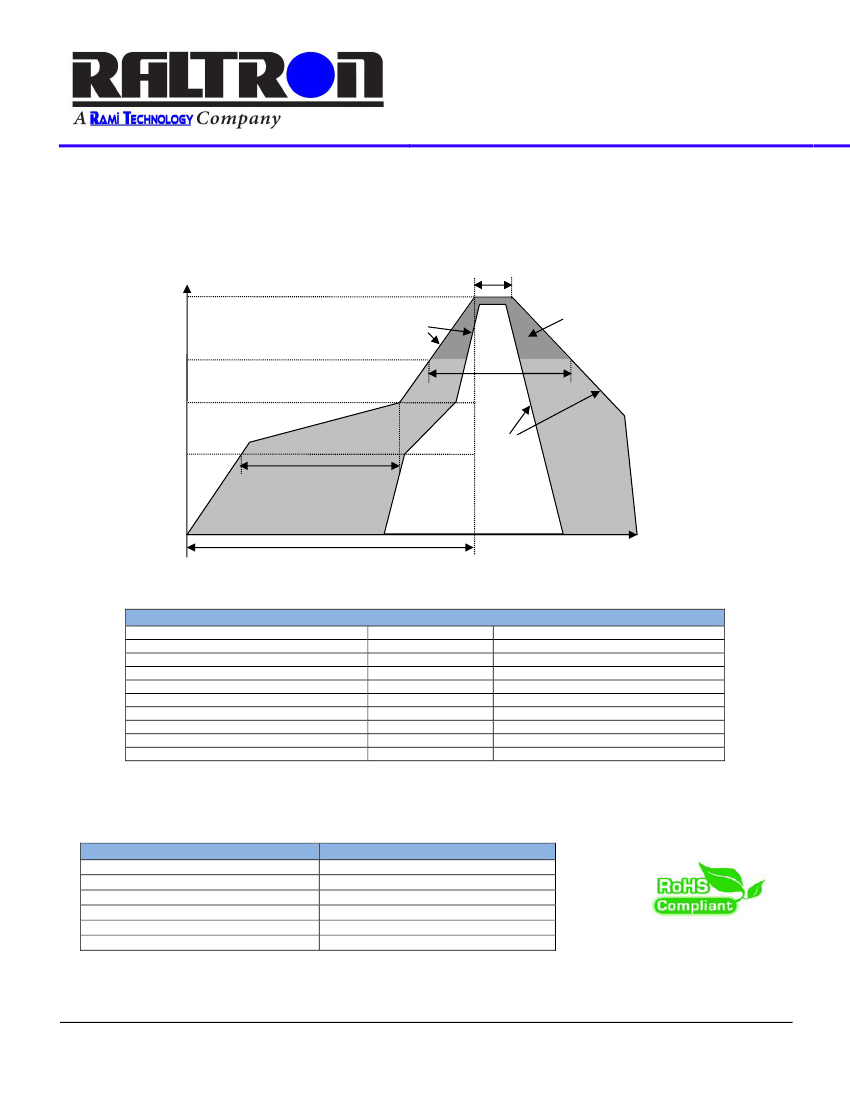

RALTRON ELECTRONICS
10400 N.W. 33
rd
STREET
Miami, Florida 33172
U.S.A.
Telephone: +1-305-593-6033
Fax: +1-305-594-3973
e-mail: sales@raltron.com
web site: http://www.raltron.com
