F-210
ZHDL2–30–D–05.00–3
ZHDL2–20–D–05.00–2
(0,50mm) .0197"

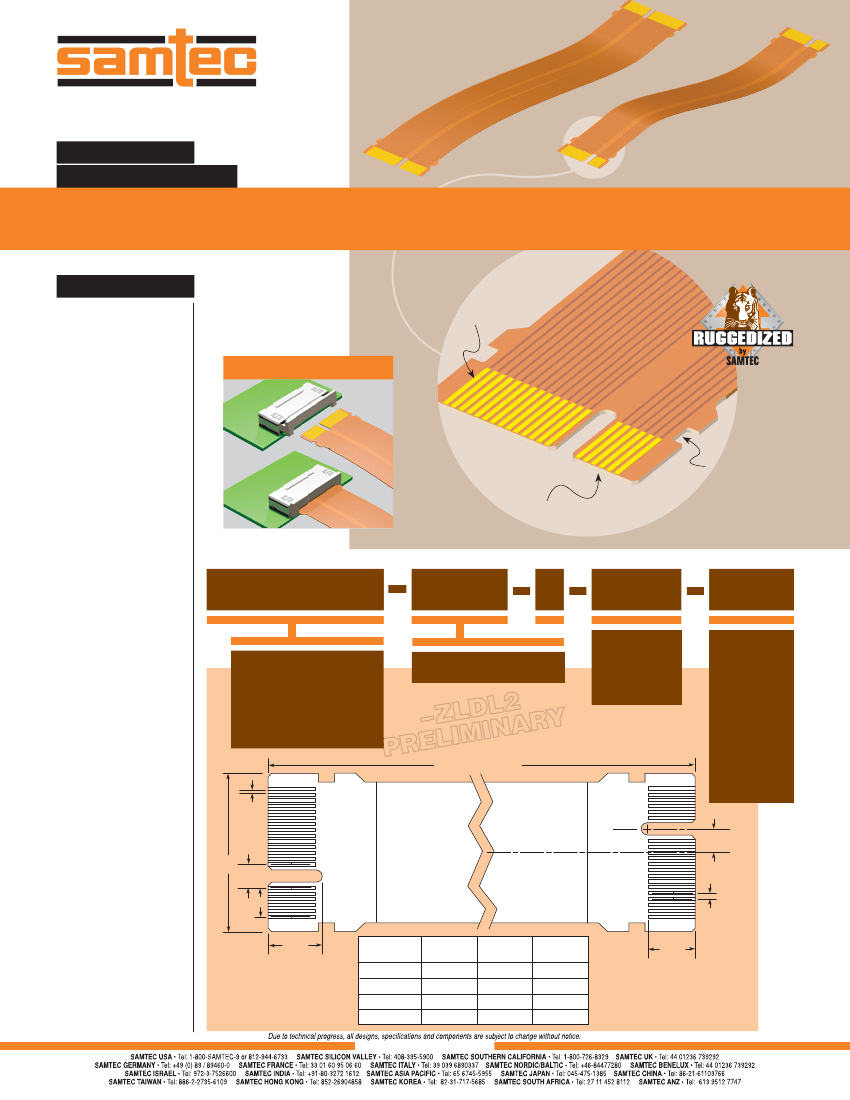

ZHDL2, ZLDL2 SERIES
HIGH SPEED RUGGED ZIF FLEX DATA LINK
SPECIFICATIONS
For complete specifications
see www.samtec.com?ZHDL2
or www.samtec.com?ZLDL2
Cable:
1 oz. rolled annealed copper
Operating Temp Range:
-55°C to +105°C
Plating:
30µ" (0,76µm) Au over
100µ" (2,54µm) Ni
Flammability Rating:
UL 94 VO
Impedance (ZHDL2 only):
50Ω –SE
90Ω –DP
RoHS Compliant:
Yes
Mates with:
ZHR5
Cost-effective high
speed flex data link
APPLICATION
Choice of high speed or
standard speed design
Notch for
positive
retention
TYPE
FLEX
NO. OF
POSITIONS
D
OVERALL
LENGTH
WIRING
OPTION
–05.00
ZHDL2
= High Speed: Signals on top;
grounds on bottom
–20, –30, –40, –50
= 5.00" (127,0mm)
–1
= Pin 1 to Pin 1
(ZLDL2 only)
–10.00
= 10.00" (254,0mm)
–2
= Pin 1 to Pin 2
ZLDL2
= Standard Speed: Signals on
both sides of flex
OVERALL LENGTH
–3
= Pin 1 to Pin N-1
–4
= Pin 1 to Pin N
(ZLDL2 only)
(0,30)
.012
C
A
(2,00)
.079
B
(0,50)
.0197
(4,65)
.183
NO. OF
POSITIONS
–20
–30
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–40
–50
A
(13,60) .535
(18,60) .732
(23,60) .929
(28,60) 1.126
B
(2,50) .098
(5,50) .217
(7,50) .295
(10,50) .413
C
(2,00) .079
(1,50) .059
(2,00) .079
(1,50) .059
(4,00)
.157
WWW.SAMTEC.COM
