P0250.562NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> P0250.562NL

P0250.562NL: DescriptionGeneral Purpose Inductor, 5.6uH, 15%, 1 Element, SMD, 7360, ROHS COMPLIANT; CategoryPassive components inductor; File Size177KB，1 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

P0250.562NL Overview

General Purpose Inductor, 5.6uH, 15%, 1 Element, SMD, 7360, ROHS COMPLIANT

P0250.562NL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	7360
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	7360
structure	Unshielded
DC Resistance	0.02 Ω
Nominal inductance(L)	5.6 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	P0250NL
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package height	7.37 mm
Package length	18.62 mm
Package form	SMT
Package width	15.14 mm
Maximum rated current	5.3 A
series	P0250NL
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE MEASURED WITH PEAK DC CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	15%
Base Number Matches	1

Preview

Download Datasheet

View All

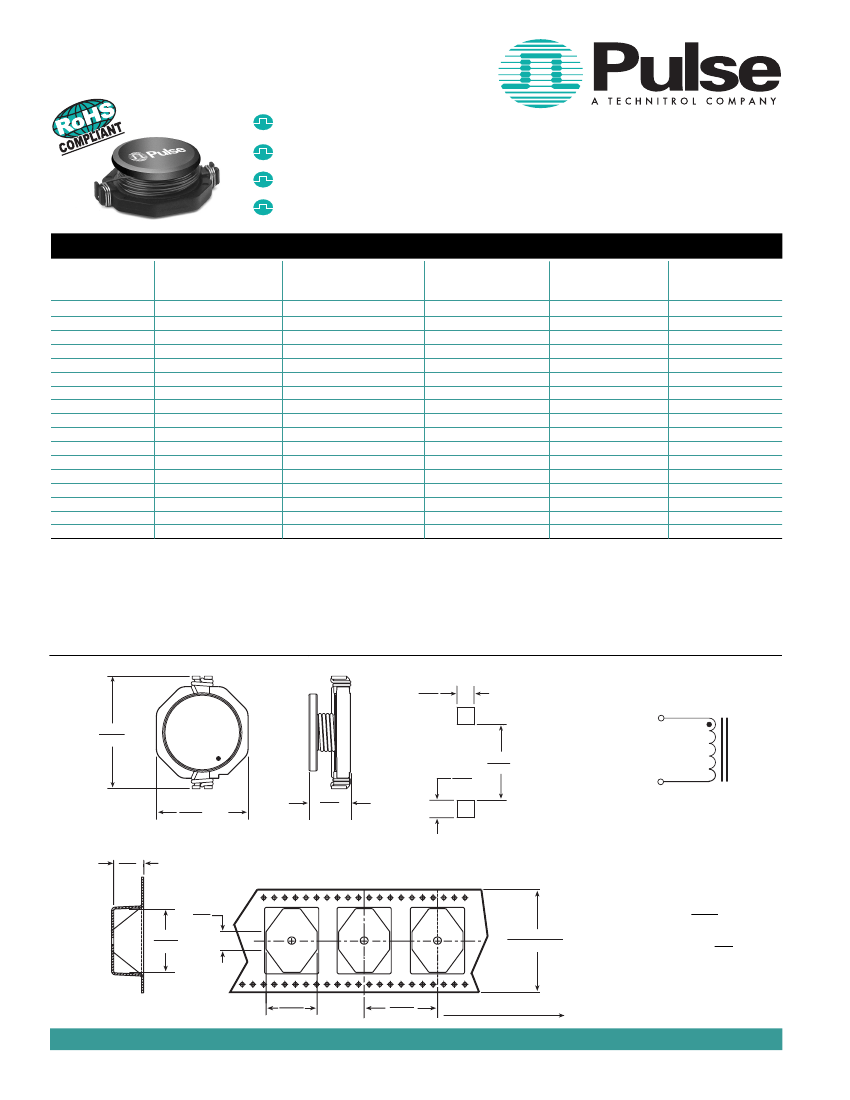

SMT POWER INDUCTORS

Unshielded Drum Core - P0250NL Series

Height:

7.37mm Max

Footprint:

18.62mm x 15.14mm Max

Current Rating:

up to 8.6A

Inductance Range:

1µH to 1030µH

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

6,7

Number

P0250.102NL

P0250.222NL

P0250.332NL

P0250.562NL

P0250.103NL

P0250.153NL

P0250.223NL

P0250.333NL

P0250.473NL

P0250.683NL

P0250.104NL

P0250.154NL

P0250.224NL

P0250.334NL

P0250.474NL

P0250.684NL

P0250.105NL

Inductance

@ I

(µH ± 15%)

1.0

2.2

3.3

5.6

100

150

220

330

470

680

1000

Irated

(A)

8.6

7.1

6.2

5.3

4.3

4.0

3.5

3.0

2.6

2.3

1.8

1.5

1.2

1.0

.82

.72

.56

DCR (MAX)

(mΩ)

130

190

250

380

560

850

1100

1800

Saturation Current

(A) @

25°C

20.0

16.0

14.0

12.0

10.0

8.0

7.0

5.5

4.5

3.5

3.0

2.6

2.4

1.9

1.4

1.2

1.0

Heating Current

(A)

8.60

7.10

6.20

5.30

4.30

4.00

3.50

3.00

2.60

2.30

1.80

1.50

1.20

1.00

0.82

0.72

0.56

NOTES:

1. The temperature of the component (ambient plus temperature

rise) must be within the specified operating temperature range.

2. Inductance tested at 100kHz, 0.1 mV

RMS

3. Inductance drop = 10% typical at the saturation current.

ΔT

= 40°C rise typical at the heating current.

5. The rated current is the lower of the saturation or heating current.

6. Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the part number

(i.e. P0250.102NL becomes P0250.102NLT). Pulse complies to industry standard tape and

reel specification EIA481.

7. The "NL" suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not

necessarily RoHS compliant, but are electrically and mechanically equivalent to NL versions.

If a part number does not have the "NL" suffix, but an RoHS compliant version is required,

please contact Pulse for availability.

Mechanical

SUGGESTED PAD LAYOUT

.110

2,79

.733 MAX

18,62

Schematic

XXX

.290

7,37

MAX

.115

2,92

.490

12,45

.596 MAX

15,14

NOTE: Dot indicates start of winding

.299

5,36

Weight

. . . . . . . . 3.6 grams

Tape & Reel

. . . . . . 250/reel

.291

7,39

.762

19,35

1.260

± .012

32,00

± 0,30

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

TAPE & REEL LAYOUT

.620

15,75

.945

24,00

USER DIRECTION OF FEED

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

SPM2007 (11/07)
