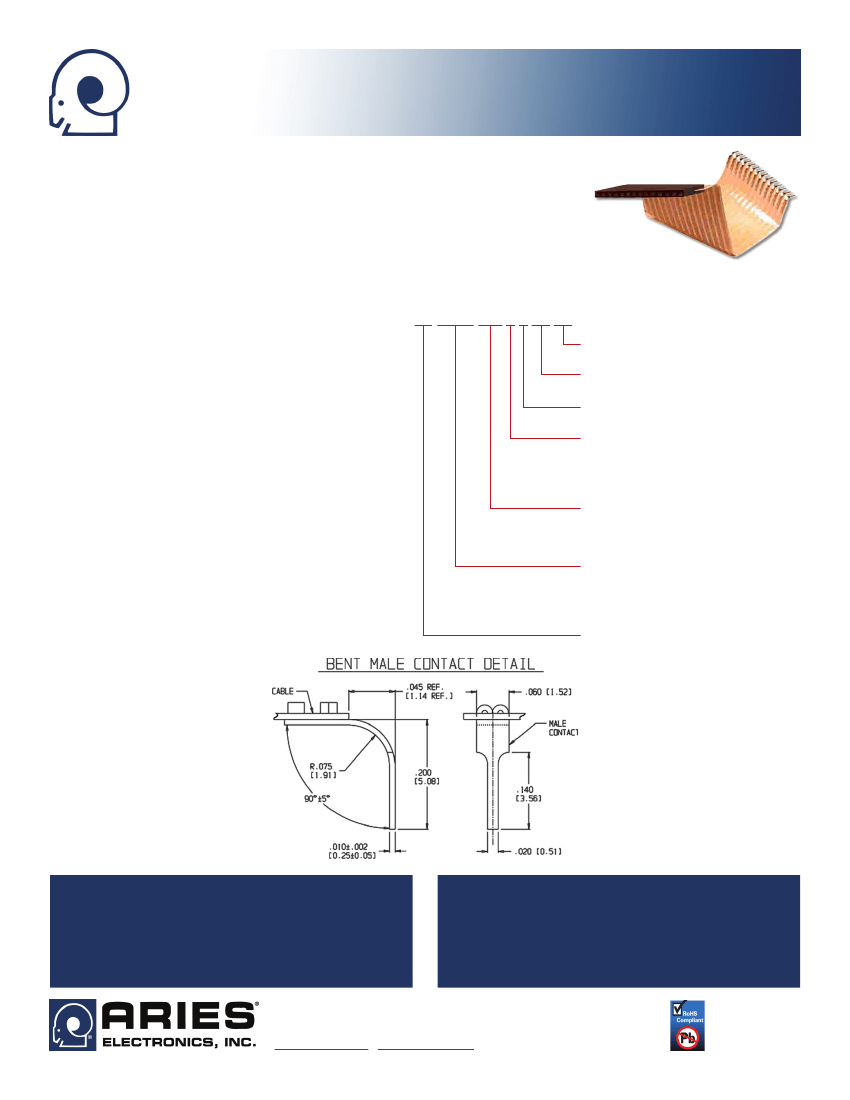

Series 181 thru 183
90° Pin-Staked Flex Jumper
FEATURES
• Combination of Thin, Flexible, Solid Cu Conductors embedded between layers of Tough, Flexible,
Flame-retardant Insulation
GENERAL SPECIFICATIONS
•
STANDARD CABLE INSULATION: White UL VW-1, Style 2643 Flame-retardant Polyester (Mylar)
adhesive
•
CABLE INSULATION: High-temp, Flame retardant Polyimide (Kapton) with acrylic adhesive
•
CABLE CONDUCTORS: Solid Cu with a cross-sectional area
ORDERING INFORMATION
equivalent to that of 26-gauge AWG
XX-XXXX-18X X X XX XX
•
FEMALE HOUSING: Black UL 94V-0 glass-filled Stanyl 4/6
Nylon
Insulation Option
•
CRIMP-ON PINS: Spring-tempered Cu 510
HT = High-temp cable insulation
•
PIN PLATING: 100µ [2.54µ] min. matte Sn per ASTM B545-
Plating Option
97(2004)e1 over 50µ min. Ni per ASTM AMS-QQ-N-290
TL = Sn/Pb
–OR– 100µ [2.54µ] min. 93/7 Sn/Pb per SAE AMS-P-81728
Polarization Option
over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
P = Polarization stripe
•
CABLE CURRENT RATING: 3 amps
Bend Option
•
CABLE VOLTAGE RATING: 300V
A = Both ends bent 90°, same direction
•
CABLE DIELECTRIC STRENGTH: 2500V/mil, min. (standard)
B = One male end bent 90°
4000V/mil, min. (high-temp)
C = Both ends bent 90°, opposite direction
•
CABLE INSULATION RESISTANCE:
1000 MΩ min. (standard)
D = One female end bent 90°
100,000 mΩ (high-temp)
Series
•
CONDUCTOR/CONTACT RESISTANCE (avg.):
20 mΩ initial
181 = Male, both ends
(max. 20 mΩ increase) based on a 2" cable at 20°C
182 = Male/Female (Sn)
183 = Female, both ends (Sn)
•
OPERATING TEMPERATURE: 67 to 257°F [-55 to 105°C]
•
ACCEPTS LEADS (female housing): 0.024-0.030 [0.61-0.76]
Cable Length “L” (inches)
2" = 002 (min)
square, 0.150 [3.81] long min.
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05]
dia.
2.5" = 002.5
2.25" = 002.25
2.125" = 002.125
No. of Conductors
(4 thru 40)
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
MAY SHIP WITH OR WITHOUT POLARIZATION STRIPE UNLESS SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11019
Rev. 11.2
1 of 2

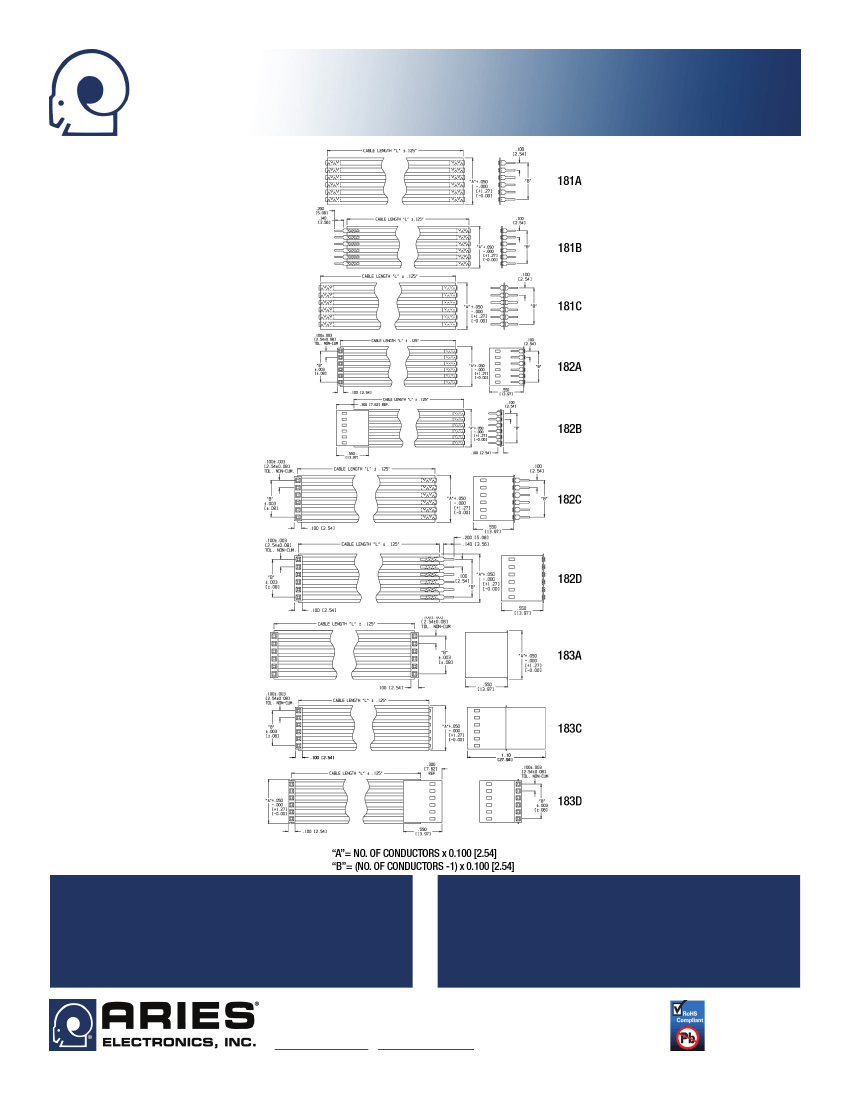

Series 181 thru 183
90° Pin-Staked Flex Jumper
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
MAY SHIP WITH OR WITHOUT POLARIZATION STRIPE UNLESS SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11019
Rev. 11.2
2 of 2
