SMT Inductors, SIMID Series
SIMID 1210−H
B82422H
Size 1210 (EIA) or 3225 (IEC)
Rated inductance 1 to 680
mH
Rated current 61 to 1150 mA
Construction
S
Ferrite drum core
S
Laser−welded winding
S
Flame−retardant encapsulation
Features
S
Very high current handling capability
S
Suitable for reflow soldering acc. JEDEC J−STD 020C
S
lead−free, RoHS−compatible
S
qualified acc. AEC−Q200
Applications
S
Filtering of supply voltages, coupling, decoupling
S
DC/DC converters / switch mode power supplies
S
Automotive electronics
S
Telecommunications
Terminals
S
Electro−plated
S
Base material CuSn6
S
0,4mm Cu; 1−2mm Ag; 5−7mm Sn (lead-free)
Marking
Marking on component:
L value (in
mH)
and tolerance of L value (coded)
Date of manufacture (coded)
Delivery mode
8mm blister tape, reel packing 180mm Ø reel (2000 pcs) or 330mm Ø reel (7500 pcs)
Taping in accordance to IEC 60286−3. For details on taping and packing refer to data book
“Chokes and Inductors” and to Epcos Homepage.
Please read the important notes
at the end of this document
1
B82422−H1*−3−7659
28.06.2006
SMT Inductors, SIMID Series
SIMID 1210−H
B82422H

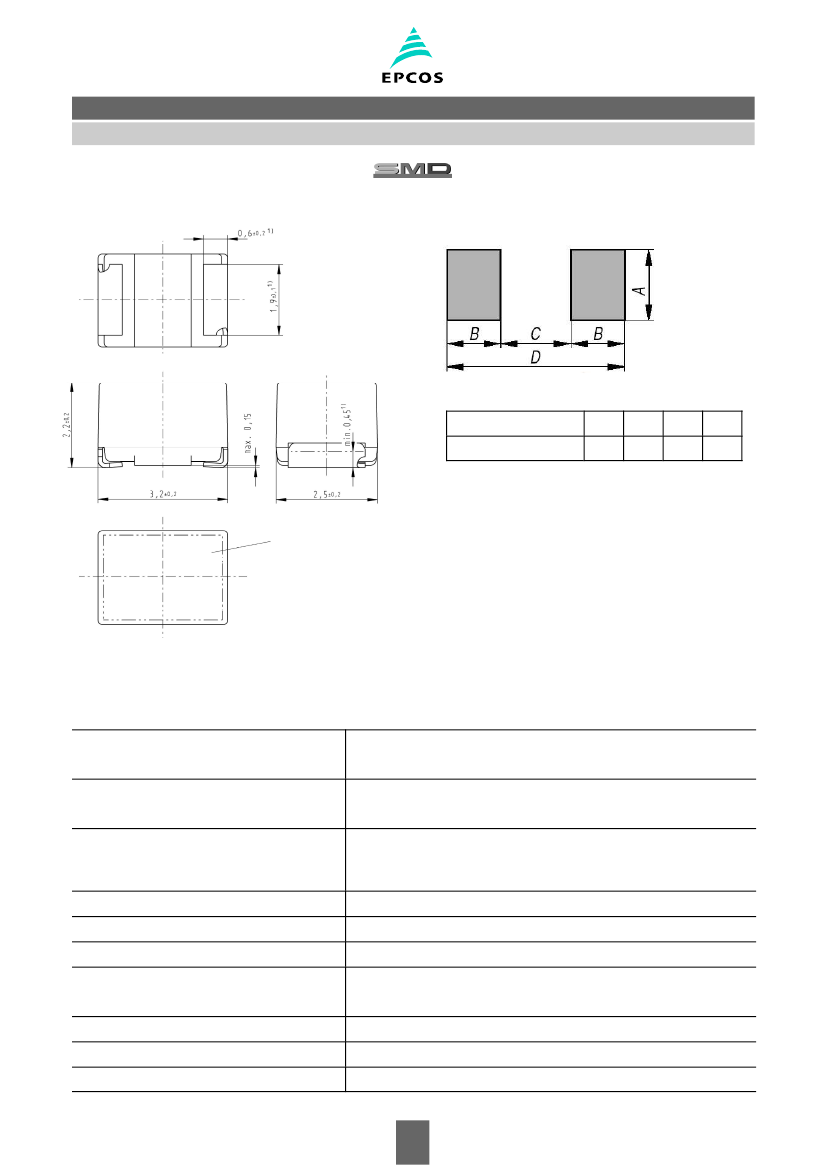

Dimensional drawing
Layout recommendation
Dimensions (mm)
Reflow soldering
A
2,70
B
1,15
C
2,10
D
4,40
Marking
1) Soldering area, tinned
Technical data and measuring conditions
Electrical specifications at T
A
= 20°C
Rated inductance L
R
Q factor Q
min
Rated current I
R
Self−resonance frequency f
res,min
DC resistance R
max
Climatic category
Solderability
Resistance to soldering heat
Permissible PCB bending
Weight
Please read the important notes
at the end of this document
Measured with impedance analyzer HP 4294A
at frequency f
L
Measured with impedance analyzer HP 4294A
at frequency f
Q
Maximum permissible DC with inductance decrease
DL/L
0
v10%
and temperature increase of
v45K
at
rated temperature of 105°C
Measured with network analyzer HP 8753
measuring current < I
R
55/150/56 to IEC 60068−1
lead-free to IEC 60068−2−58 and
Jedec J−STD 002B / JESD22−B102D
to IEC 60068−2−20 and MIL−STD−202, method 210
2mm (100mm long standard PCB)
Approx. 50mg
B82422−H1*−3−7659
28.06.2006
2
