3-1393731-4 datasheet, PDF - EEWORLD Datasheet

3-1393731-4: DescriptionCONNECTOR,D-SHELL,PCB MNT,RECEPT,15 CONTACTS,SKT,0.108 PITCH,COMPLIANT FIT TERMINAL,#4-40; CategoryThe connector The connector; File Size423KB，9 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

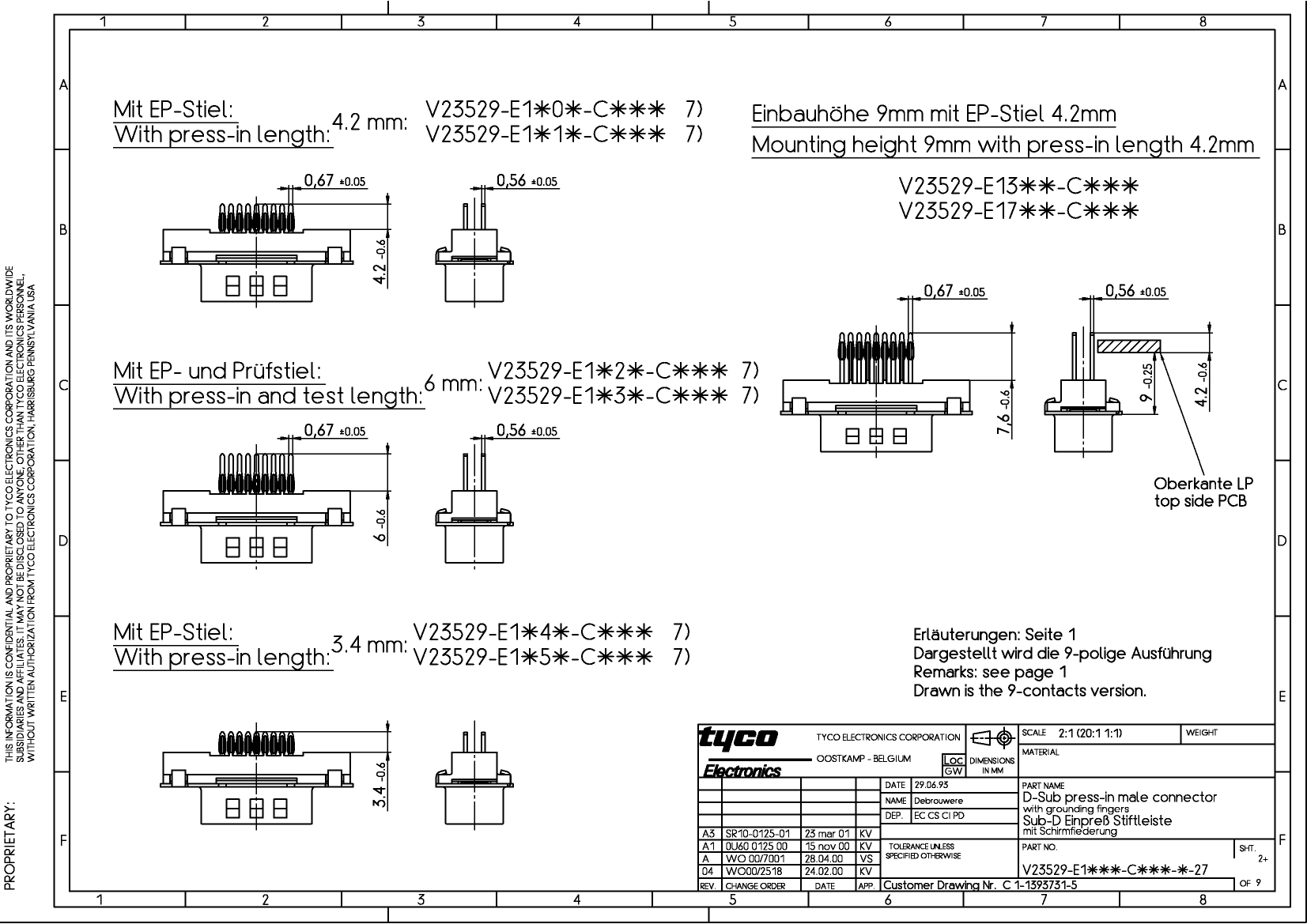

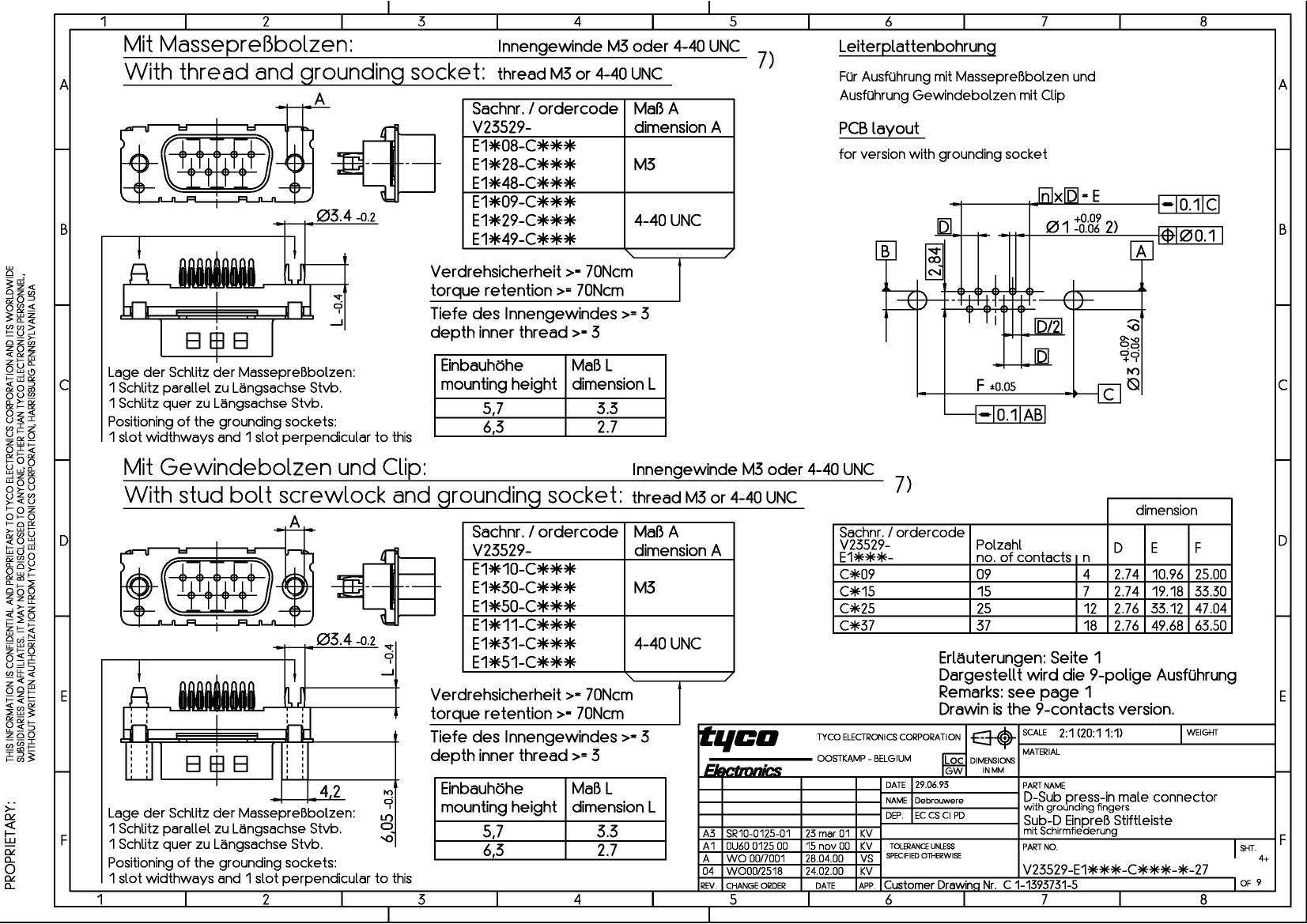

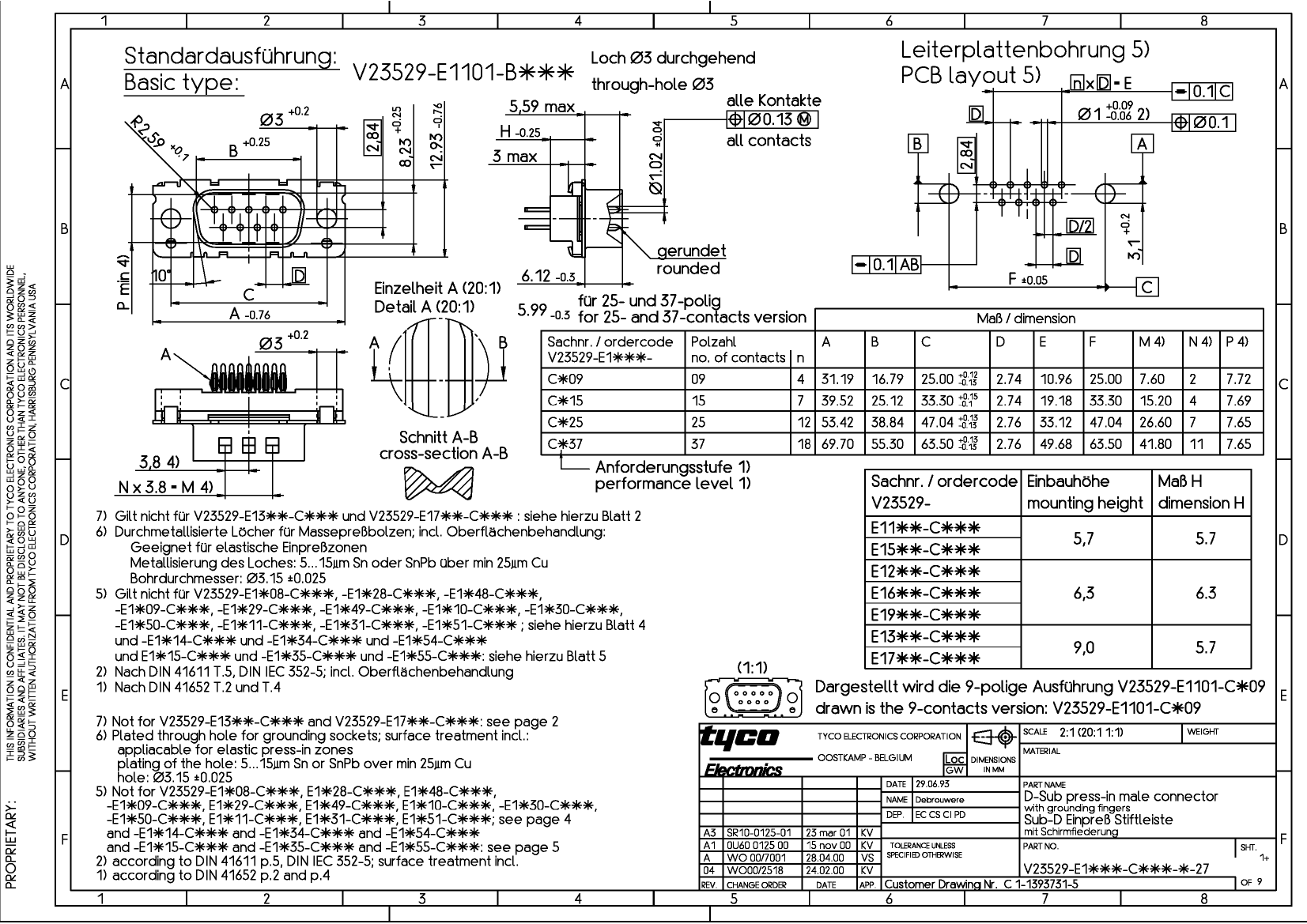

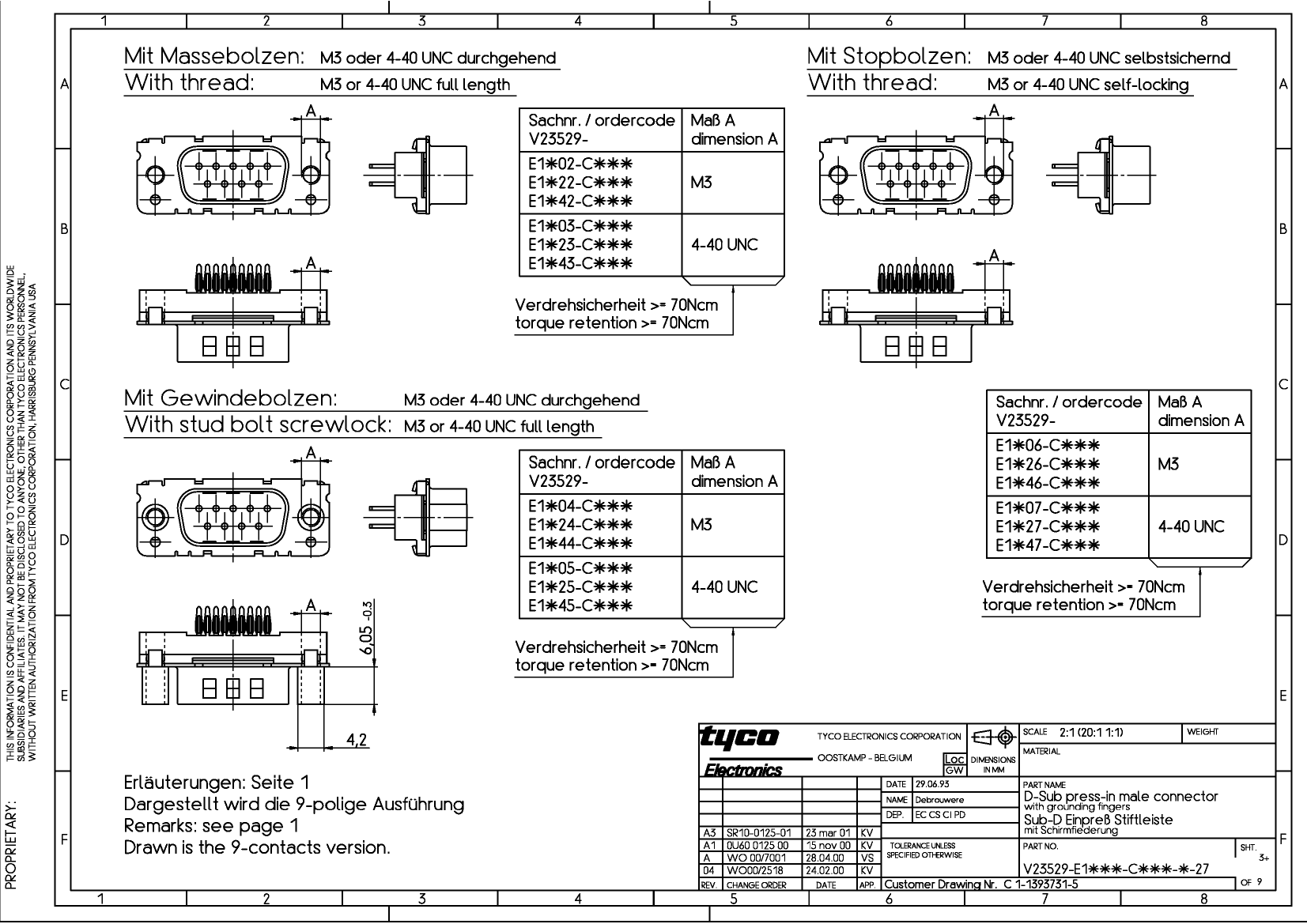

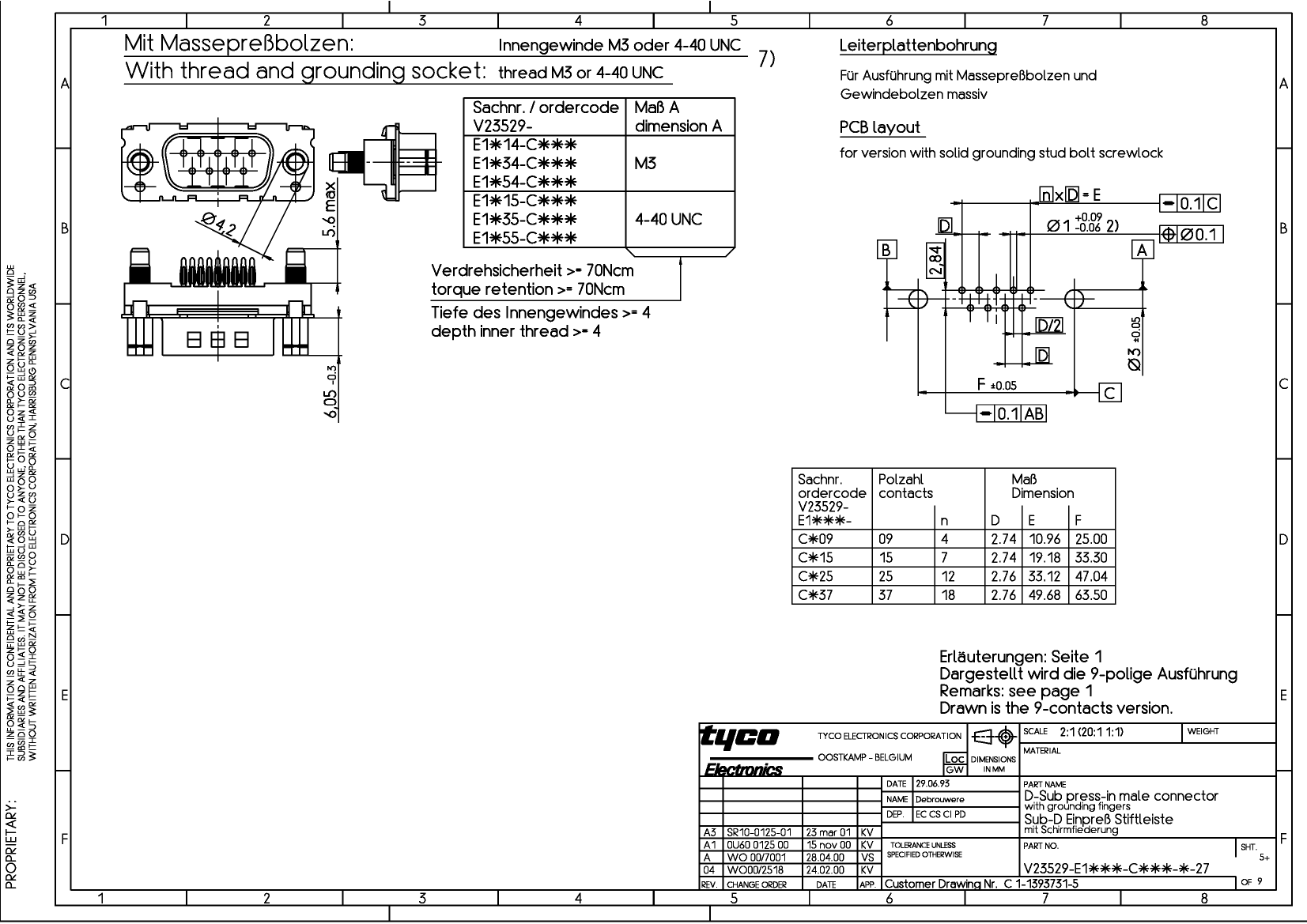

3-1393731-4 Overview

CONNECTOR,D-SHELL,PCB MNT,RECEPT,15 CONTACTS,SKT,0.108 PITCH,COMPLIANT FIT TERMINAL,#4-40

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304016694
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ELV & ROHS COMPLIANT
body width	0.509 inch
subject depth	0.224 inch
body length	1.556 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON PD-NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
Manufacturer's serial number	1393731
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	3.3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.166 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
Evacuation force-minimum value	2.224 N
