MX7572JN12+ datasheet, PDF - EEWORLD Datasheet

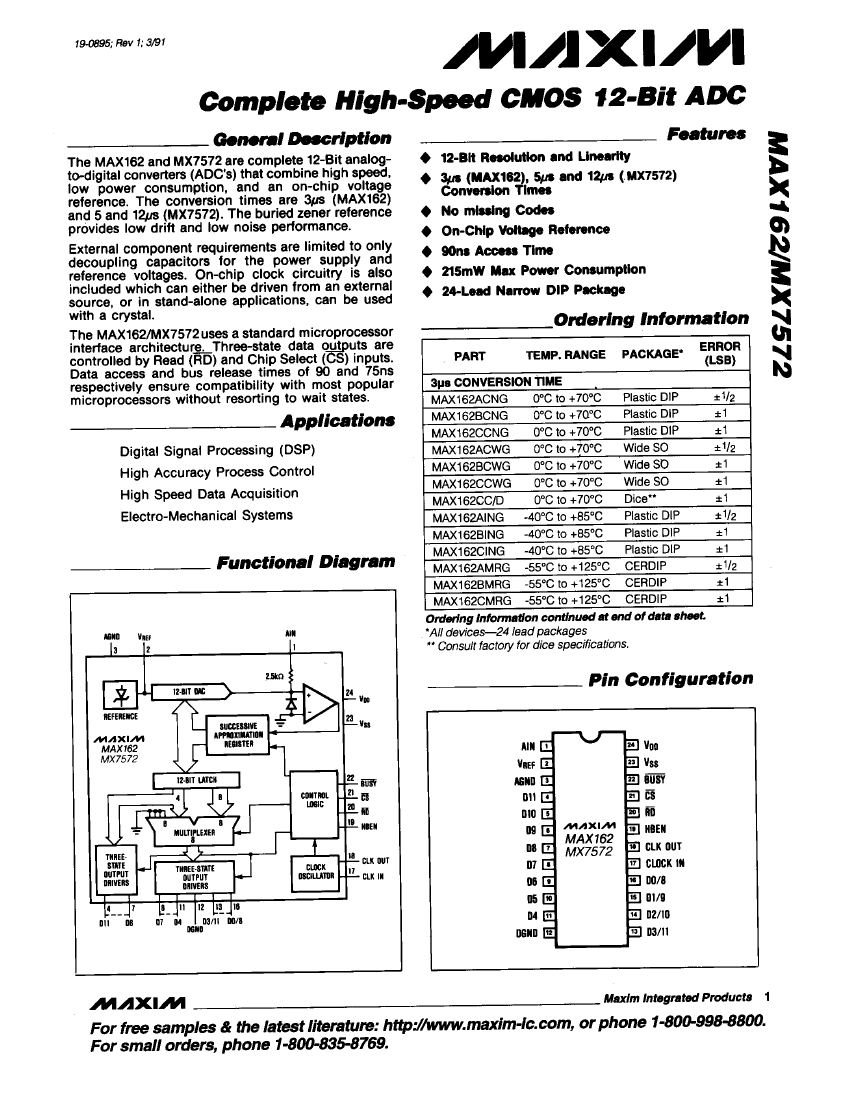

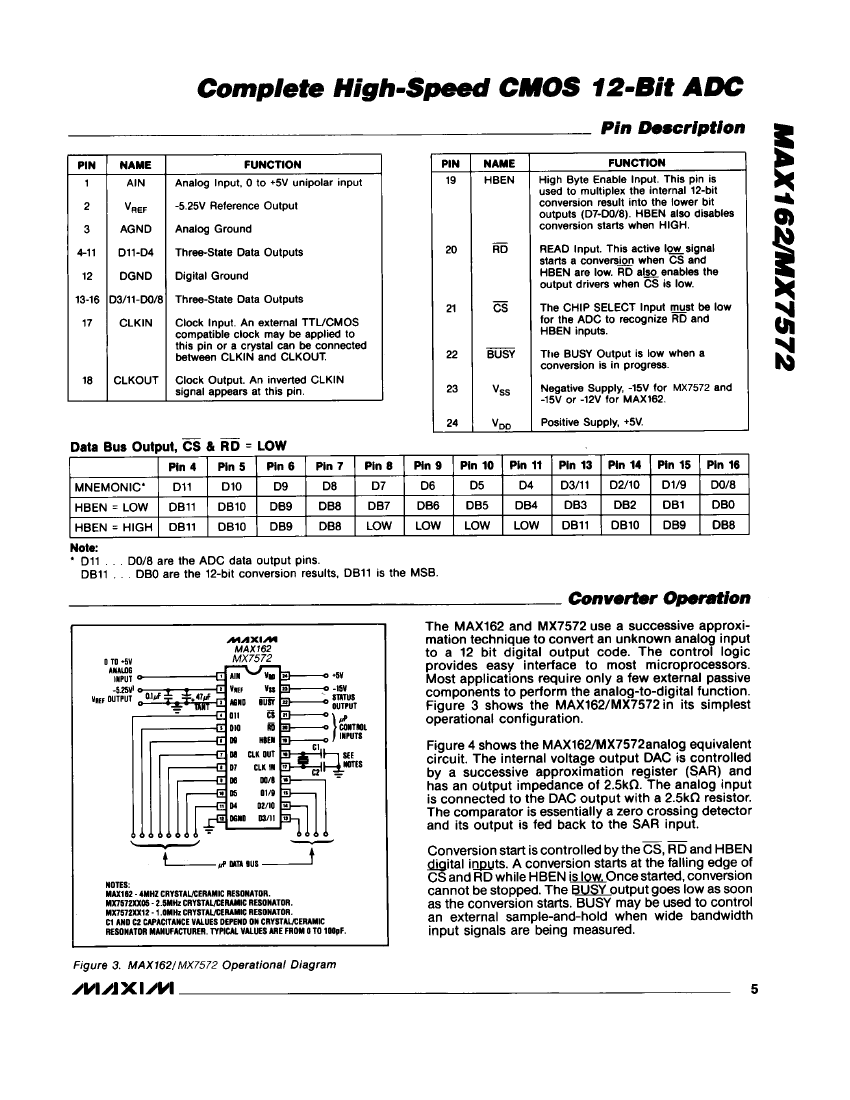

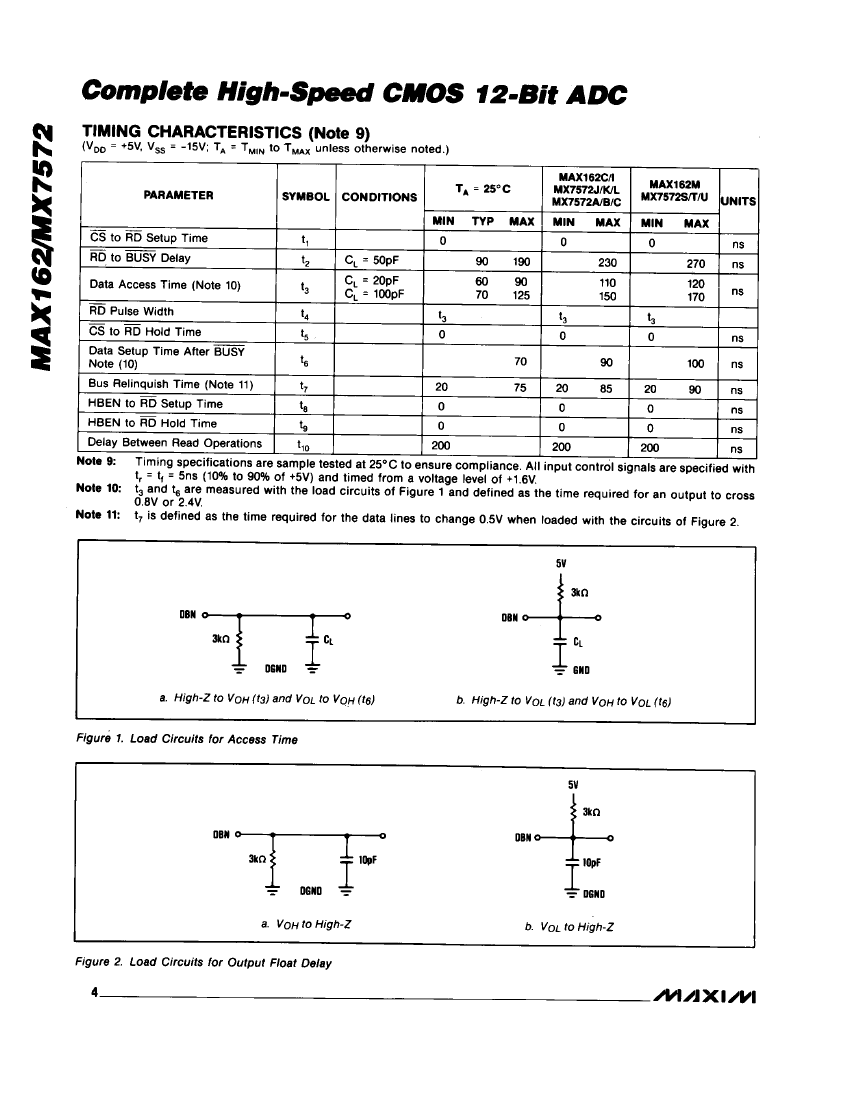

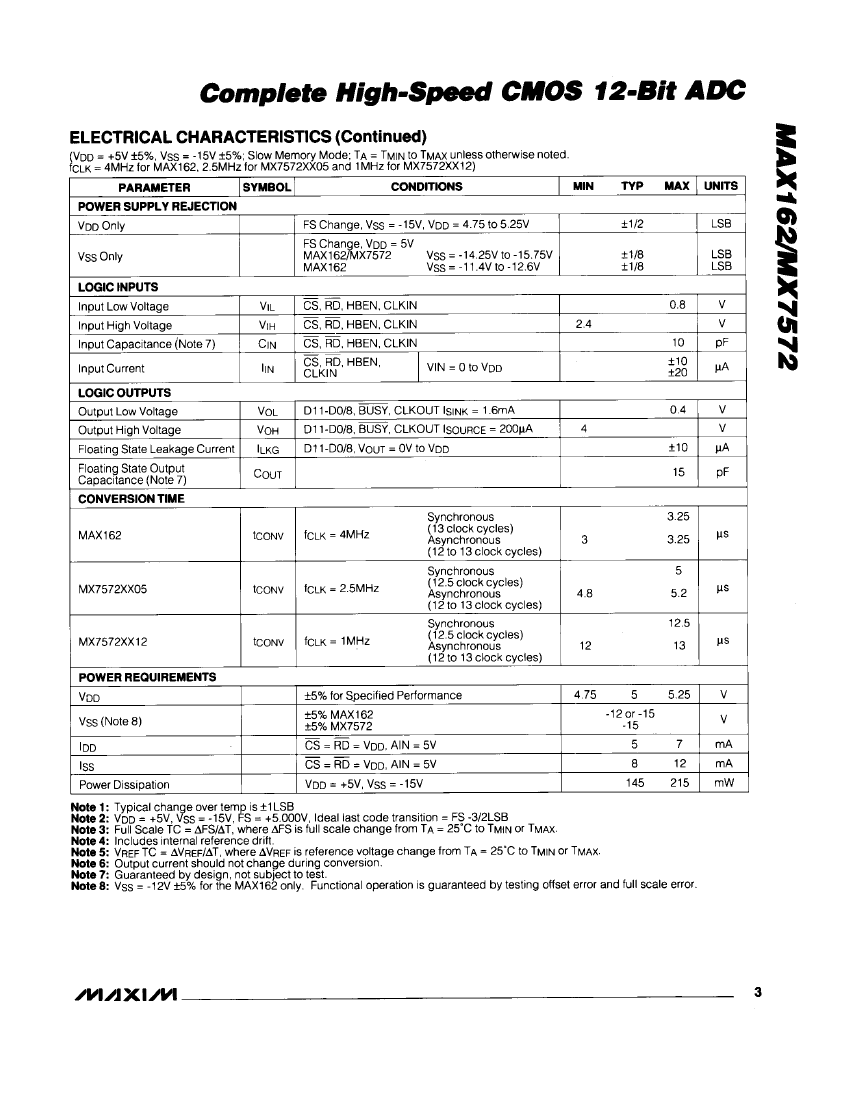

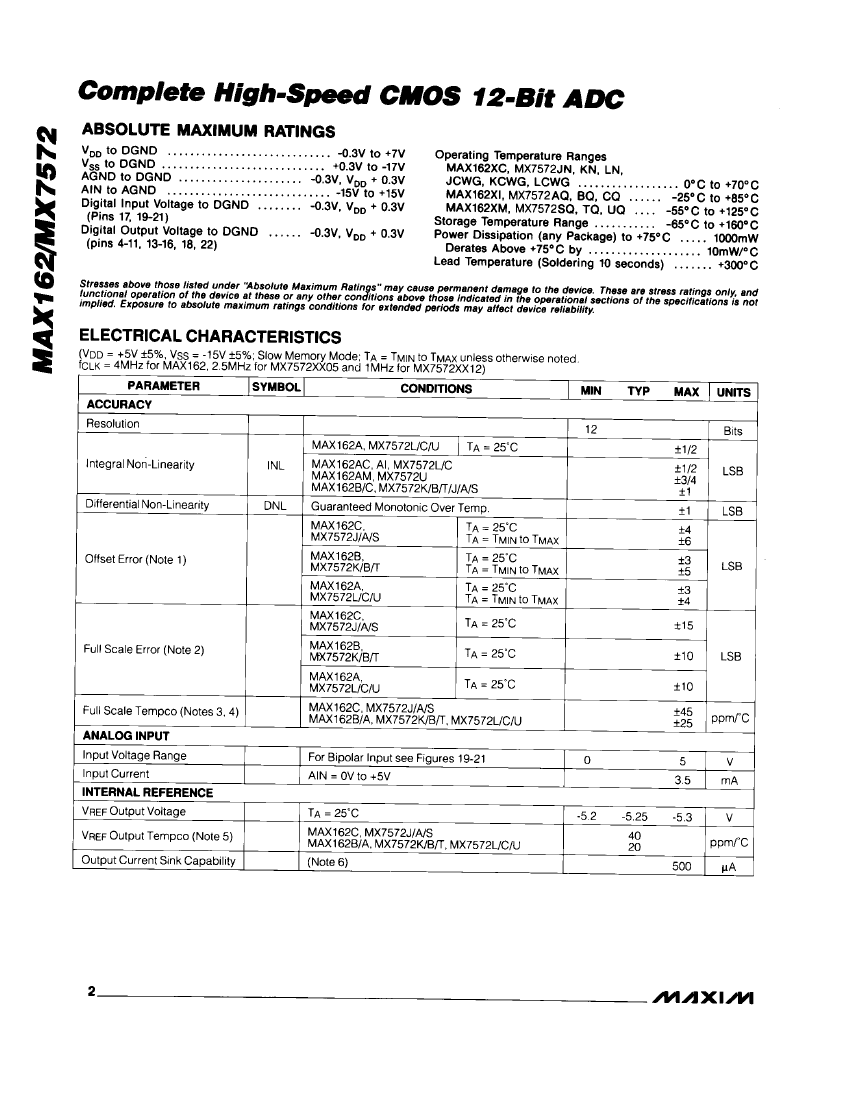

MX7572JN12+: Descriptionanalog to digital converters - adc 12-bit precision dac; CategoryAnalog mixed-signal IC converter; File Size618KB，16 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

MX7572JN12+ Overview

analog to digital converters - adc 12-bit precision dac

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	compli
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24
JESD-609 code	e3
length	30.545 mm
Maximum linear error (EL)	0.024%
Humidity sensitivity level	1
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-15 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
