MAX178ACWG+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MAX178ACWG+

MAX178ACWG+: Descriptionanalog to digital converters - adc 12-bit 17ksps 5.25v precision adc; CategoryAnalog mixed-signal IC converter; File Size379KB，11 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX178ACWG+ Overview

analog to digital converters - adc 12-bit 17ksps 5.25v precision adc

MAX178ACWG+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP24,.4
Contacts	24
Reach Compliance Code	compli
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	140 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24
JESD-609 code	e3
length	15.4 mm
Maximum linear error (EL)	0.024%
Humidity sensitivity level	1
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, OFFSET BINARY
Output format	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	+-5,15 V
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Maximum seat height	2.65 mm
Maximum slew rate	10 mA
Nominal supply voltage	15 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm

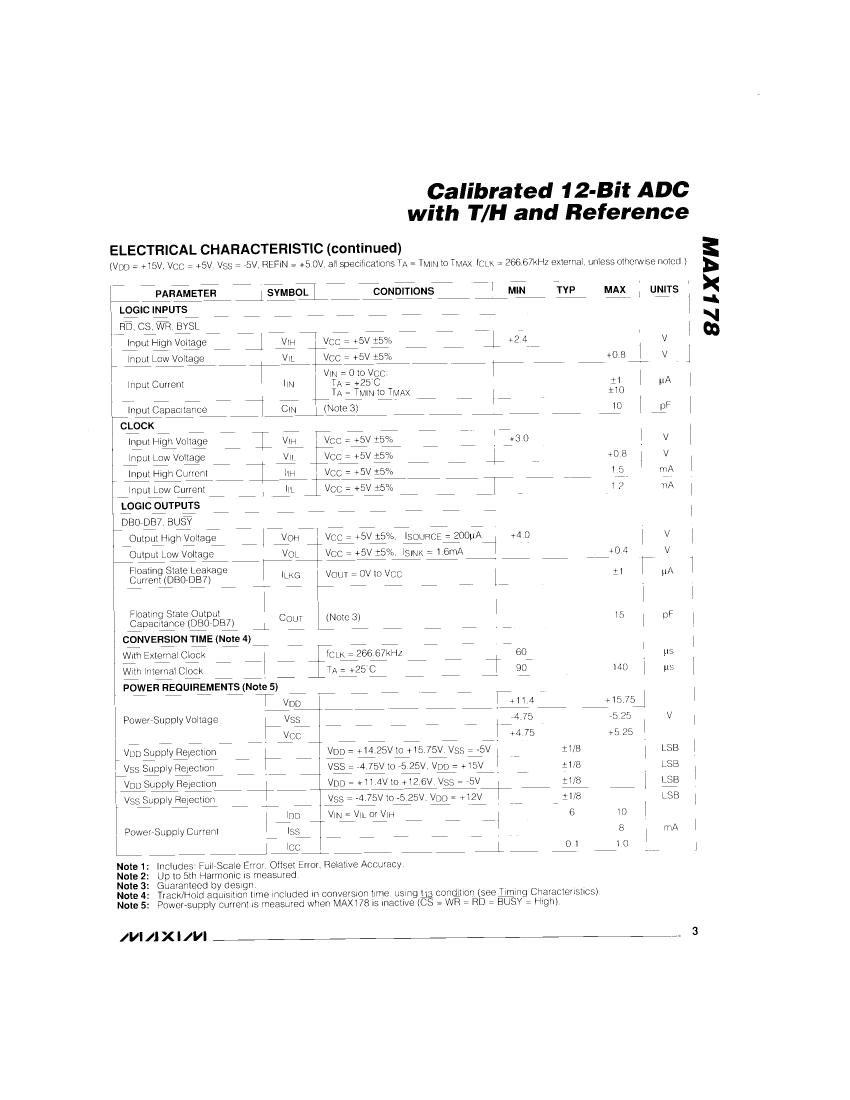

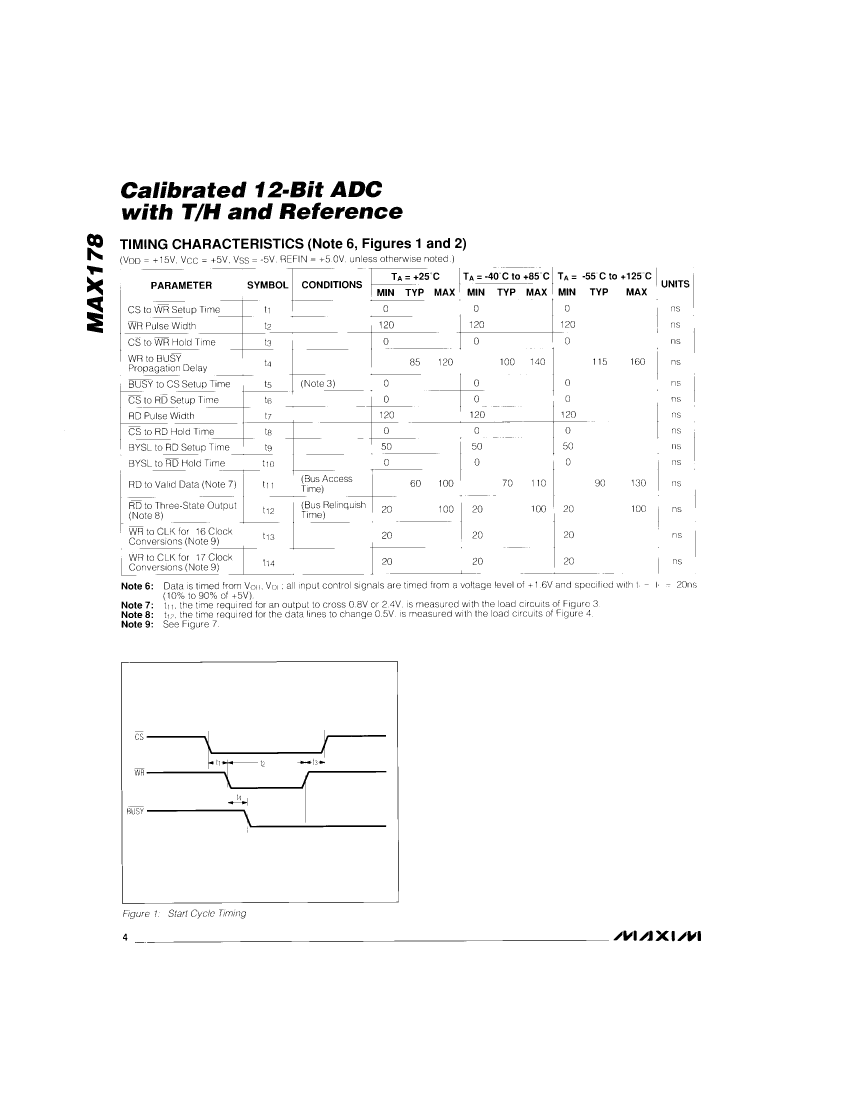

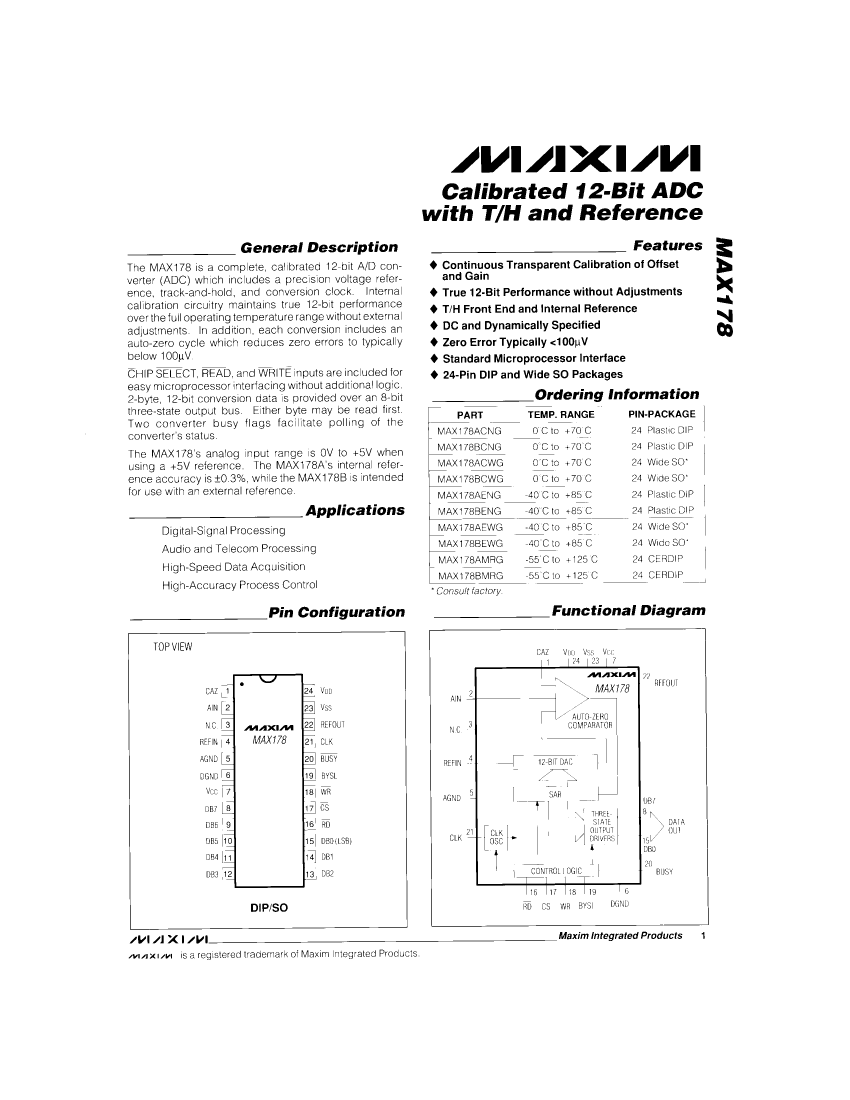

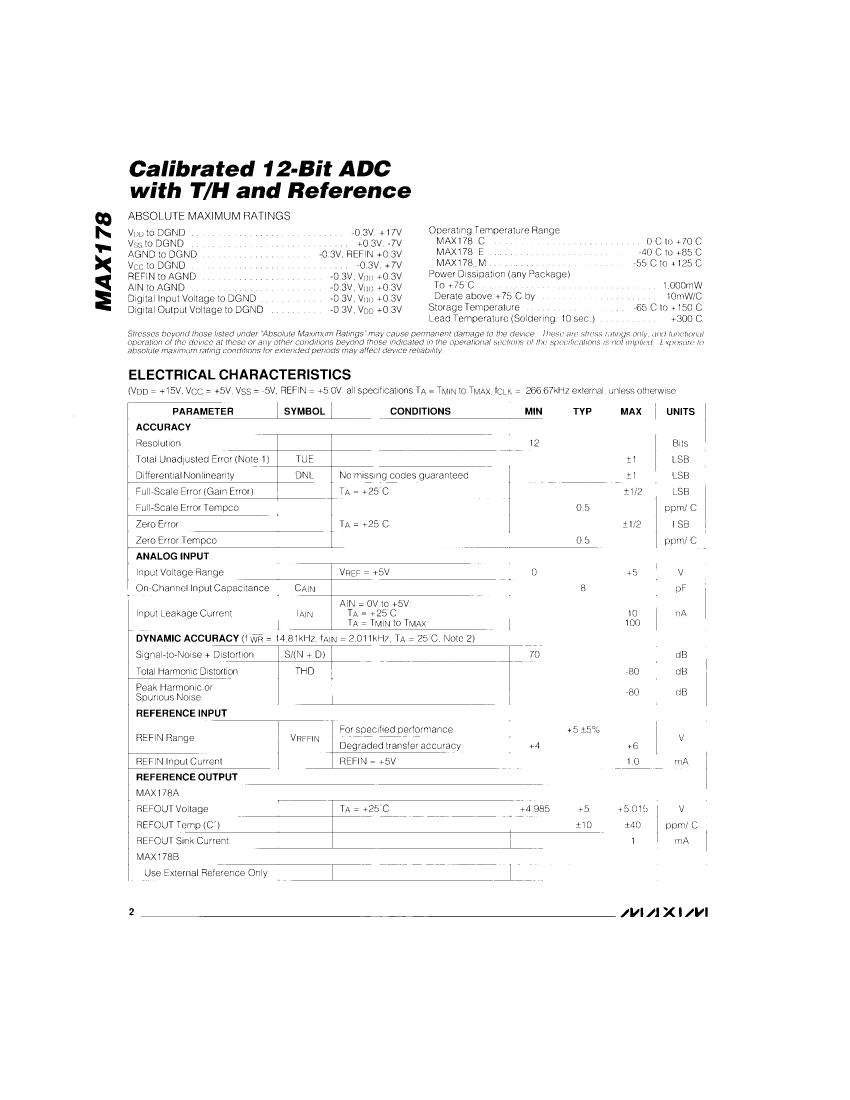

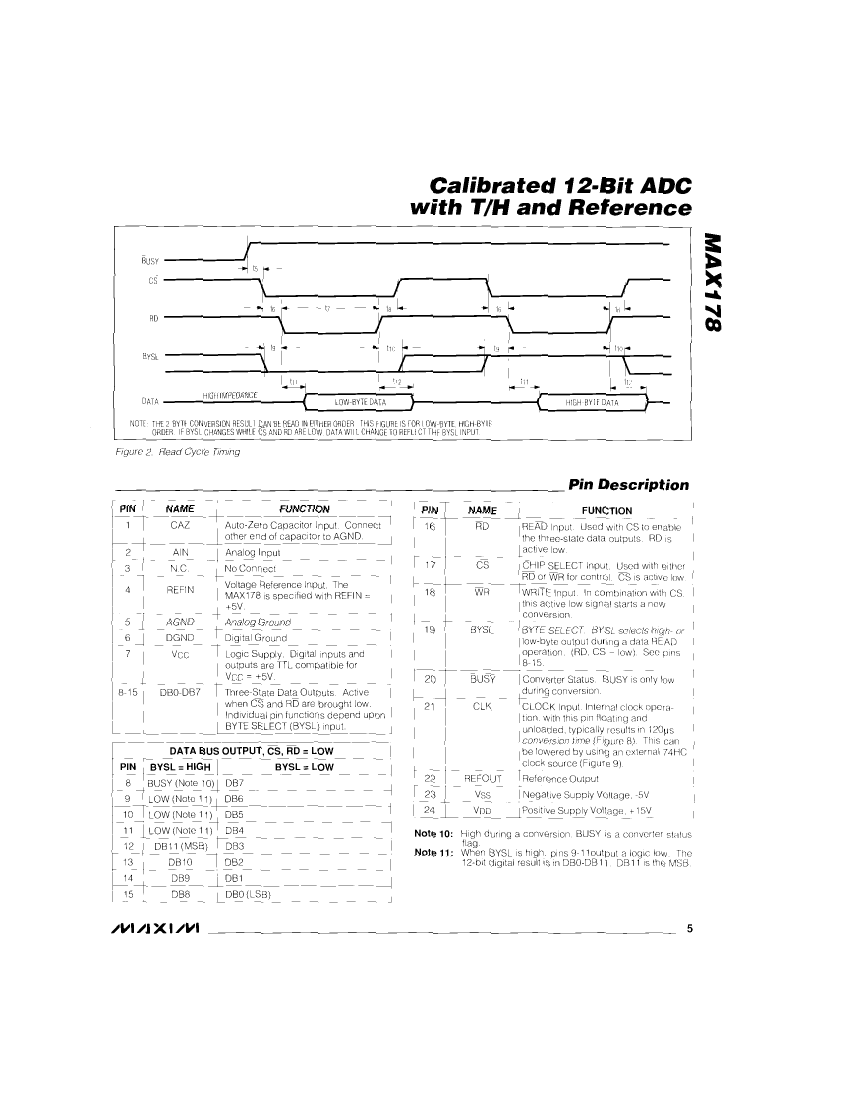

Preview

Download Datasheet

View All

MAX178ACWG+ Related Products

	MAX178ACWG+	MAX178BCNG+	MAX178AENG+	MAX178BEWG+	MAX178AEWG+	MAX178BEWG+T	MAX178ACWG+T
Description	analog to digital converters - adc 12-bit 17ksps 5.25v precision adc	analog to digital converters - adc 12-bit 17ksps 5.25v precision adc	analog to digital converters - adc 12-bit 17ksps 5.25v precision adc	analog to digital converters - adc 12-bit 17ksps 5.25v precision adc	analog to digital converters - adc 12-bit 17ksps 5.25v precision adc	analog to digital converters - adc 12-bit 17ksps 5.25v precision adc	analog to digital converters - adc 12-bit 17ksps 5.25v precision adc
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	DIP	DIP	SOIC	SOIC	SOIC	SOIC
package instruction	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3	SOP, SOP24,.4	SOP, SOP24,.4	SOP, SOP24,.4	SOP-24
Contacts	24	24	24	24	24	24	24
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum conversion time	140 µs	140 µs	140 µs	140 µs	140 µs	140 µs	140 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
length	15.4 mm	30.545 mm	30.545 mm	15.4 mm	15.4 mm	15.4 mm	15.4 mm
Maximum linear error (EL)	0.024%	0.024%	0.024%	0.024%	0.024%	0.024%	0.024%
Humidity sensitivity level	1	1	1	1	1	1	1
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-
Output bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP24,.4	DIP24,.3	DIP24,.3	SOP24,.4	SOP24,.4	SOP24,.4	SOP24,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	250
power supply	+-5,15 V	+-5,15 V	+-5,15 V	+-5,15 V	+-5,15 V	+-5,15 V	+-5,15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sample and hold/Track and hold	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK
Maximum seat height	2.65 mm	4.572 mm	4.572 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm
Maximum slew rate	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	YES	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	MATTE TIN	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	30	30	NOT SPECIFIED	30
width	7.5 mm	7.62 mm	7.62 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
Maker	Maxim	Maxim	Maxim	-	-	Maxim	Maxim
Factory Lead Time	-	10 weeks	-	1 week	1 week	10 weeks	-
