262-40-764-00-180000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 262-40-764-00-180000

262-40-764-00-180000: DescriptionIC Socket, DIP64, 64 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size62KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

262-40-764-00-180000 Overview

IC Socket, DIP64, 64 Contact(s), ROHS COMPLIANT

262-40-764-00-180000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	DIP64
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e3
Number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

Product Number: 262-40-764-00-180000

Description:

DIP Header

Standard Header

Shrink DIP (.070 Spacing)

Closed Frame

Through Hole

Plating Code:

Shell Plating:

200 " Tin (matte finish) over 100

Nickel

Packaging:

Packaged in Tubes

Pins

Qty.

per

Tube

Mill-Max

Part

Number

262-40-764-00-180000

RoHS

Compliant

2.252

0.750

0.840

LOOSE PIN:

Loose Pin Used: 6218

BRASS ALLOY

(UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit “free machining” and is permitted by EC Directive 2002/95Annex 6; so all pin materials are

RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

PCT

Polyester, (Thermx CG933, black)

High Temperature

Properties of PCT Polyester:

Brand: Thermx

Grade: CG-933

Rated voltage: 100 VRMS/150 VDC

Insulation resistance: 10,000 Megaohms min.

Material Heat Deflection Temp (per ASTM D 648): 529°F (276°C) @ 66 psi

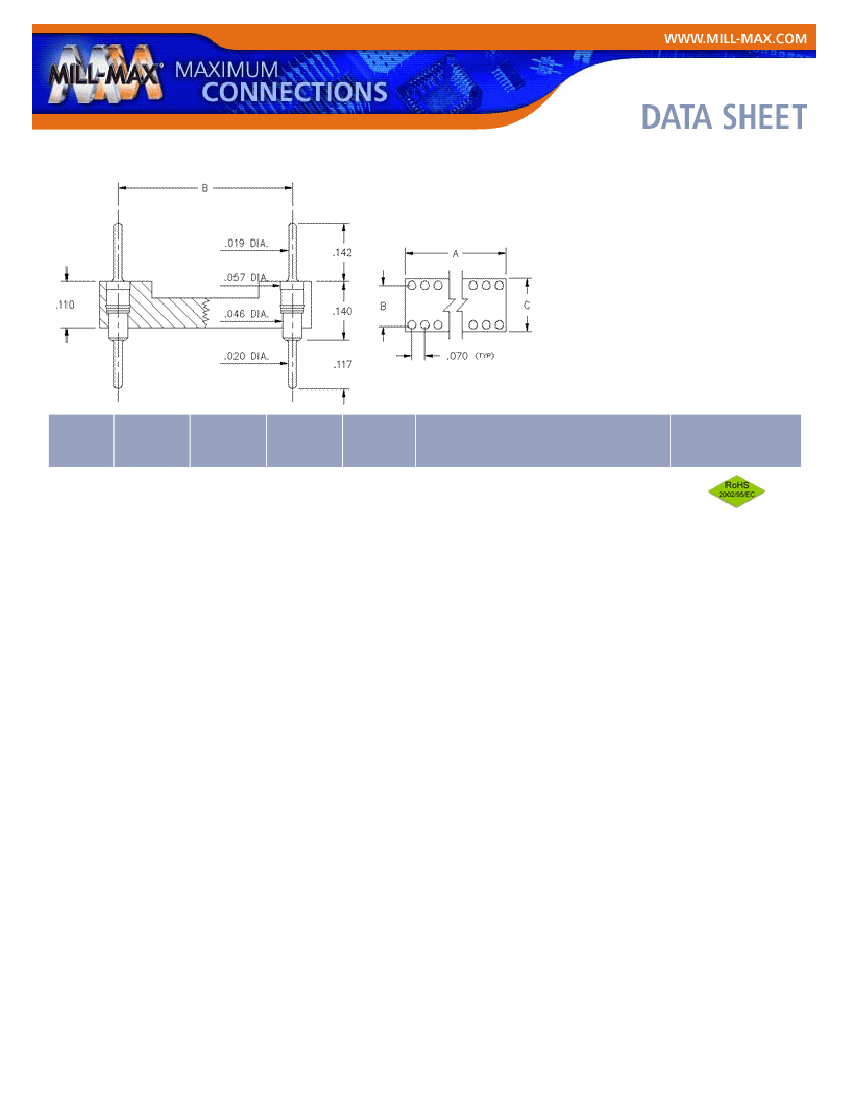

Mill-Max Mfg. Corp. Datasheet – Last Modified 1/19/2008

Page 1 of 2
