SAMI-7I

Description
fuse holder accessories fuse cover for indicating
CategoryCircuit protection
File Size46KB,2 Pages
ManufacturerBussmann (Eaton)
Download Datasheet Parametric View All

SAMI-7I Online Shopping

Suppliers Part Number Price MOQ In stock
SAMI-7I - - View Buy Now

SAMI-7I Overview

fuse holder accessories fuse cover for indicating

SAMI-7I Parametric

Parameter NameAttribute value
ManufactureCooper Bussm
Product CategoryFuse Holder Accessories
RoHSN
ProducCovers
TypeIndicating
For Use WithFuse Holders, SAMI Series
Heigh1.72 i
Length3.82 i
PackagingBulk
Factory Pack Quantity3
Voltage Rating90 VAC to 600 VAC, 115 VDC to 600 VDC
Width0.75 i
Unit Weigh22.680 g

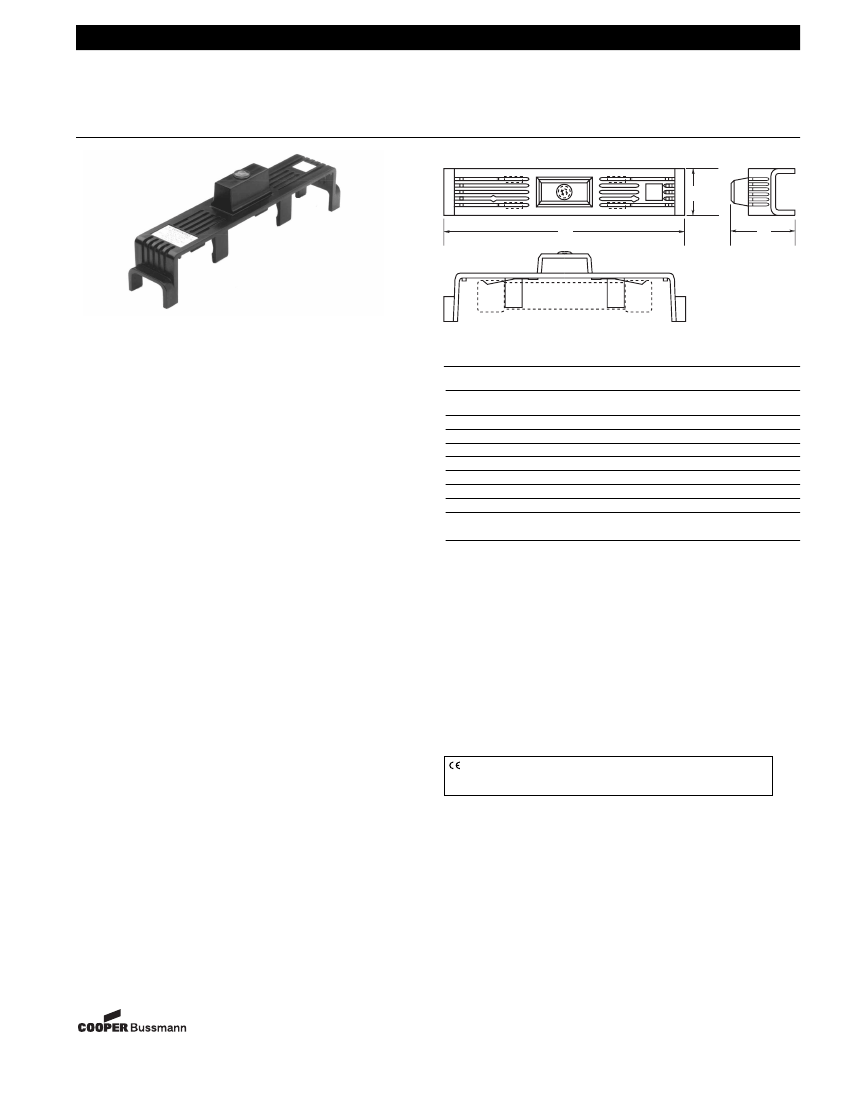

Bussmann
®
SAMI
Indicating Fuse Covers
SAMI
SAMI
-2
Buss
LOAD
LINE
TEST PROBE
TEST PROBE
B
A
C
FUSE
Catalog Symbol:
SAMI Series
For Class J, R, H, K5, CC, G and Midget type fuses.
Ampere Rating:
0 to 100 Amps
Voltage Rating:
Non-Indicating - 0 to 600 Volt AC/DC
Indicating - 90 to 600 Volt AC
- 115 to 600 Volt DC
Agency Approvals:
All UL Listed, except SAMI-7I and SAMI 7N are UL Recognized.
CSA Certified, Class 6225-01, File LR47235
Material:
Black thermoplastic with a flammability rating of
UL 94-V2
General Information:
• Innovative design, covers exposed terminals and contacts of
Bussmann fuseblocks.
• Fits most competitive fuseblocks.
• Buss yellow light on indicating SAMI shows when the fuse is
open – helps trouble shoot the system and reduces downtime.
• All versions are reusable – no need to pay for indication every
time a fuse opens.
• Indication contacts have teeth to break oxidation layer on the
existing fuse endcap to provide a clear signal path.
• Less than .6mA leakage current at 600 volt.
• Visual marking of line and load side.
• SAMI cover ends can easily be cut away if necessary to fit
cover over existing wiring or to fit most safety switches.
• Dead-front construction provides added protection against
accidental contact by maintenance personnel.
• Labels are provided with the SAMI fuse cover for writing in
circuit or fuse information.
• One cover is required for each pole.
• SAMI-8_ fusecover includes adapter for use with short body
Class R fuses. Adapter available separately as part number
SAMI-8A.
Dimensional Data
(inches)
Catalog
Number*
SAMI-1_
SAMI-2_
SAMI-3_
SAMI-4_
SAMI-5_
SAMI-6_
SAMI-7_
SAMI-8_
SAMI-9_
Description
600V, J (0-30A) and
250V, R, K5, H (35-60A)
600V, R, K5, H (0-30A)
600V, J (65-100A)
250V, R, K5, H (65-100A)
600V, R, K5, H (35-60A)
600V, J (35-60A)
600V, Midget, Class CC
600V, R, H (65-100A)
250V, R, K5, H (0-30A) and
600V, T (0-30A)
A
5.02
7.03
7.03
8.20
8.20
4.98
3.82
10.38
3.82
All dimensions (± .020)
B
1.03
1.30
1.30
1.30
1.30
1.17
0.75
1.50
0.75
C
1.94
2.07
2.33
2.18
2.18
2.14
1.72
2.33
1.72
*Catalog Numbers
For Indicating cover, add suffix
I.
For Non-indicating cover, add suffix
N.
Example: SAMI-7I = Indicating
SAMI-7N = Non-indicating
Indicating feature requires a minimum of 90 VAC or 115 VDC
to illuminate lamp.
For fuse and fuseblock applications, see page 2.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 VAC, 75-1500 VDC). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
WARNING: To avoid electrical shock, turn power off
before installing, removing or servicing.
12-28-98
SB98107
Rev. A
Form No. SAMI
Page 1 of 2
BIF Doc #1204
