2165-T045 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> 2165-T045

Preview

2165-T045: DescriptionVariable Inductor, Shielded, ROHS COMPLIANT; CategoryPassive components inductor; File Size51KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2165-T045 Overview

Variable Inductor, Shielded, ROHS COMPLIANT

2165-T045 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	P-7LC/FM
Number of functions	1
Number of terminals	5
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	YES
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

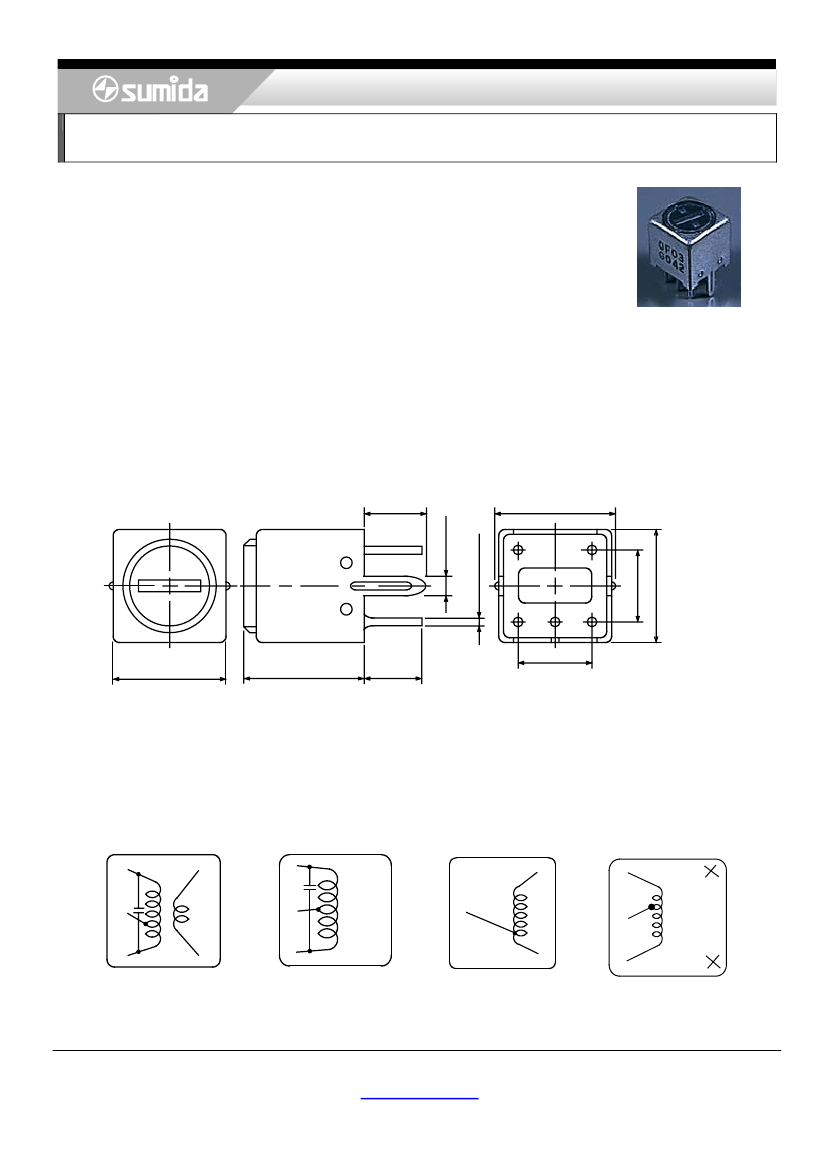

IFT COILS< Pin Type:P-7 Series>

Type: P-7LC/FM, P-7LC/AM, P-7LC/SW, P-7LC/MW

◆

Product Description

・5.9×5.9mm

Max.(L×W), 6.5mm Max. Height.

・Inductance:1~820μH.

・Operating

frequency:20MHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements

◆

Feature

・Variable

shielded type.

・FM,

AM,SW,MW types are available.

・Internally

assembled condenser is available.

・Ideally

used in Radio (FM, AM,SW,MW),TV. Transceiver

・RoHS

Compliance

◆

Dimensions (mm)

8.0

1.3 ±0 .15

3.3 ±0.3

STA

+0.1

φ0.5-0.0 5

4.5 ±0.15

7.8 ±0 .3

MAX. 8.0

3. 0 ±0.5

＊

Dimension does not include solder used on coil.

＊

Pin pitch shall be measured at the root of terminal.

＊

Dimension without tolerance are approx.

◆

Connection (Bottom View)

③

②

S

④

S

③

④

③

②

④ S

S

③

②

7. 8 ±0 .3

④

②

①

⑥

①

⑥

①

⑥

①

⑥

P-7LC/FM

“S” is winding start.

P-7LC/AW

P-7LC/SW

P-7LC/MW

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
