Bussmann
®
Modular Fuseblocks
for High-Speed Semiconductor Fuses
0-5000 Volts, 400 Amps

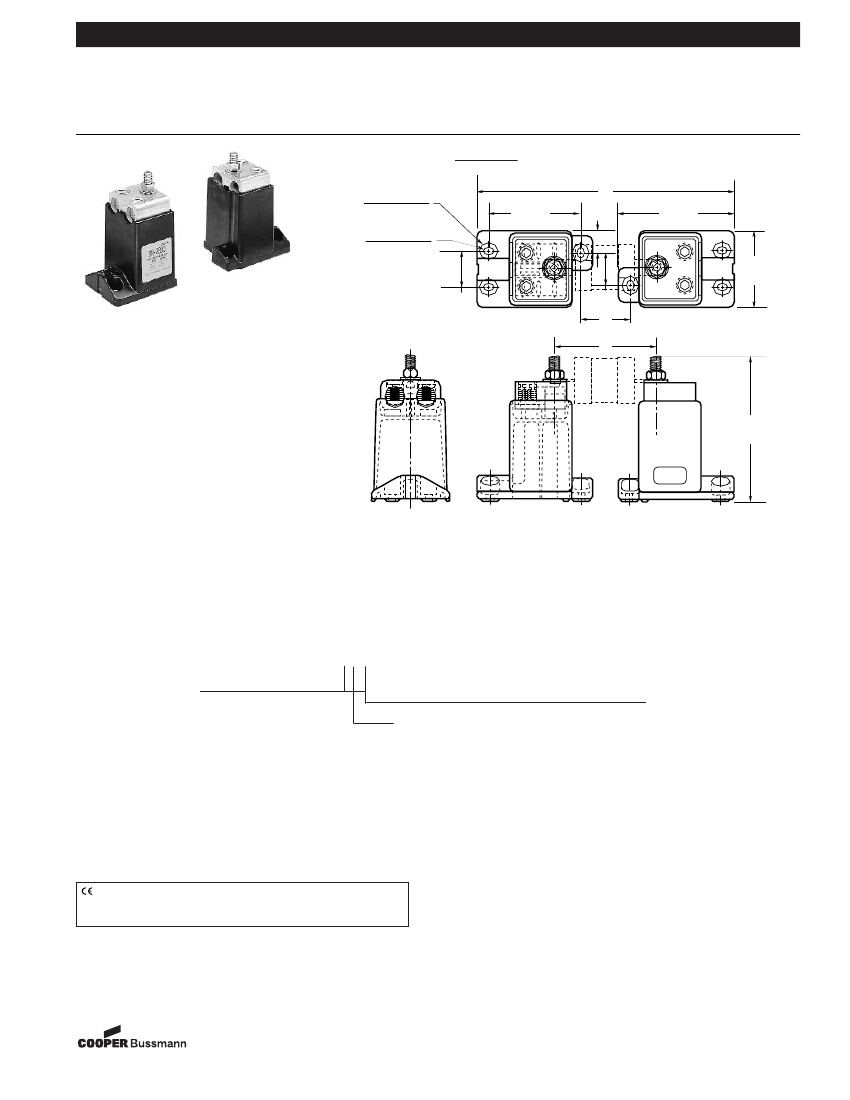

Dimensional Data
(Typ. 3)
13.97 x 15.62
.55" x .615"
6.60 x 9.53
.26" x .375"
(Typ. 3)
mm (± .25)
Inches (± .01)
BH-2 Series
79.50
3.130"
B
17.78
0.7"
99.82
3.930"
®
31.75
1.250"
Catalog Symbol:
BH-2 Series
Base:
Light weight, high temperature
thermoplastic
Mounting Studs:
Plated steel
Connector:
Tin-plated aluminum.
Standard connector accepts
#6 - 250 MCM copper wire
Nut:
Plated steel
Washer:
Spring steel
Agency Information:
UL Recognized, Guide IZLT2, File E14853
up to 700 Volts
CSA Certified, Class 6225-01, File 47235
up to 700 Volts
Withstand Rating:
200,000A RMS Sym.
or interrupting rating of fuse used, whichever
is smaller.
31.75
1.250"
A
C
Catalog Code Description:
Block Series
BH - 2 X X X
Agency Information
0 No Agency Information
1 UL Recognition and CSA Certification
2 UL Recognition Only
3 CSA Certification Only
Wire Connector
0 No Connector
3 2 Hole for #6 - 250MCM Copper Wire
(for use with Base 1, 2, & 3)
Stud Size
1⁄Ω¢ - 20
2fiΩ¡§ -18
3‹Ω• -16
NOTES:
1. Always check applicable end use standards for required spacing between blocks, fuses or other hardware.
2. For applications above 700V, consult appropriate electrical standard for proper creepage distances, clearance distances and insulator
voltage withstand ratings.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 VAC, 75-1500 VDC). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
6-26-02
N02099
®
Buss
67.31
2.650"
Buss
126.36
4.975"
Form No. BH-2
Page 1 of 2
Data Sheet: 1202
Bussmann
®
Modular Fuseblocks
for High-Speed Semiconductor Fuses
0-5000 Volts, 400 Amps
Electrical Characteristics
Buss Cat. No.
170E7183
170E7184
170E7185
170E7187
170E7188
170E7189
170E8129
170E9629
170E9630
Fuseblock
Part No.
BH-2033
BH-2033
BH-2033
BH-2033
BH-2033
BH-2033
BH-2033
BH-2033
BH-2033
Stud
Ref.
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
Fuse Volt
Rating
5000V
5000V
5000V
5000V
5000V
5000V
3300V
4000V
4000V
BH-2 Series
Dimensions mm / Inches
"A"
450.09 / 17.720
450.09 / 17.720
450.09 / 17.720
450.09 / 17.720
450.09 / 17.720
450.09 / 17.720
163.07 / 6.420
299.97 / 11.810
299.97 / 11.810
"B"
629.41 / 24.780
629.41 / 24.780
629.41 / 24.780
629.41 / 24.780
629.41 / 24.780
629.41 / 24.780
342.39 / 13.480
479.30 / 18.870
479.30 / 18.870
"C"
495.05 / 19.490
495.05 / 19.490
495.05 / 19.490
495.05 / 19.490
495.05 / 19.490
495.05 / 19.490
208.03 / 8.190
344.93 / 13.580
344.93 / 13.580
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
6-26-02
N02099
Form No. BH-2
Page 2 of 2
Data Sheet: 1202
