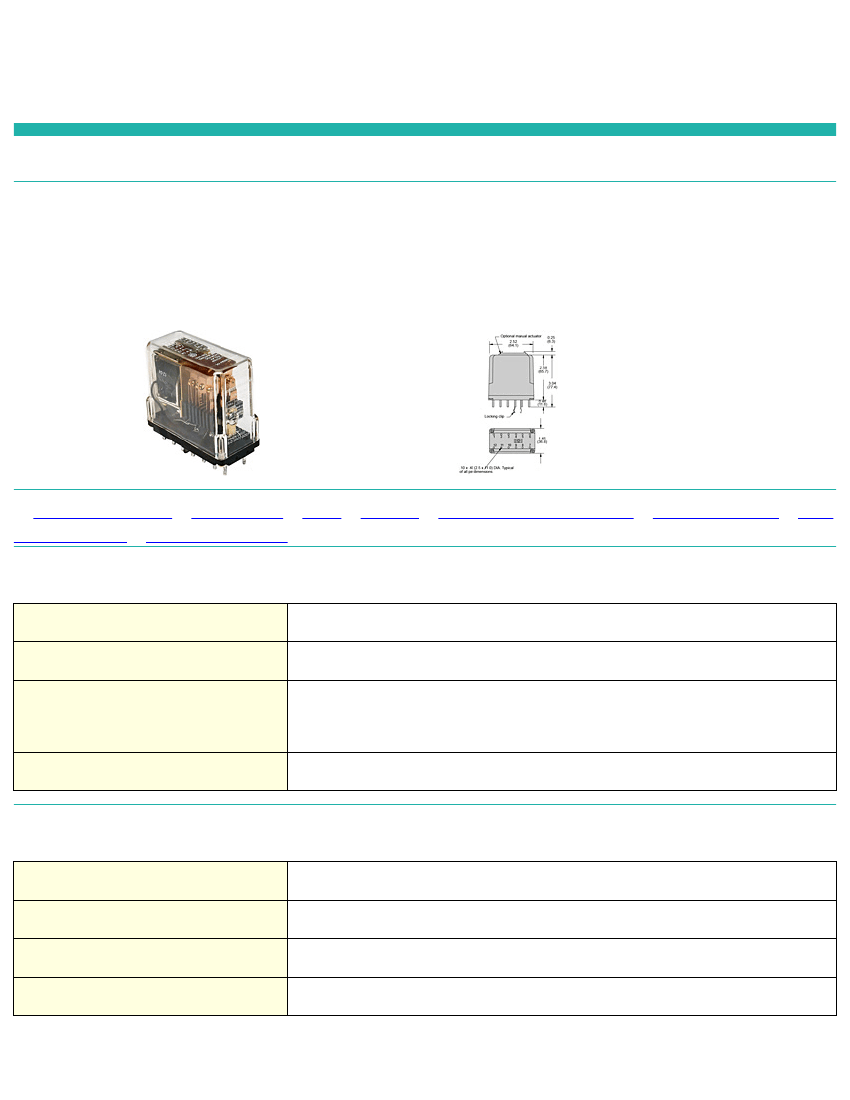

219BBXPLM33-24VDC

Description
Power/Signal Relay, DPST, Momentary, 0.104A (Coil), 24VDC (Coil), 2500mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
CategoryMechanical and electronic products    relay
File Size88KB，3 Pages
ManufacturerStruthers-Dunn
Download Datasheet Parametric View All

219BBXPLM33-24VDC Overview

Power/Signal Relay, DPST, Momentary, 0.104A (Coil), 24VDC (Coil), 2500mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

219BBXPLM33-24VDC Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresRELAY FUNCTION DPDT ALSO AVAILABLE
Maximum coil current (DC)0.104 A
Coil operating voltage (DC)19.2 V
Coil power2500 mW
Coil release voltage (DC)2.4 V
Coil resistance230.77 Ω
Maximum coil voltage (DC)24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load10A@120VAC
Maximum contact current (AC)10 A
Maximum contact current (DC)10 A
Contact (DC) maximum rated R load10A@28VDC
Maximum contact voltage (AC)120 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
Manufacturer's serial number219
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours25 ms
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Relay actionMOMENTARY
Relay functionDPST
Relay typePOWER/SIGNAL RELAY
release time20 ms
surface mountNO
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet
Struthers-Dunn
407 East Smith Street - Suite B
Timmonsville, SC 29161 US
Phone:
(843) 346-4427 •
Fax:
(843) 346-4465
E-Mail:
info@struthers-dunn.com •
Web site:www.struthers-dunn.com
Item # 219BBXPLM33-24VDC, 219 Series - Industrial General Purpose Relays
219 Series - Industrial General Purpose Relays
Versatile. Rugged. Proven. These are but a few words used by customers to describe the 219 series. When long life and cost of down time / service are important the
219 solves the problem. It’s a standard throughout industrial applications which many other relays are measured against. Capable of up to four poles double throw or
six poles single throw. Contact arrangements are easily customized for special applications. NUCLEAR versions available.
For Additional Configuration please contact the manufacturer.
·
SPECIFICATIONS
·
CONTACTS
·
COIL
·
TIMING
·
DIELECTRIC STRENGTH
·
TEMPERATURE
·
LIFE
EXPECTANCY
·
MISCELLANEOUS
SPECIFICATIONS
Series
219
Contact Arrangement
BBX (2 Pole NO &DPDT)
Optional Features
Polycarbonate covers
Indicator Lamp
Manual Actuator
Bifurcated Contacts
Coil Voltage
24 VDC
CONTACTS
Contact Configuration
2 Pole NO &DPDT
Contact Material
Silver Alloy-Gold Diffused
Contact Rating
10 A
Contact Rating 120 / 240VAC Resistive
10 / 5 A
1/12/2012 | Page 1 of 3
