BH-0113: Descriptionfuse holder modular fuseBLOCK; CategoryCircuit protection; File Size57KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric Compare View All

BH-0113 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BH-0113	-	-	View	Buy Now

BH-0113 Overview

fuse holder modular fuseBLOCK

BH-0113 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Fuse Holde
RoHS	Yes
Produc	Fuse Modules
Current Rating	100 A
Voltage Rating	700 V
Number of Poles	1
Col	Black
Illuminati	Not Illuminated
Packaging	Bulk
Factory Pack Quantity	1
Unit Weigh	27.216 g

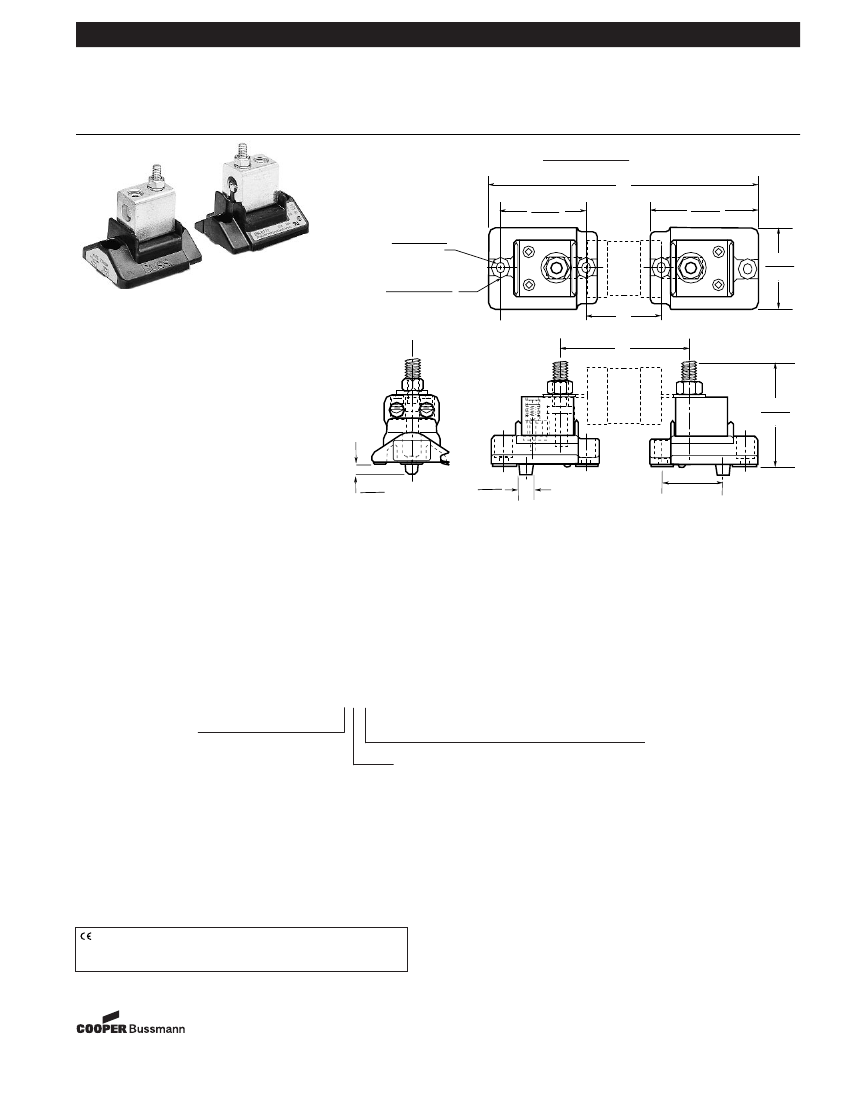

Preview

Download Datasheet

View All

Bussmann

Modular Fuseblocks

0-700 Volts, 100 Amps

Dimensional Data

- All tolerances

(± 0.25) mm

(± 0.01) inches

54.23

2.13"

5.33 x 6.60

.21" x .26"

(Typ. 2)

11.68 x 12.95

.46" x .51"

(Typ. 2)

BH-0 Series

71.42

2.81"

Catalog Symbol:

BH-0 Series

Base:

Light-weight, high temperature

thermoplastic

Mounting Studs:

Plated steel

Nut:

Plated steel

Washer:

Spring steel

Connector:

Tin-plated aluminum. One

hole connector accepts 14 - 2/0 AWG

copper wire. Two hole connector accepts

14 - 1/0 AWG copper wire.

Agency Information:

UL Recognized, Guide IZLT2, File E14853

up to 700V

CSA Certified, Class 6225-01, File 47235

up to 700V

Withstand Rating:

200,000A RMS Sym.

or interrupting rating of fuse used, whichever

is smaller.

Buss

6.35

.25"

8.64

.34"

39.62

1.56"

Catalog Code Description:

Block Series

Agency Information

0 No Agency Information

1 UL Recognition and CSA Certification

2 UL Recognition Only

3 CSA Certification Only

BH - 0 X X X

Stud Size

1⁄Ω¢ - 20

2ﬁΩ¡§ - 18

3‹Ω• - 16

Wire Connector

0 No Connector

1 1 Hole for 14 - 2/0 AWG Copper Wire

(for use with Base 0)

2 2 Hole for 14 - 1/0 AWG Copper Wire

(for use with Base 0)

NOTES:

1. Always check applicable end use standards for required spacing between blocks, fuses or other hardware.

2. For applications above 700V, consult appropriate electrical standard for proper creepage distances, clearance distances and insulator

voltage withstand ratings.

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 314-527-1270 for more information.

11-20-02

J02322

Buss

53.98

2.12"

68.20

2.68"

Form No. BH-0

Page 1 of 2

Data Sheet: 1200
