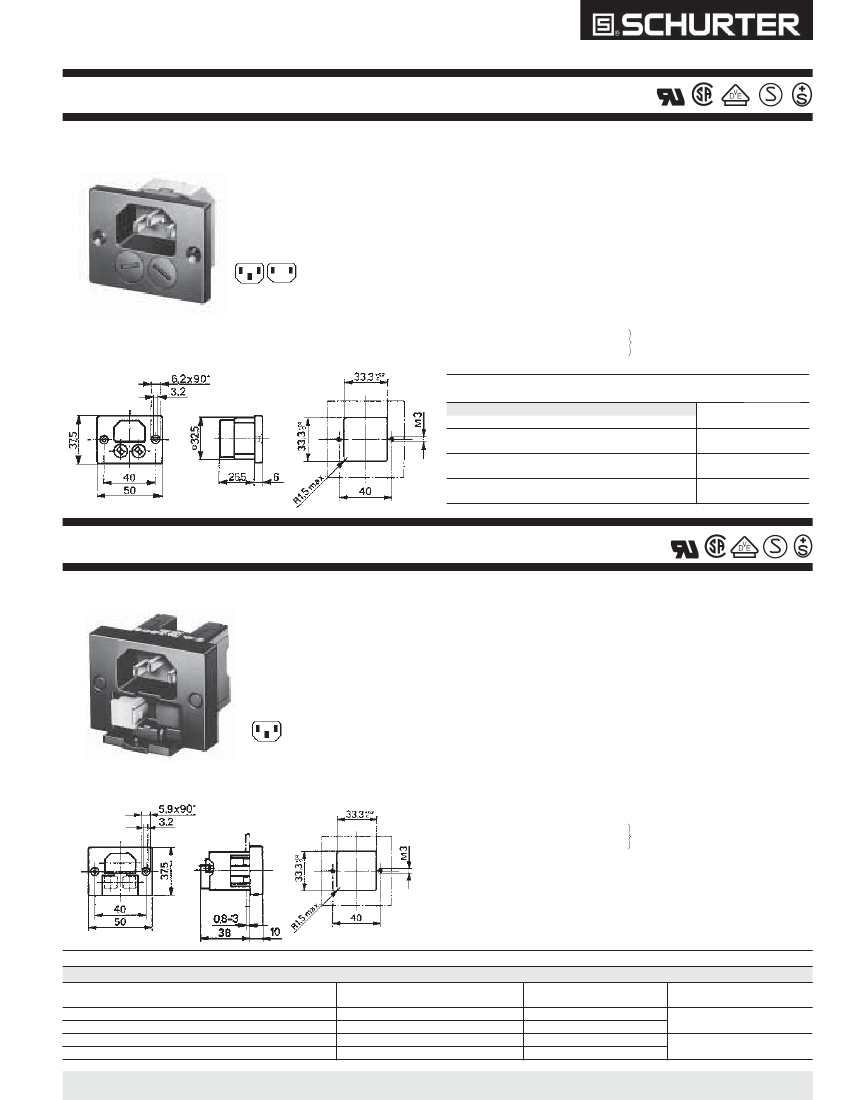

0040
AC Inlet with 5 x 20mm Fuseholder
•
•
•
•
Note:
Not recommended for
new designs. Refer to KEA
(pg. 36), GSF (pg. 13/14) or
6220 (pg. 35)
Standards: UL 498; CSA
C22.2/182.3; DIN/VDE
0625; SEMKO 9320; IEC
320/C14/C18; EN 60320
•
•
•
•
•
Power entry module with 1-pole or 2-pole fuseholder
For “cold” connections 70° C, Protection Class I or II
Screw mount from front
Single or double pole shocksafe fuseholder according to IEC 65/VDE
0860 for 5 x 20mm fuses
Quick-connect terminals .187 x .032" (4.8 x 0.8mm)
0.5 Nm torque required for M3 screws
Max. power dissipation 2.4 watts (2-pole fusing) according to IEC 127-6.
For additional values P
v
in function of T
amb
, see page 5
For materials, options and accessories please see page 30
For inlet with piggy-back fuse clips see GSF, page 13-14
recognition
certification
approval
approval
approval
10A/250V
10A/250V
6A/250V
10A/250V
10A/250V
File #E93617
File #LR38456
File #19397
File
numbers
on request
UL
CSA
VDE
SEMKO
SEV
page 102.
Series 0040
Class I
0040.5000.2
8843-2.SP.FL.4/3.60
0040.5001.2
8843-2.SP.FL.4/3.64
0040.5012
8843-2.SP.U.FL.4/3.60
Class II
0040.5015
8842-2.SP.FL.4/3.60
Color/Fusing
black/2-pole
grey/2-pole
black/1-pole
Terminal Type
solder
.138" x .032" (3.5 x 0.8mm)
quick-connect
.187" x .032" (4.8 x 0.8mm)
quick-connect
.250" x .032" (6.3 x 0.8mm)
8843
AC Inlet • Interchangeable Fuseholders for
1
/
4
x 1
1
/
4
" or 5 x 20mm Fuses
•
Power entry module with 1-pole or 2-pole fuseholder
•
For “cold” connections 70° C, Protection Class I.
•
Screw mount from front or rear, or snap-in mount from front (0.8-3.0mm
panel thickness)
•
Single or double pole shocksafe fuseholder according to IEC 65/VDE
0860 for
1
/
4
x 1
1
/
4
" or 5 x 20mm fuses
•
Quick-connect terminals .187 x .032" (4.8 x 0.8mm) or solder .138 x
.032" (3.0 x 0.8mm).
•
0.5 Nm torque required for M3 screws for screw-on type
•
Max. power dissipation 5.5 watts (2 pole fusing, unfiltered) according to
IEC 127-6. For additional values P
v
in function of T
amb
, see page 6
•
For materials, options and accessories please see page 30
• For 8843 with line filter, please see 8843 on page 59
• For inlet with piggy-back fuse clips see GSF, page 13-14
UL
CSA
VDE
SEMKO
SEV
recognition
certification
approval
approval
approval
10A/250V
10A/250V
10A/250V
10A/250V
10A/250V
File #E96317
File #LR38456
File #3157, expert report
File
numbers
on request
Standards: UL 498; CSA C22.2/
182.3; DIN/VDE 0625; SEMKO
9320; IEC 320/C14; EN 60320.
U.S. Patented.
Order Numbers (type) Note: Casing and fuseholders must be ordered separately. To order fuses, please see page 102.
Casing
8843
1-pole fusing
8843.0351
(8843-351.60)
8843.0353
(8843-353.60)
8843.0451
(8843-451.60)
8843.0453
(8843-453.60)
2-pole fusing
8843.0361
(8843-361.60)
8843.0363
(8843-363.60)
8843.0461
(8843-461.60)
8843.0463
(8843-463.60)
Terminals
Solder .138" X .032" (3.0 x 0.8mm)
Quick-connect .187" x .032" (4.8 x 0.8mm)
Solder .138" X .032" (3.0 x 0.8mm)
Quick-connect .187" x .032" (4.8 x 0.8mm)
Mounting
Screw-on
Screw-on
Snap-in,0.8-3.0mm panel thickness
Snap-in,0.8-3.0mm panel thickness
Fuseholder inserts* (2 inserts
must be ordered for 2-pole fusing)
8843.0901
1/4 x 1 1/4"
8843-901.60
(6.3x32mm)
8843.0902
for 5 x 20mm
8843-902.60
Schurter, Inc. • Phone 707-778-6311 • Fax 707-778-6401 • E-mail info@schurterinc.com • Website http://www.schurterinc.com
37
