BK/S500-32-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK/S500-32-R

BK/S500-32-R: Descriptioncartridge fuses small dim. fuse; CategoryCircuit protection; File Size346KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

BK/S500-32-R Overview

cartridge fuses small dim. fuse

BK/S500-32-R Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	Yes
Body Style	Cylindrical
Current Rating	32 mA
Voltage Rating AC	250 V
Mounting Style	Holder / Cli
Fuse Type	Fast Blow
Fuse Size / Grou	5 mm x 20 mm
Dimensions	20 mm L x 5.2 mm D
Case Diamete	5.2 mm
Case Length	20 mm
Indicator Style	Without Indic
Interrupt Rating	35 A
Packaging	Bulk
Produc	Specialty Fuses
Resistance	40 Ohms
Factory Pack Quantity	100
Termination Style	Cli
Type	European Ferrule Fuse
Unit Weigh	1 g

Preview

Download Datasheet

View All

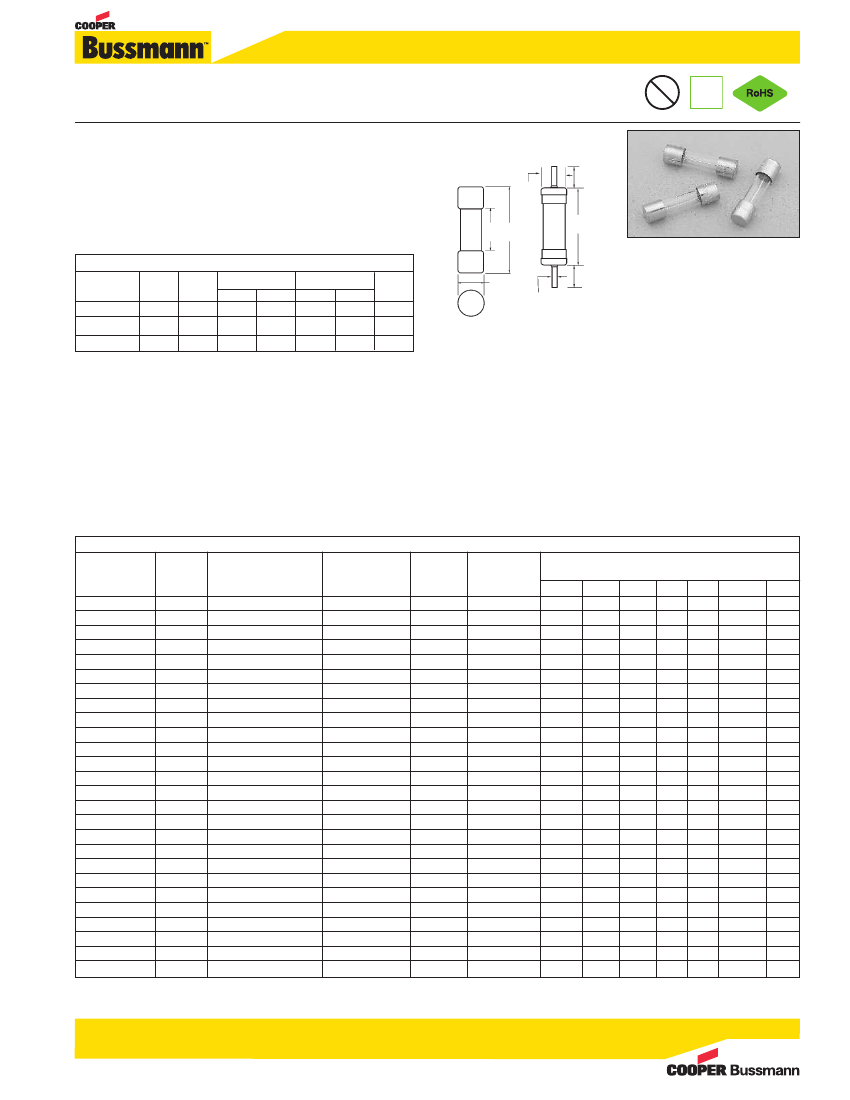

5 x 20mm, Fast-Acting, Glass Tube Fuses

Description

• Fast-acting, low breaking capacity

• Optional axial leads available

• 5 x 20mm physical size

• Glass tube with silver-plated (32-125mA) and

nickel-plated (160mA-10A) endcaps

• Designed to IEC 60127-2 (160mA-10A)

S500 Series

FREE

Dimensions - mm

Drawing Not to Scale

5.54

(±0.20)

38.10

(±0.38)

HALOGEN

(±2.0) (±0.5)

21.10

(±0.81)

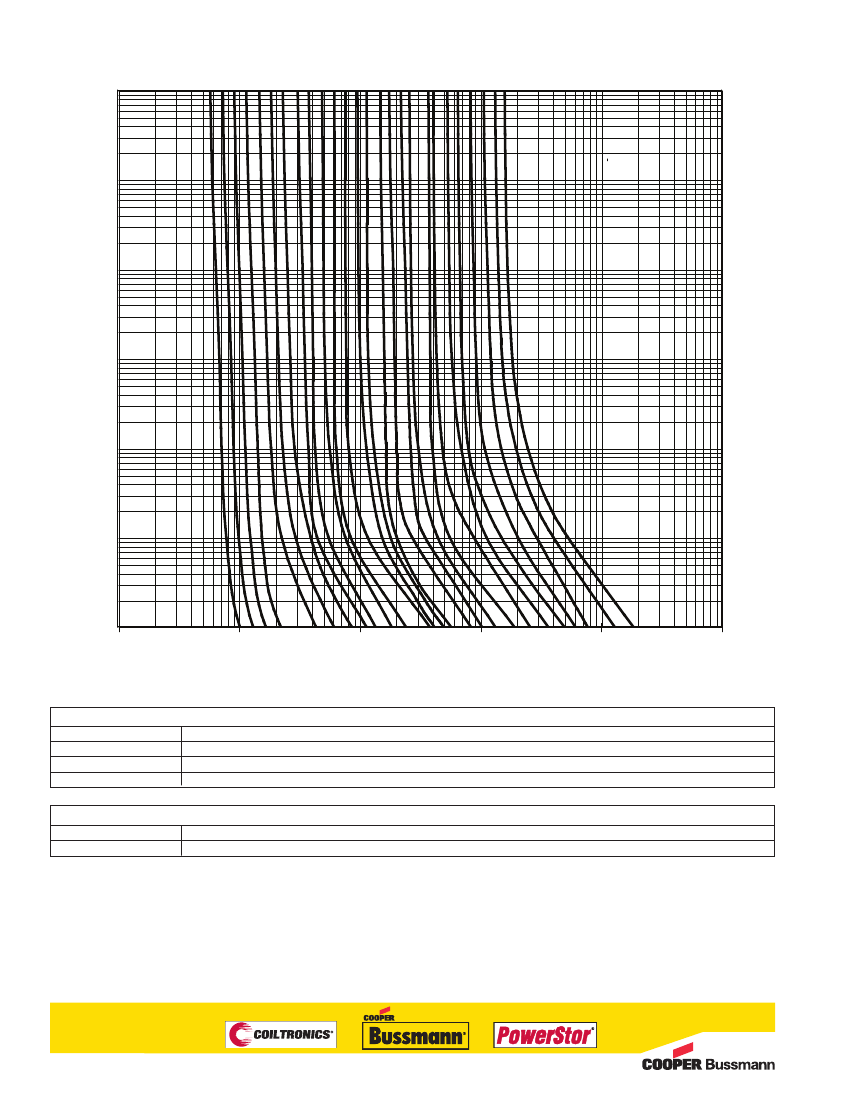

Electrical Characteristics

1.5 In 2.1 In

2.75 In

4 In

min max

min

max

32mA-125mA60min 30min

–

160mA-6.3A 60min 30min 50ms 2sec 10ms 300ms

8A-10A 30min 30min 50ms 2sec 10ms 400ms

Agency Information

• cURus: File E19180, Guide JDYX2, JDYX8

• SEMKO Approval: File 913796

• VDE Approval: File 40014109

• BSI Approval: File KM55676

• IMQ Approval: File CA03.00097

• CCC Approval: File 2005010207155694

• PSE Approval File: JET1641-31003-1013,

JET1641-31003-1014, JET1641-31003-1015,

JET1641-31003-1016

Voltage

Rating

Vac

250

Interrupting Rating

at Rated Voltage

(50Hz) Vac (amps)

100

10 In

max

–

20ms

40ms

5.2

(±0.1/-0.2)

0.65

(REF)

38.10

(±0.38)

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

Ordering

Specify product code

• Insert packaging code prefix before part number.

E.g., BK/S500-32-R

Specify option code if desired

• For axial leads, insert “V” between catalog series and

amp rating. E.g., S500-V-100-R

Part Number

S500-32-R

S500-40-R

S500-50-R

S500-63-R

S500-80-R

S500-100-R

S500-125-R

S500-160-R

S500-200-R

S500-250-R

S500-315-R

S500-400-R

S500-500-R

S500-630-R

S500-800-R

S500-1-R

S500-1.25-R

S500-1.6-R

S500-2-R

S500-2.5-R

S500-3.15-R

S500-4-R

S500-5-R

S500-6.3-R

S500-8-R

S500-10-R

* DC Cold Resistance (Measured at <10% of rated current)

† Typical Melting I

t (I

t was measured at listed interrupting rating and rated voltage)

‡ Maximum Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)

Specifications

Typical

Max

DC Cold

Melting

Voltage

Resistance (Ω)* I

t AC

†

Drop (mV)

‡

0.000047

3200

0.00011

2500

0.0002

2400

12.5

0.00057

2000

0.0012

1200

3.8

0.003

1100

2.8

0.005

1000

9.1

0.008

2000

6.8

0.016

1700

4.3

0.28

1400

3.1

0.58

1300

0.18

1100

0.26

0.18

220

0.2

0.35

220

0.14

0.67

190

0.125

0.6

200

0.096

0.84

200

0.066

1.6

190

0.043

4.2

150

0.034

6.1

150

0.025

130

0.021

130

0.014

120

0.01

120

0.01

120

0.008

120

Agency Information

cURus CCC

BSI VDE PSE SEMKO IMQ

0113

BU?SB121092

Page 1 of 2

Data Sheet 2052
