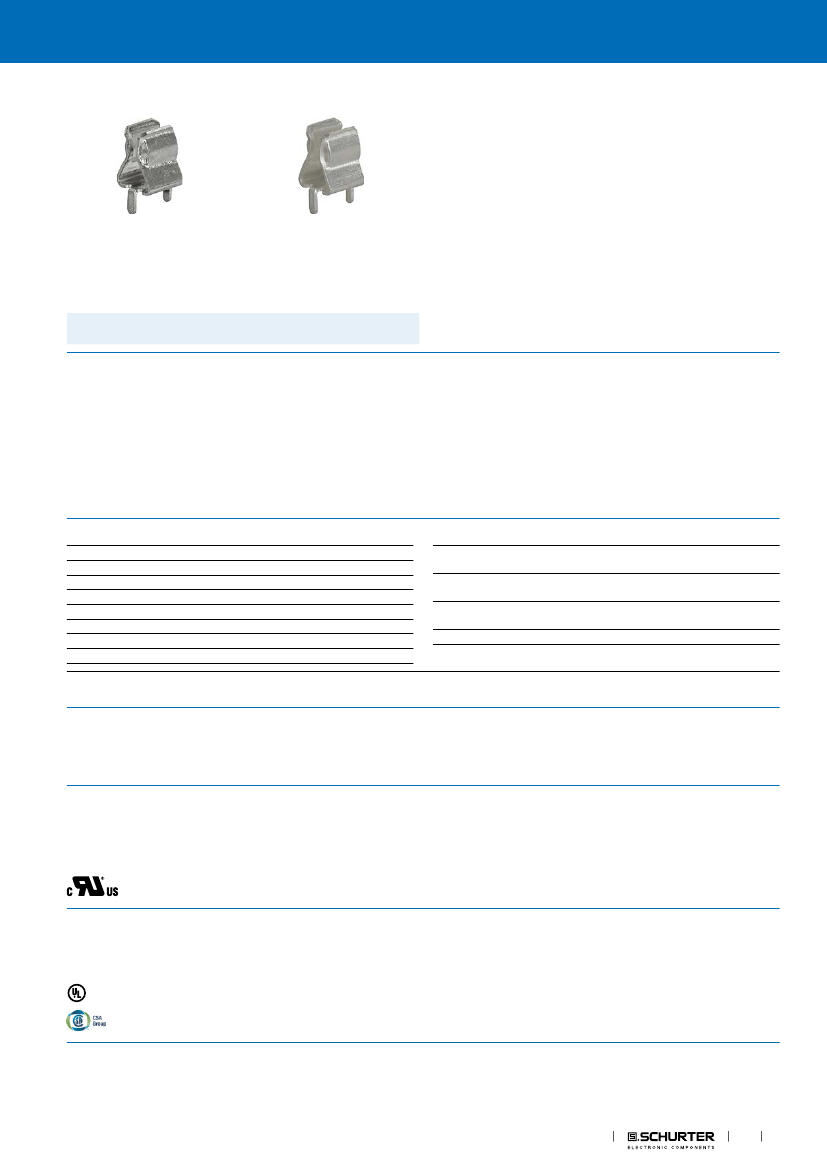

CQP
Heavy Duty Fuse Clip, 6.3x32 mm, 600 VAC/VDC, 32 A
Solder THT version tin-plated
Solder THT version silver-plated
600 VAC/DC · 32 A (UL)
Description
See below:
Approvals and Compliances
Applications
- Photovoltaic
- Applications for high currents and voltages
- Equipment with three-phase supply (400 VAC)
- Solder mounting
Unique Selling Proposition
- Unique 600 VAC/VDC and 32 A
- Minimal power loss due to strong clamping force
References
Fuseholder to
A12FA 660V; FSF 6.3x32; FST 6.3x32; SA
6.3x32; SHF 6.3x32; SHT 6.3x32; SP 6.3x32; SPT 6.3x32; SUT
6.3x32
Weblinks
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Microsite
Technical Data
Fuse-Link
Mounting
Terminal
Rated Voltage
Rated current
Admissible Ambient Air Temp.
Material: Terminals
Storage Conditions
1)
6.3 x 32 mm
PCB
Solder THT
600 VAC/DC
32 A (UL)
-55 °C to 155 °C ¹⁾
Copper alloy, silver-plated / tin-plated ¹⁾
0 °C to 60 °C, max. 70% r.h.
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Wave
Soldering Profile
245 °C / 3 sec acc. to IEC 60068-2-20,
Test Ta, method 1
260 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 1A
≤
10 mΩ at 20 mV
Details see table of variants
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: CQP
Approval Logo
Certificates
UL Approvals
Certification Body
UL
Description
UL File Number: E39328
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
UL 4248-1
CSA C22.2 no. 4248.1
Description
Fuseholder general requirements
Fuseholder general requirements
Fuses
1
CQP
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
Fuseholder Blocks & Clips
https://www.schurter.com /PG02
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Dimension [mm]
8.2 mm
7.1
1.8
10.3
±0.1
0
13.9
6.85
7.6
34.9
±0.3
0
7.6
±0.1
0.5
7.6
7.85
1.5
Drilling diagram
All Variants
Clip
l
l
Material: Anschlüsse
Tin-plated
Silver-plated
Order Number
8040.0001
8040.0003
█
█
█
Most Popular.
Availability for all products can be searched real-
time:https://www.schurter.com/en/Stock-Check/Stock-
Check-SCHURTER
Packaging Unit
Bulk (1000 pcs.)
2
Fuses
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
26.02.2018
