219BBXPM-115/125VDC: DescriptionPower/Signal Relay, 4PDT, Momentary, 0.02A (Coil), 125VDC (Coil), 2500mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount; CategoryMechanical and electronic products relay; File Size88KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

219BBXPM-115/125VDC Overview

Power/Signal Relay, 4PDT, Momentary, 0.02A (Coil), 125VDC (Coil), 2500mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount

219BBXPM-115/125VDC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RELAY FUNCTION DPDT ALSO AVAILABLE
Maximum coil current (DC)	0.02 A
Coil operating voltage (DC)	100 V
Coil power	2500 mW
Coil release voltage (DC)	12.5 V
Coil resistance	6250 Ω
Maximum coil voltage (DC)	125 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	219
Installation features	SOCKET MOUNT
operating hours	25 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Relay action	MOMENTARY
Relay function	4PDT
Relay type	POWER/SIGNAL RELAY
release time	20 ms
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

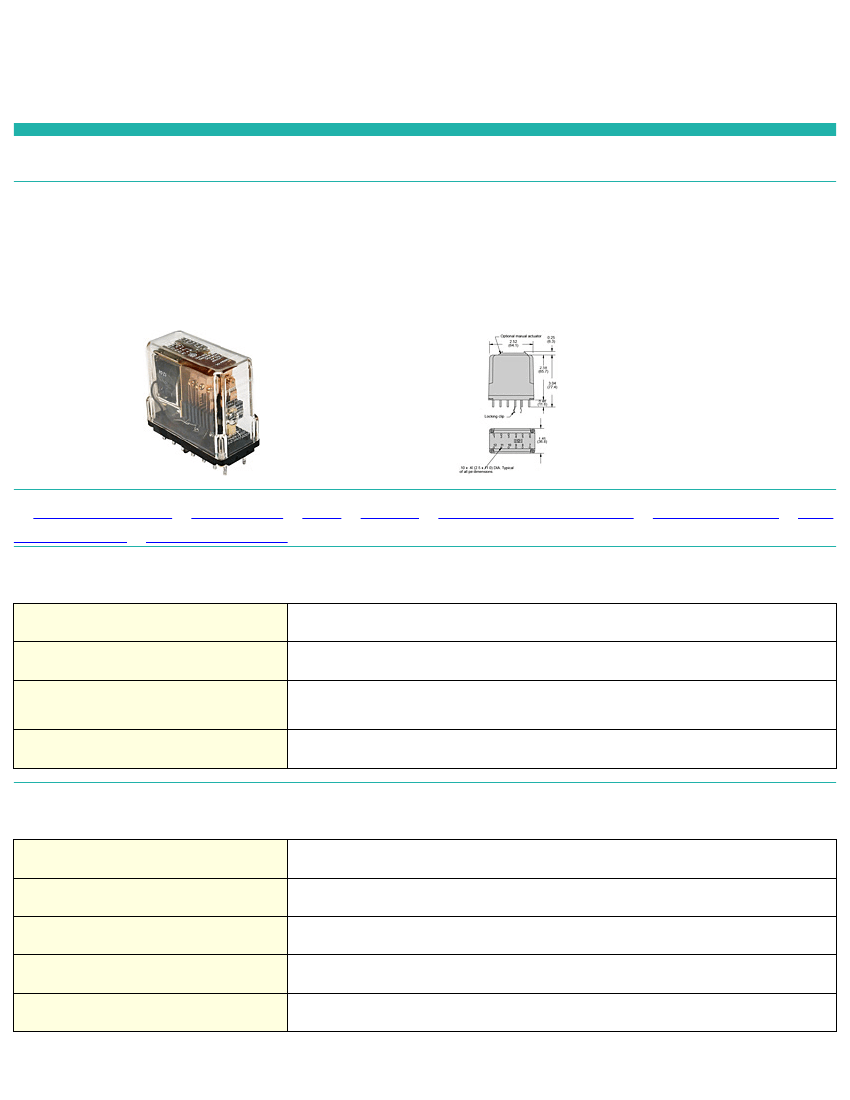

Item # 219BBXPM-115/125VDC, 219 Series - Industrial General Purpose Relays

219 Series - Industrial General Purpose Relays

Versatile. Rugged. Proven. These are but a few words used by customers to describe the 219 series. When long life and cost of down time / service are important the

219 solves the problem. It’s a standard throughout industrial applications which many other relays are measured against. Capable of up to four poles double throw or

six poles single throw. Contact arrangements are easily customized for special applications. NUCLEAR versions available.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

CONTACTS

·

COIL

·

TIMING

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

LIFE

EXPECTANCY

·

MISCELLANEOUS

SPECIFICATIONS

Series

219

Contact Arrangement

BBX (2 Pole NO &DPDT)

Optional Features

Polycarbonate covers

Manual Actuator

Coil Voltage

115/125 VDC

CONTACTS

Contact Configuration

2 Pole NO &DPDT

Contact Material

Silver Alloy-Gold Diffused

Contact Rating

10 A

Contact Rating 120 / 240VAC Resistive

10 / 5 A

Contact Rating 28VDC Resistive

10 A

1/12/2012 | Page 1 of 3
