Part Number

Search

219XBXPL-120VAC

Description
Power/Signal Relay, DPDT, Momentary, 4250mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount
CategoryMechanical and electronic products    relay
File Size87KB,3 Pages
ManufacturerStruthers-Dunn
Download Datasheet Parametric View All

219XBXPL-120VAC Overview

Power/Signal Relay, DPDT, Momentary, 4250mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount

219XBXPL-120VAC Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresCOIL OPERATE VOLTAGE(AC): 96 V, COIL RELEASE VOLTAGE(AC): 12 V
Coil current (AC) maximum value0.035 A
Coil power4250 mW
Maximum coil voltage (AC)120 V
Coil/Input Power TypeAC
Contact (AC) maximum rated R load10A@120VAC
Maximum contact current (AC)10 A
Maximum contact current (DC)10 A
Contact (DC) maximum rated R load10A@28VDC
Maximum contact voltage (AC)120 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
Manufacturer's serial number219
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours25 ms
Maximum operating temperature60 °C
Minimum operating temperature-20 °C
Relay actionMOMENTARY
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
release time20 ms
surface mountNO
Termination typeSOLDER
Base Number Matches1
Struthers-Dunn
407 East Smith Street - Suite B
Timmonsville, SC 29161 US
Phone:
(843) 346-4427 •
Fax:
(843) 346-4465
E-Mail:
info@struthers-dunn.com •
Web site:www.struthers-dunn.com

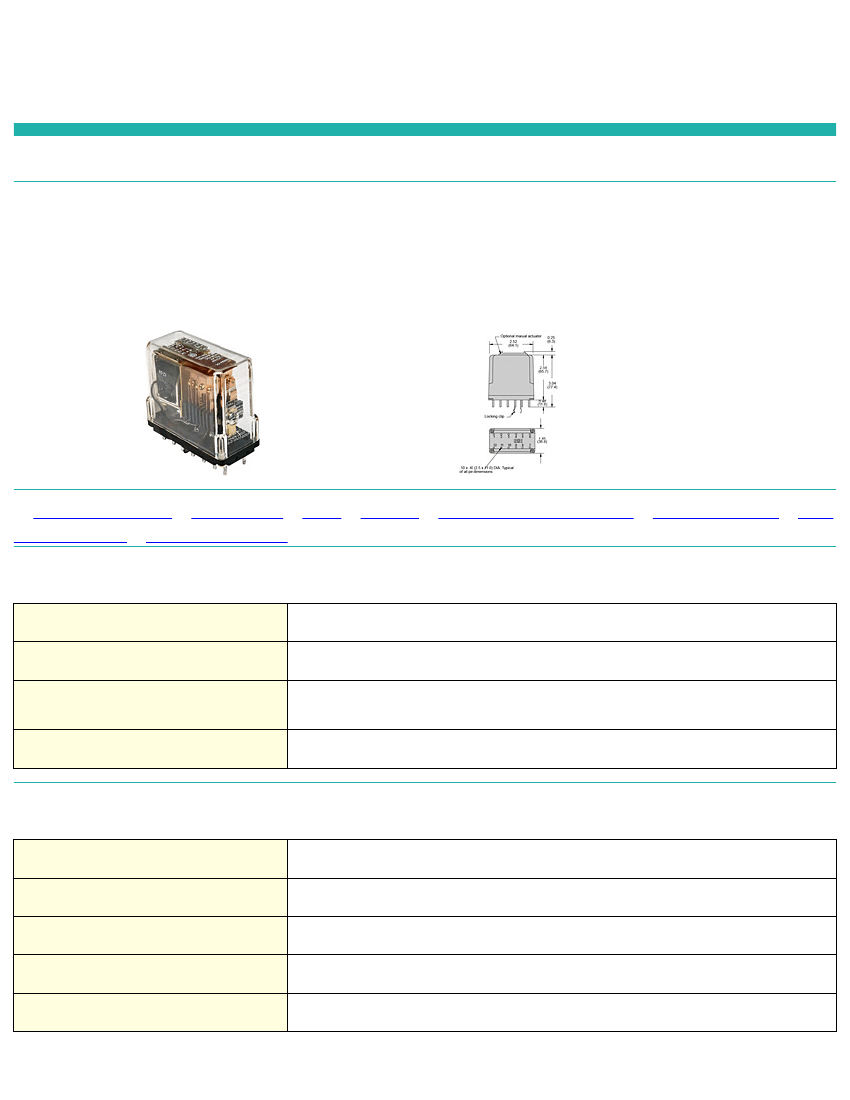

Item # 219XBXPL-120VAC, 219 Series - Industrial General Purpose Relays
219 Series - Industrial General Purpose Relays
Versatile. Rugged. Proven. These are but a few words used by customers to describe the 219 series. When long life and cost of down time / service are important the
219 solves the problem. It’s a standard throughout industrial applications which many other relays are measured against. Capable of up to four poles double throw or
six poles single throw. Contact arrangements are easily customized for special applications. NUCLEAR versions available.
For Additional Configuration please contact the manufacturer.
·
SPECIFICATIONS
·
CONTACTS
·
COIL
·
TIMING
·
DIELECTRIC STRENGTH
·
TEMPERATURE
·
LIFE
EXPECTANCY
·
MISCELLANEOUS
SPECIFICATIONS
Series
219
Contact Arrangement
XBX (DPDT)
Optional Features
Polycarbonate covers
Indicator Lamp
Coil Voltage
120 VAC
CONTACTS
Contact Configuration
DPDT
Contact Material
Silver Alloy-Gold Diffused
Contact Rating
10 A
Contact Rating 120 / 240VAC Resistive
10 / 5 A
Contact Rating 28VDC Resistive
10 A
1/12/2012 | Page 1 of 3
