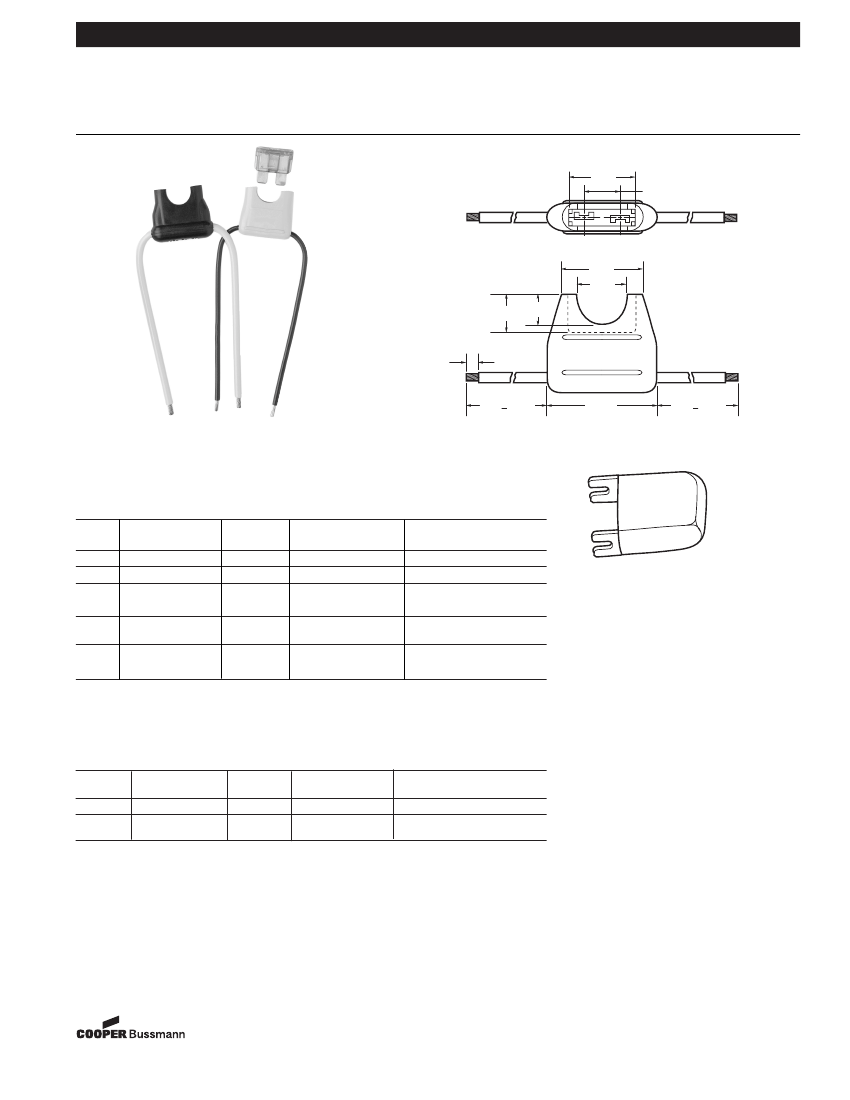

Bussmann
®
Automotive In-Line Fuseholder
For ATC
®
Blade-Type Fuses
Dimensional Data
0.78"
HHC, HHD,
HHF, & HHG
0.364"
0.91"
0.5"
0.38" 0.30"
0.25"
4.0" + 0.25"
1.125"
4.0" + 0.25"
CATALOG SYMBOL:
HHC, HHD, HHF, AND HHG
IN-LINE FUSEHOLDERS
RATED 32Vdc MAXIMUM
CURRENT RATING:
See Table
Electrical Ratings
Catalog
Symbol
HHC
HHD
HHD-C
HHF
HHG
Description
Yellow fuseholder
Black fuseholder
Cover only
Black fuseholder
with cover
Black fuseholder
with cover
Fuse
Size
3-20A
3-30A
Fits HHD
only
3-20A
3-30A
Electrical
Connection
#16 black leadwire
#12 yellow leadwire
Clear polycarbonate
#16 yellow leadwire
#12 yellow leadwire
COVER FOR HHD FUSEHOLDER
CATALOG SYMBOL:
HHD-C
Maximum Continuous
Current Rating
16A*
24A*
16A*
24A*
* Or 80% of fuse rating, whichever is less.
• For ATC
®
blade-type fuses.
• “Write-in” space for circuit identification on HHC holders (bright yellow).
Bulk Products
(Bulk Quantity - 1000 pieces)
Catalog
Symbol
BK/HHC-R
BK/HHF-B
Description
Yellow fuseholder
Black fuseholder
with cover
Fuse
Size
3-20A
3-20A
Electrical
Connection
#16 red leadwire
#16 black leadwire
Maximum Continuous
Current Rating
16A*
16A*
* Or 80% of fuse rating, whichever is less.
A fuse must be properly and fully inserted into the holder to
provide a solid connection. Poor or improper insertion of the
fuse can result in failure of the fuse and holder, thus not
protecting the device for which it was intended.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clearly
present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products
and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it
should be tested by the user in all possible applications.
1-22-03
SB03020
Form No. HHC, HHD ,HHF and HHG
Page 1 of 1
Data Sheet: 2107
