2TP66-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 2TP66-7

2TP66-7: DescriptionRocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size45KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

2TP66-7 Overview

Rocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount

2TP66-7 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	ROCKER
body width	22.61 mm
body height	41.66 mm
Body length or diameter	55.12 mm
Contact (AC) maximum rated R load	10A@277VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	277 V
Manufacturer's serial number	2TP66
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Termination type	SCREW
Base Number Matches	1

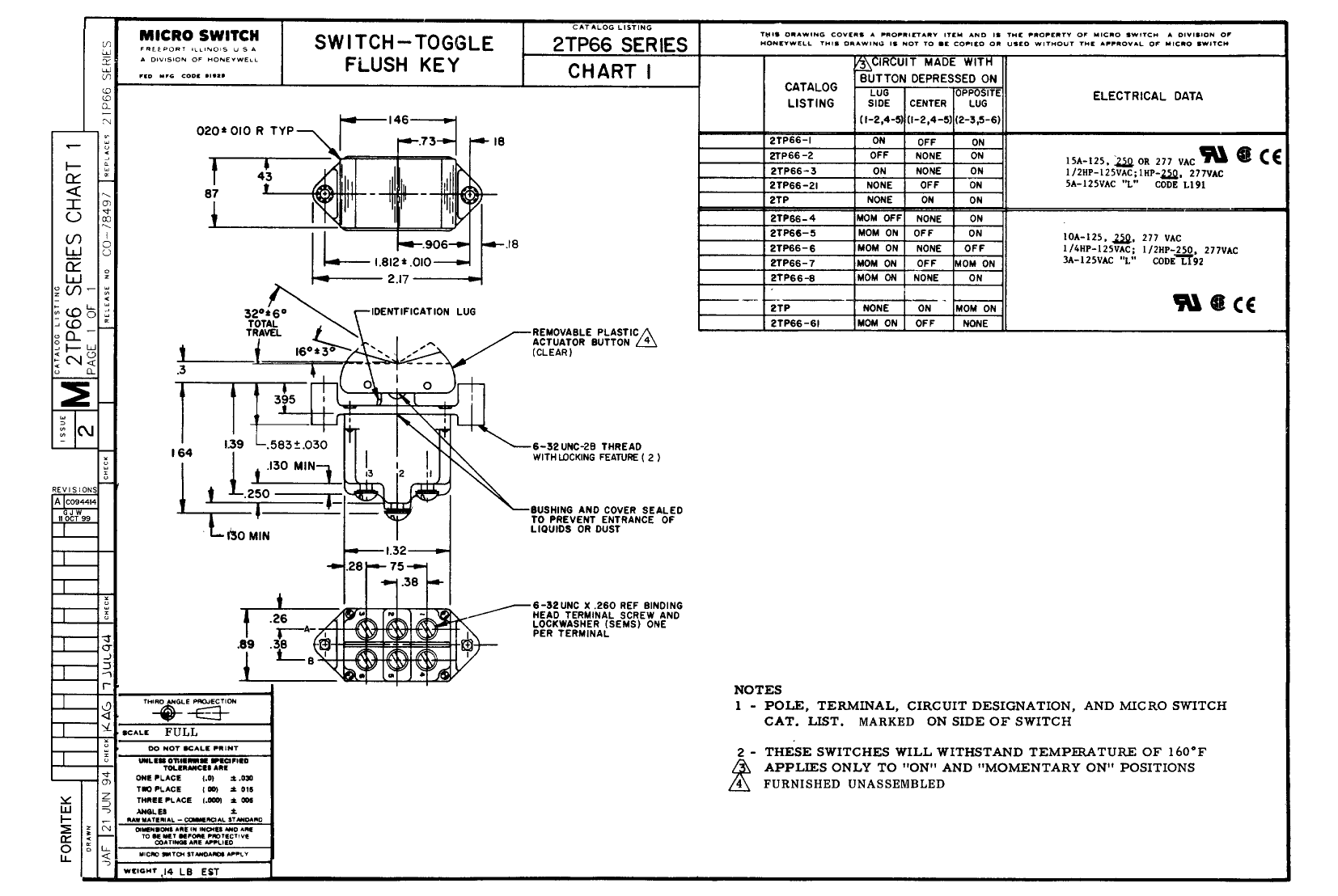

Preview

Download Datasheet

View All

2TP66-7 Related Products

	2TP66-7	2TP66-21	2TP66-3	2TP66-5	2TP66-2	2TP66-61	2TP66-6	2TP66-8	2TP66-4	2TP
Description	Rocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched And Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched, Screw Terminal, Rocker Actuator, Panel Mount
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER
body width	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm
body height	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm
Body length or diameter	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm
Contact (AC) maximum rated R load	10A@277VAC	15A@277VAC	15A@277VAC	10A@277VAC	15A@277VAC	10A@277VAC	10A@277VAC	10A@277VAC	10A@277VAC	15A@277VAC
Maximum contact current (AC)	10 A	15 A	15 A	10 A	15 A	10 A	10 A	10 A	10 A	15 A
Maximum contact voltage (AC)	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V
Manufacturer's serial number	2TP66	2TP66	2TP66	2TP66	2TP66	2TP66	2TP66	2TP66	2TP66	2TP66
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	LATCHED	LATCHED	LATCHED AND MOMENTARY	LATCHED	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	LATCHED
switch function	DPDT	DPST	DPDT	DPDT	DPST	DPST	DPST	DPDT	DPDT	DPDT
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1	1	1	1	1	-
