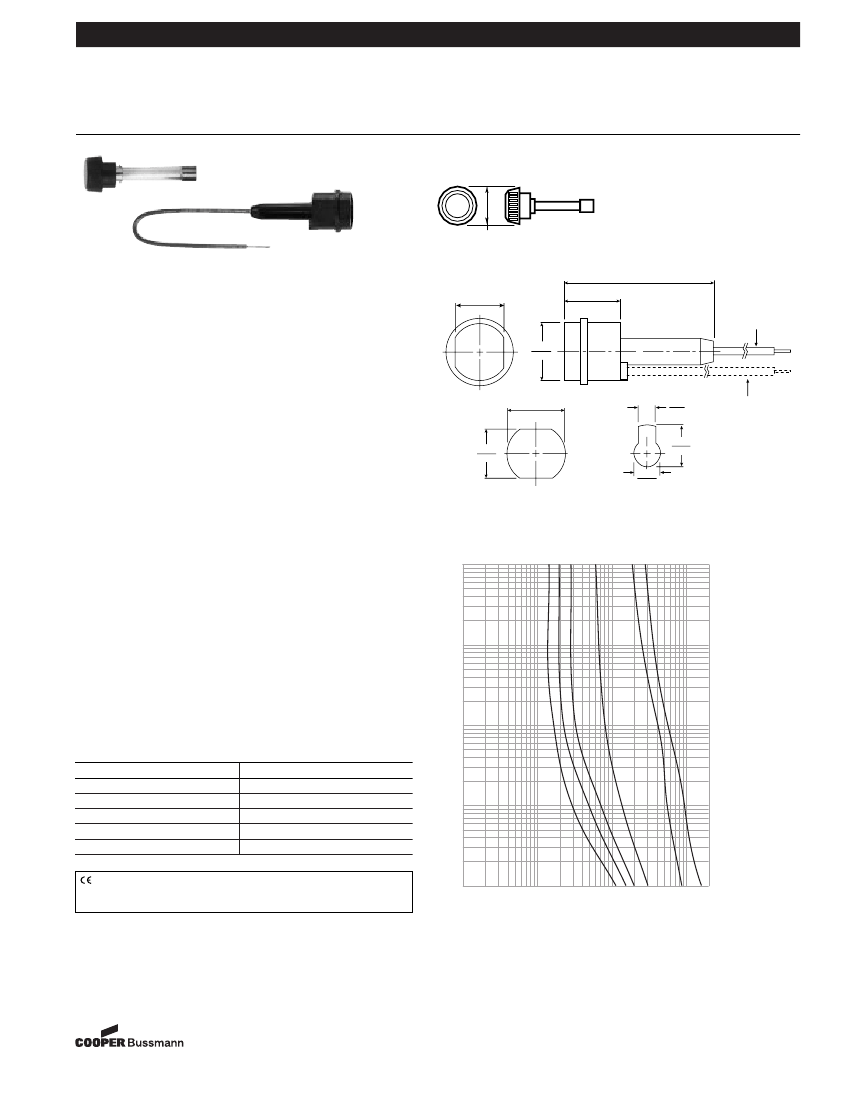

Bussmann
®
Specialty Fuse
Fast-Acting, Size Rejecting
Dimensional Data
FUSE
GLQ
& HLQ
0.63"
(15.9mm)
TIME IN SECONDS
Catalog Symbol:
GLQ (Fuse) HLQ (Fuseholder)
Fast-Acting Rejection Style
Ampere Rating:
1-10 Amperes
Voltage Rating:
300 Volts AC or less
Interrupting Rating:
10,000 Amperes
Agency Information:
Fuse:
UL Listed, Std. 248-14, Guide JDYX, File E19180
CSA Certified, C22.2 No. 248.14, Class 1422-01, File 53787
Fuseholder:
UL Recognized, Guide IZLT2, File E14853
CSA Certified, Class 6225-01, File 47235
General Information:
• Size of GLQ fuse varies with ampere rating.
• GLQ fuses mount in HLQ size rejecting carriers (prevents
overfusing).
• Fuse and knob are an integral one-piece unit. There are no
replacement knobs (caps).
• HLQ carrier comes with
6∑
of #18 red insulated solid copper
wire attached to the line side.
• Customer inserts a #18 insulated solid copper wire into load
side receptacle.
• Units can be panel mounted with a separate steel clip. For
the knockout hole (see above), choose #BK/A-104. For the
keyhole punch type hole, choose #6374 for panels .043” to
.062” thick, or #4909 for panels .030” to .042” thick.
• Do not put tension on line (rear) terminal of fuse-holder.
Electrical Ratings for Type GLQ Fuses and Rejection
Style Carriers
Fuse
GLQ-1
GLQ-1⁄Ω™
GLQ-1flꭧ
GLQ-2
GLQ-2⁄Ω™
Carrier
HLQ-1flꭧ
HLQ-1flꭧ
HLQ-1flꭧ
HLQ-3¤Ω¡º
HLQ-3¤Ω¡º
Fuse
GLQ-3
GLQ-4
GLQ-5
GLQ-9
GLQ-10
Carrier
HLQ-3¤Ω¡º
HLQ-5
HLQ-5
HLQ-10
HLQ-10
FUSE AND CARRIER
.720''
18.29mm
2.250''
57.15mm
.850''
21.59mm
Line Lead
.850''
21.59mm
C
L
MOUNTING HOLE
.870''
22.10mm
Load Lead
.255''
6.48mm
.740''
18.80mm
.635''
16.13mm
.410''
10.41mm
Knockout Hole
Keyhole Punch
Time-Current Characteristic Curves–Average Melt
100
AMPERE
RATING
1
1.5
10
15
2
5
10
1
.1
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 Vac, 75-1500 Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
.01
100
CURRENT IN AMPERES
200
.1
10
1
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
5-22-02
SB02233
Form No. GLQ & HLQ
Page 1 of 1
Data Sheet: 2033
