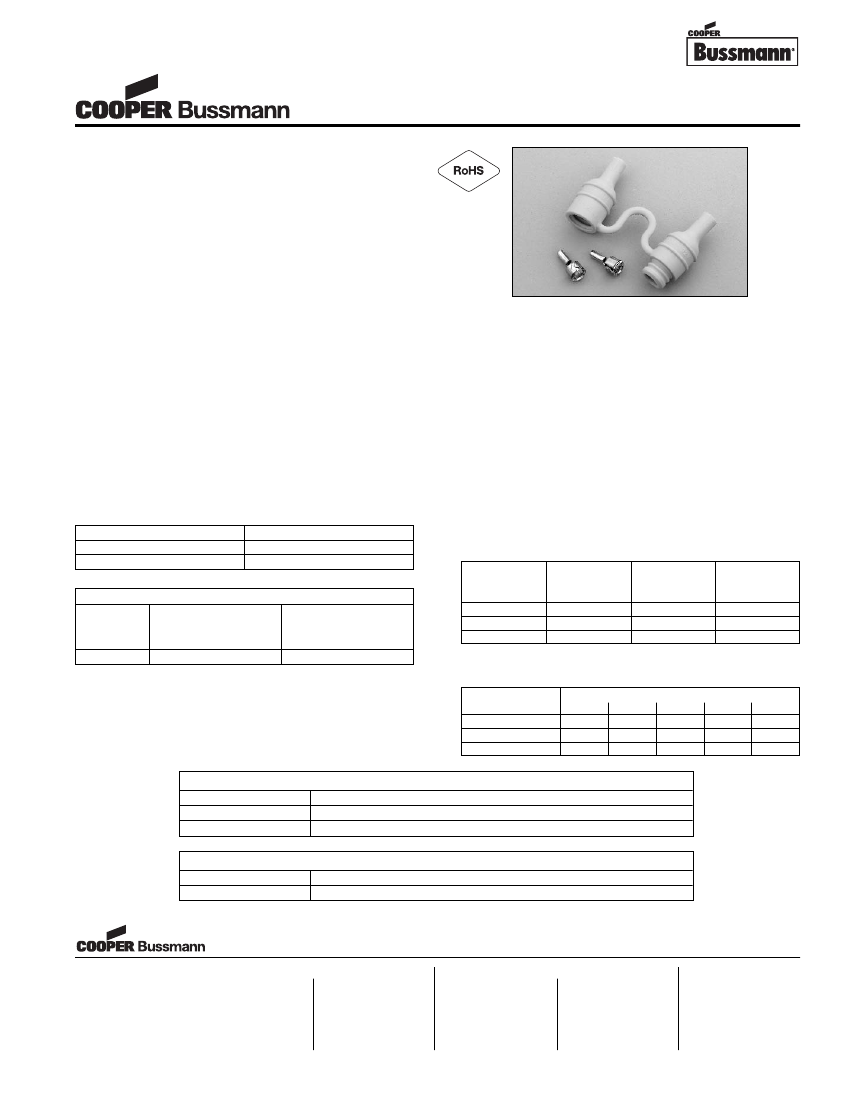

1/4" x 1-1/4" Fuse Holders
HFB In-Line Water-Resistant Series
Description
• For 1/4" x 1-1/4" (6.35mm x 31.8mm) fuses
• Ideal for harsh environments
• Water
• Salt Spray
• Ultraviolet Light
• Ozone
• -40° to 150°C temperature range
• Withstands many organic solvents
and rigorous shock and vibration
• Accepts #18 to #12 AWG copper wire
• High visibility yellow color
• Recommended crimp tools:
• Thomas & Betts – WT-112M
• California Terminal Products No. 1250
• Channelock No. 909
• Replacement contact clip: BK/1A2294
• UL flammability rating 94 HB
Ordering
• Specify packaging, product, and option code
Component
Body
Crimp
Material
Thermoplastic Rubber
Copper Tin-Plated
Environmental Data
• Temperature Rating (RTI): 100°C
• Water-resistant
• Vibration Resistance: Per MIL STD 810C
• Humidity: 85°C/85% relative humidity for 96 hours
• Brittle Point: Less than -60°C
• Abrasion: 54% NBS index
• Fluid resistance: Type and Class AA, BA, BC, BE, CA,
CE per ASTM D-2000 Standard Classification System
for rubbers
• Flame Resistance: Pass FMVSS302 and related slow
burning when tested in accordance with UL 94HB
• Ozone Resistance: Passed 70 Hours in 50 ppm ozone
per ASTM D-5
• Salt Spray: 15% for 166 hours = 0% volume swell
• Xenon Arc Weatherometer
Time
(Hrs)
0
500
1000
Tensile
Strength
(psi)
1100
1130
1190
Elong.
(%)
375
350
350
100%
Mod.
(psi)
470
520
520
SPECIFICATIONS
Product
Code
HFB
Voltage
Rating
AC
32V
Current
Rating
AC
30A
• Heat Aging (% Retention of Mechanical
Properties at 125°C)
Parameters
Tensile Strength
% Elongation
100% Mod.
1
100
90
105
7
105
90
110
Days
15
115
90
120
30
120
90
120
41.7
120
90
120
PACKAGING CODE
Packaging Code
Blank
BK
Description
10 pieces of fuseholders packed into a carton
100 pieces of fuseholders packed into a poly bag
OPTION CODE
Option Code
-R
Description
RoHS compliant version
