FNM-7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> FNM-7

Preview

FNM-7: Descriptionindustrial & electrical fuses 250vac 7A time delay ferrule; CategoryCircuit protection; File Size248KB，3 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

FNM-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FNM-7	-	-	View	Buy Now

FNM-7 Overview

industrial & electrical fuses 250vac 7A time delay ferrule

FNM-7 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Industrial & Electrical Fuses
RoHS	N
Body Style	Cartridge Fuses
Current Rating	7 A
Voltage Rating AC	250 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	5AG Midget (10.3 mm x 38.1 mm)
Indicator Style	Without Indic
Dimensions	38.1 mm L x 1 1/2 in W x 10.3 mm D
Case Diamete	10.3 mm
Case Length	38.1 mm
Case Width	1 1/2 i
Interrupt Rating	35 A at 250 VAC / 10 kA at 125 VAC
Packaging	Bulk
Produc	Industrial Power Fuses
Factory Pack Quantity	10
Type	Time Delay Fuse
Unit Weigh	4.536 g

Preview

Download Datasheet

View All

Technical Data 2028

Effective April 2014

Supersedes September 2009

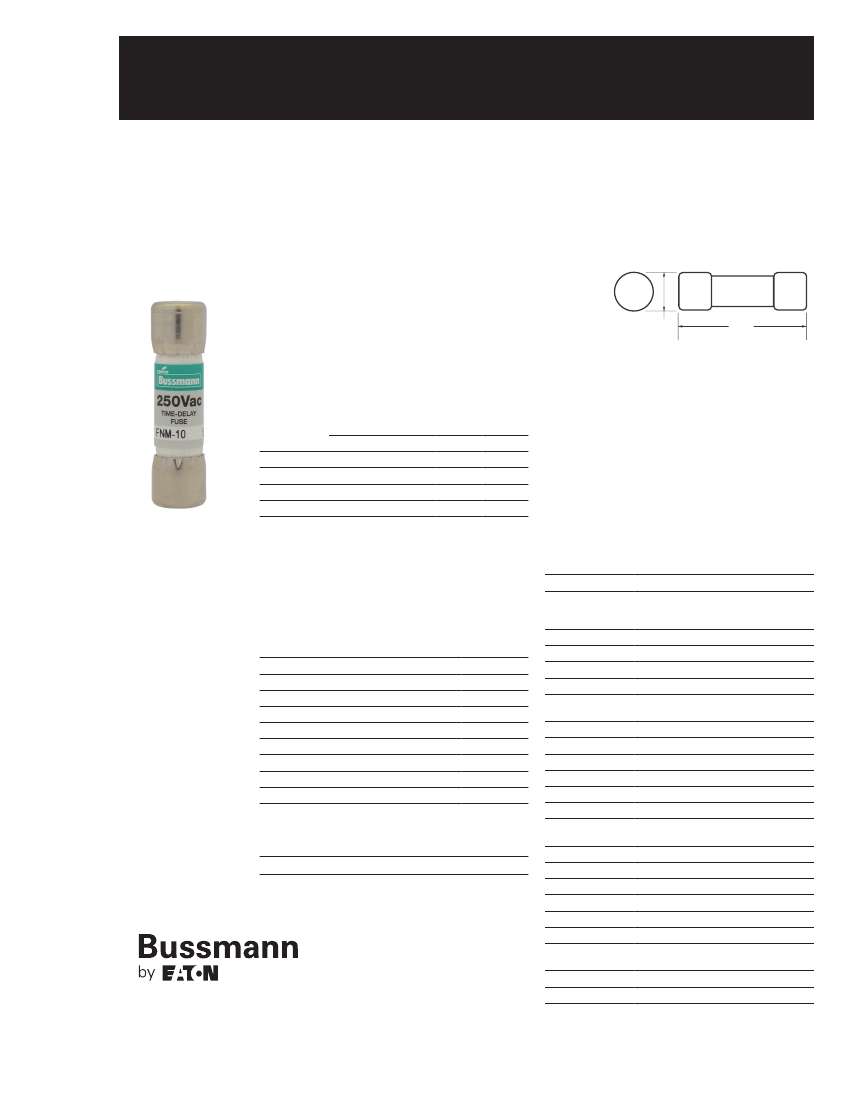

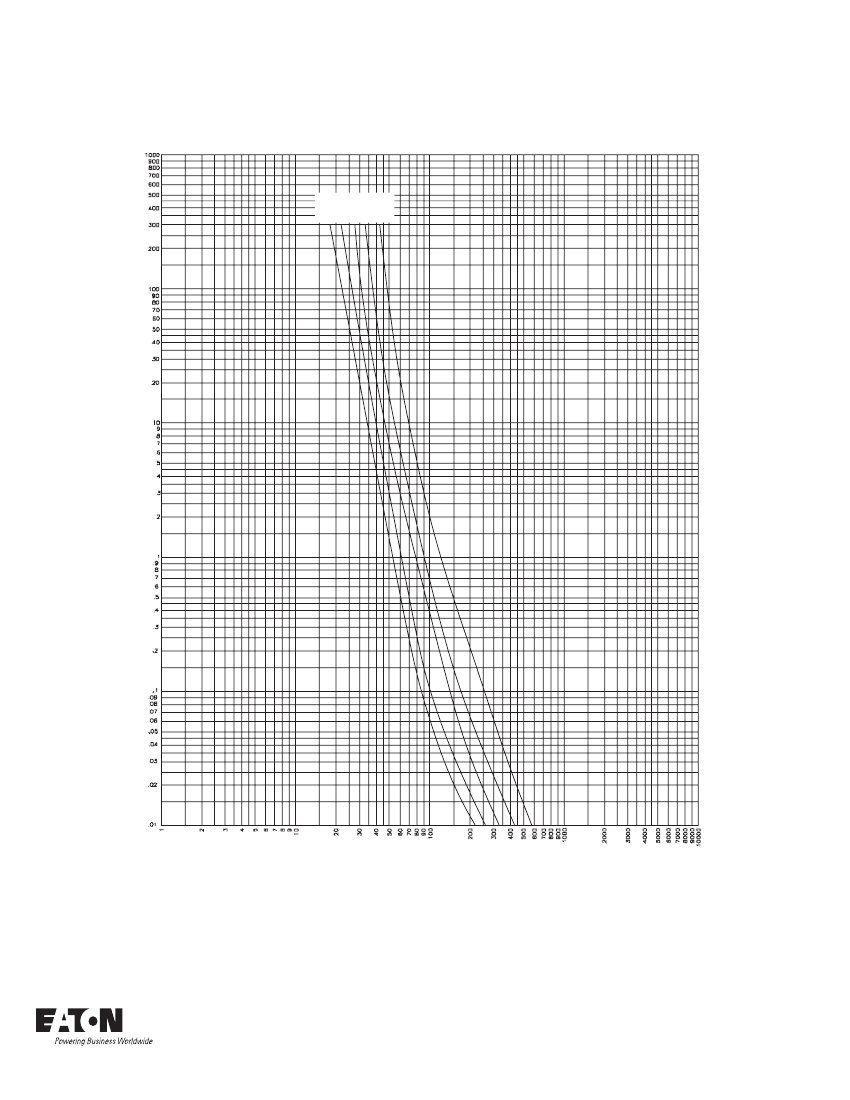

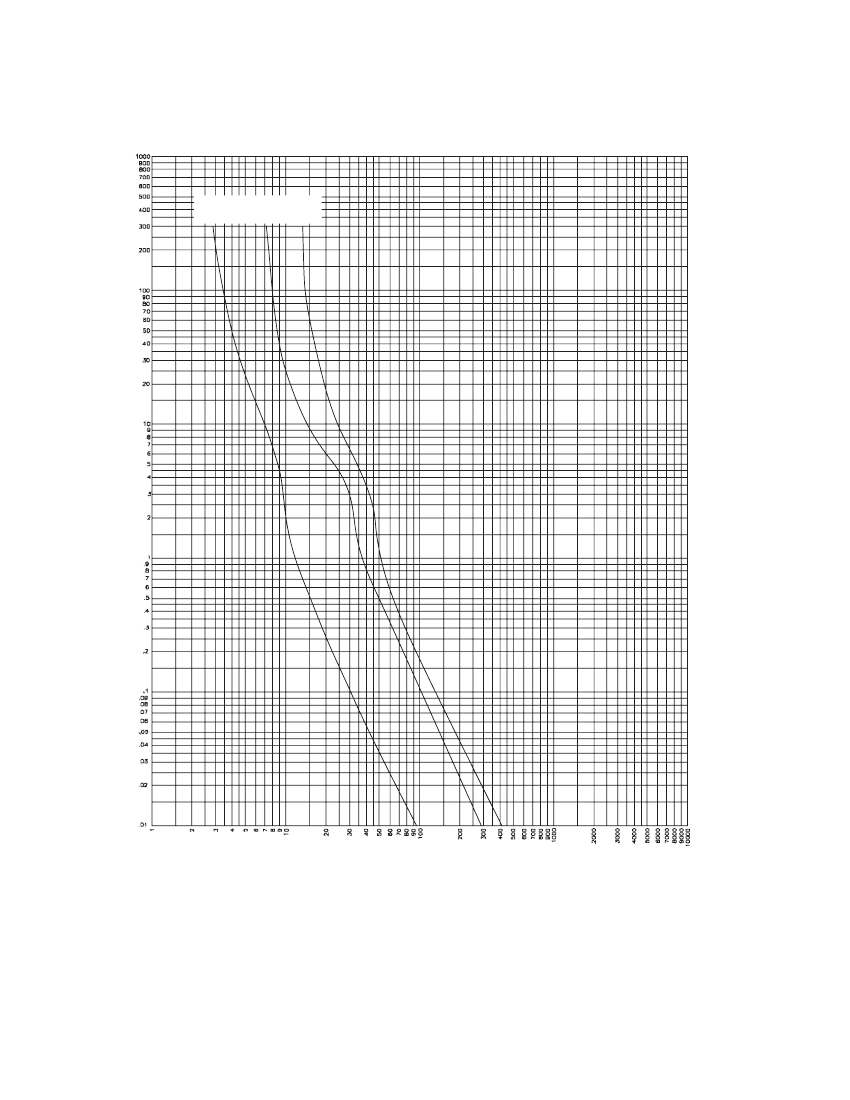

FNM Series

13⁄32˝ x 1-1⁄2˝ 250Vac Time-delay supplemental fuses

Description

Time-delay supplemental fuse.

For superior protection, Bussmann recommends

upgrading to Low-Peak Class CC fuses. See data

sheet # 1023.

Dimensions - in (mm)

Catalog symbol / color code

•

0.41"

(10.3)

1.5"

(38.1)

FNM - Green (250Vac maximum voltage)

Features

•

Ratings

Fuse

Amp

Range

1/10 to 1

1-1/8 to 3-1/2

4 to 10

12 to 30

Interrupting Rating

at System Voltage

250Vac

35A

100A

200A

10kA

125Vac

10kA

-

Agency

Information

UL

X

CSA

X

Color coded green for 250Vac maximum

voltage rating

Melamine tube construction

Nickel-plated brass endcaps

Typical applications

•

Circuits with high inrush currents

(motor/transformer loads)

Supplemental protection for 125Vac and

250Vac inductive circuits.

250Vac

1/10 to 30A

Agency information

•

CE

UL Listed, Std. 248-14, Guide JDYX;

File E19180

CSA Certified, Class 1422-01, File 53787

Recommended fuse blocks/fuse holders

Series

Description

Blocks

BMM Series

BM Series

FNM-6-1⁄4

FNM-7

FNM-8

FNM-9

FNM-10

FNM-12

FNM-15

FNM-20

FNM-25

FNM-30

HPM & HPM-D

HPC-D

HPS2

HPF, HPF-C &

HPF-WT

HPS

HPG & HPD

HEB

HEX

1A3400, 5956 &

5960 Series

SAMI-7

CCP-_-30M

CHM Series

Optima NG

Optima

1-, 2- & 3-Pole modular

blocks with optional

10235

covers

1-, 2- & 3-Pole blocks

DIN-Rail Holders / Switches

1-, 2- & 3-Pole switch

1-, 2- & 3-Pole

3-Pole protection

module

3-Pole holder

3-Pole holder + switch

Panel Mount Holders

1-Pole holder

2-Pole holder

1-Pole holder

In-line Holders

1-Pole holder

2-Pole holder

Fuseclips

PCB Fuseclips

Fuse Covers

Finger-safe fuse cover

1204

2132

2127

2126

2112

2109

2140

2114

2113

2108

1157

3185

1109

1102

1103

1104

Data Sheet #

Catalog numbers (amps)

FNM-1⁄10

FNM-1⁄8

FNM-15⁄100

FNM-2⁄10

FNM-1⁄4

FNM-3⁄10

FNM-4⁄10

FNM-1⁄2

FNM-6⁄10

FNM-3⁄4

FNM-8⁄10

FNM-1

FNM-1-1⁄8

FNM-1-1⁄4

FNM-1-4⁄10

FNM-1-1⁄2

FNM-1-6⁄10

FNM-1-8⁄10

FNM-2

FNM-2-1⁄4

FNM-2-1⁄2

FNM-2-8⁄10

FNM-3

FNM-3-2⁄10

FNM-3-1⁄2

FNM-4

FNM-4-1⁄2

FNM-5

FNM-5-6⁄10

FNM-6

Carton quantity

Amps

1/10 to 30

Qty.

10

FNM-7 Related Products

	FNM-7	FNM-25
Description	industrial & electrical fuses 250vac 7A time delay ferrule	industrial & electrical fuses 32vac 25a time delay ferrule
Manufacture	Cooper Bussm	Cooper Bussm
Product Category	Industrial & Electrical Fuses	Industrial & Electrical Fuses
RoHS	N	In Transiti
Body Style	Cartridge Fuses	Cartridge Fuses
Current Rating	7 A	25 A
Voltage Rating AC	250 V	250 V
Mounting Style	Holde	Holde
Termination Style	Cli	Cli
Fuse Type	Time Delay / Slow Blow	Time Delay / Slow Blow
Fuse Size / Grou	5AG Midget (10.3 mm x 38.1 mm)	5AG Midget (10.3 mm x 38.1 mm)
Indicator Style	Without Indic	Without Indic
Dimensions	38.1 mm L x 1 1/2 in W x 10.3 mm D	38.1 mm L x 1 1/2 in W x 10.3 mm D
Case Diamete	10.3 mm	10.3 mm
Case Length	38.1 mm	38.1 mm
Case Width	1 1/2 i	1 1/2 i
Interrupt Rating	35 A at 250 VAC / 10 kA at 125 VAC	35 A at 250 VAC / 10 kA at 125 VAC
Packaging	Bulk	Bulk
Produc	Industrial Power Fuses	Industrial Power Fuses
Factory Pack Quantity	10	10
Type	Time Delay Fuse	Time Delay Fuse
Unit Weigh	4.536 g	9.072 g

Recommended Resources

LAS6350 output current expansion circuit diagram

C1325/C1336 single-axis hexagonal automatic lathe electrical and schematic circuit

Hersheyda LC-977B annual calendar touch dimming desk lamp circuit diagram

Three-way synchronous output switching regulated power supply

Circuit diagram of double-gate protection device for electric motor

Ultrasonic ranging circuit
