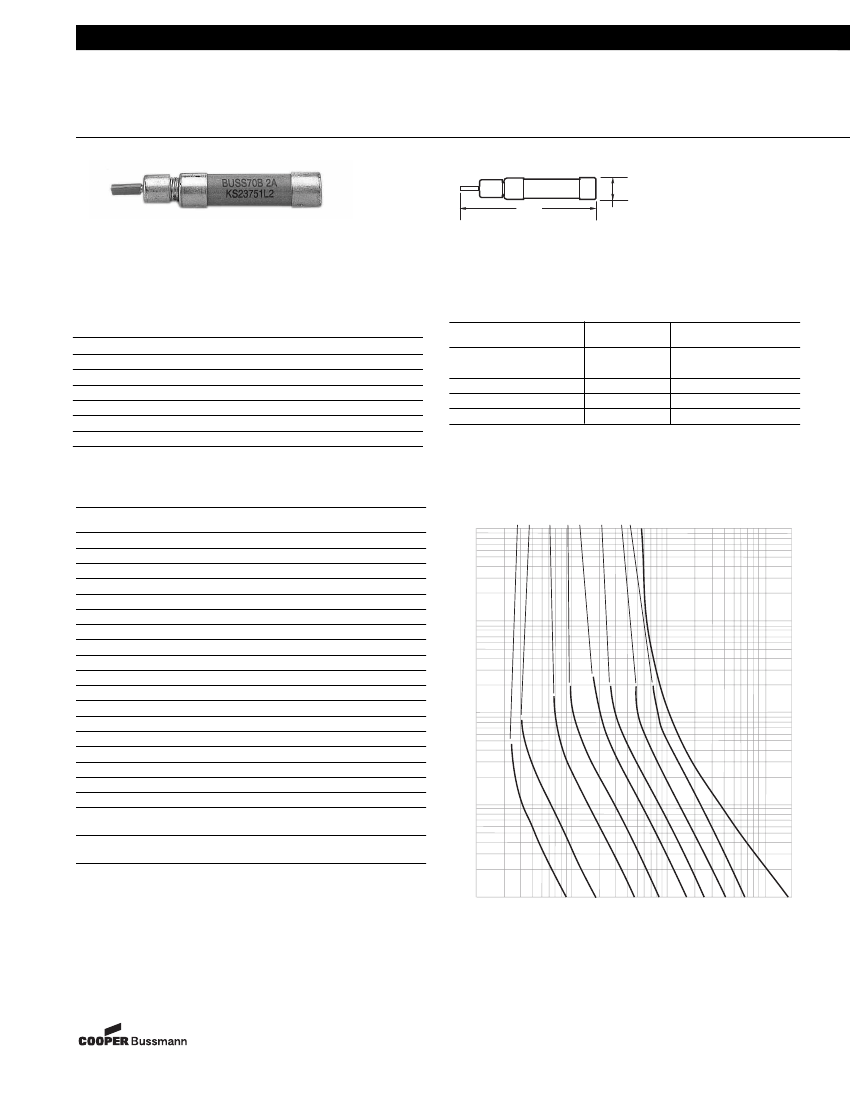

Bussmann
®
Telpower Indicating Fuse and Holder
®
70 Series
300 Volts DC – 1/10-10A
Dimensional Data
1.86"
(47.4mm)
.28"
(7.1mm)
CATALOG SYMBOLS: FUSE – 70 SERIES;
FUSEHOLDER – 15087 (see page 2)
300 VOLTS DC; 125 VOLTS AC
U.L. RECOGNIZED (GUIDE #JDYX2, FILE #E19180)
Catalog Numbers
70P-1/10A
70R-15/100A
70E-18/100A
70X-2/10A
70F-1/4A
70K-1/4A
70G-1/2A
70H-3/4A
70I-1A
70A-1-1/3A
70B-2A
70C-3A
70J-3-1/2A
70D-5A
70L-6A
70M-8A
70N-10A
GKB-10A
72A-DUMMY
72B-DUMMY
–
• Visual indicating fuse.
• Fiber tube design, color code for ampere rating.
Test Specification
Catalog Number
70A, 70B, 70C, 70D
70E, 70F, 70G, 70H
70K
70P
70R
150%
160%
200%
267%
0-90 sec.
0-300 sec.
0-300 sec.
0-300 sec.
Percent
Overload
Opening
Time
Time-Current Characteristic Curves–Average Melt
70G
70H
70A
70 SERIES TELPOWER (300 Volts DC, 125 Volts AC)
Catalog
Number
70P-1/10A*
70B
70C
70D
GKB-10A
70E
70F
Ampere Voltage Rating Color
Rating AC
DC
Code
1/10
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
–
–
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
–
–
Gray/Wh
Red/Wh
Yellow
Black
Violet
Violet/Wh
Red
Brown
Pink
White
Orange
Blue
Black/Wh
Grn/Blk
Grn/Wh
Brown/Wh
Violet/Yel
Violet/Yel
–
–
AT&T Comcode Code/
Ref. No.
List No.
100203413
101384550
100203363
–
100203371
100203405
100203389
100203397
–
100203322
100203330
100203348
–
100203355
–
–
–
–
100203421
103757977
KS23751-L10
KS23751-L11
KS23751-L5
–
KS23751-L6
KS23751-L9
KS23751-L7
KS23751-L8
KS23751-L1
KS23751-L2
KS23751-L3
–
KS23751-L4
–
–
–
–
–
–
–
100
AMPERE
RATING
70R-15/100A* 15/100
70E-18/100A* 18/100
70X-2/10A
70F-1/4A*
70K-1/4A*
70G-1/2A*
70H-3/4A*
70I-1A
70A-1-1/3A*
70B-2A*
70C-3A*
70J-3-1/2A
70D-5A*
70L-6A
70M-8A
70N-10A
GKB-10A
72A
Plastic Case
72B
Blister Pack
2/10
1/4
1/4
1/2
3/4
1
1-1/3
2
3
3-1/2
5
6
8
10
10
Dummy
Dummy
10
TIME IN SECONDS
1
.1
* Product designed to comply with Bellcore Technical Reference TR-TSY-000799
Issue 1, December 1988.
CURRENT IN AMPERES
12-16-98
SB98107 Rev. A
Form No.70 Series
Page 1 of 2
BIF Doc #5007
100
10
.1
1
.01

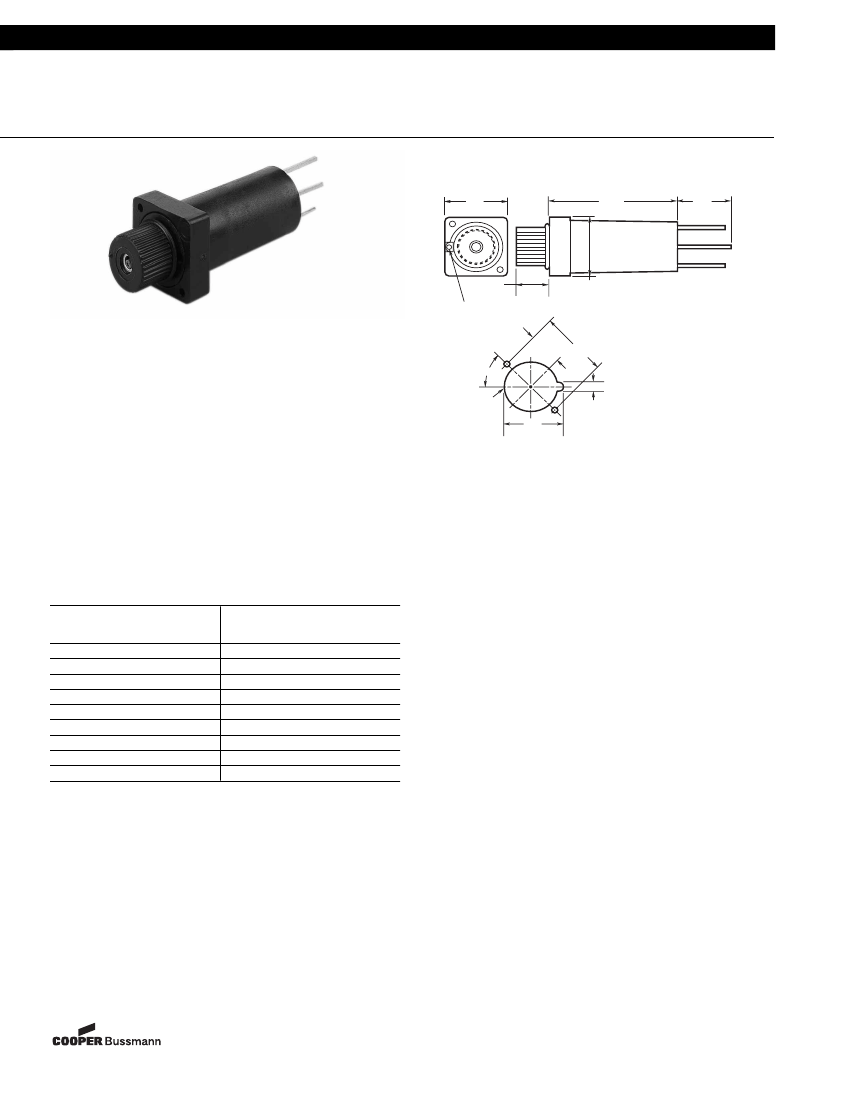

Bussmann
®
Telpower
®
70 Series
70 Type Indicating Fuse and Holder
300 Volts DC
Dimensional Data
.97"
(24.6mm)
1.88"
(47.6mm)
.78"
(19.8mm)
.47"
(11.9mm)
.9"
(22.9mm)
Eyelet (Optional)
CATALOG SYMBOL: 15087 FUSEHOLDER
300 VOLT DC, 12 AMP
U.L. RECOGNIZED (GUIDE #IZLT2, FILE #E14853)
Materials:
Body:
Terminals:
Screws:
Mounting
Holes
.50"
(12.7mm)
1"
(25.4mm)
45°
.83" Dia.
(21.0mm)
.16"
(3.9mm)
Thermosplastic, U.L. 94VO flammability rating
Copper alloy, tin plating
3-24 x 3/8” steel, zinc plated
.91"
(23.0mm)
NOTE:
Optional color coded eyelet for 15087 holder is available.
• Panel mount fuseholder for 70 Type fuses supplied with
two screws.
• Remote alarm capability.
Optional Color Code Eyelets (order separately)
Catalog
Symbol
1A1706-01
1A1706-02
1A1706-03
1A1706-04
1A1706-05
1A1706-06
1A1706-07
1A1706-08
1A1706-09
Amp
Rating
Ref.
18/100
2/10
1/4
1/4
1/2
3/4
1
1-1/3
2
Color
Code
Yellow
Black
Violet
Violet/White
Red
Brown
Pink
White
Orange
Catalog
Symbol
1A1706-10
1A1706-11
1A1706-12
1A1706-13
1A1706-14
1A1706-15
1A1706-16
1A1706-17
–
Amp
Rating
Ref.
3
5
6
8
10
1/10
3-1/2
15/100
–
Color
Code
Blue
Green/Black
Green/White
Brown/White
Violet/Yellow
Gray/White
Black/White
Red/White
–
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
12-16-98
SB98107 Rev. A
Form No. 70 Series
Page 2 of 2
BIF Doc #5007
