Bussmann
®
CC-TRON
®
Time-Delay Fuses
⁄‹Ω£™∑ ≈ 1⁄Ω™∑, 600 Volt, ⁄Ω¢ to 30 Amps
Dimensional Data
FNQ-R
1.5"
( 0.031)
(38.1mm)
.41"
( 0.005)
(10.3mm)

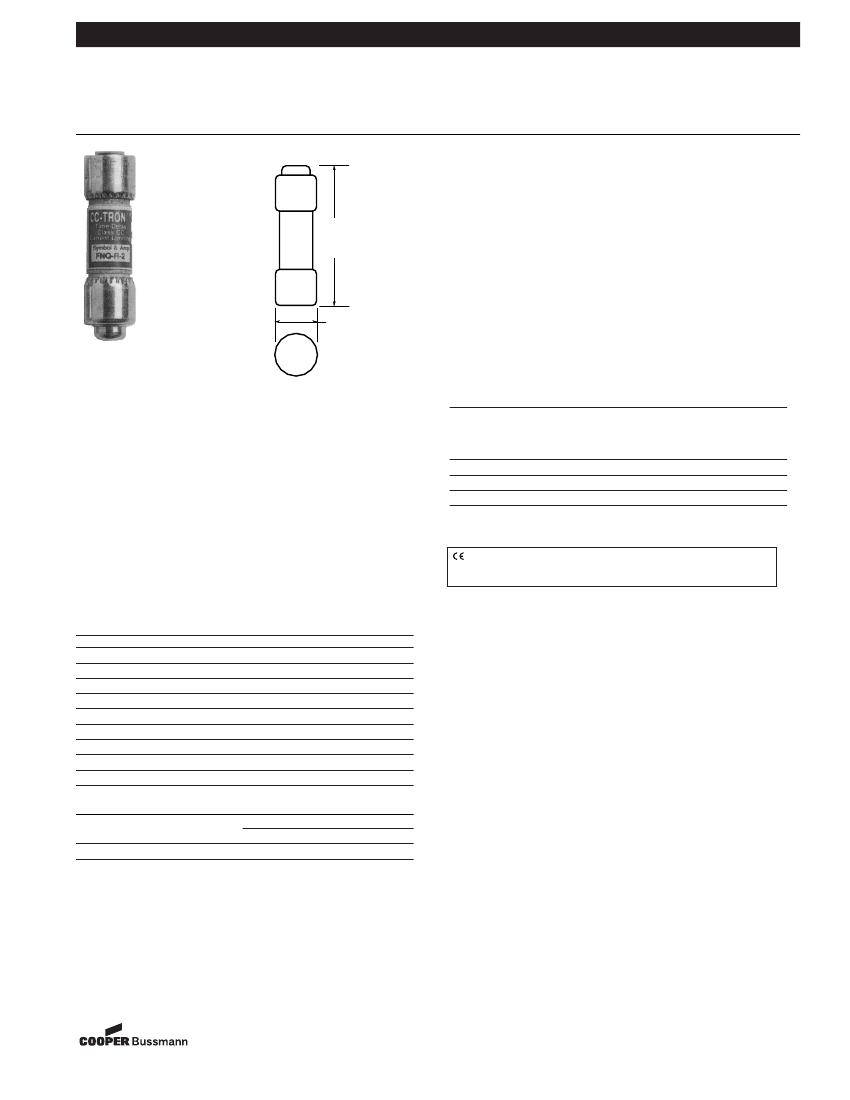

General Information:
• The Bussmann CC-TRON
®
(FNQ-R) was designed to meet
the needs of control circuit transformer protection.
• Current-limitation protects down stream components
against damaging thermal and magnetic effects of short-
circuit currents.
•
High inrush time-delay.
Control circuit transformers can
experience inrush currents up to 85 times their full-load
current rating. FNQ-R fuses can be sized according to
NEC and UL requirements and still allow the high inrush
currents, with significantly more time-delay than the UL
minimum value of 12 seconds at 200% for Class CC fuses.
• Melamine tube. Nickel-plated brass endcaps.
Catalog Symbol:
FNQ-R
Time-Delay
Application:
Circuit Transformer Protection
Ampere Rating:
⁄Ω¢ to 30A
Voltage Rating:
600Vac (or less)†
Interrupting Rating:
200,000A RMS Sym. (UL)
Agency Information:
UL Listed, Std. 248-4, Class CC, Guide JDDZ, File E4273
CSA Certified, Class CC CSA, Class 1422-01,
File 53787–HRC-MISC
†12-30A is 300Vdc and 10k AIR.
Maximum Acceptable Rating of Overcurrent Device*
Rated Primary
Current
(Amperes)
Less than 2A
2A to less than 9A
9A or more
*UL 508A Table 42.1.
**300% for other than motor control applications.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Maximum Rating of Overcurrent
Protective Device Expressed As A
Percent of Transformer Primary
Current Rating
500**
167
125
Electrical Ratings (Catalog Symbol and Amperes)
FNQ-R-⁄Ω¢
FNQ-R-‹Ω¡º
FNQ-R-›Ω¡º
FNQ-R-⁄Ω™
FNQ-R-flꭧ
FNQ-R-‹Ω¢
FNQ-R-°Ω¡º
FNQ-R-1
FNQ-R-1⁄Ω•
FNQ-R-1⁄Ω¢
FNQ-R-1‹Ω¡º
FNQ-R-1›Ω¡º
FNQ-R-1⁄Ω™
FNQ-R-1flꭧ
FNQ-R-1°Ω¡º
FNQ-R-2
FNQ-R-2⁄Ω¢
FNQ-R-2⁄Ω™
FNQ-R-2°Ω¡º
FNQ-R-3
FNQ-R-3¤Ω¡º
FNQ-R-3⁄Ω™
FNQ-R-4
FNQ-R-4⁄Ω™
FNQ-R-5
FNQ-R-5flꭧ
FNQ-R-6
FNQ-R-6⁄Ω¢
FNQ-R-7
FNQ-R-7⁄Ω™
FNQ-R-8
FNQ-R-9
FNQ-R-10
FNQ-R-12
FNQ-R-15
FNQ-R-17⁄Ω™
FNQ-R-20
FNQ-R-25
FNQ-R-30
—
Carton Quantity and Weight
Ampere
Ratings
⁄Ω¢-30
*Weight per carton
Carton
Qty.
10
Weight*
Lbs.
.200
Kg.
.091
11-20-02
SB02450
Form No. FNQ-R
Page 1 of 2
Data Sheet: 1014
Bussmann
®
CC-TRON
®
Time-Delay Fuses
⁄‹Ω£™∑ ≈ 1⁄Ω™∑, 600 Volt, ⁄Ω¢ to 30 Amps

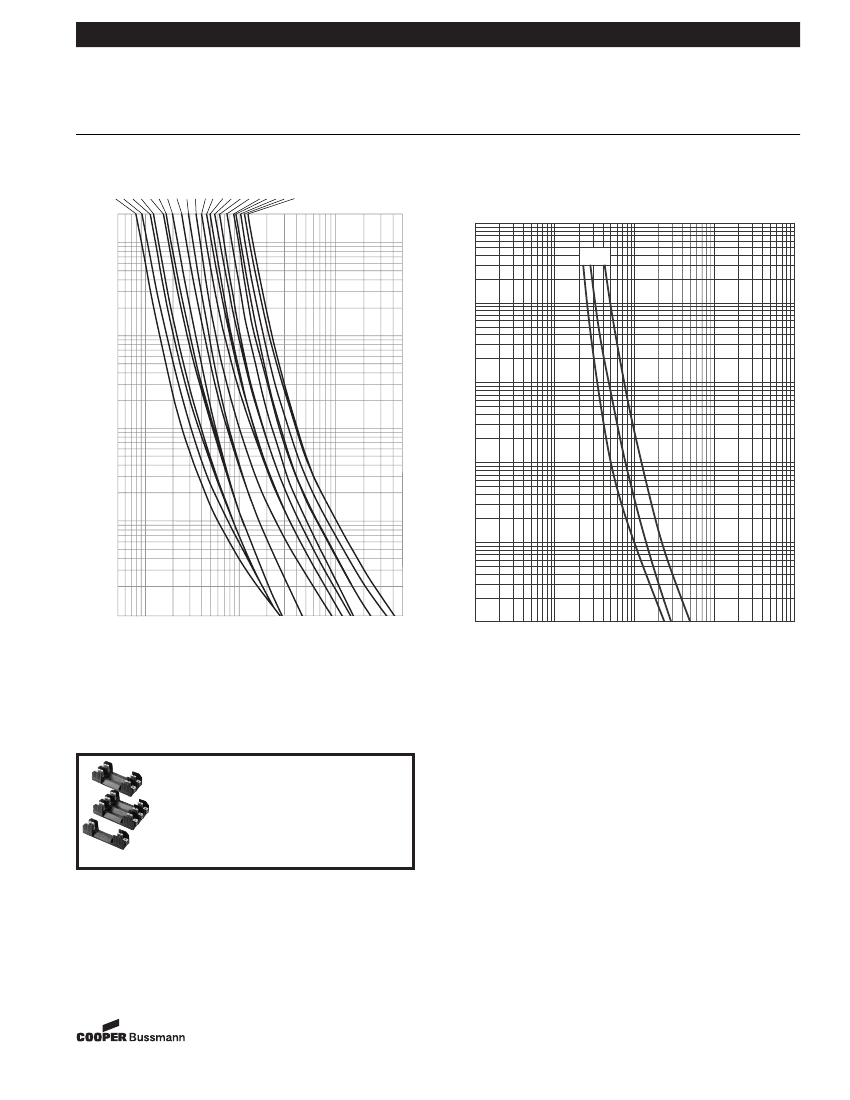

Time-Current Characteristics–Average Melt
1/2
6/10
3/4
8/10
1
1-1/8
1-1/4
1-1/2
1-8/10
2
2-1/2
3
3-2/10
3-1/2
4
5
5-6/10
6
6-1/4
7
7-1/2
FNQ-R
Time-Current Characteristics–Average Melt
AMPERE
RATING
1000
200
100
15A
20A
100
TIME IN SECONDS
10
1
.1
10
TIME IN SECONDS
1
.1
100
200
300
400
500
10
.5
1
.01
.01
10000
1
10
100
1000
CURRENT IN AMPERES
CURRENT IN AMPERES
Recommended fuseblocks/fuseholders for
Class CC 600V fuses
See Data Sheets listed below
• Open fuseblocks - 1105
• Finger-safe fuseholders - 1109, 1102, 1103, 1151
• Panel-mount fuseholders - 2114, 2113
• In-line fuseholders - 2126
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
30A
11-20-02
SB02450
Form No. FNQ-R
Page 2 of 2
Data Sheet: 1014
