21502.5XP: Descriptioncartridge fuses 2.5 amp 250v slo blo cartridg; CategoryCircuit protection Circuit protection; File Size158KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

21502.5XP Overview

cartridge fuses 2.5 amp 250v slo blo cartridg

21502.5XP Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Fusing characteristics	TIME LAG
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	10 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	5.2mm x 20mm
Rated breaking capacity	1500 A
Rated current	2.5 A
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; IEC; KTL; PSE; SEV; SEMKO; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

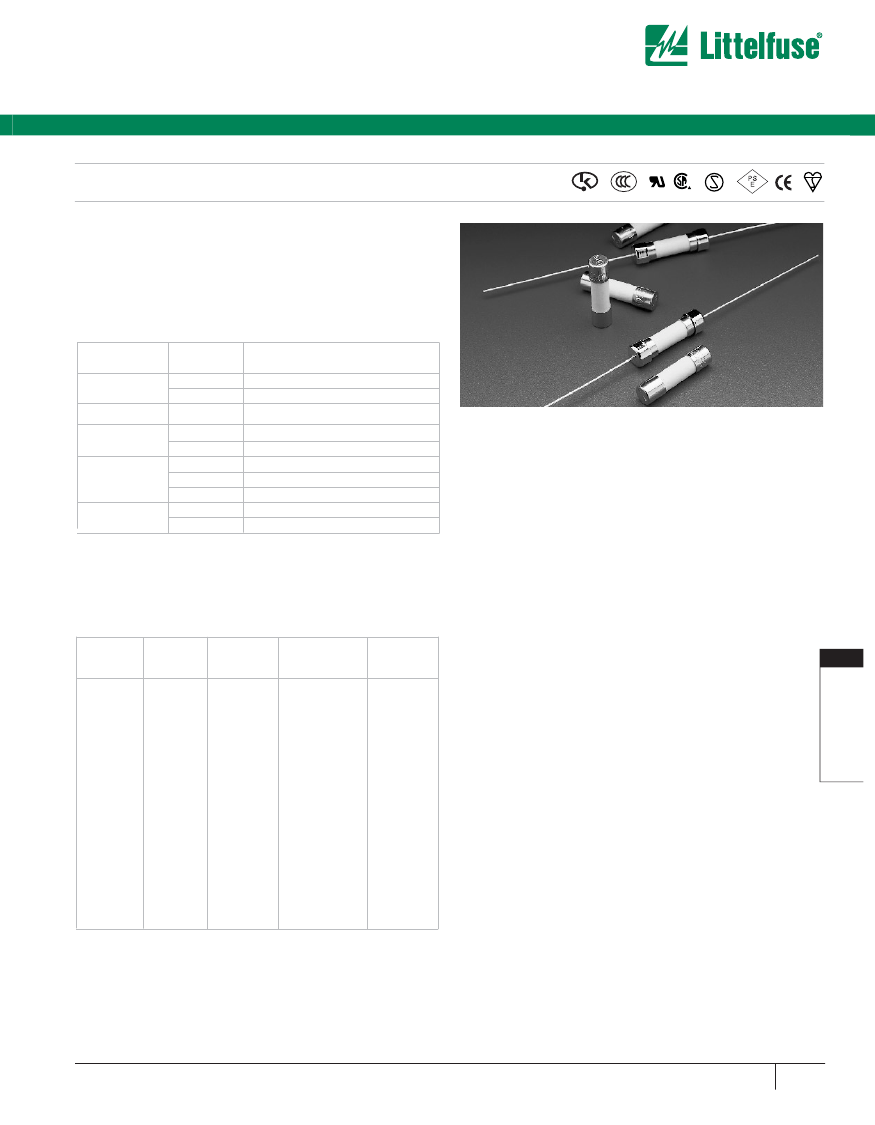

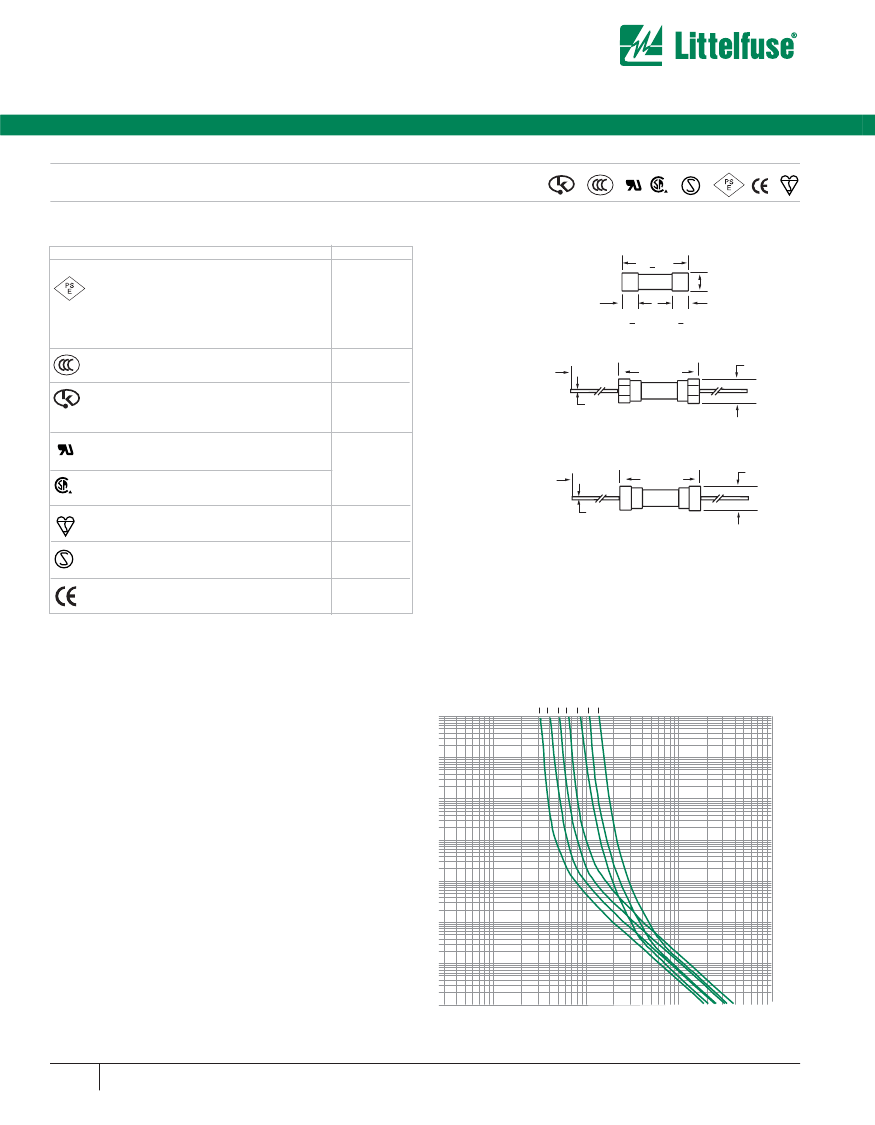

Axial Lead and Cartridge Fuses

Designed to IEC Standard

5 x 20 mm

Time Lag Fuse (Slo-Blo

®

Fuse) 215 Series

®

• Designed to International (IEC) Standards for use globally.

• Meets the IEC 60127-2, Sheet 5 specification for Time Lag Fuses.

• Available in Cartridge and Axial Lead Form.

• Available in ratings of .2 to 12 amperes.

• High breaking capacity.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

150%

210%

275%

Ampere

Rating

.1-6.3

8-12

.1-12

.1-.8

1-12

.1-.8

1– 3.15

4– 6.3

.1-.8

1-12

Opening

Time

60 minutes,

Minimum

30 minutes,

Minimum

30 minutes,

Maximum

.25 sec.,

Min.;

80 sec.

Max.

.75 sec.,

Min.;

80 sec.

Max.

.05 sec.,

Min.;

5 sec.

Max.

.095 sec.,

Min.;

5 sec.

Max.

.150 sec.,

Min.;

5 sec.

Max.

.005 sec.,

Min.;

.15 sec.,

Max.

.010 sec.,

Min.;

.15 sec.,

Max.

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

400%

1000%

INTERRUPTING RATING:

1500 amperes @ 250VAC, 0.7-0.8 power factor.

PHYSICAL SPECIFICATIONS:

Material:

Body: Ceramic

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Filler: Sand (500mA – 12A)

Terminal Strength:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

11

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

ORDERING INFORMATION:

Cartridge

Catalog

Number

215

.200

215

.250

215

.315

215

.400

215

.500

215

.630

215

.800

215

001.

215

1.25

215

01.6

215

002.

215

02.5

215

3.15

215

004.

215

005.

215

06.3

215

008.

215

010.

215

012.

Ampere

Rating

.200*

.250*

.315*

.400*

.500*

.630*

.800*

1

1.25

1.6

2

2.5

3.15

4

5

6.3

8*

10*

12*

Voltage

Rating

250

Nominal

Resistance

Cold Ohms

1.840

1.240

0.880

0.583

1.168

0.720

0.468

0.111

0.081

0.056

0.041

0.031

0.022

0.019

0.015

0.011

0.009

0.007

0.006

Nominal

Melting I

2

t

A

2

Sec.

0.341

0.545

0.974

1.324

0.424

0.633

0.974

1.022

1.996

3.798

6.768

10.370

20.644

37.684

80.675

129.022

204.001

351.037

515.500

w w w. l i t t e l f u s e . c o m

425

AXIAL LEAD AND

CARTRIDGE FUSES

11

21502.5XP Related Products

	21502.5XP	21506.3XEP	215005.XP	0215004.MXE-	AP2762I-H-HF_14	0215.630MXEP	215010.XEP	02153.15MRET3-
Description	cartridge fuses 2.5 amp 250v slo blo cartridg	cartridge fuses 6.3 amp 250v slo blo	cartridge fuses 5 amp 250v slo blo cartridg	cartridge fuses 250v 4A slo-blo	Fast Switching Characteristics	cartridge fuses 250v .63a slo-blo	cartridge fuses 10 amp 250v slo blo fuse	cartridge fuses 250v 3.15a slo-blo
Manufacture	-	Littelfuse	Littelfuse	Littelfuse	-	-	Littelfuse	Littelfuse
Product Category	-	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	-	-	Cartridge Fuses	Cartridge Fuses
RoHS	-	Yes	Yes	No RoHS Version Available	-	-	Yes	N
Body Style	-	Cylindrical Leaded	Cylindrical	Cylindrical Leaded	-	-	Cylindrical Leaded	Cylindrical
Current Rating	-	6.3 A	5 A	4 A	-	-	10 A	3.15 A
Voltage Rating AC	-	250 V	250 V	250 V	-	-	250 V	250 V
Mounting Style	-	Through Hole	Holder / Cli	Through Hole	-	-	Through Hole	Holder / Cli
Fuse Type	-	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	-	-	Time Delay / Slow Blow	Time Delay / Slow Blow
Fuse Size / Grou	-	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	-	-	5 mm x 20 mm	5 mm x 20 mm
Dimensions	-	22.5 mm L x 5.8 mm D	20 mm L x 5.2 mm D	22.5 mm L x 5.8 mm D	-	-	22.5 mm L x 5.8 mm D	20 mm L x 5.2 mm D
Case Diamete	-	5.8 mm	5.2 mm	5.8 mm	-	-	5.8 mm	5.2 mm
Case Length	-	22.5 mm	20 mm	22.5 mm	-	-	22.5 mm	20 mm
Indicator Style	-	Without Indic	Without Indic	Without Indic	-	-	Without Indic	Without Indic
Interrupt Rating	-	1.5 kA at 250 VAC	1.5 kA at 250 VAC	1.5 kA at 250 VAC	-	-	1.5 kA at 250 VAC	1.5 kA at 250 VAC
Operating Temperature Range	-	- 55 C to + 125 C	- 55 C to + 125 C	- 55 C to + 125 C	-	-	- 55 C to + 125 C	- 55 C to + 125 C
Produc	-	Specialty Fuses	Specialty Fuses	Specialty Fuses	-	-	Specialty Fuses	Specialty Fuses
Resistance	-	11 mOhms	15 mOhms	19 mOhms	-	-	7 mOhms	22 mOhms
Factory Pack Quantity	-	1000	1000	1000	-	-	1000	3000
Termination Style	-	Axial	Cli	Axial	-	-	Axial	Cli
Type	-	Axial Lead and Cartridge Fuse	Axial Lead and Cartridge Fuse	Axial Lead and Cartridge Fuse	-	-	Axial Lead and Cartridge Fuse	Axial Lead and Cartridge Fuse
