BK/MDL-V-1/16-R datasheet, PDF

Datasheet> All Categories > Circuit protection> BK/MDL-V-1/16-R

BK/MDL-V-1/16-R: Descriptioncartridge fuses 250vac 1/16a axial lead; CategoryCircuit protection; File Size258KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric Compare View All

BK/MDL-V-1/16-R Overview

cartridge fuses 250vac 1/16a axial lead

BK/MDL-V-1/16-R Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	Yes
Body Style	Cylindrical Leaded
Current Rating	62.5 mA
Voltage Rating AC	250 V
Mounting Style	Through Hole
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	3AG (6.3 mm x 32 mm)
Dimensions	32.82 mm L x 6.76 mm D
Case Diamete	6.76 mm
Case Length	32.82 mm
Indicator Style	Without Indic
Interrupt Rating	35 A
Packaging	Bulk
Produc	Specialty Fuses
Resistance	45.6 Ohms
Factory Pack Quantity	100
Termination Style	Axial
Type	Electronic Time Delay Ferrule Fuse
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

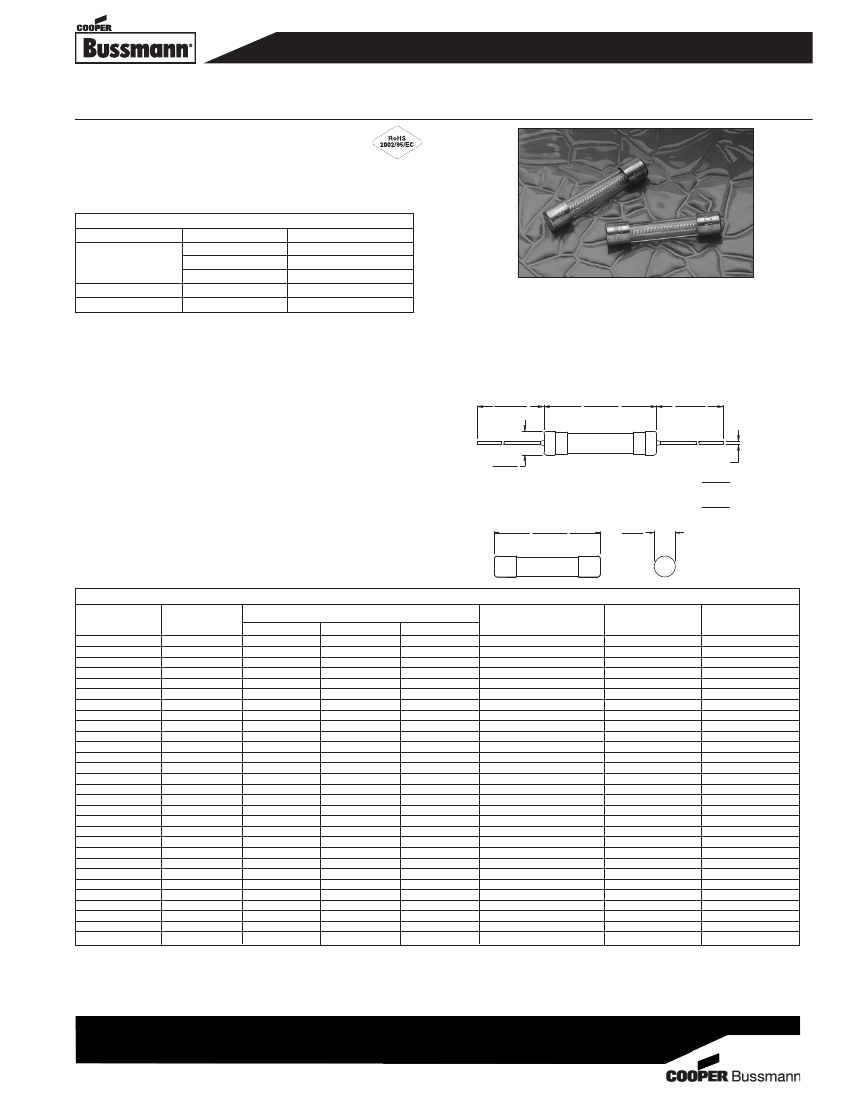

˝ x 1

˝ Time-Delay, Glass Tube Fuses

MDL Series

Description

• Time-delay

• Optional axial leads available

•

⁄

x 1

⁄

(6.4 x 31.7mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

Rated Current

⁄

- 30A

⁄

- 3A

⁄

- 8A

Electrical Characteristics

% of Amp Rating

Opening Time

100%

None

135%

60 minutes maximum

200%

120 seconds maximum

200%

5 seconds minimum

200%

12 seconds minimum

Agency Information

• UL Listed Card: MDL 1/16 - 8A (Guide JDYX, File E19180)

• UL Recognized Card: MDL 9 - 30A (Guide JDYX2,

File E19180)

• CSA Certification Card: MDL 1/16 - 8A (Class No. 1422-01)

• CSA Component Acceptance: MDL 9-30A

(Class No. 1422-30)

• CE

Environmental Data

• Shock: 1A thru 30A – MIL-STD-202, Method 207, (HI Shock)

• Vibration: 1/4A thru 30A – MIL-STD-202, Method 204, Test

Condition C (Except 5g, 500HZ)

Ordering

Specify packaging code

• Insert packaging code prefix before part number. E.g., BK

(or BK1)-MDL-5-R

Specify option codes if desired

• For axial leads, insert “V” between catalog series and amp

rating. E.g., BK-MDL-V-5-R

Voltage

Rating

Vac

250

• For board washable, insert “B” between catalog series and

amp rating. E.g., BK-MDL-B-5-R

• For axial leads and board washable, insert “B” then “V”

between catalog series and amp rating. E.g., BK-MDL-BV-5-R

Dimensions - mm

(in)

Drawing Not to Scale

38.10

(1.500)

32.82

(1.292)

38.10

(1.500)

6.76

(0.266)

DIA. OF LEADS

0.81

0–15 AMP:

(0.032)

20–30 AMP: 1.02

(0.040)

31.75

(1.250)

6.35

(0.250)

Specifications

AC Interrupting Rating* (amps)@

250Vac

125Vac

32Vac

100

200

10000

1000

Part

Number

MDL-1/16-R

MDL-1/10-R

MDL-1/8-R

MDL-3/16-R

MDL-2/10-R

MDL-1/4-R

MDL-3/10-R

MDL-3/8-R

MDL-1/2-R

MDL-3/4-R

MDL-1-R

MDL-1-1/4-R

MDL-1-1/2-R

MDL-2-R

MDL-2-1/4-R

MDL-2-1/2-R

MDL-3-R

MDL-4-R

MDL-5-R

MDL-6-R

MDL-6-1/4-R

MDL-7-R

MDL-8-R

MDL-9-R

MDL-10-R

MDL-15-R

MDL-20-R

MDL-25††

MDL-30††

Typical DC Cold

Resistance**

(Ω)

45.6

15.68

12.238

4.81

5.234

3.208

2.046

1.567

0.943

0.397

0.273

0.205

0.156

0.116

0.096

0.081

0.057

0.038

0.025

0.022

0.02

0.018

0.015

0.012

0.01

0.005

0.004

0.01225

0.0011

Typical

Melting I

t†

0.0046

0.0420

0.0422

0.116

0.314

0.447

0.412

0.982

1.656

4.343

11.498

86.2

22.7

62.3

49.6

63.1

67.5

19.3

32.0

37.4

38.7

42.7

47.8

51.5

64.4

354.0

2914.0

15221.0

15581.0

Typical

Voltage

Drop‡

2.79

1.95

1.52

1.05

0.972

0.965

0.808

1.46

1.27

1.01

0.995

0.722

0.721

0.644

0.535

0.410

0.345

0.187

0.160

0.155

0.152

0.140

0.119

0.124

0.114

0.130

0.530

0.30

0.40

* Interrupting Ratings (Interrupting ratings were measured at 70% - 80% power factor on AC)

** DC Cold Resistance (Measured at ≤10% of rated current)

† Typical Melting I

t (A

Sec) (I

t was measured at listed interrupting rating and rated voltage.)

‡ Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)

†† MDL-25 & MDL-30 not available in RoHS compliant construction.

0209

SB-BU08675

Page 1 of 2

Data Sheet 2004

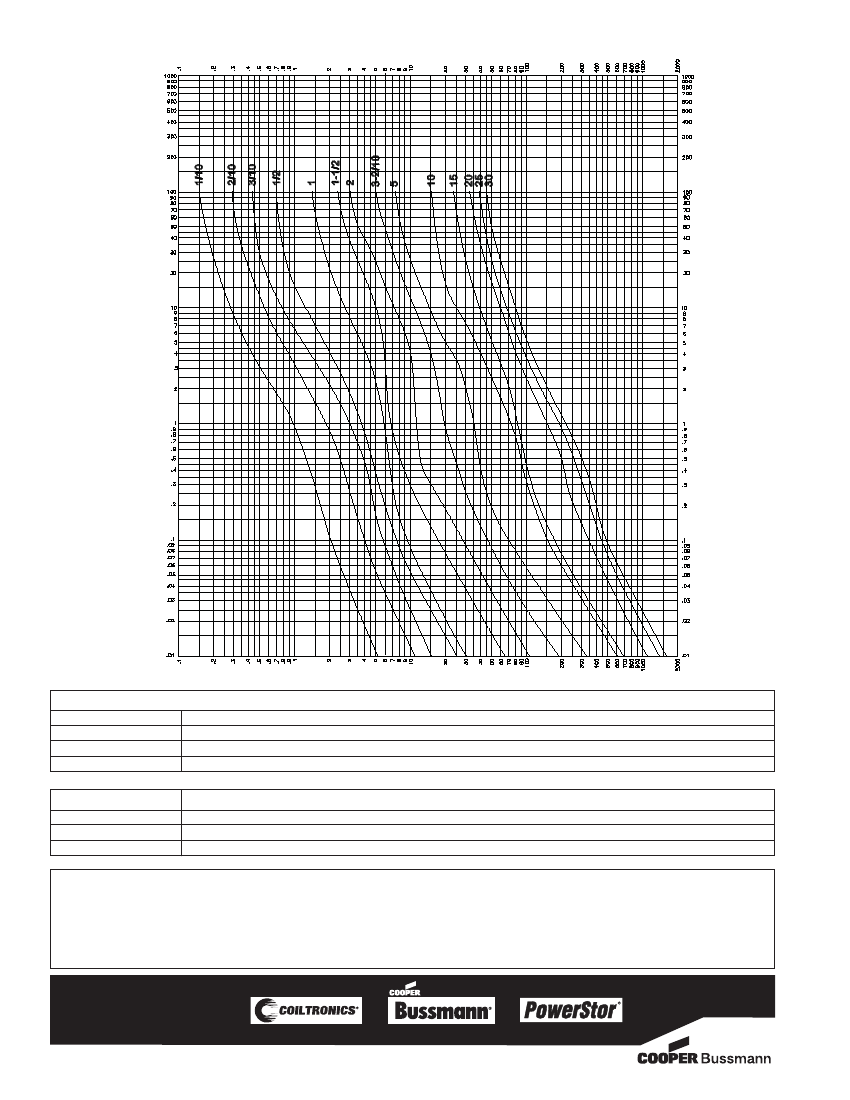

BK/MDL-V-1/16-R Related Products

	BK/MDL-V-1/16-R	BK/MDL-V-8-R	BK/MDL-V-1/4-R	BK/MDL-V-3-R	BK/MDL-V-2-R	BK/MDL-V-12-R	MDL-V-1-1/2-R	BK/MDL-1/2-R
Description	cartridge fuses 250vac 1/16a axial lead	cartridge fuses 250vac 8A axial lead	cartridge fuses 250vac 1/4A axial lead	cartridge fuses 250vac 3A axial lead	cartridge fuses 250vac 2A axial lead	cartridge fuses 250vac 1/2A axial lead	cartridge fuses 250vac 1-1/2A axial lead	cartridge fuses small dimension fuse
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Body Style	Cylindrical Leaded	Cylindrical Leaded	Cylindrical Leaded	Cylindrical Leaded	Cylindrical Leaded	Cylindrical Leaded	Cylindrical Leaded	Cylindrical
Current Rating	62.5 mA	8 A	250 mA	3 A	2 A	500 mA	1.5 A	500 mA
Voltage Rating AC	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Holder / Cli
Fuse Type	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow
Fuse Size / Grou	3AG (6.3 mm x 32 mm)	3AG (6.3 mm x 32 mm)	3AG (6.3 mm x 32 mm)	3AG (6.3 mm x 32 mm)	3AG (6.3 mm x 32 mm)	3AG (6.3 mm x 32 mm)	3AG (6.3 mm x 32 mm)	3AG (6.3 mm x 32 mm)
Dimensions	32.82 mm L x 6.76 mm D	32.82 mm L x 6.76 mm D	32.82 mm L x 6.76 mm D	32.82 mm L x 6.76 mm D	32.82 mm L x 6.76 mm D	31.75 mm L x 6.35 mm D	32.82 mm L x 6.76 mm D	31.75 mm L x 6.35 mm D
Case Diamete	6.76 mm	6.76 mm	6.76 mm	6.76 mm	6.76 mm	6.35 mm	6.76 mm	6.35 mm
Case Length	32.82 mm	32.82 mm	32.82 mm	32.82 mm	32.82 mm	31.75 mm	32.82 mm	31.75 mm
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic
Interrupt Rating	35 A	200 A	35 A	100 A	100 A	1 kA at 32 V	100 A	35 A
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Produc	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses
Factory Pack Quantity	100	100	100	100	100	100	4	100
Termination Style	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Cli
Type	Electronic Time Delay Ferrule Fuse	Electronic Time Delay Ferrule Fuse	Electronic Time Delay Ferrule Fuse	Electronic Time Delay Ferrule Fuse	Electronic Time Delay Ferrule Fuse	Electronic Time Delay Ferrule Fuse	Electronic Time Delay Ferrule Fuse	Electronic Time Delay Ferrule Fuse
Unit Weigh	453.592 mg	453.592 mg	453.592 mg	453.592 mg	3.175 g	453.592 mg	453.592 mg	2.268 g
Resistance	45.6 Ohms	15 mOhms	3.208 Ohms	57 mOhms	116 mOhms	-	156 mOhms	943 mOhms
