MDQ-1-8/10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> MDQ-1-8/10

MDQ-1-8/10: Descriptioncartridge fuses 250v 1.8A dual element time delay; CategoryCircuit protection; File Size256KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric View All

MDQ-1-8/10 Overview

cartridge fuses 250v 1.8A dual element time delay

MDQ-1-8/10 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	N
Body Style	Cylindrical
Current Rating	1.8 A
Voltage Rating AC	250 V
Mounting Style	Holder / Cli
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	3AG (6.3 mm x 32 mm)
Dimensions	31.75 mm L x 6.35 mm D
Case Diamete	6.35 mm
Case Length	31.75 mm
Indicator Style	Without Indic
Interrupt Rating	1 kA
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	5
Termination Style	Cli
Type	Electronic Time Delay Dual Element Ferrule Fuse
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

⁄

" x 1

⁄

" Fuses

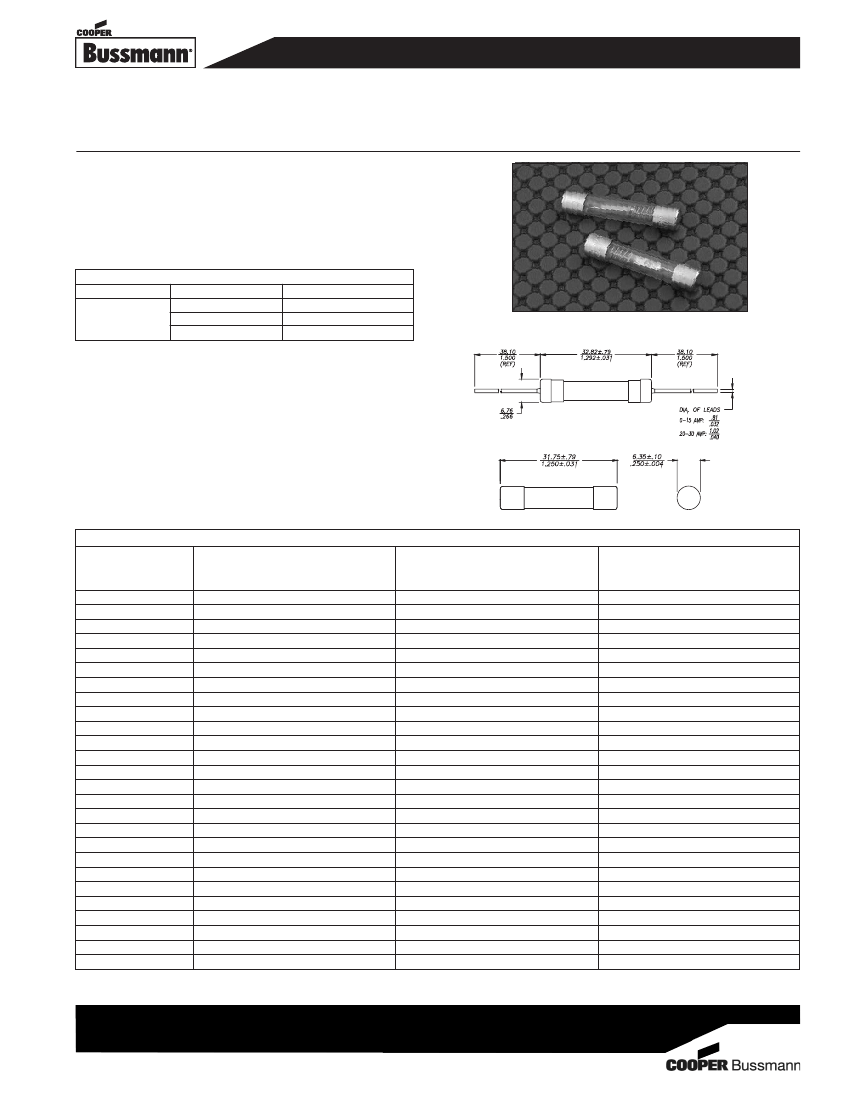

MDQ Series Dual-Element, Time-Delay, Glass Fuse

Description

• Dual-element, time-delay

•

⁄

" x 1

⁄

" (6.3 x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

• Available with axial leads

Rated Current

⁄

- 30A

Electrical Characteristics

% of Amp Rating

Opening Time

100%

None

135%

60 minutes maximum

200%

120 seconds maximum

Dimensions - mm (in)

Agency Information

• UL Listed Card: MDQ-

⁄

- 7A (Guide JDYX,

File E19180)

• UL Recognition Card: MDQ-7.5 - 15A

(Guide JDYX2, File E19180)

• CSA Component Acceptance Card:

MDQ-

⁄

- 15 (Class 1422-01)

Ordering

• Specify packaging, product, and option code

(i.e., Bk-MDQ-BV-1)

with axial leads

Specifications

Product Code

MDQ-1/16

MDQ-1/10

MDQ-1/8

MDQ-3/16

MDQ-2/10

MDQ-1/4

MDQ-3/10

MDQ-3/8

MDQ-1/2

MDQ-3/4

MDQ-1

MDQ-1-1/4

MDQ-1-1/2

MDQ-2

MDQ-2-1/4

MDQ-2-1/2

MDQ-3

MDQ-4

MDQ-5

MDQ-6

MDQ-6-1/4

MDQ-7

MDQ-8

MDQ-9

MDQ-10

MDQ-15

Voltage

Rating

Vac

250

Interrupting

Rating

Amps

100

200

1,000

Typical DC Cold

Resistance

(Ω)**

83.30000

35.00000

21.50000

10.00000

8.65000

5.77500

4.20000

2.35000

1.40000

0.39685

0.37400

0.36000

0.27000

0.13250

0.11450

0.10050

0.05715

0.03510

0.02650

0.01715

0.01690

0.01375

0.01200

0.00888

0.00720

0.00410

** DC Cold Resistance (Measured at <10% of rated current)

0308

BU-SB07472

Page 1 of 2

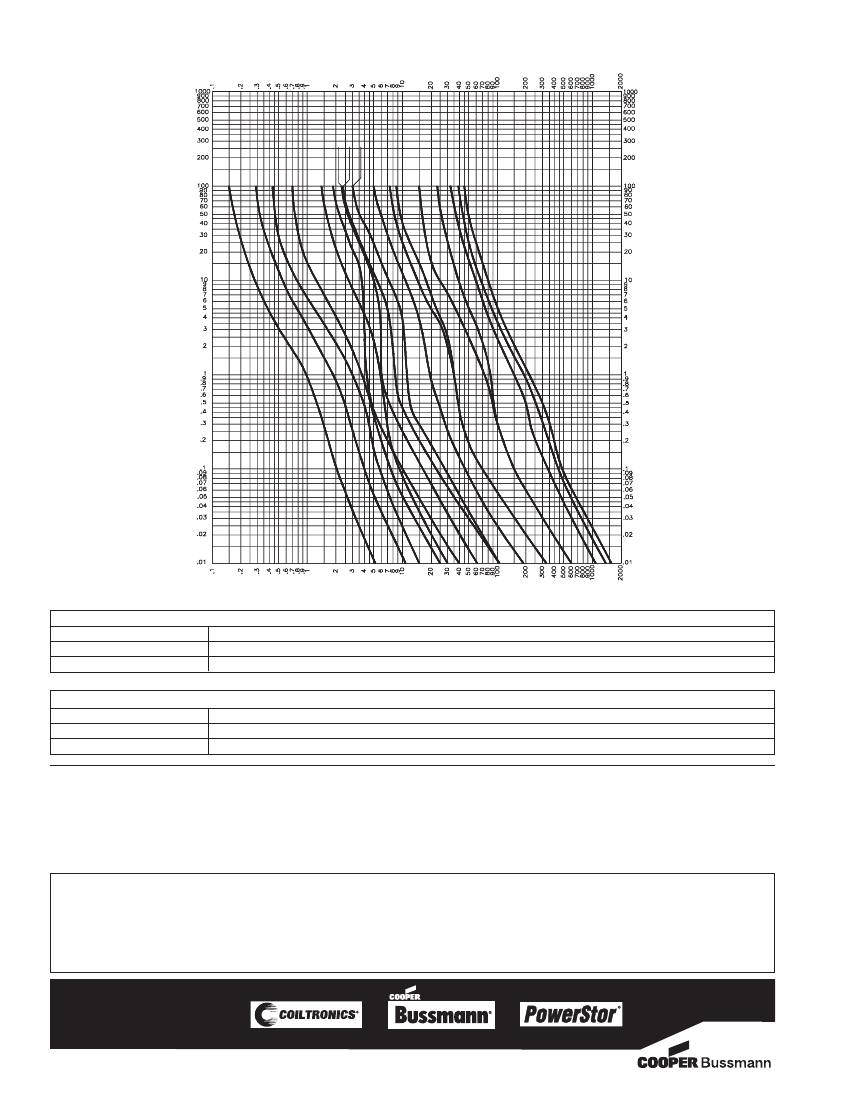

Data Sheet 2044
