26-51-0122 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 26-51-0122

26-51-0122: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Black Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，12 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

26-51-0122 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	26-51-0122	-	-	View	Buy Now

26-51-0122 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Black Insulator, Receptacle

26-51-0122 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	KK
body width	0.355 inch
subject depth	0.5 inch
body length	1.87 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	41711
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	PLASTIC
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.172 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 24 circuits available

Optional voided circuits available

Various pin lengths available (contact Molex)

May be purchased in full 24 circuit sticks and broken into

required circuit sizes

Passive locking feature is used to maintain

interconnection and is ideal for high vibration applications

41671 has square pins and 41711 has round pins

Electrical

Voltage: 250V AC max.

Current: 7.0A max.*

Contact Resistance: 6m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 50K M

Ω

min.

Mechanical

Durability:

Tin—25 cycles max.

Gold—100 cycles max.

Physical

Housing: Black glass-ﬁlled polyester, UL 94V-0

Contact: Brass, 1.14mm (.045") pins

Plating: See Table

Operating Temperature: 0 to +75˚C

3.96mm (.156") Pitch

Breakaway Header

41671/41711

Vertical

Friction Lock

3.00 to 7.92mm (.118 to .312") Pitch

Reference Information

Product Speciﬁcation: PS-41186/08-50

Packaging: Bag

Tooling Information: See cutting tool section

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R75108

Mates With:

2139, 2145, 3069, 3215, 6442, 7674,

7675, 41695

and

41815

Designed In: Inches

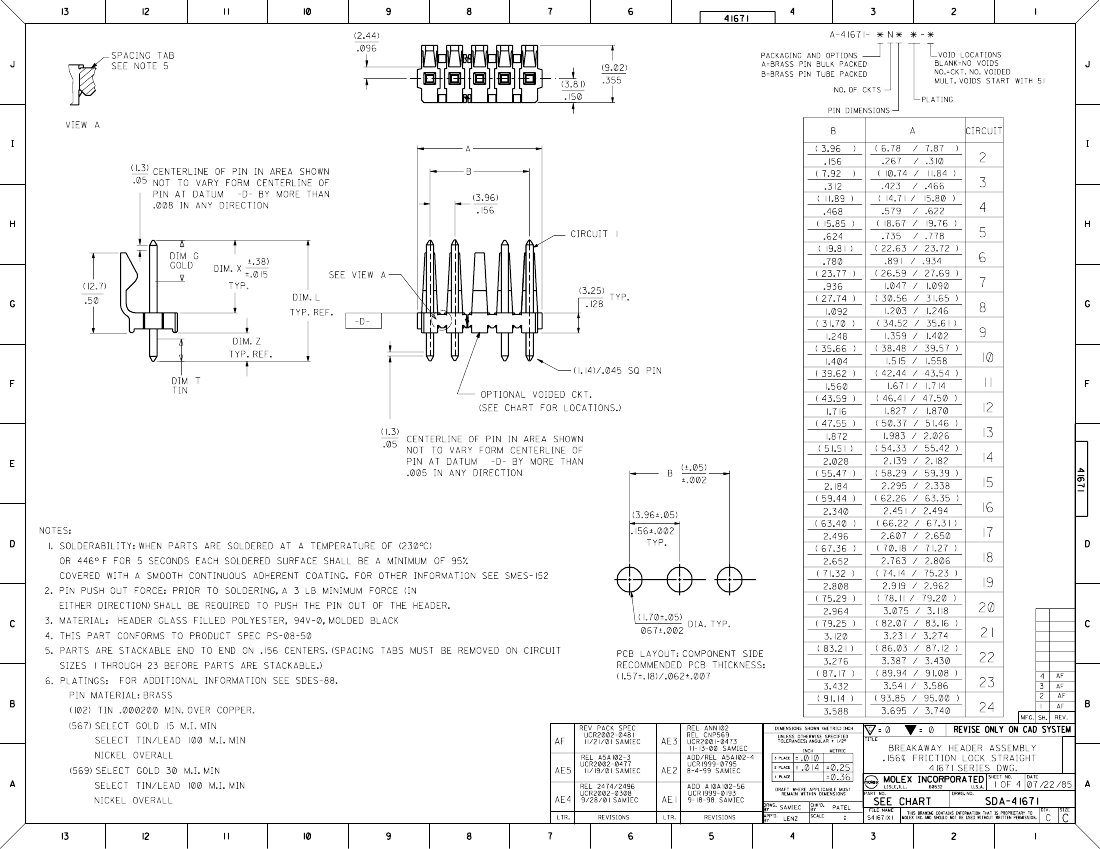

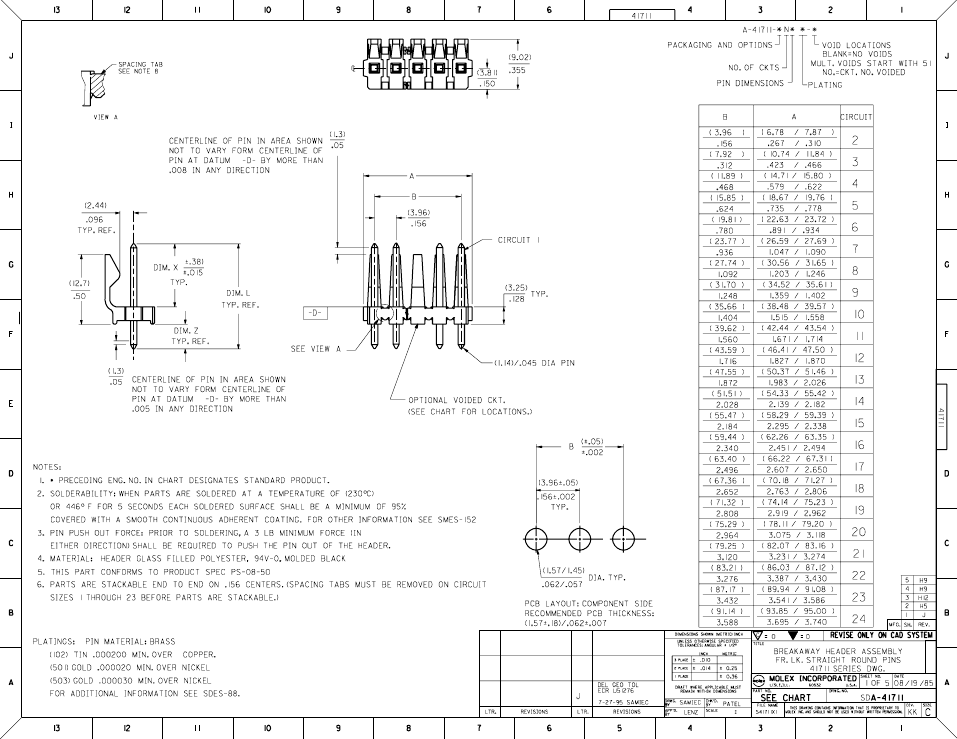

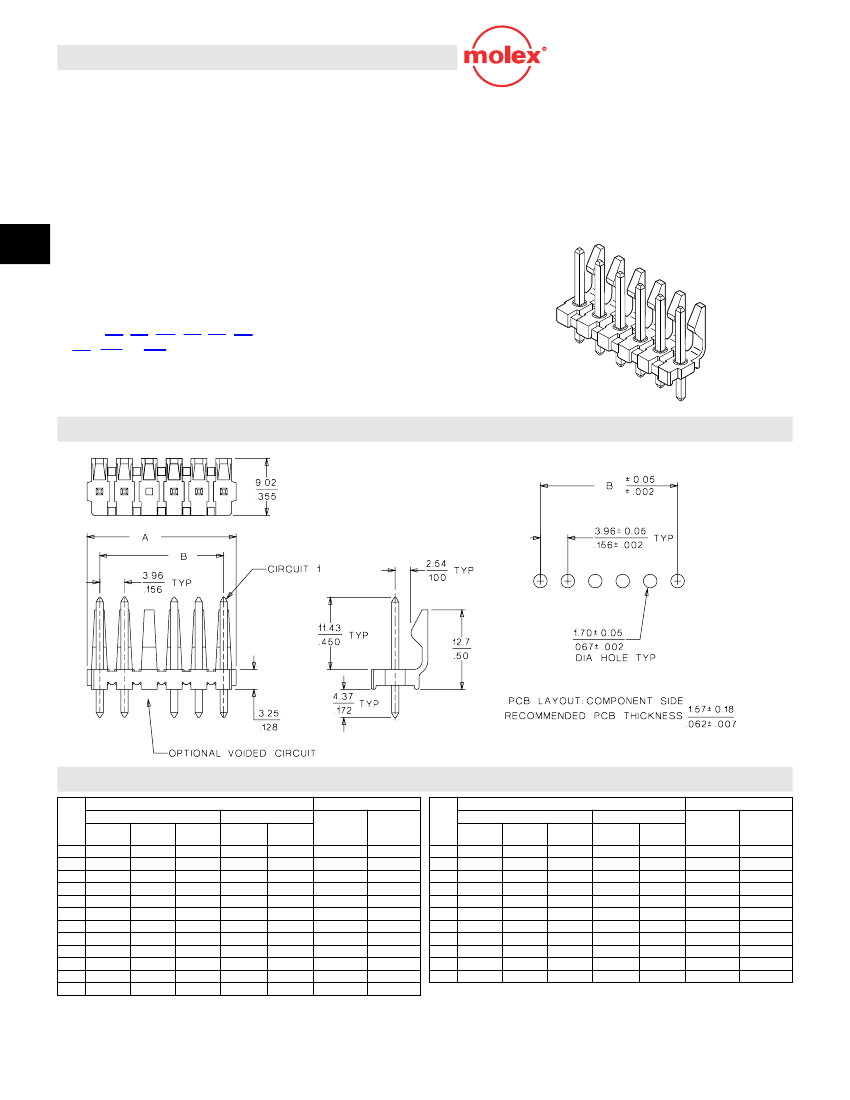

CATALOG DRAWING (FOR REFERENCE ONLY)

Note: 41671 shown

inch

ORDERING INFORMATION AND DIMENSIONS

Order No.

Circuits

Tin

26-48-1025

26-48-1035

26-48-1045

26-48-1055

26-48-1065

26-48-1075

26-48-1085

26-48-1095

26-48-1105

26-48-1115

26-48-1125

26-48-1135

Square Pin

" Select

Gold

41671-0001

41671-0002

41671-0003

41671-0004

41671-0005

41671-0006

41671-0007

41671-0008

41671-0009

41671-0010

41671-0011

41671-0012

" Select

Gold

41671-0024

41671-0025

41671-0026

41671-0027

41671-0028

41671-0029

41671-0030

41671-0031

41671-0032

41671-0033

41671-0034

41671-0035

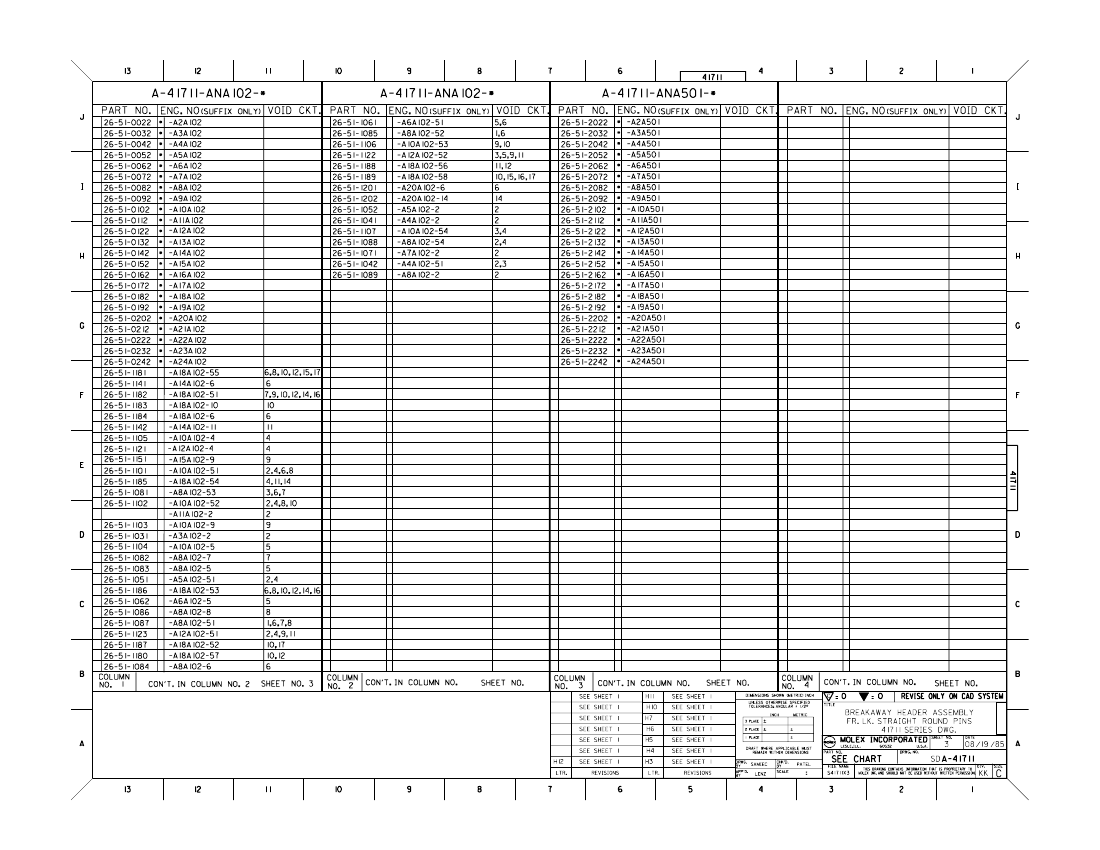

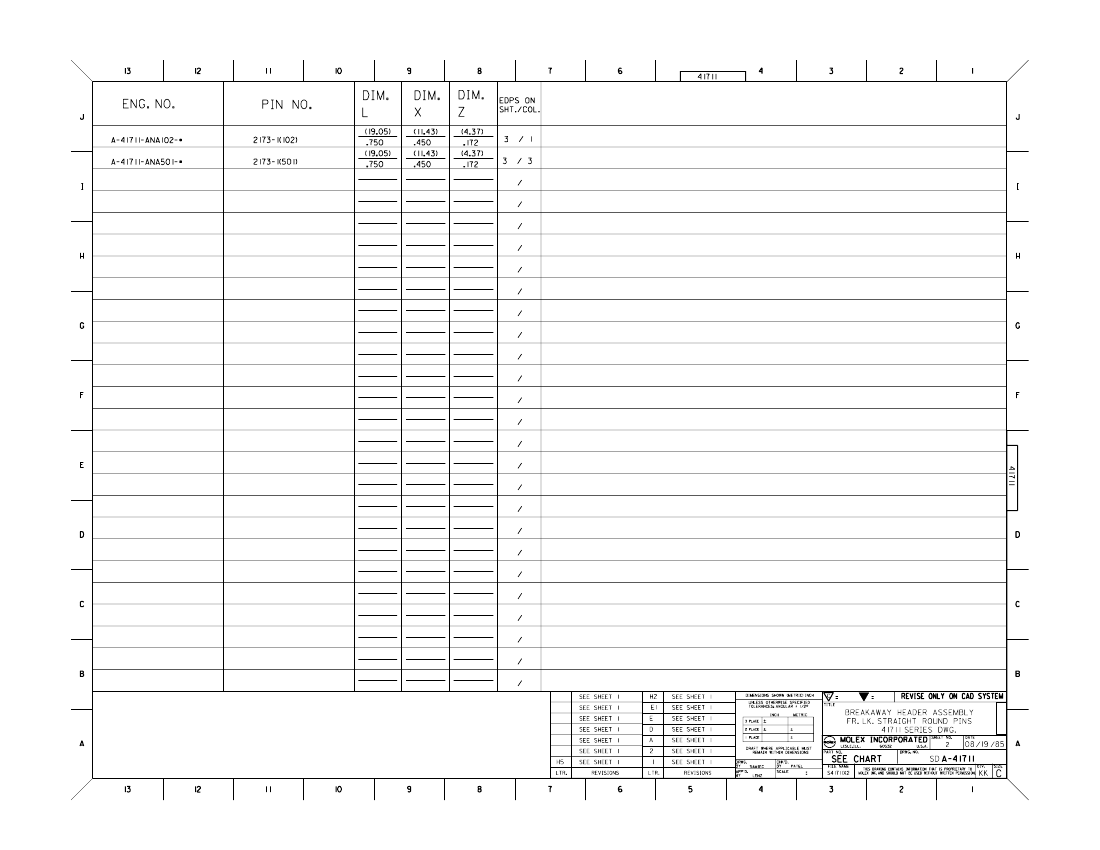

Round Pin

Overall

Tin

Gold

26-51-0022 26-51-2022

26-51-0032 26-51-2032

26-51-0042 26-51-2042

26-51-0052 26-51-2052

26-51-0062 26-51-2062

26-51-0072 26-51-2072

26-51-0082 26-51-2082

26-51-0092 26-51-2092

26-51-0102 26-51-2102

26-51-0112 26-51-2112

26-51-0122 26-51-2122

26-51-0132 26-51-2132

6.78 (.267)

10.74 (.423)

14.71 (.579)

18.67 (.735)

22.63 (.891)

26.59 (1.047)

30.56 (1.203)

34.52 (1.359)

38.48 (1.515)

42.44 (1.671)

46.41 (1.827)

50.37 (1.983)

Dimension

3.96 (.156)

7.92 (.312)

11.89 (.468)

15.85 (.624)

19.81 (.780)

23.77 (.936)

27.74 (1.092)

31.71 (1.248)

35.66 (1.404)

39.62 (1.560)

43.59 (1.716)

47.55 (1.872)

Circuits

Tin

26-48-1145

26-48-1155

26-48-1165

26-48-1175

26-48-1185

26-48-1195

26-48-1205

26-48-1215

26-48-1225

26-48-1235

26-48-1245

Square Pin

" Select

Gold

41671-0013

41671-0014

41671-0015

41671-0016

41671-0017

41671-0018

41671-0019

41671-0020

41671-0021

41671-0022

41671-0023

Order No.

" Select

Gold

41671-0036

41671-0037

41671-0038

41671-0039

41671-0040

41671-0041

41671-0042

41671-0043

41671-0044

41671-0045

41671-0046

Round Pin

Overall

Tin

Gold

26-51-0142 26-51-2142

26-51-0152 26-51-2152

26-51-0162 26-51-2162

26-51-0172 26-51-2172

26-51-0182 26-51-2182

26-51-0192 26-51-2192

26-51-0202 26-51-2202

26-51-0212 26-51-2212

26-51-0222 26-51-2222

26-51-0232 26-51-2232

26-51-0242 26-51-2242

54.33 (2.139)

58.29 (2.295)

62.26 (2.451)

66.22 (2.607)

70.18 (2.763)

74.14 (2.919)

78.11 (3.075)

82.07 (3.231)

86.03 (3.387)

89.94 (3.541)

93.85 (3.695)

Dimension

51.51 (2.028)

55.47 (2.184)

59.44 (2.340)

63.40 (2.496)

67.36 (2.652)

71.32 (2.808)

75.29 (2.964)

79.25 (3.120)

83.21 (3.276)

87.17 (3.432)

91.14 (3.588)

* Dependent upon connector and PC board

Circuit number designation is for ordering purposes only, check corresponding circuit designation on mating connector

D-16

MX01
