22FP-474LLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 22FP-474LLF

22FP-474LLF: DescriptionGeneral Purpose Inductor, 4700uH, 15%, 1 Element,; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

22FP-474LLF Overview

General Purpose Inductor, 4700uH, 15%, 1 Element,

22FP-474LLF Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	37 Ω
Nominal inductance(L)	4700 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum rated current	0.103 A
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Tolerance	15%
Base Number Matches	1

Preview

Download Datasheet

View All

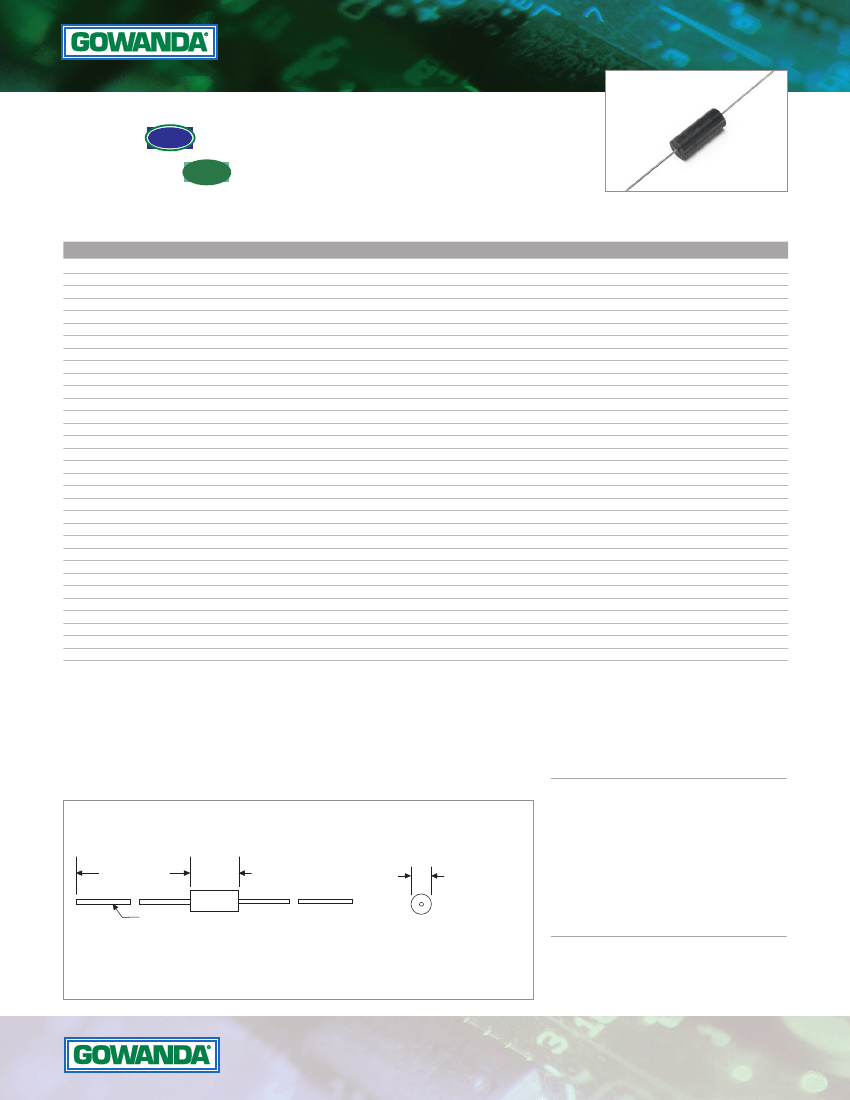

STANDARD POWER INDUCTORS - THRU HOLE

22FP

TRADITIONAL

22FPLF

PART

NUMBER

22FP-220L

22FP-270L

22FP-330L

22FP-390L

22FP-470L

22FP-560L

22FP-680L

22FP-820L

22FP-101L

22FP-121L

22FP-151L

22FP-181L

22FP-221L

22FP-271L

22FP-331L

22FP-391L

22FP-471L

22FP-561L

22FP-681L

22FP-821L

22FP-102L

22FP-122L

22FP-152L

22FP-182L

22FP-222L

22FP-272L

22FP-332L

22FP-392L

22FP-472L

22FP-562L

22FP-682L

22FP-822L

COMPLIANT

RoHS

Wirewound, High Current, Molded

µH

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

DCR

OHMS

MAX

0.0080

FERRITE CORE

0.0080

0.0085

0.0090

0.0095

0.0100

0.0105

0.0110

0.0120

0.0130

0.0180

0.0200

0.0210

0.0290

0.0340

0.0380

0.0420

0.0470

0.0510

0.0580

0.0630

0.0710

0.0790

0.0890

0.1190

0.1520

0.1790

0.2220

0.3150

0.3620

0.3970

0.4180

0.6040

CURRENT

RATING

A DC MAX

7.00

6.75

6.50

6.25

6.00

5.80

5.70

5.60

5.50

4.69

4.45

4.34

3.70

3.41

3.23

3.07

2.90

2.79

2.61

2.51

2.36

2.24

2.11

1.82

1.61

1.48

1.33

1.12

1.04

1.00

0.970

0.810

INC 1

A DC

7.00

6.75

6.50

6.25

6.00

5.80

5.70

5.60

5.50

4.69

4.45

4.34

3.70

3.41

3.23

3.07

2.90

2.79

2.61

2.51

2.36

2.24

2.11

1.82

1.61

1.48

1.33

1.12

1.04

1.00

0.970

0.810

continued next page

All part numbers provide 15% tolerance on inductance

Optional tolerances are available; please contact factory

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: 22FP-220LLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

NOTES:

• Operating Temperature Range:

-55°C to +125°C

• Current Rating is based on a 45°C temperature rise

at an ambient temperature of 80°C

• Incremental Current is the approximate values

that will cause a percentage drop in inductance as

indicated in the table

1.438

0.188

(36.525

4.77)

4.7mH

0.560

0.010

(14.22

0.25)

0.215

0.010

(5.46

0.25)

22 AWG

• Epoxy-encapsulated for environmental protection

and superior strength to withstand all types of reflow

soldering

TAPE AND REEL SPECS:

in. (mm)

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

Class

1000

0.400 in.

2.500 in.

13 in.

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

030514
