BBS-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BBS-4

BBS-4: Descriptionindustrial & electrical fuses 600v 10ka 4A fast acting ferrule; CategoryCircuit protection; File Size268KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

BBS-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BBS-4	-	-	View	Buy Now

BBS-4 Overview

industrial & electrical fuses 600v 10ka 4A fast acting ferrule

BBS-4 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Industrial & Electrical Fuses
RoHS	N
Body Style	Cartridge Fuses
Current Rating	4 A
Voltage Rating AC	600 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Fast Blow
Fuse Size / Grou	5AG Midget (10.3 mm x 38.1 mm)
Indicator Style	Without Indic
Dimensions	1.38 in L x 0.41 in D
Case Diamete	0.41 i
Case Length	1.38 i
Interrupt Rating	10 kA
Packaging	Bulk
Produc	Industrial Power Fuses
Factory Pack Quantity	10
Type	Ferrule Fuse, Fibre Material
Unit Weigh	7.257 g

Preview

Download Datasheet

View All

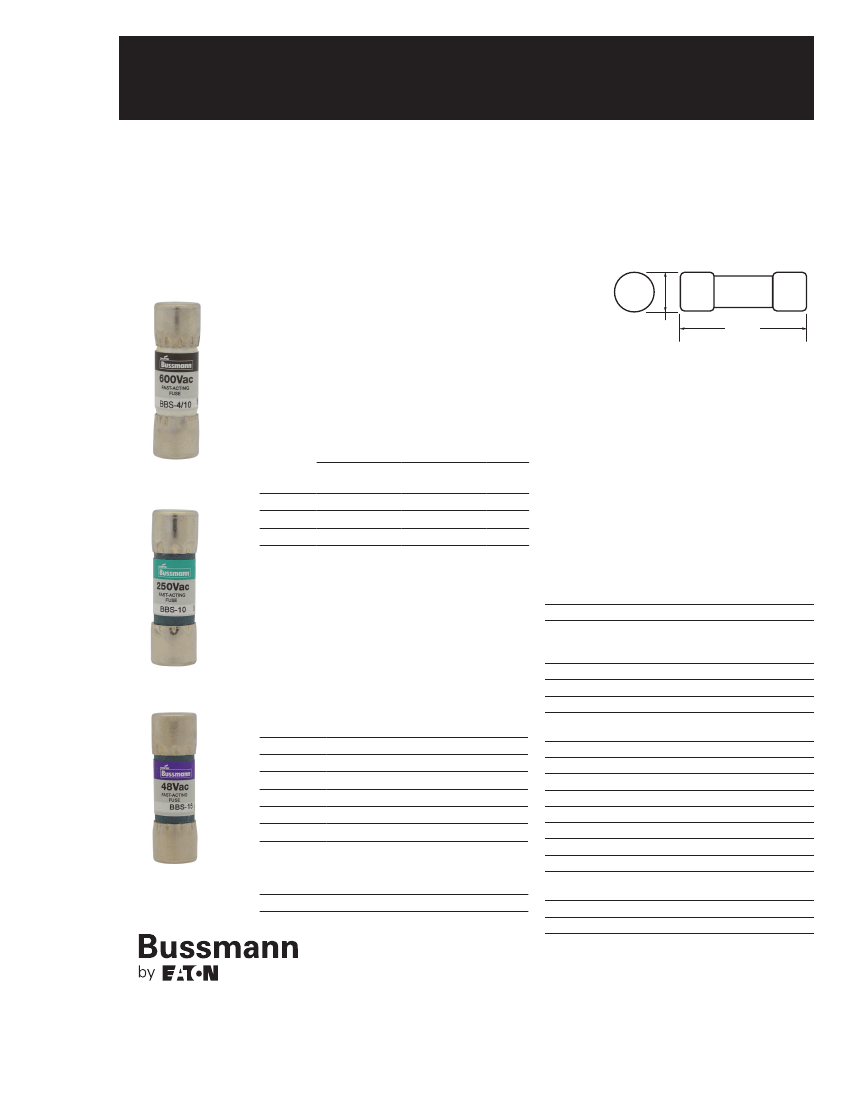

Technical Data 2010

Effective April 2014

Supersedes October 2002

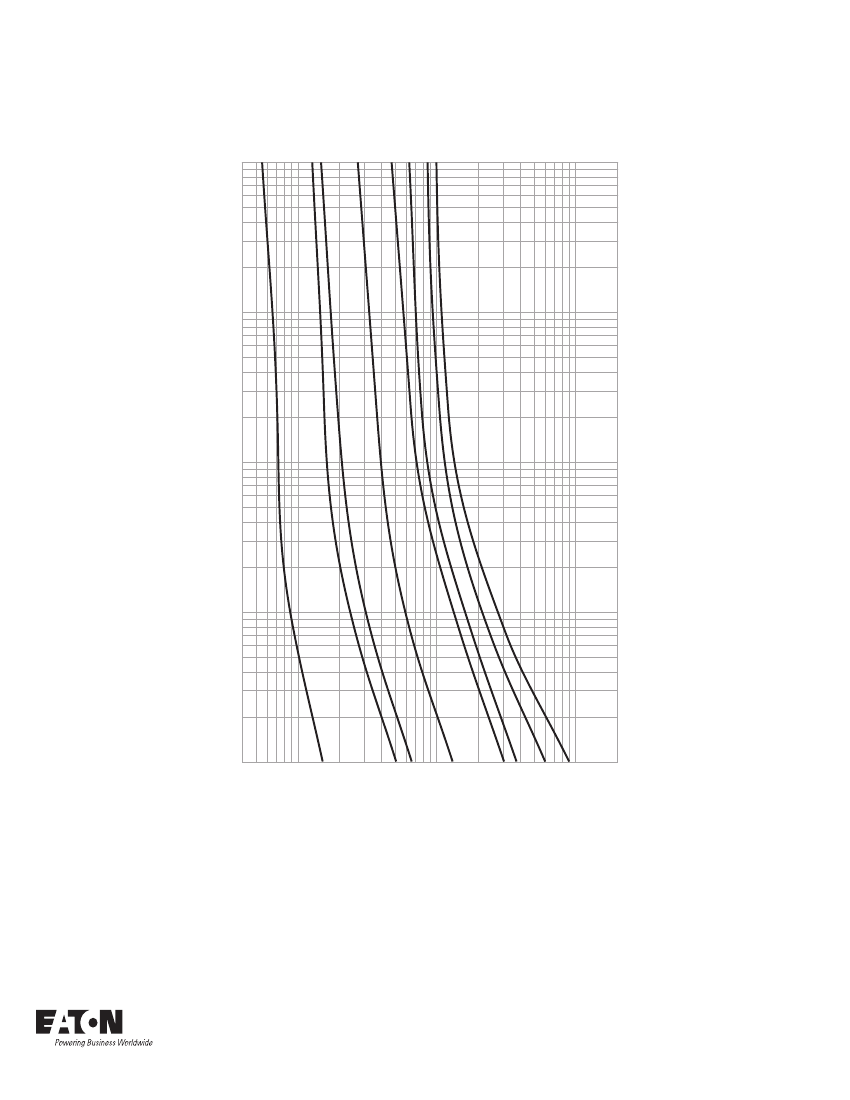

BBS Series

13⁄32˝ x 1-3/8˝ 600Vac Fast-acting supplemental fuses

Description

Fast-acting supplemental fuse.

For superior protection, Bussmann recommends

upgrading to Low-Peak Class CC fuses. See data

sheet # 1023.

Dimensions - in

Catalog symbol / color code

•

0.41"

(±0.004)

1.38"

(±0.031)

BBS

- Black (600Vac max voltage 1/10 to 6A)

- Green (250Vac max voltage 7 to 10A)

- Purple (48Vac max voltage 12 to 30A)

Features

•

Color coded for 600Vac (Black) 250Vac (Green)

and 48Vac (Purple) for maximum voltage ratings

Fiber tube construction

Nickel-plated brass endcaps.

Ratings

Fuse

Amp

Range

1/10 to 6

7 to 10

12 to 30*

Interrupting Rating at

System Voltage

600

Vac

10kA

250

Vac

10kA

Vac

Agency

Information

CSA

Typical applications

•

600Vac

1/10 to 6A

Control circuits

Gaseous vapor fixtures

HID ballasts

Electronic circuits

Hand-held meters

* For interrupting rating, cointact factory.

Agency information

•

Recommended fuse blocks/fuse holders

Series

Description

Blocks

BMM Series

BM Series

CHM Series

1-, 2- & 3-Pole modular

blocks with optional

covers

1-, 2- & 3-Pole blocks

1-, 2- & 3-Pole

3-Pole protection

module

3-Pole holder

3-Pole holder + switch

Panel Mount Holders

HPF-L

HPS-L

HEH

1A3400, 5956 &

5960 Series

SAMI-7

1-Pole holder

In-line

1-Pole holder

Fuseclips

2124

2114

2113

10235

1104

3185

1109

1102

1103

Data Sheet #

UL Listed, Std. 248-14 (1/10-6A@600Vac,

7-10A@250Vac), Guide JDYX, File E19180

CSA Certified, C22.2 No. 248.14

(1/10-6A@600Vac, 7-10A@250Vac),

Class 1422-01, File 53787

250Vac

7 to 10A

DIN-Rail Holders / Switches

Catalog numbers (amps)

BBS-1/10

BBS-2/10

BBS-1/4

BBS-4/10

BBS-1/2

BBS-6/10

BBS-3/4

BBS-8/10

BBS-1

BBS-1-1/2

BBS-1-6/10

BBS-1-8/10

BBS-2

BBS-3

BBS-4

BBS-5

BBS-6

BBS-7

BBS-8

BBS-10

BBS-12

BBS-15

BBS-20

BBS-25

BBS-30

Optima NG

Optima

48Vac

12 to 30A

Carton quantity

Amps

1/10 to 30

Qty.

PCB Fuseclips

Fuse Covers

Finger-safe fuse cover

2132

1204

BBS-4 Related Products

	BBS-4	BBS-6
Description	industrial & electrical fuses 600v 10ka 4A fast acting ferrule	industrial & electrical fuses 250vac 10ka 6A fast acting ferrule
Manufacture	Cooper Bussm	Cooper Bussm
Product Category	Industrial & Electrical Fuses	Industrial & Electrical Fuses
RoHS	N	N
Body Style	Cartridge Fuses	Cartridge Fuses
Current Rating	4 A	6 A
Voltage Rating AC	600 V	600 V
Mounting Style	Holde	Holde
Termination Style	Cli	Cli
Fuse Type	Fast Blow	Fast Blow
Fuse Size / Grou	5AG Midget (10.3 mm x 38.1 mm)	5AG Midget (10.3 mm x 38.1 mm)
Indicator Style	Without Indic	Without Indic
Dimensions	1.38 in L x 0.41 in D	1.38 in L x 0.41 in D
Case Diamete	0.41 i	0.41 i
Case Length	1.38 i	1.38 i
Interrupt Rating	10 kA	10 kA
Packaging	Bulk	Bulk
Produc	Industrial Power Fuses	Industrial Power Fuses
Factory Pack Quantity	10	10
Type	Ferrule Fuse, Fibre Material	Ferrule Fuse, Fibre Material
Unit Weigh	7.257 g	6.350 g
