BBS-6/10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BBS-6/10

BBS-6/10: Descriptionindustrial & electrical fuses 600v 10ka .6A fast acting ferrule; CategoryCircuit protection; File Size49KB，1 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

BBS-6/10 Overview

industrial & electrical fuses 600v 10ka .6A fast acting ferrule

BBS-6/10 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Industrial & Electrical Fuses
RoHS	N
Body Style	Cartridge Fuses
Current Rating	600 mA
Voltage Rating AC	600 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Fast Blow
Fuse Size / Grou	5AG Midget (10.3 mm x 38.1 mm)
Indicator Style	Without Indic
Dimensions	1.38 in L x 0.41 in D
Case Diamete	0.41 i
Case Length	1.38 i
Interrupt Rating	10 kA
Packaging	Bulk
Produc	Industrial Power Fuses
Type	Ferrule Fuse, Fibre Material
Unit Weigh	5.443 g

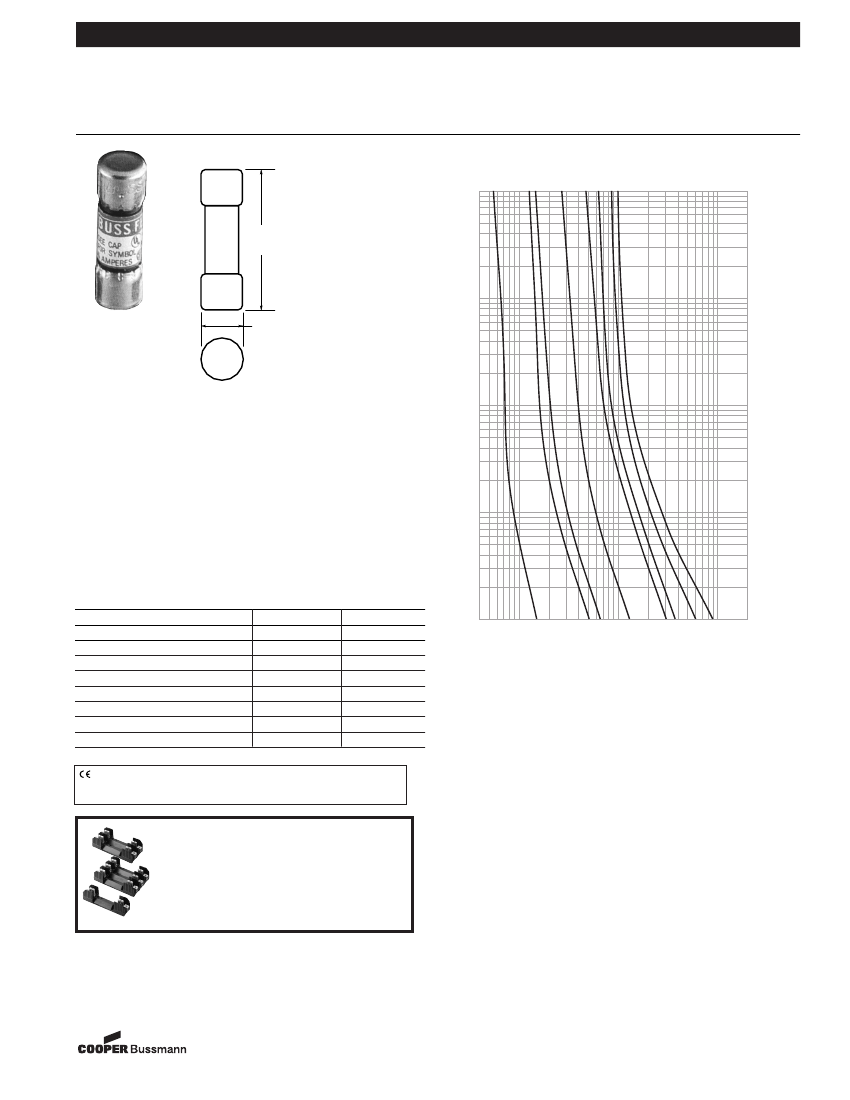

Preview

Download Datasheet

View All

Bussmann

Fast-Acting Ferrule Fuses

13/32” x 1-3/8”

Dimensional Data

BBS

Time-Current Characteristic Curves–Average Melt

4/10

100

AMPERE

RATING

3/4

1.38"

(±0.031)

0.41"

(±0.004)

TIME IN SECONDS

48Vac

BBS-12

BBS-15

BBS-20

BBS-25

BBS-30

—

Catalog Symbol:

BBS

Fast-Acting

1/10 TO 30A

Interrupting Rating:

10 KA

UL Listed,

STD. 248-14

0-5A/600Vac OR LESS, 6-10A/250Vac

(GUIDE #JDYX, FILE #E19180)

CSA CERTIFIED, C22.2 NO. 248.14

0-5A/600V, 6-10A/250Vac

(CLASS #1422-01, FILE #53787)

Electrical Ratings (Catalog Symbol and Amperes)

600Vac

BBS-1/10

BBS-2/10

BBS-1/4

BBS-4/10

BBS-1/2

BBS-6/10

BBS-3/4

BBS-8/10

BBS-1

BBS-1-1/2

BBS-1-6/10

BBS-1-8/10

BBS-2

BBS-3

BBS-4

BBS-5

250Vac

BBS-6

BBS-7

BBS-8

BBS-10

—

.01

100

CURRENT IN AMPERES

200

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 636-527-1270 for more information.

• For control circuits, gaseous vapor fixture, HID ballasts;

electronic circuits and hand-held meters.

• Fibre Tube.

• Nickel Plated Brass Endcaps.

Recommended fuseblocks/fuseholders for

13/32” x 1-1/2” fuses

See Data Sheets listed below

• Open fuseblocks - 1104, 2104

• Finger-safe fuseholders - 1109, 1102, 1103, 1151

• Panel-mount fuseholders - 2114, 2113, 2108,

2112, 2109, 2140

• In-line fuseholders - 2127, 2126

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheeti are by definition uncontrolled. This bulletin is intended to clear-

ly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any prod-

ucts and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected,

it should be tested by the user in all possible applications.

10-2-02

SB02295

Form No. BBS

Page 1 of 1

Data Sheet: 2010

BBS-6/10 Related Products

	BBS-6/10	BK/BBS-2	BBS-1	BBS-3
Description	industrial & electrical fuses 600v 10ka .6A fast acting ferrule	industrial & electrical fuses buss midget fuse	industrial & electrical fuses 600v 10ka 1A fast acting ferrule	industrial & electrical fuses 600v 10ka 3A fast acting ferrule
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses
RoHS	N	N	N	N
Body Style	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
Current Rating	600 mA	2 A	1 A	3 A
Voltage Rating AC	600 V	600 V	600 V	600 V
Mounting Style	Holde	Holde	Holde	Holde
Termination Style	Cli	Cli	Cli	Cli
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	5AG Midget (10.3 mm x 38.1 mm)	5AG Midget (10.3 mm x 38.1 mm)	5AG Midget (10.3 mm x 38.1 mm)	5AG Midget (10.3 mm x 38.1 mm)
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic
Dimensions	1.38 in L x 0.41 in D	1.38 in L x 0.41 in D	1.38 in L x 0.41 in D	1.38 in L x 0.41 in D
Case Diamete	0.41 i	0.41 i	0.41 i	0.41 i
Case Length	1.38 i	1.38 i	1.38 i	1.38 i
Interrupt Rating	10 kA	10000 Amps	10 kA	10 kA
Packaging	Bulk	Bulk	Bulk	Bulk
Produc	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses
Type	Ferrule Fuse, Fibre Material	Ferrule Fuse, Fibre Material	Ferrule Fuse, Fibre Material	Ferrule Fuse, Fibre Material
Unit Weigh	5.443 g	6.350 g	9.072 g	6.804 g
Factory Pack Quantity	-	100	10	10
