BK/S501-3.15-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK/S501-3.15-R

BK/S501-3.15-R: Descriptioncartridge fuses small dim. fuse; CategoryCircuit protection; File Size313KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric Compare View All

BK/S501-3.15-R Overview

cartridge fuses small dim. fuse

BK/S501-3.15-R Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	Yes
Body Style	Cylindrical
Current Rating	3.15 A
Voltage Rating AC	250 V
Mounting Style	Holder / Cli
Fuse Type	Fast Blow
Fuse Size / Grou	5 mm x 20 mm
Dimensions	20 mm L x 5.2 mm D
Case Diamete	5.2 mm
Case Length	20 mm
Indicator Style	Without Indic
Interrupt Rating	1.5 kA
Packaging	Bulk
Produc	Specialty Fuses
Resistance	37 mOhms
Factory Pack Quantity	100
Termination Style	Cli
Type	European Ferrule Fuse
Unit Weigh	1.361 g

Preview

Download Datasheet

View All

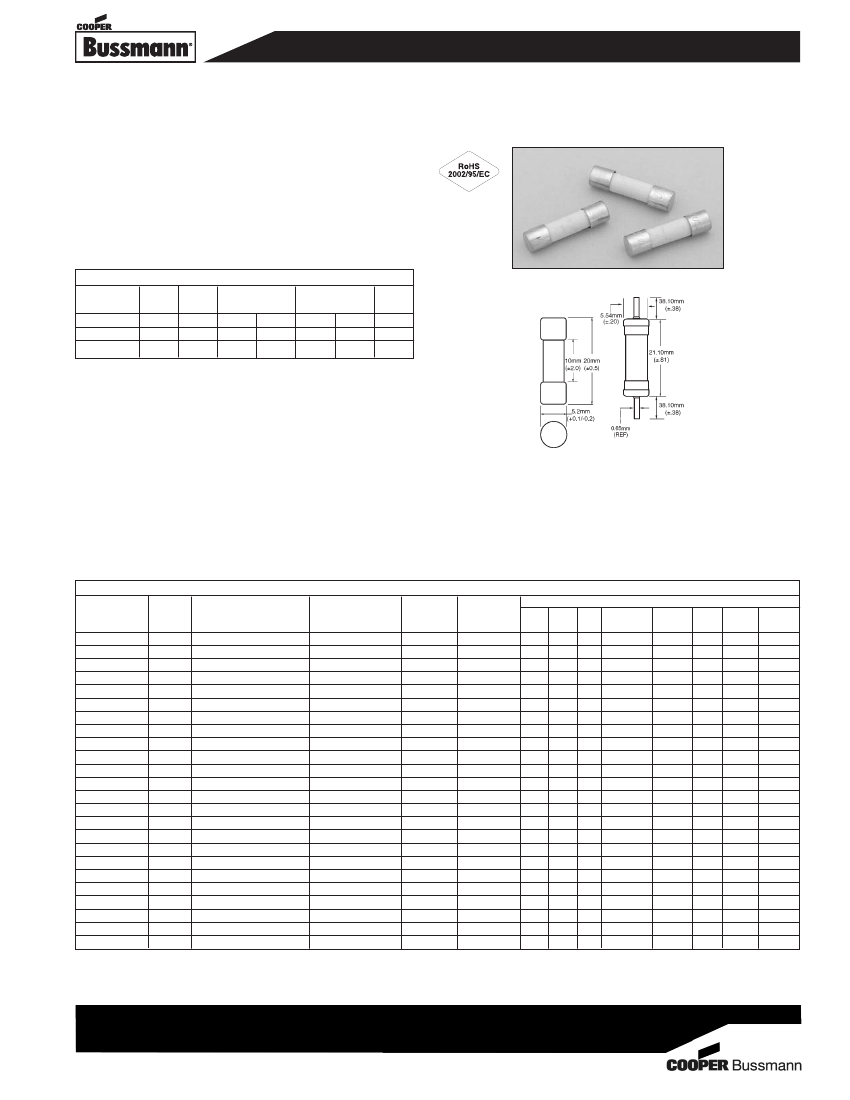

5 x 20mm Fuses

S501 Series, Fast-Acting, Ceramic Tube

Description

• Fast-acting high breaking capacity

• Optional axial leads available

• 5 x 20mm physical size

• Ceramic tube with silver-plated (50mA-400mA) and

nickel-plated (500mA-10A) endcaps.

• Designed to IEC 60127-2

Electrical Characteristics

1.5 In 2.1 In

2.75 In

4 In

min

max

min

max

min

max

60 min 30 min 10 ms 2 sec 3 ms 300 ms

60 min 30 min 10 ms 3 sec 3 ms 300 ms

30 min 30 min 40 ms 20 sec 10 ms

10 In

max

20 ms

30 ms

Dimensions - mm

Drawing Not to Scale

50mA-4A

5A-6.3A

8A-10A

Agency Information

• cURus: File E19180, Guide JDYX2, JDYX8

• CSA Component Acceptance: File 53787

• SEMKO Approval: File 413779

• VDE Approval: File 40015517

• IMQ Approval: File EB405

• CCC Approval: File 2005010207155691

• BSI Approval: File KM55676

Ordering

• Specify packaging, product, and option code

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

Specifications

Product

Code

S501-50-R

S501-63-R

S501-80-R

S501-100-R

S501-125-R

S501-160-R

S501-200-R

S501-250-R

S501-315-R

S501-400-R

S501-500-R

S501-630-R

S501-800-R

S501-1-R

S501-1.25-R

S501-1.6-R

S501-2-R

S501-2.5-R

S501-3.15-R

S501-4-R

S501-5-R

S501-6.3-R

S501-8-R

S501-10-R

†

‡

Voltage Interrupting Rating at

Typical DC

Typical

Agency Approvals

Rating Rated Voltage (50Hz) Cold Resistance Melting I

t Voltage IMQ VDE BSI SEMKO cURus CCC MITI/

Vac

(Ω)*

(amps) Drop (mV)†

JET

250

1500

157.5

0.0017

9000

250

1500

39.0

0.0005

3300

250

1500

27.9

0.0011

2600

250

1500

20.0

0.0018

2300

250

1500

12.3

0.0037

1900

250

1500

8.5

0.008

1600

250

1500

6.0

0.02

1350

250

1500

4.4

0.027

1300

250

1500

3.3

0.01

1400

250

1500

2.2

0.018

1200

250

1500

0.460

0.038

1050

250

1500

0.340

0.064

1200

250

1500

0.245

0.097

490

250

1500

0.231

0.146**

330

250

1500

0.176

0.313**

297

250

1500

0.113

0.748**

239

250

1500

0.073

2.0

205

250

1500

0.053

3.9

190

250

1500

0.037

8.1

160

250

1500

0.027

160

250

1500

0.019

155

250

1500

0.014

150

250

1500

0.009

N/A

250

1500

0.008

N/A

CSA

X‡

DC Cold Resistance (measured at <10% of rated current)

t of 1A, 1.25A & 1.6A is measured at 10In DC

Typical Voltage Drop (voltage drop was measured at 20°C ambient temperature at rated current)

CSA approvals on these ratings will not be marked on the fuse cap

0209

BU-SB08724

Page 1 of 2

Data Sheet 2051

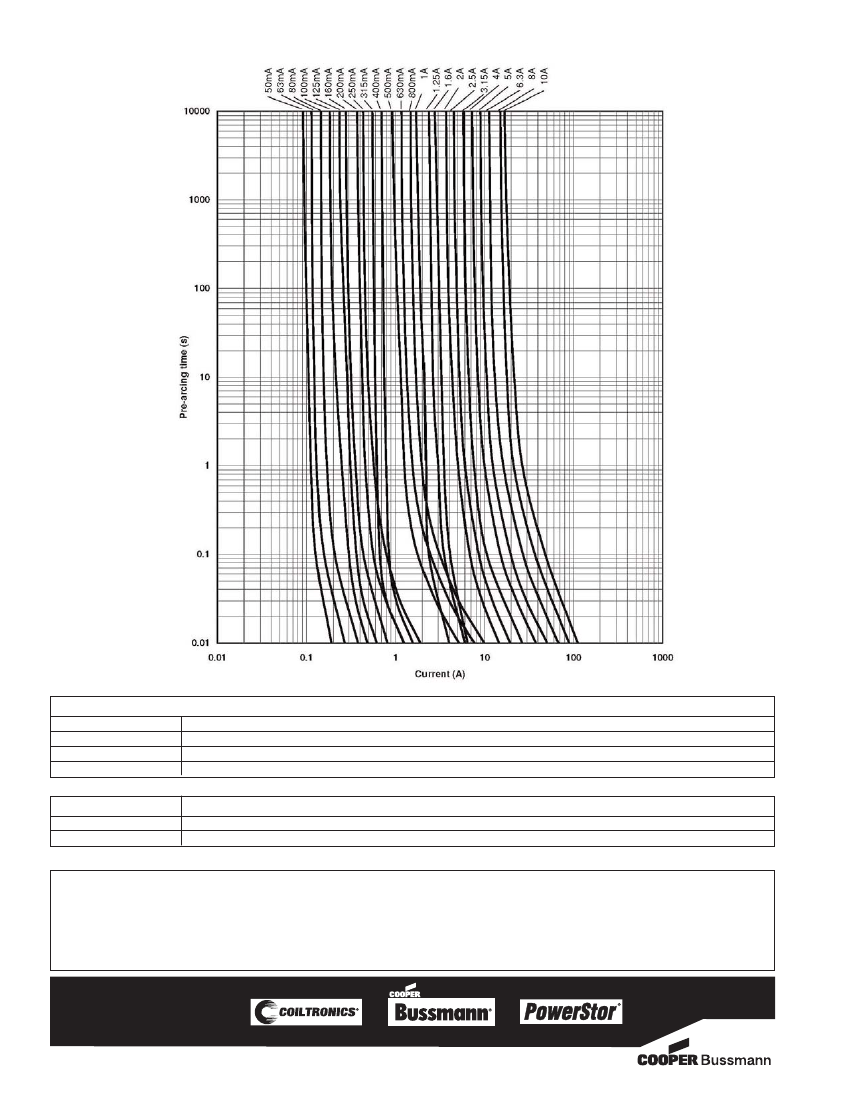

BK/S501-3.15-R Related Products

	BK/S501-3.15-R	BK/S501-6.3-R	BK/S501-2.5-R	BK/S501-800-R	BK/S501-2-R	BK/S501-125-R	BK/S501-250-R	BK/S501-100-R	BK/S501-50-R	S501-10-R
Description	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse	cartridge fuses small dim. fuse
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Body Style	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical
Current Rating	3.15 A	6.3 A	2.5 A	800 mA	2 A	125 mA	250 mA	100 mA	50 mA	10 A
Voltage Rating AC	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Mounting Style	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm
Dimensions	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D
Case Diamete	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Case Length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic
Interrupt Rating	1.5 kA	1.5 kA	1.5 kA	1.5 kA	1.5 kA	1.5 kA	1.5 kA	1.5 kA	1.5 kA	1.5 kA
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Produc	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses
Resistance	37 mOhms	14 mOhms	53 mOhms	245 mOhms	73 mOhms	12.3 Ohms	4.4 Ohms	157.5 Ohms	157.5 Ohms	8 mOhms
Factory Pack Quantity	100	100	100	100	100	100	100	100	100	5
Termination Style	Cli	Cli	Cli	Cli	Cli	Cli	Cli	Cli	Cli	Cli
Type	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse	European Ferrule Fuse
Unit Weigh	1.361 g	1.361 g	1 g	1.361 g	1 g	1 mg	1.361 g	1.361 g	1.361 g	453.592 mg
