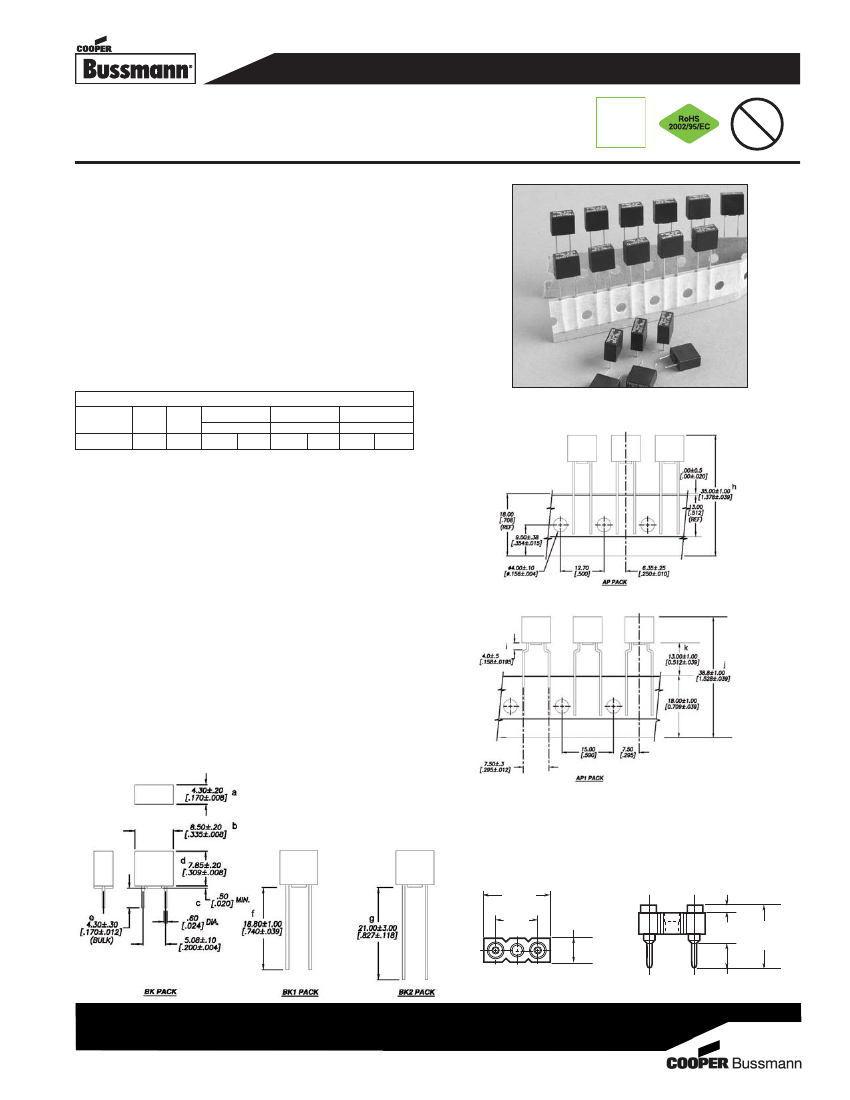

Subminiature Fuses
SS-5 Series, Time-Delay
Description
• Time-delay subminiature fuse with low breaking
capacity
• Plastic cap and base, flammability UL 94V0
• Lead wire with tin-plated copper, diameter 0.6mm
HF
FREE
HALOGEN
Pb
• Protects against harmful overcurrents in primary and
secondary applications
• Small rectangular-leaded design minmizes board
space and eliminates need for additional mounting
components (BK/PCS holder optional if field
replacement is desirable)
• Designed to IEC 60127-3 Sheet 4 (400mA - 4A) and
extension 5A, 6.3A
Electrical Characteristics
Rated 1.5 xIn 2.1 xIn 2.75 xIn
4 xIn
10 xIn
Current
min max min max min max min
max
400mA-6.3A 1hr 2 min 400 mS10 Sec. 150 mS 3 Sec. 20 mS 150 mS
Packaging - mm / [inches]
AP
Agency Information
• cURus: File E19180, Guide JDYX2/JDYX8
• VDE: File 40015513
• SEMKO: File 807650, 808892
• CQC: File CQC08012025533
• PSE: File JET1641-31007-1001, JET1641-31007-1002
• EK-MARK: File SU05011-8001, SU05011-8002,
SU05011-8003
Specifications
• Solderability: EIA-186-9E Method 9
• High frequency vibration: MIL-STD-202F,
Method 201A
• Operating temperature: -40°C to +125°C
• Soldering heat resistance: 260°C, 10 sec. max
(IEC 60068-2-20)
Ordering
• Specify product and packaging code
(i.e., SS-5-1A-AP)
Dimensions - mm / [inches]
AP1
Mounting Socket (RoHS compliant)
• Available as option. Specify catalog number BK/PCS
(In bulk 100 per bag)
Socket (PCS)
0.03"
0.30"
(7.62mm)
(0.76mm)
0.20"
(5.08mm)
0.095"
(2.41mm)
0.29"
(7.37mm)
(3.05mm
±
0.25mm)
0.12"
±
0.01"
o709 BU-SB07219
Page 1 of 3
Data Sheet 2621
Specifications
Catalog
Number
SS-5-400mA
SS-5-500mA
SS-5-630mA
SS-5-800mA
SS-5-1A
SS-5-1.25A
SS-5-1.6A
SS-5-2A
SS-5-2.5A
SS-5-3.15A
SS-5-4A
*SS-5-5A
*SS-5-6.3A
Voltage
Rating
(Vac)
250
250
250
250
250
250
250
250
250
250
250
250
250
Interrupting Rating
(amps) @ Rated
Voltage (50Hz)
**
35
35
35
35
35
35
35
35
35
35
40
50
63
Typical DC Cold
Typical
***
Resistance (mW) Melting I
2
t
†
330
1.67
257.5
1.79
140
1.51
118
4.21
80.75
7.4
624
12.75
41
23
31.15
29.8
24.30
40.3
16.75
67
12.75
87
7.35
120
7.40
176
Typical Voltage
Drop@1In (mV)‡
147
151.5
100.5
110.5
94.5
93.5
71.5
75
74.5
62.5
65.4
43
59
VDE
X
X
X
X
X
X
X
X
X
X
X
X
X
Agency Approvals
SEMKO cRUus CQC EK-MARK
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
PSE
X
X
X
X
X
X
X
X
X
*Conducting path min. 0.2mm
2.
**Interrupting ratings: 400mA-3.15A were measured at 35A, 95%-100% of PF on AC; 4A, 5A & 6.3A measured at 10x Rated Current, 95%-100% of PF on AC.
***Typical cold resistance measured at <10% of rated current.
†I
2
t value is measured at 10In DC.
‡ Typical voltage drop measured at 20°C ambient temperature at rated current.
0709
BU-SB07219
Page 2 of 3
Data Sheet 2621

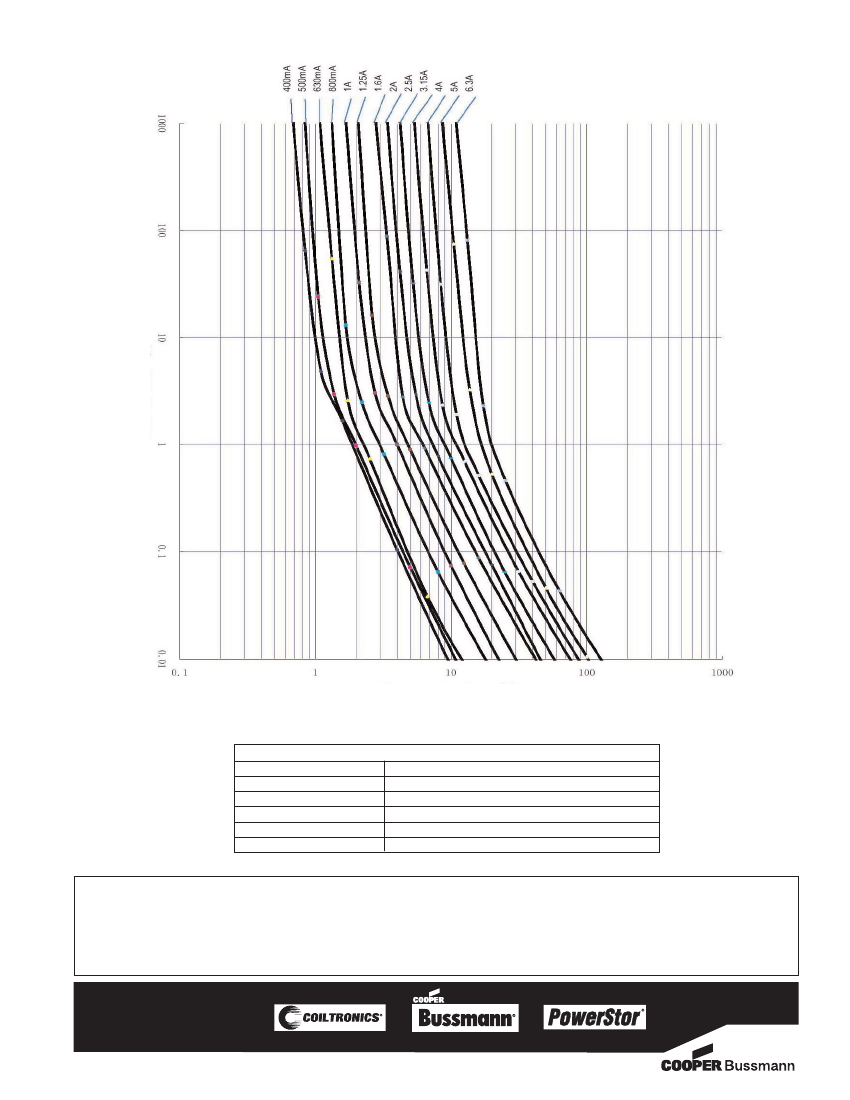

Time-Current Curve
Time in Seconds
Current in Amps
Packaging Code
Packaging Suffix
-BK
-BK1
-BK2
-AP
-AP1
Description
200 fuses in polybag, Lead L = 4.3 ± 0.3
200 fuses in polybag, Lead L = 18.8 ± 1.0
200 fuses in polybag, Lead L = 21 ± 3.0
1000 fuses Ammo Pack, Pitch = 12.7
1000 fuses Ammo Pack, Pitch = 15
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2009 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0709
BU-SB07219
Page 2 of 2
Data Sheet 2621
