YF24S33-4000I Overview

Analog Circuit, Hybrid,

YF24S33-4000I Parametric

Parameter Name	Attribute value
Objectid	103595748
package instruction	, MODULE,7LEAD,1.8
Reach Compliance Code	compliant
Maximum input voltage	36 V
Minimum input voltage	18 V
Number of terminals	7
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Maximum output current	4 A
Nominal output voltage	3.3 V
Package body material	METAL
Encapsulate equivalent code	MODULE,7LEAD,1.8
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
technology	HYBRID
Temperature level	OTHER

Preview

Download Datasheet

View All

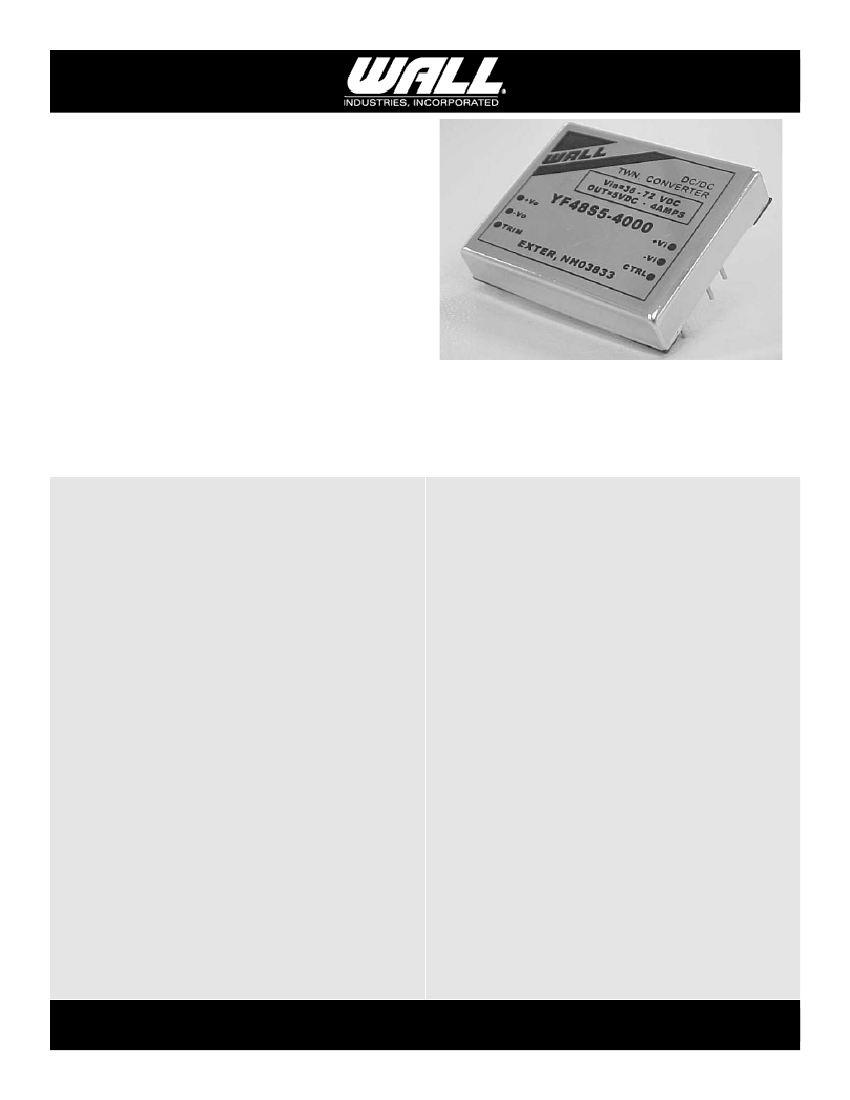

YF SERIES

UP TO 20 WATTS - YF SERIES

ULTRA-WIDE INPUT, LOW QUIESCENT CURRENT

TO 20 WATTS

FEATURES

•

Single, Dual and Triple Outputs

Industry Standard Package and Pin-Out

Pi Input Filter Integral to Converter

1600VDC I/O Isolation

Regulated Output

Continuous short circuit protection

Remote On/Off Feature

UL1950, cUL950, EN60950 and CE MARK

THE YF SERIES FROM WALL INDUSTRIES

The YF series of DC/DC converters performs over an ultra-wide input voltage range (2:1 & 4:1), providing indefinite short

circuit and overvoltage protection. The series’ design technology allows up to 20 watts of output power from a 1.60” x

2.0” x 0.40” case. These current mode control forward converters are designed for improved transient response and

reduced stress on switching components and do not require external input filtering,making it a preferred source over

industry alternatives.

SPECIFICATIONS: YF SERIES

INPUT SPECIFICATIONS

Input Voltages...9-18,18-36,36-75,9-36,20-75,18-75VDC

Nominal Input.............................................12,24, 48VDC

Remote On/Off Control..........CMOS or TTL (see note 7)

Input Filter......................................................Pi input filter

All specifications apply @ +25 C ambient unless otherwise noted.

GENERAL SPECIFICATIONS

Efficiency.........................................................83% typical

Isolation Voltage (input to output)...............1600VDC min.

Isolation Resistance (input to output)................109Ohms

Switching Frequency.................................300kHz typical

MTBF......................................MIL217F 5.591x105 hours

OUTPUT SPECIFICATIONS

Output Current...................................................see table

Output Voltage Tolerance..........................................±2%

(auxillary triple outputs).........................................±5%

Output Trim (external)..............................................±10%

Line Regulation: full line (single and dual)..............±0.5%

(triple).............................................. main 1%, aux. 5%

Line Regulation: 20 Watt 4:1

Input...........................................................................±1%

Load Regulation

Singles (25-100% load)....................................±0.5%

(NL-100% load)...................................................±1%

Duals (50-100% load).........................................±1%

(NL-100% load)...................................................±5%

Short Circuit Protection...................................continuous

Ripple/Noise (20MHz BW) single......................75mV p-p

(dual)..............................................................100mV p-p

(triple) 5V/3.3V=50mV, ±12V=120mV, ±15V=150mV p-p

Transient Response..........<500µsec to within ±1% Vout

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature (case).........................see

note 9

Storage Temperature..................................-55 to +105°C

Humidity (non-condensing).........................20 - 95% R.H.

PHYSICAL SPECIFICATIONS

Weight........................................................approx. 4.0 oz.

Dimensions..............................................1.6 x 2.0 x 0.40”

Case Material..................................Nickel coated copper,

.................................................non-conductive baseplate

Shielding............................................................Six-Sided

Due to advances in technology, specifications subject to

change without notice.
