BK/MDQ-2/10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK/MDQ-2/10

BK/MDQ-2/10: Descriptioncartridge fuses small dimension fuse; CategoryCircuit protection; File Size256KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric View All

BK/MDQ-2/10 Overview

cartridge fuses small dimension fuse

BK/MDQ-2/10 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	N
Body Style	Cylindrical
Current Rating	200 mA
Voltage Rating AC	250 V
Mounting Style	Holder / Cli
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	3AG (6.3 mm x 32 mm)
Dimensions	31.75 mm L x 6.35 mm D
Case Diamete	6.35 mm
Case Length	31.75 mm
Indicator Style	Without Indic
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	100
Termination Style	Cli
Type	Electronic Time Delay Dual Element Ferrule Fuse
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

⁄

" x 1

⁄

" Fuses

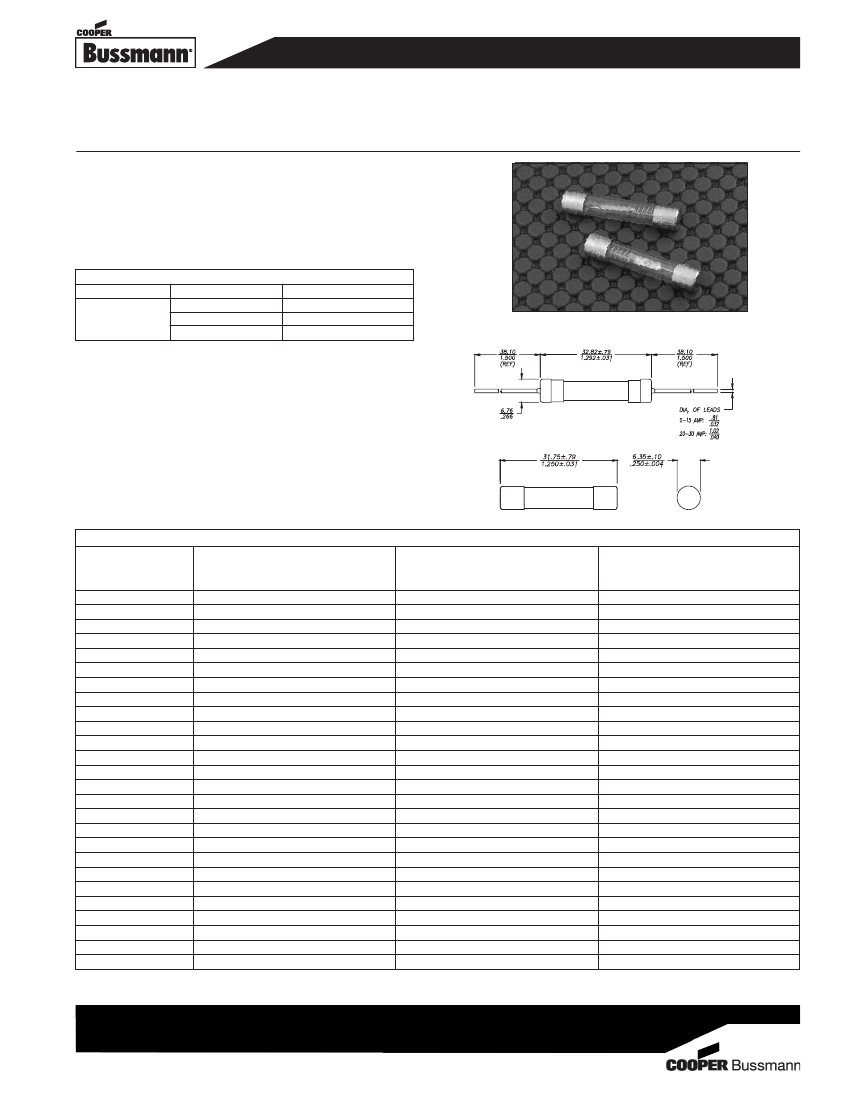

MDQ Series Dual-Element, Time-Delay, Glass Fuse

Description

• Dual-element, time-delay

•

⁄

" x 1

⁄

" (6.3 x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

• Available with axial leads

Rated Current

⁄

- 30A

Electrical Characteristics

% of Amp Rating

Opening Time

100%

None

135%

60 minutes maximum

200%

120 seconds maximum

Dimensions - mm (in)

Agency Information

• UL Listed Card: MDQ-

⁄

- 7A (Guide JDYX,

File E19180)

• UL Recognition Card: MDQ-7.5 - 15A

(Guide JDYX2, File E19180)

• CSA Component Acceptance Card:

MDQ-

⁄

- 15 (Class 1422-01)

Ordering

• Specify packaging, product, and option code

(i.e., Bk-MDQ-BV-1)

with axial leads

Specifications

Product Code

MDQ-1/16

MDQ-1/10

MDQ-1/8

MDQ-3/16

MDQ-2/10

MDQ-1/4

MDQ-3/10

MDQ-3/8

MDQ-1/2

MDQ-3/4

MDQ-1

MDQ-1-1/4

MDQ-1-1/2

MDQ-2

MDQ-2-1/4

MDQ-2-1/2

MDQ-3

MDQ-4

MDQ-5

MDQ-6

MDQ-6-1/4

MDQ-7

MDQ-8

MDQ-9

MDQ-10

MDQ-15

Voltage

Rating

Vac

250

Interrupting

Rating

Amps

100

200

1,000

Typical DC Cold

Resistance

(Ω)**

83.30000

35.00000

21.50000

10.00000

8.65000

5.77500

4.20000

2.35000

1.40000

0.39685

0.37400

0.36000

0.27000

0.13250

0.11450

0.10050

0.05715

0.03510

0.02650

0.01715

0.01690

0.01375

0.01200

0.00888

0.00720

0.00410

** DC Cold Resistance (Measured at <10% of rated current)

0308

BU-SB07472

Page 1 of 2

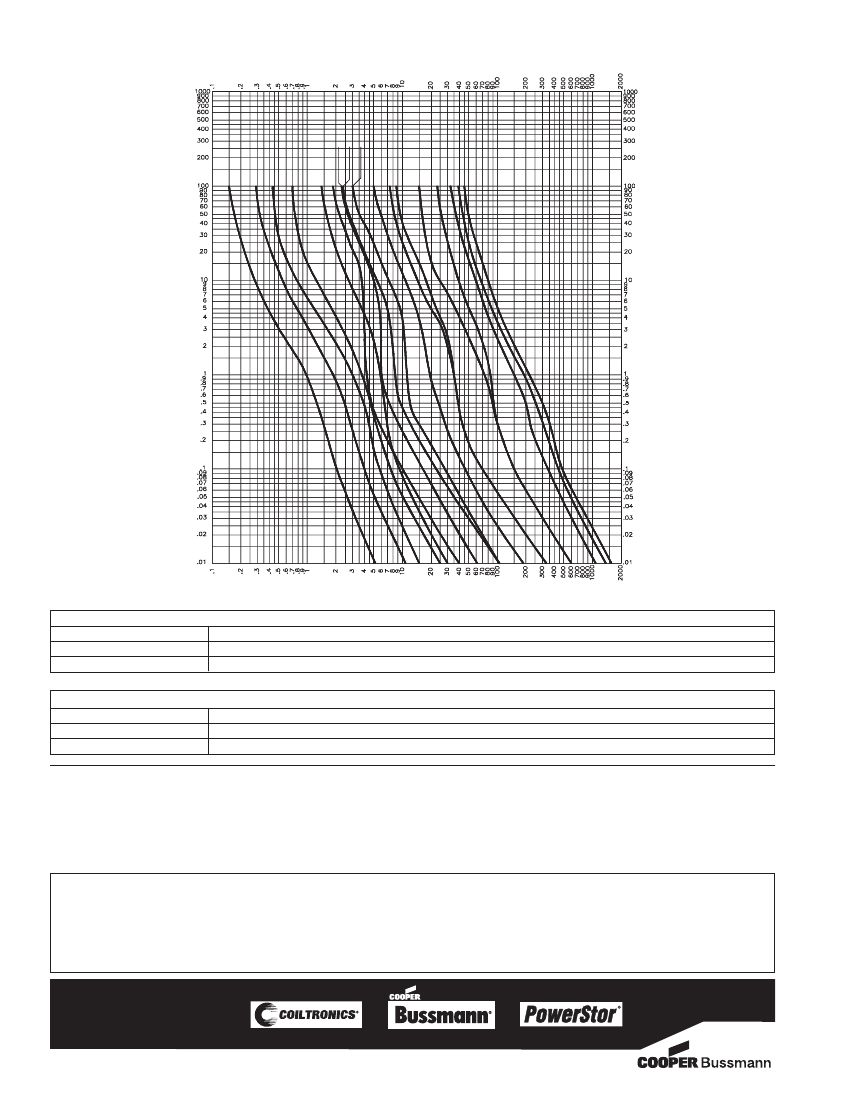

Data Sheet 2044
