Bussmann
®
Low-Peak
®
Yellow Time Lag Fuses
Class T – 600 Volts, 35-60 Amps

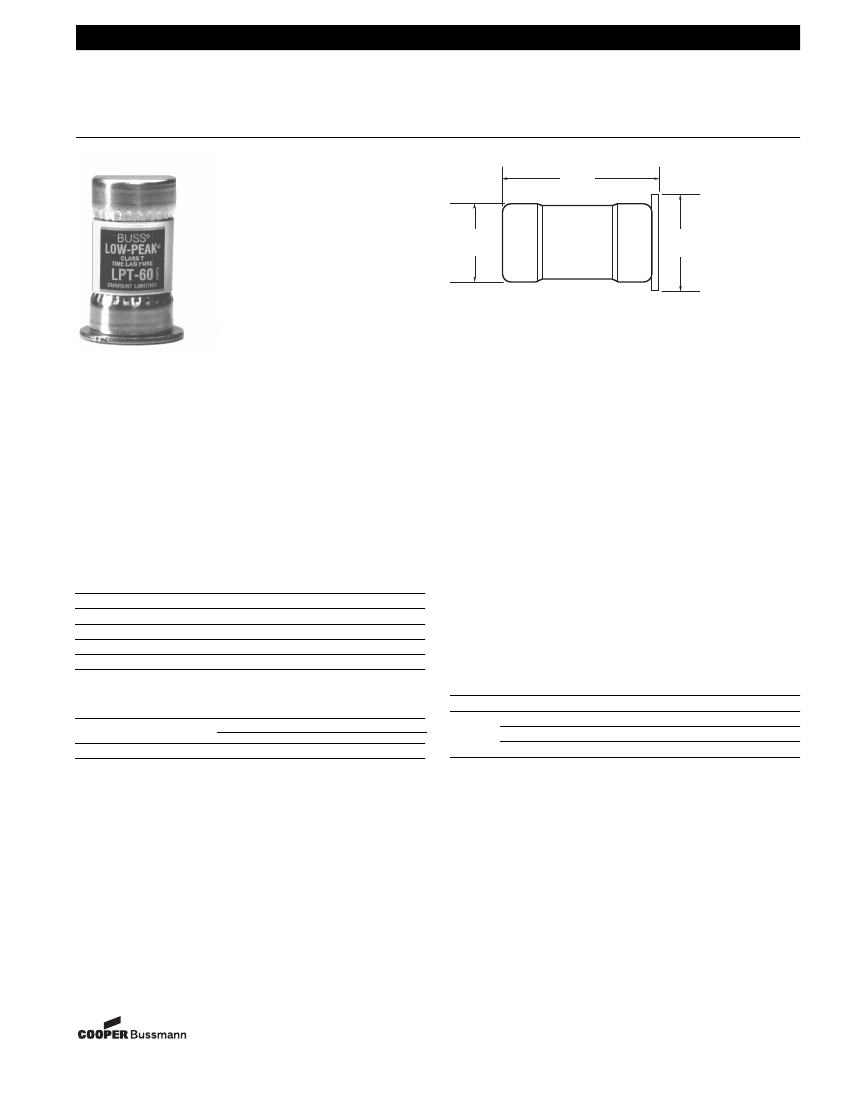

Dimensional Data
1.56"
(0.06mm)
LPT
0.81"
(0.03mm)
35–60A
1.00"
(0.04mm)
CATALOG SYMBOL: LPT
35 TO 60 AMPERES
600 VOLTS AC (OR LESS)*
CURRENT LIMITING
INTERRUPTING RATING - 200,000A RMS SYM.
U.L. LISTED CLASS T
(GUIDE # JDDZ, FILE # E4273)
CSA HRCI-T
(CLASS 1422-02, FILE # 53787)
* Self certified for 300V DC, 10kA interrupting rating.
LPT Low-Peak
®
Yellow Time Lag Fuse
• A superior all-purpose space saving branch circuit fuse that
meets most protection requirements up to 60 amps.
• Very compact, physical size is only .81” x 1.56” (20.6mm x
39.7mm) with 1.0” Class T rejection feature.
• Time lag to avoid unwanted fuse openings from surge cur-
rents when sized appropriately per NEC
®
.
• For protection of motor circuits up to 15 horsepower at 460V,
or 20 horsepower at 575V.
• Fast response under short-circuit conditions for a high
degree of current limitation.
• Maximum interrupting rating of 200,000 amperes for use in
today’s large capacity systems.
Catalog Symbols and Ampere Ratings
LPT-35
LPT-40
LPT-45
LPT-50
LPT-60
Standard T Fuseblocks (600V)
Catalog Data (reference BIF Document: 1116)
Carton Quantity and Weight-LPT Time Lag (600V AC)
Ampere
Ratings
35-60
Carton
Qty
10
Weight**
Lbs.
0.82
Kg.
0.371
Amps
35
to
60
Poles
1
2
3
Screw No.
T60060-1SR
T60060-2SR
T60060-3SR
Box Lug
T60060-1CR
T60060-2CR
T60060-3CR
**Weight per carton.
12-21-98
SB98107
Rev. A
Form No. LPT
Page 1 of 2
BIF Document:1031
Bussmann
®
Low-Peak
®
Yellow Time Lag Fuses
Class T – 600 Volts, 35-60 Amps
Current Limitation Curves
B
35
1,000
60
LPT
Time-Current Characteristic Curves–Average Melt
AMPERE
RATING
INSTANTANEOUS PEAK LET-THRU CURRENT IN AMPS
400,000
100,000
AMPERE
RATING
100
10,000
60
35
10
TIME IN SECONDS
1,000
A
100
1
100,000
200,000
10,000
1,000
100
.1
RMS SYMMETRICAL CURRENTS IN AMPERES
A–B=ASYMMETRICAL AVAILABLE PEAK (2.3 X SYMM RMS AMPS)
Motor Application
Per NEC 430-52: LPT fuses may be sized at a maximum of
300% of motor F.L.A. (or next standard fuse size, if 300%
does not correspond to a standard fuse size). For longer
acceleration times, fuse sizing can be increased but shall not
exceed 400%.
10,000
CURRENT IN AMPERES
