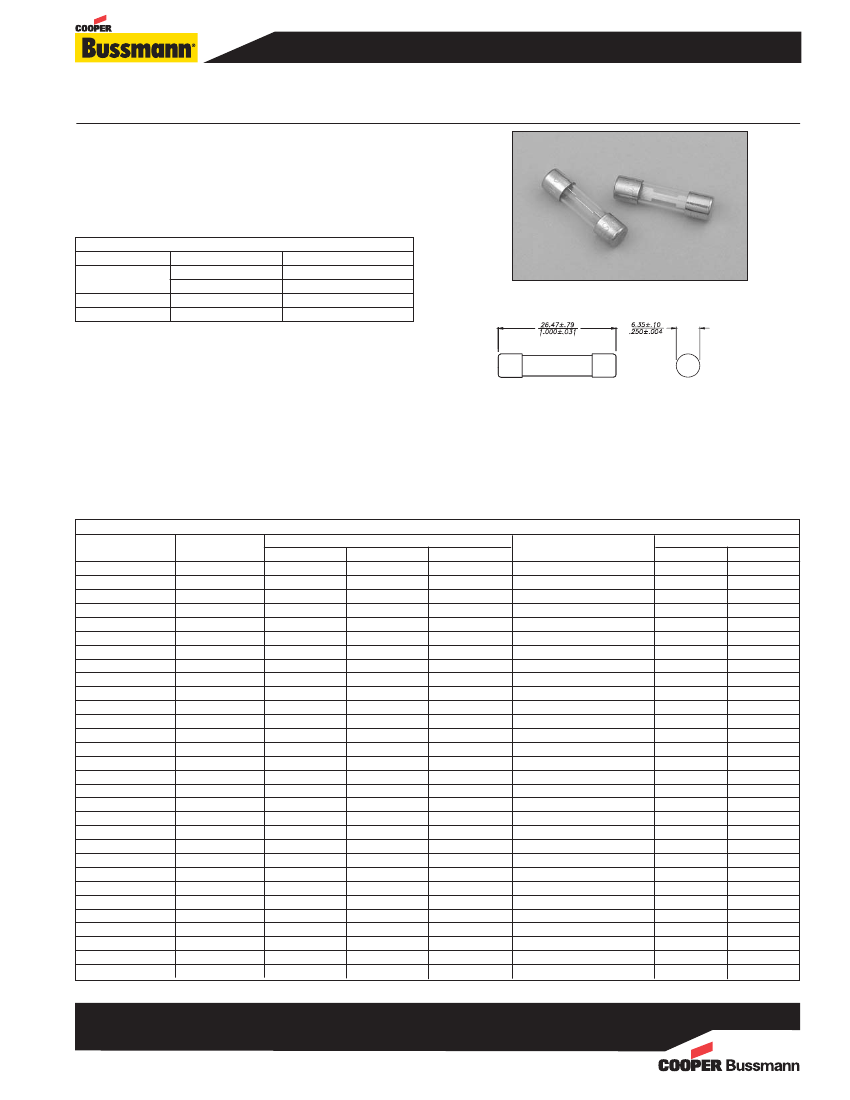

" x 1" Fast-Acting, Glass Tube Fuses
AGX Series
Description
• Fast-acting glass tube fuse
•
1
⁄
4
" x 1" (6.3 x 25.4mm) physical size
• Glass tube, nickel-plated brass endcap construction
• For instruments, electronic and small appliance circuits
• UL Listed product meets standard 248-14
Rated Current
1
⁄
16
- 30A
1
⁄
16
- 2A
2.5 - 30A
Electrical Characteristics
% of Amp Rating
Opening Time
110%
4 hours minimum
135%
60 minutes maximum
200%
5 seconds maximum
200%
2 minutes maximum
Dimensions - mm (in)
Agency Information
• cULus: AGX 0-10A (Guide JDYX, File E 19180 and
Guide JDYX7, File E19180)
• UL Recognized Card: AGX 15-30A (Guide JDYX2, File
E19180)
• CSA Component Acceptance Card : AGX 15-30A
(Class No. 1422-01, File 53787)
Ordering
Specify product code
• Insert packaging code prefix before part number, E.g.
BK/AGX-1
Specifications
Part Number
-(amps)
AGX-1/200
AGX-1/100
AGX-1/32
AGX-1/16
AGX-1/10
AGX-1/8
AGX-3/16
AGX-2/10
AGX-1/4
AGX-3/10
AGX-3/8
AGX-4/10
AGX-1/2
AGX-3/4
AGX-1
AGX-1-1/4
AGX-1-1/2
AGX-2
AGX-2-1/2
AGX-3
AGX-4
AGX-5
AGX-6
AGX-7
AGX-8
AGX-10
AGX-15
AGX-20
AGX-25
AGX-30
Voltage
Rating Vac
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
32
32
32
32
Interrupting Rating (amps)
250Vac
125Vac
32Vac
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
200
10,000
-
200
10,000
-
200
10,000
-
200
10,000
-
200
10,000
1000
200
10,000
1000
-
-
1000
-
-
1000
-
-
1000
-
-
1000
Typical DC Cold
Resistance (Ω)*
285.00
155.00
35.00
22.50
10.25
5.41
3.1150
2.66000
2.79000
1.42500
0.93050
0.89900
0.47850
0.26000
0.16250
0.12750
0.09400
0.06825
0.04930
0.03825
0.02700
0.02050
0.01475
0.01275
0.01100
0.00867
0.00510
0.00358
0.00275
0.00215
Agency Approval
cULus
UR
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Note *Typical DC Cold Resistance (Measured at <10% of rated current)
1110
BU-SB101313
Page 1 of 2
Data Sheet 2041

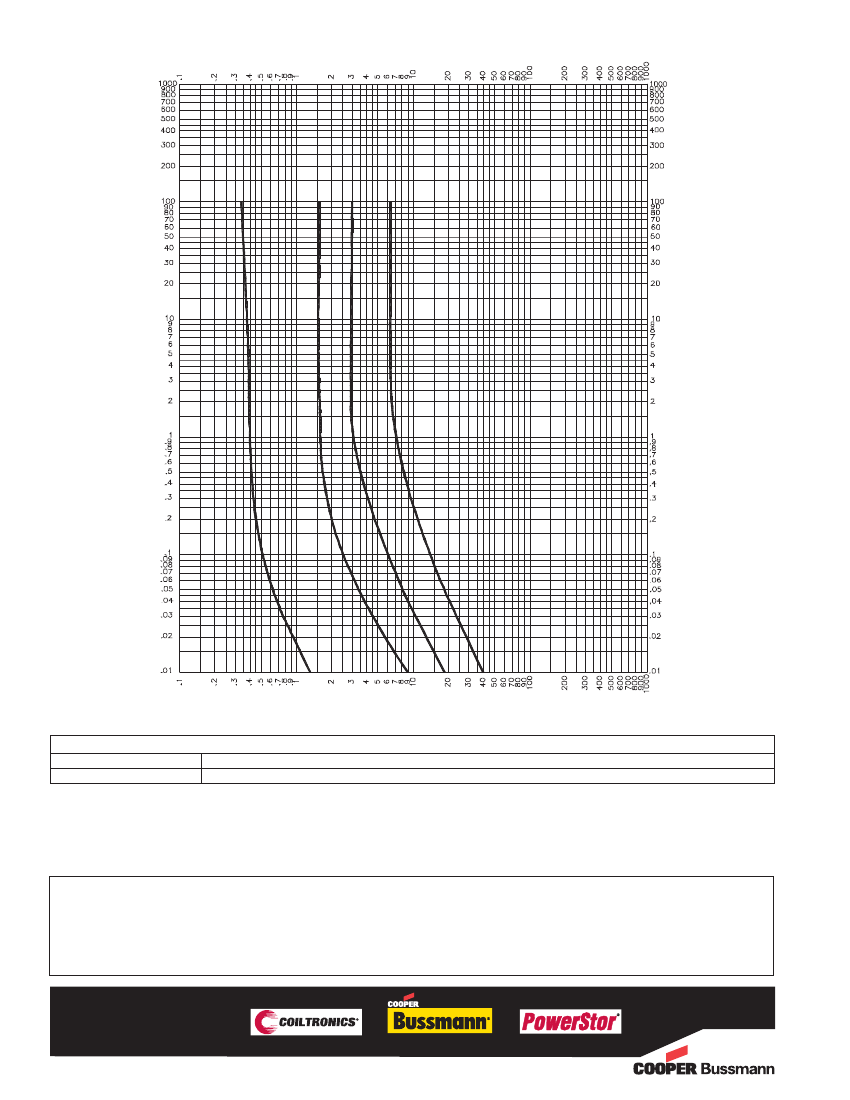

Time-Current Curve
CURRENT IN AMPS
1/4
2
1
5
TIME IN SECONDS
TIME IN SECONDS
CURRENT IN AMPS
Packaging
Packaging Code Prefix
BK
Description
100 fuses packed into a cardboard carton
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2010 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
1110
BU-SB101313
Page 2 of 2
Data Sheet 2041
