89707.5.N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 89707.5.N

89707.5.N: Descriptionautomotive fuses 7.5A 58vdc Brwnmini mini fuse; CategoryCircuit protection; File Size99KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

89707.5.N Overview

automotive fuses 7.5A 58vdc Brwnmini mini fuse

89707.5.N Parametric

Parameter Name	Attribute value
Manufacture	Littelfuse
Product Category	Automotive Fuses
RoHS	N
Current Rating	7.5 A
Voltage Rating DC	58 V
Mounting Style	Holde
Termination Style	Blade
Fuse Type	Fast Blow
Fuse Size / Grou	Mini
Col	Brow
Dimensions	10.9 mm L x 8.73 mm W
Indicator Style	Without Indic
Case Heigh	3.81 mm
Case Length	10.9 mm
Case Width	8.73 mm
Interrupt Rating	1 kA at 32 V
Operating Temperature Range	- 40 C to + 125 C
Produc	Automotive Fuses
Factory Pack Quantity	5000
Type	Low Profile Mini Blade Fuse

Preview

Download Datasheet

View All

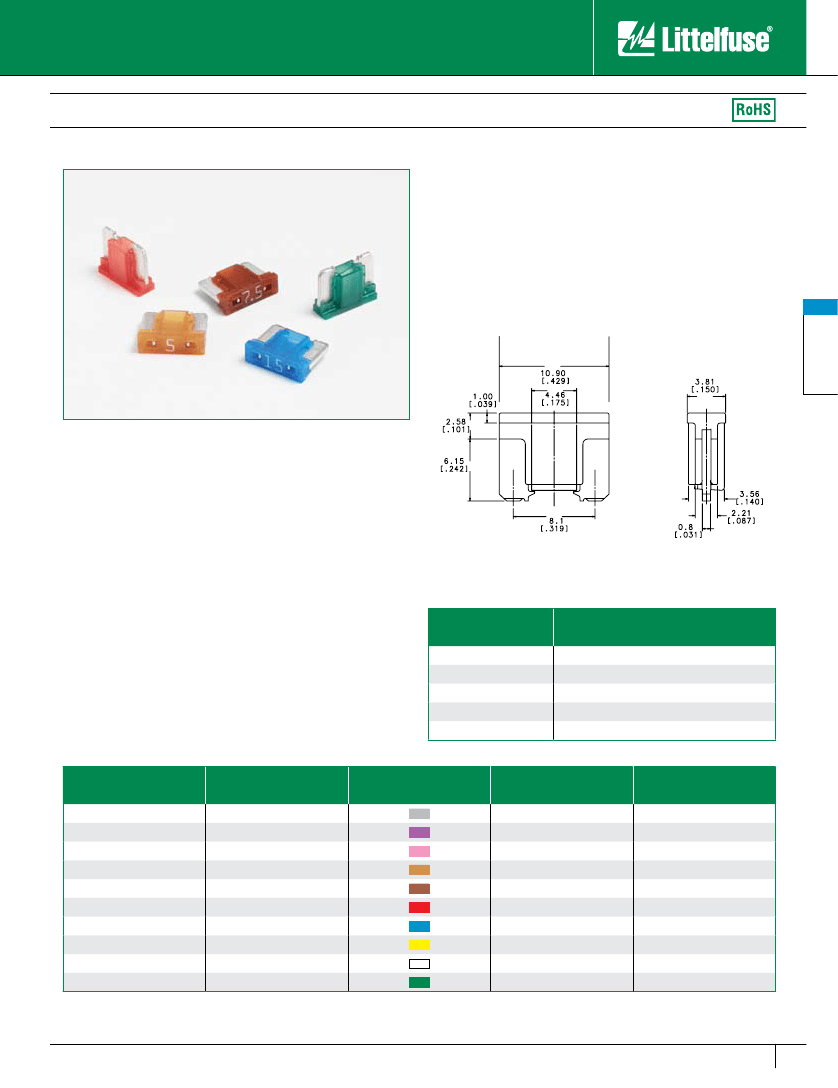

Blade Fuses

Low Profile MINI

Fuses Rated 58V

Specifications

Voltage Rating:

Interrupting Ratings:

Operating Temperature Range:

58 VDC

1000A @ 32 VDC

-40˚C to +125˚C

Dimensions in mm / Maße in mm

Blade Fuses

The Low Profile MINI fuse has similar performance

characteristics as the standard MINI fuse. The lower overall

height allows for more space and weight savings. The Low

Profile MINI fuse is designed to mate with tuning-fork terminals,

which provides additional weight and material savings in fuse

box designs by eliminating the need for female box terminals.

Low-Profile-MINI Sicherungen bieten ähnliche

Leistungsmerkmale wie Standard-MINI-Sicherungen.

Ihre geringere Gesamthöhe ermöglicht Platz- und

Gewichtseinsparungen. Sie sind für offene Kabelschuhe/

Gabelkontakte ausgelegt, sodass Kontaktbuchsen entfallen und

zusätzliche Gewichts- und Materialeinsparungen beim Entwurf

von Sicherungskästen erzielt werden können.

Time-Current Characteristics / Schmelzzeit-Grenzwerte

% of Rating

% des Nennstromes

110

135

200

350

600

Opening Time Min / Max (s)

Schmelzcharakteristik Min / Max (s)

100 h / –

750 ms / 1800 s

150 ms / 5 s

80 ms / 250 ms

30 ms / 100 ms

Part Number

Artikel-Nr.

0897002_

0897003_

0897004_

0897005_

089707.5_

0897010_

0897015_

0897020_

0897025_

0897030_

Current Rating

Nennstrom

7.5 A

10 A

15 A

20 A

25 A

30 A

Housing Color

Kennfarbe

Cold Resistance

Kaltwiderstand

–

Last figure of part number = packaging code, see Section “Packaging Index,” pg. 157.

Corresponding holder see Section “Fuse Holders.”

•

Automotive Circuit Protection Products

www.littelfuse.com

89707.5.N Related Products

	89707.5.N	0897004.N	897020.N
Description	automotive fuses 7.5A 58vdc Brwnmini mini fuse	automotive fuses 4A 58vdc pink Lo profile mini fuse	automotive fuses 20a 58vdc yllw mini mini fuse
Manufacture	Littelfuse	Littelfuse	Littelfuse
Product Category	Automotive Fuses	Automotive Fuses	Automotive Fuses
RoHS	N	Yes	N
Current Rating	7.5 A	4 A	20 A
Voltage Rating DC	58 V	58 V	58 V
Mounting Style	Holde	Holde	Holde
Termination Style	Blade	Blade	Blade
Fuse Type	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	Mini	Mini	Mini
Col	Brow	Pink	Yellow
Dimensions	10.9 mm L x 8.73 mm W	10.9 mm L x 8.73 mm W	10.9 mm L x 8.73 mm W
Indicator Style	Without Indic	Without Indic	Without Indic
Case Heigh	3.81 mm	3.81 mm	3.81 mm
Case Length	10.9 mm	10.9 mm	10.9 mm
Case Width	8.73 mm	8.73 mm	8.73 mm
Interrupt Rating	1 kA at 32 V	1 kA	1 kA at 32 V
Operating Temperature Range	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C
Produc	Automotive Fuses	Automotive Fuses	Automotive Fuses
Factory Pack Quantity	5000	5000	5000
Type	Low Profile Mini Blade Fuse	Low Profile Mini Blade Fuse	Low Profile Mini Blade Fuse
