BK/TDC180-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK/TDC180-13

BK/TDC180-13: Descriptionspecialty fuses 240v 13a british plg top fast act 1 X 1/4; CategoryCircuit protection; File Size47KB，1 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric Compare View All

BK/TDC180-13 Overview

specialty fuses 240v 13a british plg top fast act 1 X 1/4

BK/TDC180-13 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Specialty Fuses
RoHS	Yes
Body Style	Cartridge Fuses
Current Rating	13 A
Voltage Rating AC	240 V
Voltage Rating DC	240 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Fast Blow
Fuse Size / Grou	8AG
Indicator Style	Without Indic
Dimensions	25.4 mm L x 6.3 mm D
Case Diamete	6.3 mm
Case Length	25.4 mm
Interrupt Rating	50 Amps
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	100
Type	British Plug Top Fuse
Unit Weigh	2.722 g

Preview

Download Datasheet

View All

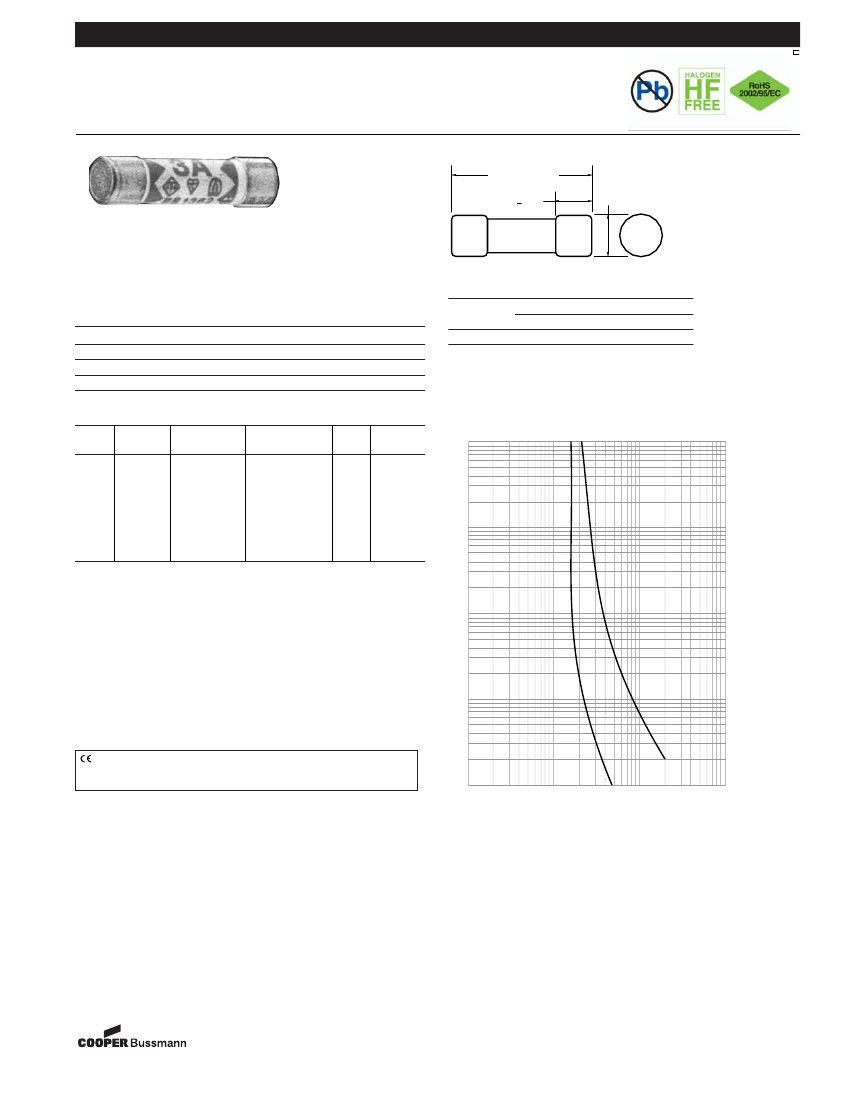

Bussmann

TDC180

British Plug Top Fuse

Fast/Medium

Dimensional Data

25.4mm +0.8

-0.4

5.5mm + 0.8

6.3mm +0.2

-0.05

Catalog Symbol:TDC180

FAST/MEDIUM BRITISH PLUG TOP FUSE

240Vac

BS1362, IEC 269-3A

Electrical Ratings (Catalog Symbol and Amperes)

240Vac

TDC180-1A

TDC180-2A

TDC180-3A

TDC180-5A

TDC180-7A

TDC180-10A

TDC180-13A

—

Limits for Pre-arcing Time

1.0 In.

1A - 13A

MIN

1000 hours

1.6 In.

MIN

30 min.

1.9 In.

MAX

30 min.

Envelope

Rated

Current

10A

13A

240

(264 max.)

6000A

264

VAC

, 50Hz

p.f. 0.3 - 0.4

1 Watt

Rated

Volt AC

Breaking

Capacity

Power

Dissipation Max.

Color

Black

Red

Black

Brown

Asta,

CCC

Approvals

100

AMPERE

RATING

TIME IN SECONDS

• Type TDC180.

• 1/4” x 1” fast/medium British plug top fuse.

• Ceramic tube - end caps: - 2-5A nickel-plated brass

- 1A & 7A silver-plated copper

- 10-13A nickel-plated copper

• Packaging: x 10, x 100, x 1000.

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 636-527-1270 for more information.

TIMES RATED CURRENT

Complies with EU Directive

2002/95/EC (RoHS)

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clearly

present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products

and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it

should be tested by the user in all possible applications.

0111

BU-SB11079

Form No. TDC180

Page 1 of 1

Data Sheet: 2042

100

.01

BK/TDC180-13 Related Products

	BK/TDC180-13	BK/TDC180-2	BK/TDC180-7	BK/TDC180-5
Description	specialty fuses 240v 13a british plg top fast act 1 X 1/4	specialty fuses brit plugtop fus240v	specialty fuses brit plugtop fus240v	specialty fuses 5A 240v 1 X 1/4
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses
RoHS	Yes	In Transiti	Yes	Yes
Body Style	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
Current Rating	13 A	2 A	7 A	5 A
Voltage Rating AC	240 V	240 V	240 V	240 V
Mounting Style	Holde	Holde	Holde	Holde
Termination Style	Cli	Cli	Cli	Cli
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	8AG	8AG	8AG	8AG
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic
Dimensions	25.4 mm L x 6.3 mm D	25.4 mm L x 6.3 mm D	25.4 mm L x 6.3 mm D	25.4 mm L x 6.3 mm D
Case Diamete	6.3 mm	6.3 mm	6.3 mm	6.3 mm
Case Length	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Packaging	Bulk	Bulk	Bulk	Bulk
Produc	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses
Factory Pack Quantity	100	100	100	100
Type	British Plug Top Fuse	British Plug Top Fuse	British Plug Top Fuse	British Plug Top Fuse
Unit Weigh	2.722 g	2.722 g	2.268 g	453.592 mg
