JS-1137B-09

Description
Board Connector, 9 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug
CategoryThe connector    The connector
File Size125KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

JS-1137B-09 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug

JS-1137B-09 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1294394940
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.154 inch
subject depth0.264 inch
body length0.945 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage800VAC V
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialPOLYAMIDE
Plug contact pitch0.098 inch
Installation option 1LOCKING
Installation option 2DETENTS
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts9
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG
1
2
3
4
5
6
7
8
9
A
A
B
C
D
E

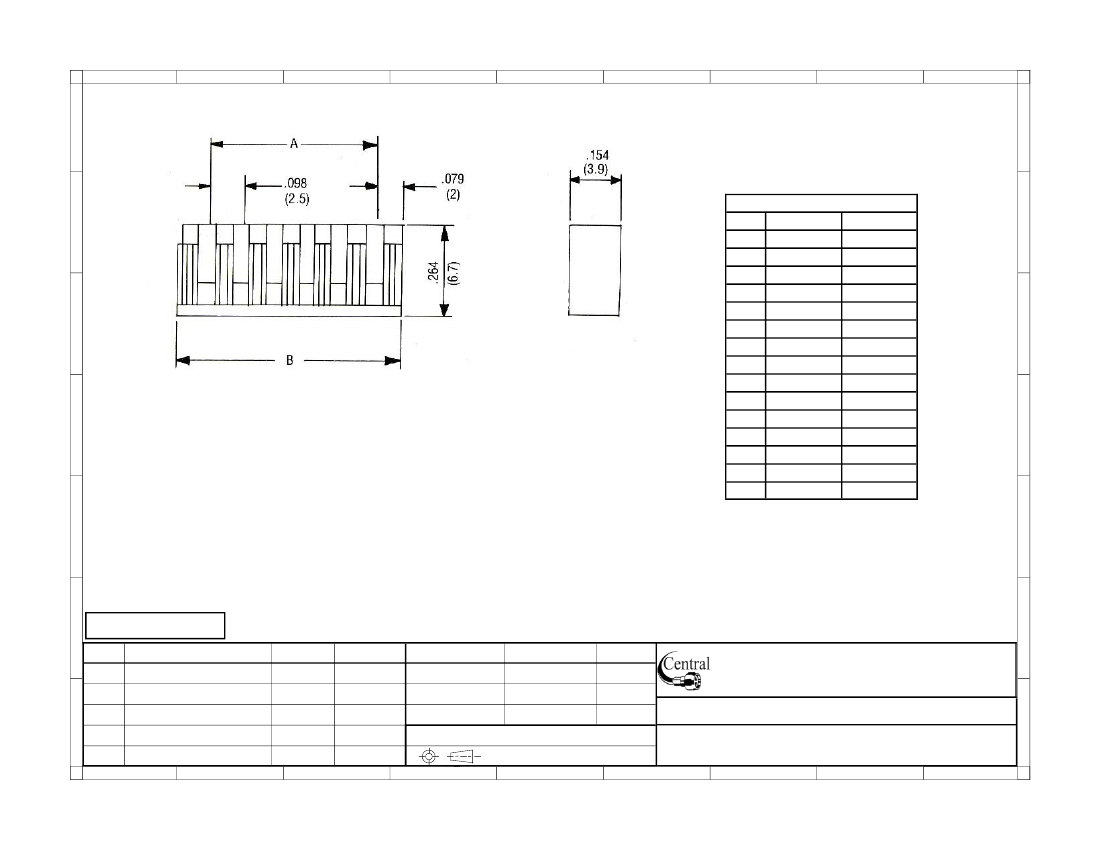

SPECIFICATIONS
Current Rating:
Voltage Rating:
Poles:
Material:
Insulation Resistance:
Applicable Wire:
PCB Thickness:
Color:
Withstanding:
Temperature Range:
3A AC, DC
250V AC, DC
2-20
Nylon 66 UL94V-0
1000MΩ min.
AWG #28-22
.047”, .063”
White, White-Ivory
800V AC
-25C to +85C
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Dimensions
A
.098
.197
.295
.394
.492
.591
..689
.787
.886
.984
1.083
1.181
1.280
1.378
1.476
B
.256
.354
.453
.551
.650
.748
.846
.945
1.043
1.142
1.240
1.339
1.437
1.535
1.634
B
C
D
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
02/09/07
02/09/07
02/09/07 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
JS-1137B-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: 0.98” Pitch Board-in Connector Housing
