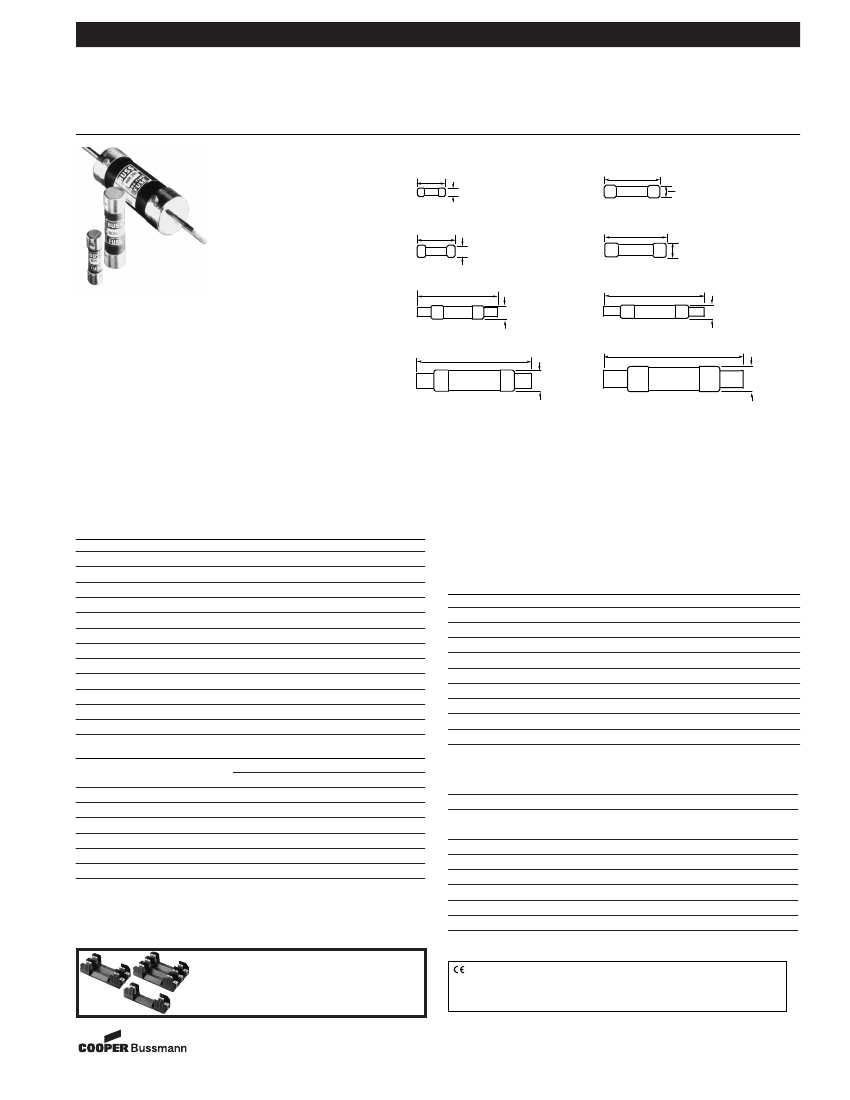

Bussmann
®
One-Time General Purpose Fuses
250 and 600 Volts, ⁄Ω• to 600 Amps
Dimensions
2" (250V)
(± 0.031)
.56" (± 0.008)
⁄Ω¡º to 30A
3" (250V)
(± 0.031)
.81" (± 0.008)
35A to 60A
5.88" (250V) (± 0.062)
7.9" (600V) (± 0.062)
1.06" (250V)
1.34" (600V)
70A to 100A
8.63" (250V) (± 0.094)
11.63" (600V) (± 0.094)
2.06" (250V)
2.59" (600V)
225A to 400A
NON and NOS
All diameters (± 0.008)
5" (600V)
(± 0.031)
0.81" (± 0.008)
⁄Ω¡º to 30A
5.5" (600V)
(± 0.031)
1.06" (± 0.008)
35A to 60A
7.13" (250V) (± 0.062)
9.63" (600V) (± 0.062)
1.56" (250V)
1.84" (600V)
110A to 200A
10.38" (250V) (± 0.094)
13.38" (600V) (± 0.094)
2.59" (250V)
3.13" (600V)
450A to 600A
Catalog Symbol:
NON (250V); NOS (600V)
For general purpose application
Ampere Rating:
⁄Ω•
to 600A
Voltage Rating:
NON: 250Vac, 125Vdc (0-100A);
NOS: 600Vac
Non-Current-Limiting
Interrupting Rating:
50,000A RMS Sym. (0-60A),
10,000A RMS Sym. (65-600A), 50,000A @ 125Vdc (NON 0-60),
10,000A @ 125Vdc (NON 65-100A)
Agency Information:
UL Listed - 250V: Class K5 (0-60A), Std. 248-9
Class H (65-600A), Std. 248-6
(125Vdc: NON 0-100)
600V: Class K5 (0-60A), Std. 248-9
Class H (70-600A), Std. 248-6
UL Guide JDDZ, File E4274
CSA Certified, Class 1421-01, File 53787 (0-12 & 65-600A)† 250V
(0-600A) 600V
Catalog Numbers—NON ONE-TIME (250Vac)
NON-⁄Ω•
NON-⁄Ω™
NON-‹Ω¢
NON-°Ω¡º
NON-1
NON-1⁄Ω¢
NON-1⁄Ω™
NON-1flꭧ
NON-2
NON-2⁄Ω™
NON-3
NON-3¤Ω¡º
NON-4
NON-5
NON-6
NON-6⁄Ω¢
NON-7
NON-8
NON-9
NON-10
NON-12
NON-15
NON-20
NON-25
NON-30
NON-35
NON-40
NON-45
NON-50
NON-60
NON-65
NON-70
NON-75
NON-80
NON-90
NON-100
NON-110
NON-125
NON-150
NON-175
NON-200
NON-225
NON-250
NON-300
NON-350
NON-400
NON-450
NON-500
NON-600
—
—
—
General Information:
• Protect lighting, heating and other circuits not subject to tem-
porary surges and where available short-circuit currents are
relatively low.
• ONE-TIME fuses do not have any appreciable degree of time-
delay and thus should not be specified in circuits where large
transients or motor overloads occur. Use Buss FUSETRON
®
or LOW-PEAK
®
dual-element, time-delay fuses.
• For general purpose circuits, size at ampere rating of circuit.
• For motor circuits, size at 300% to 400%.
Catalog Numbers—NOS ONE-TIME (600Vac)
NOS-1
NOS-2
NOS-3
NOS-4
NOS-5
NOS-6
NOS-7
NOS-8
NOS-9
NOS-10
NOS-12
NOS-15
NOS-20
NOS-25
NOS-30
NOS-35
NOS-40
NOS-45
NOS-50
NOS-60
NOS-70
NOS-75
NOS-80
NOS-90
NOS-100
NOS-110
NOS-125
NOS-150
NOS-175
NOS-225
NOS-250
NON-300
NOS-350
NOS-400
NOS-450
NOS-500
NOS-600
—
Carton Quantity and Weight—NON ONE-TIME (250Vac)
Catalog
Number
NON ⁄Ω•–30
NON 35–60
NON 65–100
NON 110–200
NON 225–400
NON 450–600
Carton
Qty.
10
10
5
1
1
1
Weight**
Lbs.
0.38
1.00
0.79
0.79
1.65
2.76
Kg.
0.172
0.453
0.358
0.358
0.748
1.251
Carton Quantity and Weight—NOS ONE-TIME (600Vac)
Catalog
Number
NOS 1–30
NOS 35–60
NOS 70–100
NOS 110–200
NOS 225–400
NOS 450–600
**Weight per carton.
Carton
Qty.
10
10
5
1
1
1
Weight**
Lbs.
1.45
2.6
2.80
1.24
3.03
4.63
Kg.
0.657
1.179
1.270
0.562
1.374
2.100
NON -(1/8-60) is rated at 125Vdc with 50,000 AIC Rating.
NON -(65-100) is rated at 125Vdc with 10,000 AIC Rating.
**Weight per carton.
†
For CSA Certified 15-60A Ratings, see PON Data Sheet: 4126
Recommended fuseblocks for
Class H & K5, 250V & 600V fuses
See Data Sheets: 1112 (250V) and
1113 (600V)
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Applies to OPM-1038 and OPM-1038R.
10-2-02
SB02295
Form No. NON/ NOS
Page 1 of 2
Data Sheet: 1030
Bussmann
®
One-Time General Purpose Fuses
250 and 600 Volts,
⁄Ω•
to 600 Amps
NON and NOS
NON ONE-TIME (250Vac)
60A
100A
200A
15A
20A
30A
35A

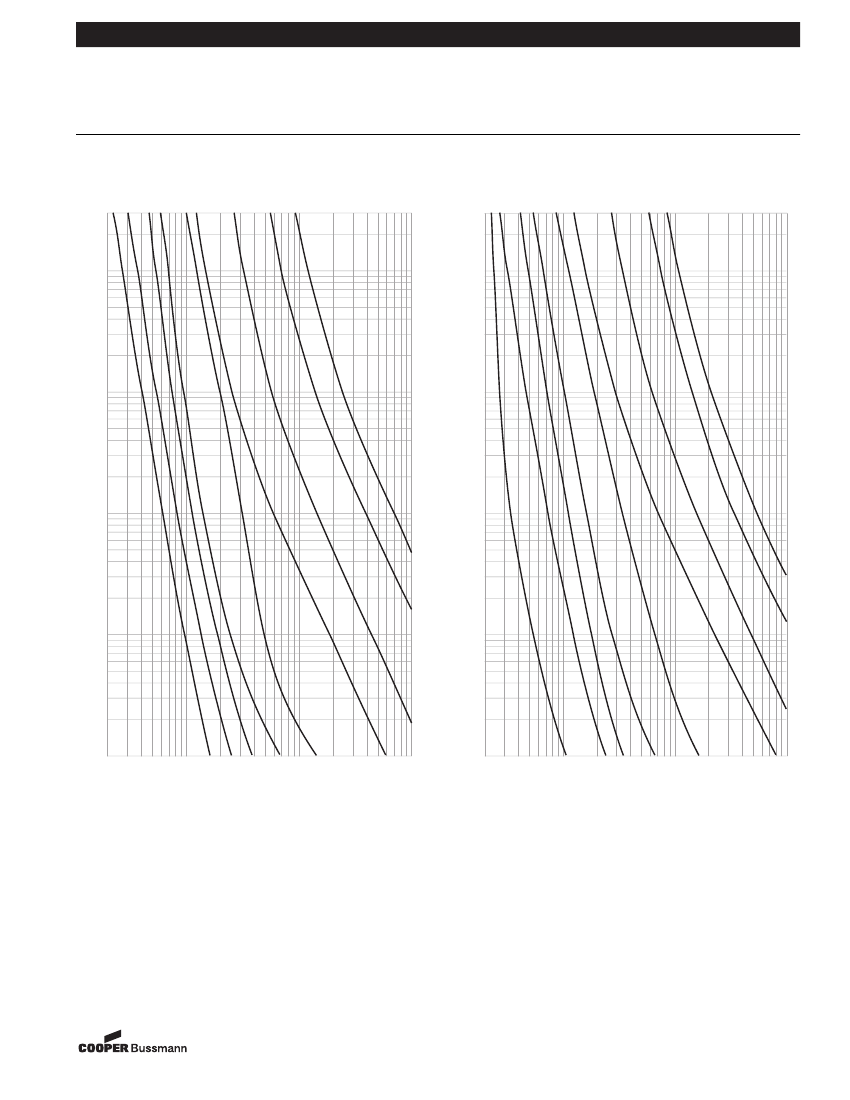

Time-Current Characteristic Curves–Average Melt
NOS ONE-TIME (600Vac)
400A
600A
100A
200A
400A
15A
20A
30A
35A
60A
AMPERE
RATING
600A
AMPERE
RATING
300
300
100
100
10
10
TIME IN SECONDS
1
TIME IN SECONDS
1
.1
.1
.08
.06
.04
.03
.02
1,000
CURRENT IN AMPERES
10,000
CURRENT IN AMPERES
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
10-2-02
SB02295
Form No. NON/NOS
Page 2 of 2
Data Sheet: 1030
10,000
1,000
100
100
20
20
.01
.01
