PROFESSIONAL QUALITY,
REMOVABLE CONTACT
SUBMINIATURE-D CONNECTORS
Positronic Industries
connectpositronic.com
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS
D-Sub
Size 20 Contacts,
Removable
Professional Quality
Connectors
IEC Publication 807-3
Performance Level Two
U.L. Recognized
File #E49351
CSA Recognized
File #LR54219
Telecommunication
U.L. File #14098
Di
rec
tive
2002
/9
SOLI-D SERIES TECHNICAL CHARACTERISTICS
MATERIALS AND FINISHES:
Insulator:
Contacts:
Glass filled nylon resin, UL 94V-0, black
color.
Male contacts – precision machined
brass. Female contacts – precision
machined high tensile phosphor
bronze.
Professional performance – gold flash
over nickel plate. Other finishes available
upon request.
Steel with tin plate; zinc plate with
dichromate seal. Other materials and
finishes available upon request.
Nylon plastic, or brass, zinc plate with
dichromate seal.
Phosphor bronze with tin plate.
Steel with zinc plate and dichromate
seal, or clear zinc plate.
Slide lock and lock tabs, steel with nick-
el plate.
Thermoplastic UL 94V-0. Composite,
brass or steel with zinc plate and
dichromate seal.
ELECTRICAL CHARACTERISTICS, CONTINUED:
Insulator Resistance:
Clearance and Creepage
Distance [minimum]:
Working Voltage:
5 G ohms.
0.039 inch [1.0mm].
300 V r.m.s.
Contact Plating:
CLIMATIC CHARACTERISTICS:
Temperature Range:
Damp Heat, Steady State:
-55°C to +125°C.
10 days.
Shells:
MECHANICAL CHARACTERISTICS:
Removable Contacts:
Insert contact to rear face of insulator and
release from rear face of insulator. Size 20
contacts, male – 0.040 inch [1.02mm]
diameter; female – Robi-D contact open
entry design.
6 lbs. [27 N].
Closed barrel crimp, wire sizes 18 AWG
[1.0mm
2
] through 32 AWG [0.03mm
2
].
Also, solder cup and straight printed
board mount terminations.
Male shells may be dimpled for EMI/ESD
ground paths.
Trapezoidally shaped shells and polar-
ized jackscrews.
Rapid installation push-on fasteners.
Jackscrews and vibration locking
systems.
500 operations minimum per IEC 512-5.
Mounting Spacers:
Push-On Fasteners:
Jackscrew Systems:
Vibration Lock Systems:
Hoods:
Contact Retention
In Insulator:
Contact Terminations:
Shells:
Polarization:
Printed Board Mount:
Locking Systems:
Mechanical Operations:
ELECTRICAL CHARACTERISTICS:
Contact Current Rating:
7.5 amperes nominal.
Initial Contact Resistance:
0.008 ohms maximum.
Proof Voltage:
1000 V r.m.s.
11
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
5/
EC

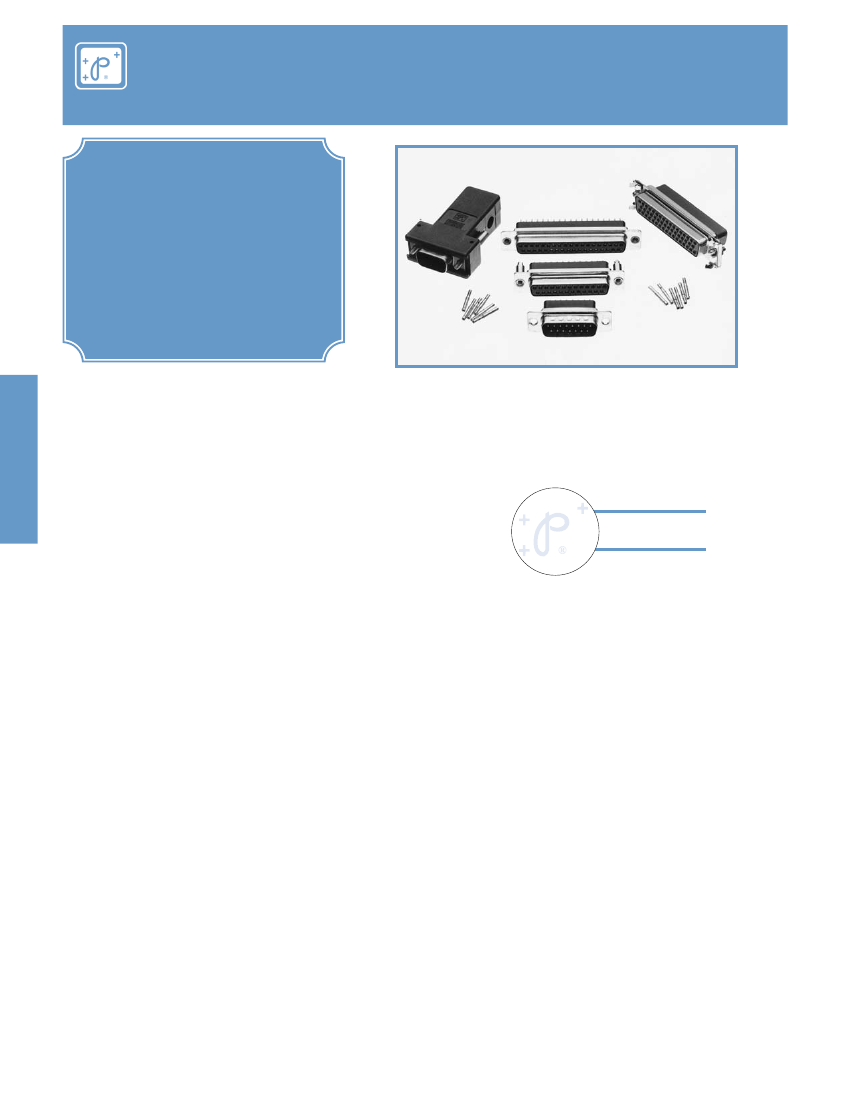

Soli-D Series connectors are professional quality connectors recom-
mended for use in sheltered, non-corrosive indoor or outdoor environ-
ments having normal ventilation, but without temperature or humidity
controls. This crimp removable contact connector will meet the
Performance Level Two requirements of IEC 807-3.
Soli-D Series connectors utilize precision machined contacts with
closed barrel, crimp terminations. The female contact features the
Robi-Contact open entry design. Other contact terminations such as
solder cup and printed board terminations are also available. The
removable contact feature provides for rapid assembly and permits
contact repairs on wiring changes.
Five standard contact variants are offered in arrangements of 9, 15,
25, 37 and 50 contacts. Soli-D Series connectors are mateable and
compatible with all D-Subminiature connectors conforming to IEC 807-
2, IEC 807-3 and MIL-DTL-24308.
A wide assortment of cable support hoods and locking systems is
available from stock.
Soli-D Series connectors conform to EIA RS 232 and RS 449, and
CCITT X.24 interface connection requirements.
F
O
R
D
E
TA
IL
SK
NIC
INDU
S
O
R
A
IT
POS
Compliant
•
SD SERIES
RoHS
S
TR
Contact Technical
Sales for details.
IES
•
pe
U
rE
D-Sub
PROFESSIONAL QUALITY,
REMOVABLE CONTACT
SUBMINIATURE-D CONNECTORS
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS
Positronic Industries
connectpositronic.com

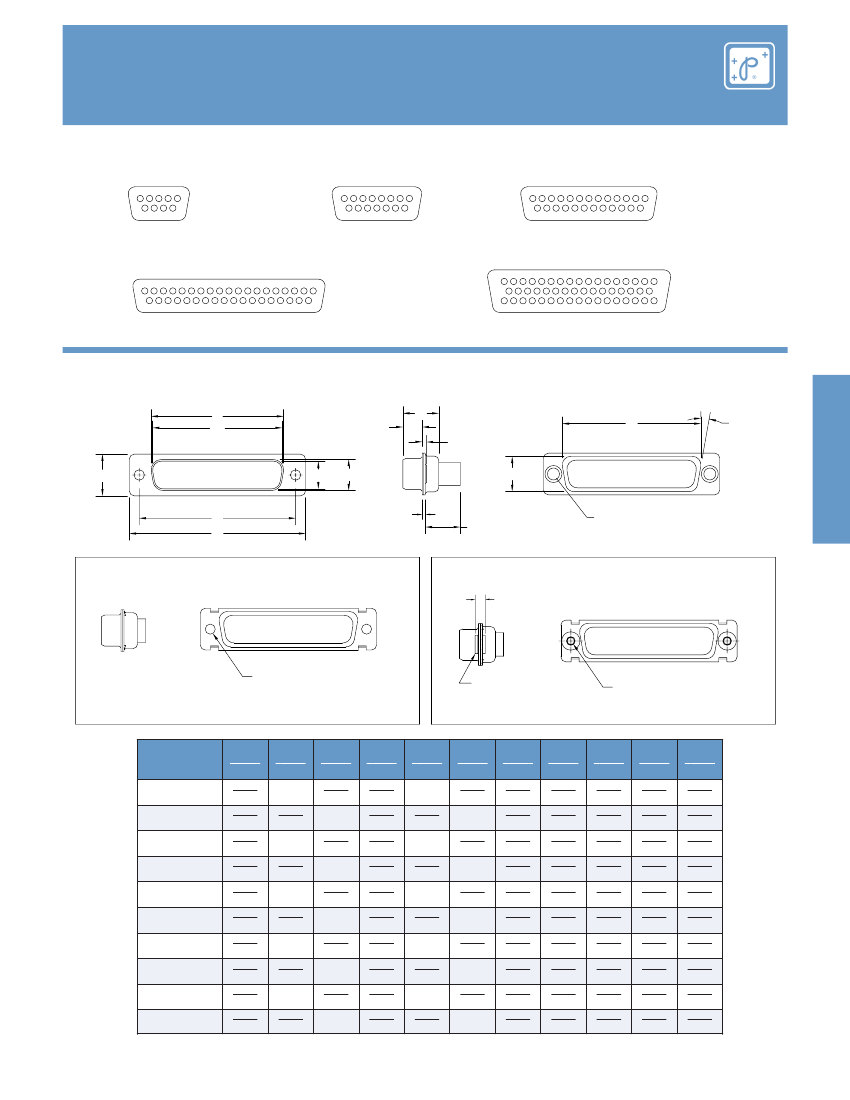

CONTACT VARIANTS
FACE VIEW OF MALE OR REAR VIEW OF FEMALE
1
2
3
4
5
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10 11 12 13
6
7
8
9
9
10 11 12 13 14 15
14 15 16 17 18 19 20 21 22
23 24 25
SD 9
SD 15
SD 25
1
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
34
35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
SD 37
SD 50

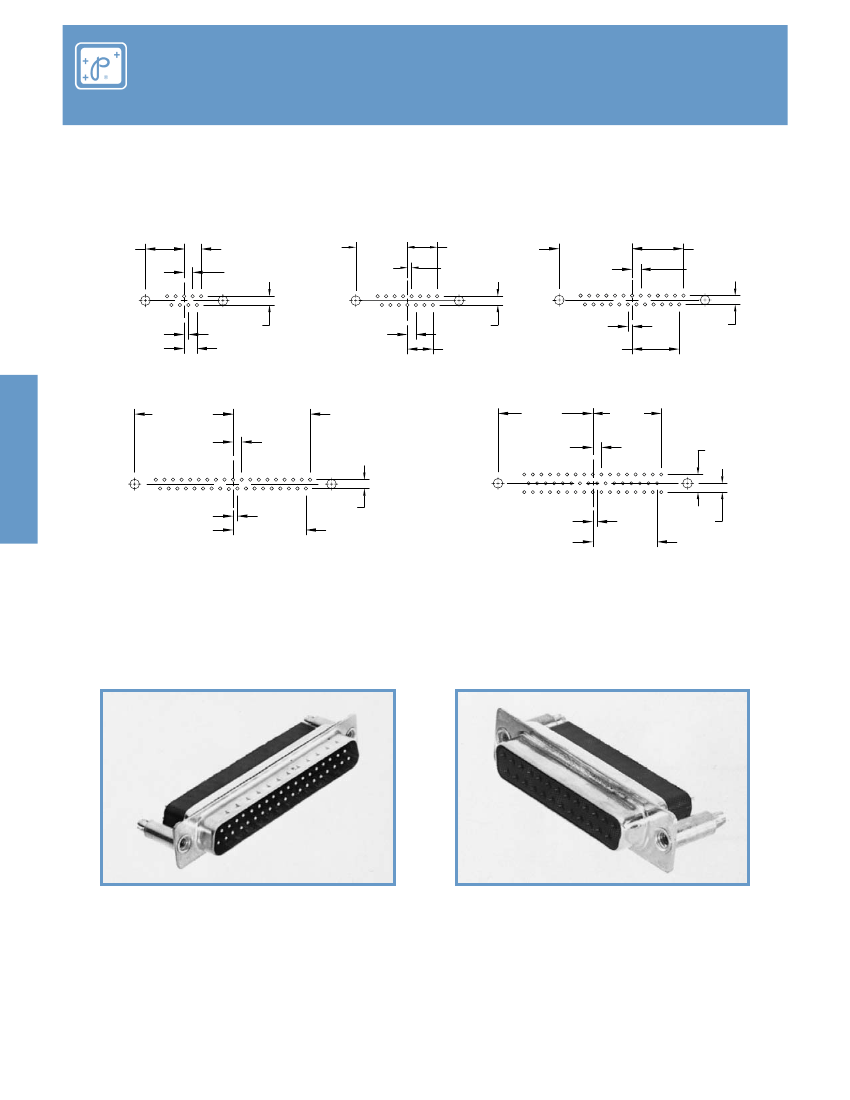

STANDARD SHELL ASSEMBLY
K
0.050±0.010
[1.27±0.25]
E
D1
D
0.036±0.008
[0.91±0.20]
H
C
A
0.437 [11.10]
Max.
Ø0.120±0.005 [Ø3.05±0.13]
Mounting hole, two places
OPTIONAL SHELL ASSEMBLY [0, 02]
OPTIONAL SHELL ASSEMBLY
WITH UNIVERSAL FLOAT MOUNTS [F]
0.120±0.010 [3.05±0.25]
Ø0.120±0.005 [Ø3.05±0.13]
Mounting hole, two places
for stainless steel shell (0 option)
Ø0.154 [3.91] Mounting hole,
two places (02 option)
0.032 [0.81]
Total diametral float
Ø0.086+0.005 Ø2.18+0.13
-0.00
-0.000
Mounting hole, two places
[
]
CONNECTOR
VARIANT SIZES
SD 9 M
SD 9 F
SD 15 M
SD 15 F
SD 25 M
SD 25 F
SD 37 M
SD 37 F
SD 50 M
SD 50 F
A
±0.015
[0.38]
1.213
[30.81]
1.213
[30.81]
1.541
[39.14]
1.541
[39.14]
2.088
[53.04]
2.088
[53.04]
2.729
[69.32]
2.729
[69.32]
2.635
[66.93]
2.635
[66.93]
B
±0.005
[0.13]
B1
±0.005
[0.13]
0.666
[16.92]
C
±0.005
[0.13]
0.984
[24.99]
0.984
[24.99]
1.312
[33.32]
1.312
[33.32]
1.852
[47.04]
1.852
[47.04]
2.500
[63.50]
2.500
[63.50]
2.406
[61.11]
2.406
[61.11]
D
±0.005
[0.13]
D1
±0.005
[0.13]
0.329
[8.36]
E
±0.015
[0.38]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.605
[15.37]
0.605
[15.37]
G
±0.010
[0.25]
0.759
[19.28]
0.759
[19.28]
1.083
[27.51]
1.083
[27.51]
1.625
[41.28]
1.625
[41.28]
2.272
[57.71]
2.272
[57.71]
2.178
[55.32]
2.178
[55.32]
H
±0.010
[0.25]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.534
[13.56]
0.534
[13.56]
K
±0.005
[0.13]
0.233
[5.92]
0.243
[6.17]
0.233
[5.92]
0.243
[6.17]
0.230
[5.84]
0.243
[6.17]
0.230
[5.84]
0.243
[6.17]
0.230
[5.84]
0.243
[6.17]
M
±0.010
[0.25]
0.422
[10.72]
0.429
[10.90]
0.422
[10.72]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.643
[16.33]
0.994
[25.25]
0.971
[24.66]
1.534
[38.96]
1.511
[38.38]
2.182
[55.42]
2.159
[54.84]
2.079
[52.81]
2.064
[52.43]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
0.441
[11.20]
0.423
[10.74]
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
12
SD SERIES
B
B1
M
G
10° Typ.
PROFESSIONAL QUALITY,
REMOVABLE CONTACT
SUBMINIATURE-D CONNECTORS
Positronic Industries
connectpositronic.com
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS
D-Sub

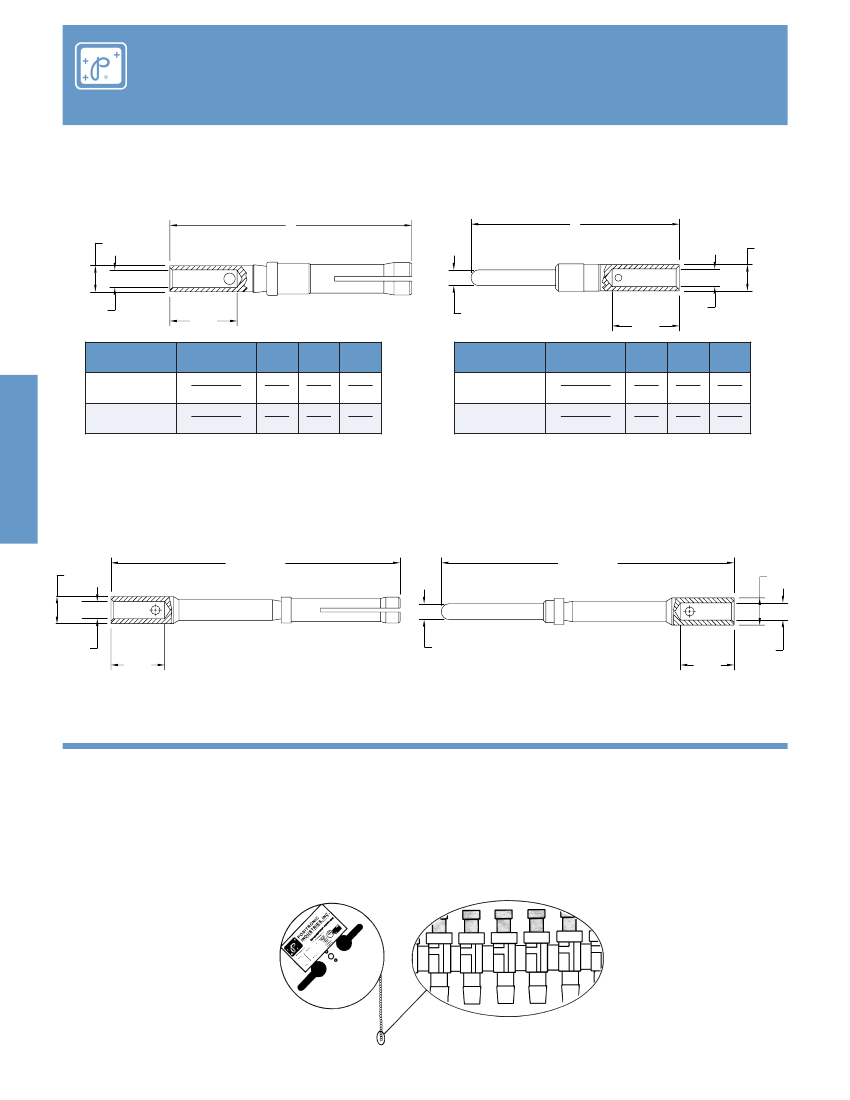

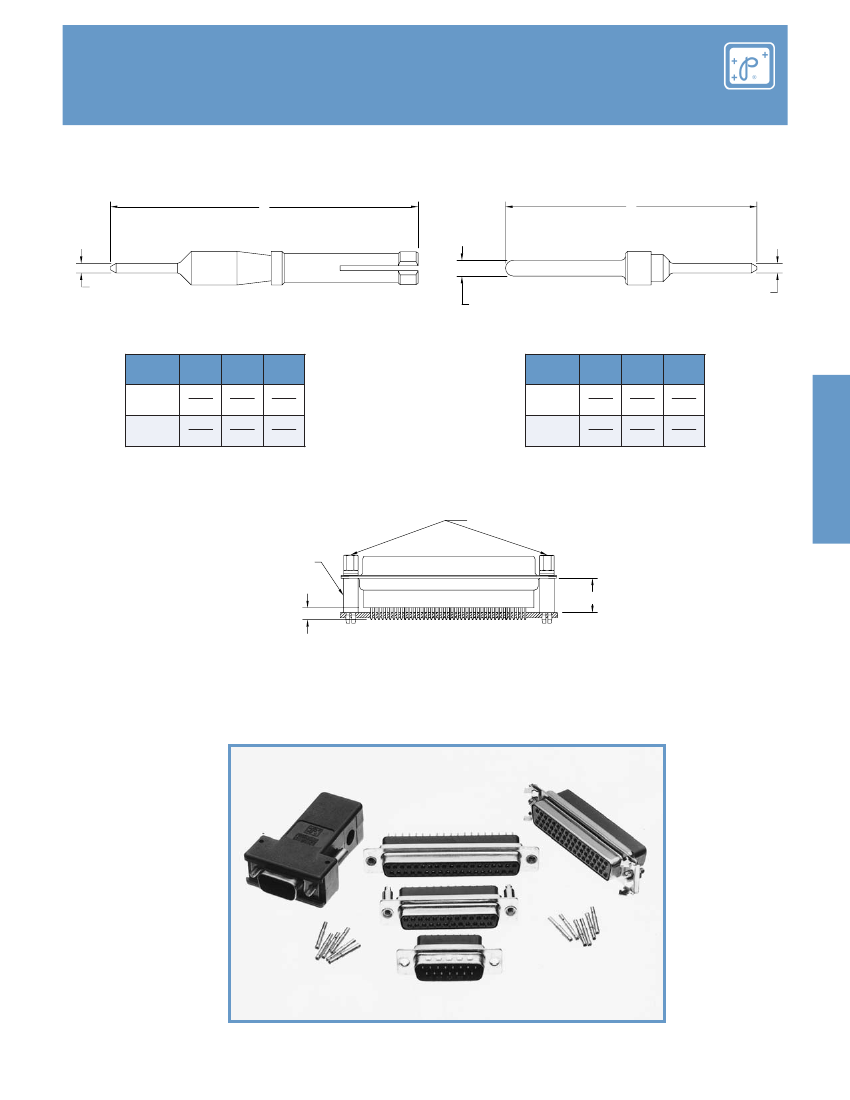

CRIMP CONTACTS
CLOSED CRIMP BARREL
FEMALE CONTACT
A
øC
MALE CONTACT
A
øC
øB
0.170
[4.32]
WIRE SIZE
AWG/[mm
2
]
20 / 22 / 24
[0.5/0.3/0.25]
26 / 28 / 30
[0.12/0.08/0.05]
A
0.612
[15.54]
0.612
[15.54]
ØB
0.045
[1.14]
0.026
[0.66]
ØC
0.066
[1.68]
0.066
[1.68]
Ø0.040
[1.02]
WIRE SIZE
AWG/[mm
2
]
20 / 22 / 24
[0.5/0.3/0.25]
26 / 28 / 30
[0.12/0.08/0.05]
øB
0.170
[4.32]
A
0.618
[15.70]
0.618
[15.70]
ØB
0.045
[1.14]
0.026
[0.66]
ØC
0.066
[1.68]
0.066
[1.68]
PART NUMBER
FC7520D
FC7526D
PART NUMBER
MC7520D
MC7526D
SD SERIES
Ø0.086
[2.18]
Ø0.055
[1.40]
Note: *C75**D contacts can not be used in the RD series.
Crimp contacts must be ordered separately.
Additional plating options available by adding suffix to part number
add -14 for 0.000030 [0.76 microns] gold over nickel
Example: FC7520D-14 or MC7518D-14
FEMALE CONTACT
18 AWG [1.0 mm
2
] max.
0.915 [23.25]
MALE CONTACT
18 AWG [1.0 mm
2
] max.
0.927 [23.55]
Ø0.086
[2.18]
0.170
[4.32]
Ø0.040
[1.02]
0.170
[4.32]
Ø0.055
[1.40]
FC7518D
M
aterial – Phosphor bronze.
Plating – Gold flash over nickel.
MC7518D
Material – Brass.
Plating – Gold flash over nickel.
REELS FOR AUTOMATIC PNEUMATIC CRIMP TOOLS
Contacts may be supplied in plastic carriers, packaged in reels holding 2,000 con-
tacts for use with the automatic pneumatic crimp tools, catalog part number 9550-1.
The same type carrier is used for both male and female contacts.
All male and female crimp contacts can be ordered in reels by adding letter “R” after
the contact part number, such as MC7526DR for a male contact and FC7520DR for
a female contact.
Enlarged section of plastic contact carriers
13
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
