252-900-1160P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 252-900-1160P

252-900-1160P: DescriptionRF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

252-900-1160P Overview

RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug

252-900-1160P Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-303; RG-141
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	25
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

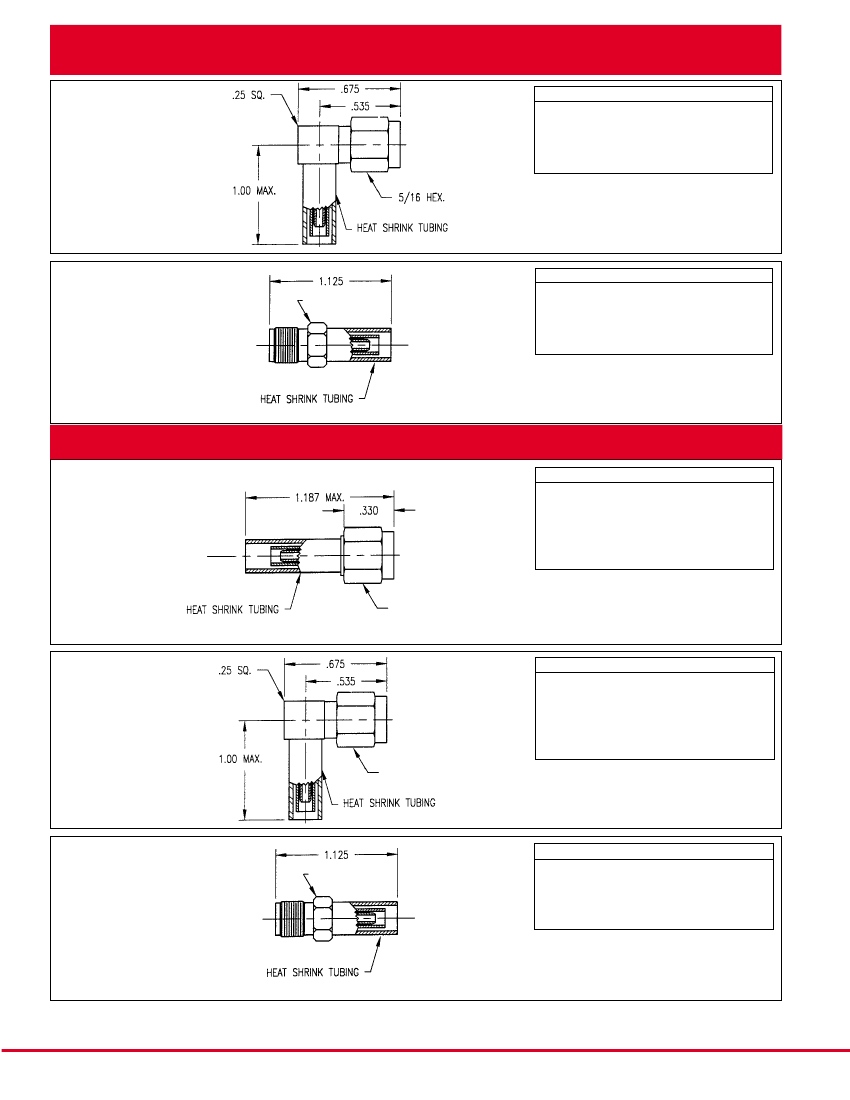

SMA STAINLESS STEEL:

12.4 GHz

Right Angle Plug

Solder Flexible Cable

Part Number

252-500-0630G

252-500-0631G

252-500-1160G

252-500-1161G

Cable

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

• See page 89 for cable assembly procedures: No. 5-05

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Straight

Jack

Non-Captive

Contact

1/4 HEX

Part Number

251-500-0630G

251-500-0631G

251-500-1160G

251-500-1161G

Cable

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

• See page 88 for cable assembly procedures: No. 5-04

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

SMA STAINLESS STEEL:

Straight Plug

Non-Captive

Contact

Crimp Flexible Cable

Part Number

250-900-0630G

250-900-0631G

250-900-1160G

250-900-1161G

250-900-1070G

Cable

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

RG-180

5/16 HEX

• See page 108 for cable assembly procedures: No. 9-04

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

12.4 GHz

Right Angle

Plug

Part Number

252-900-0630G

252-900-0631G

252-900-1160G

252-900-1161G

252-900-1070G

5/16 HEX

Cable

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

RG-180

• See page 109 for cable assembly procedures: No. 9-05

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Part Number

251-900-0630G

251-900-0631G

251-900-1160G

251-900-1161G

Cable

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

Straight Jack

Non-Captive

Contact

1/4 HEX

• See page 108 for cable assembly procedures: No. 9-04

• Part number shown is for gold plated.

• For passivated version change suffix to “P”

Note: Dimensions shown in inches.

Winchester/Retconn

RF/6

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
